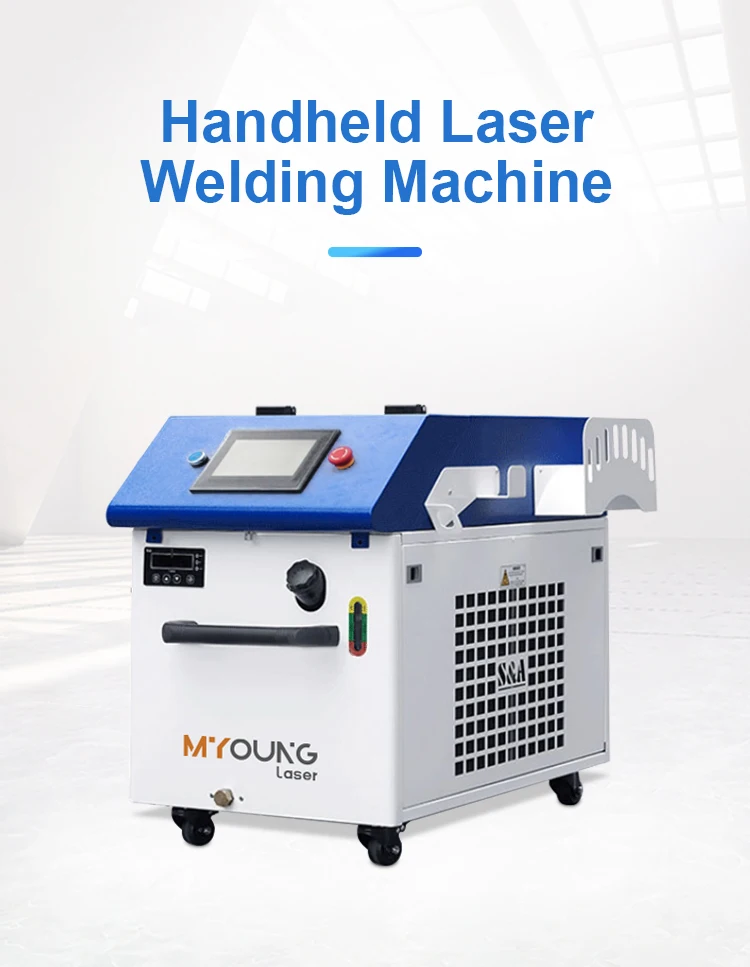

New Arrival Continuous Laser Welding soldering Machine for metal carbon steel
- Category: >>>
- Supplier: Foshan Myoung Laser Technology Co. Ltd.
Share on (1600613446972):

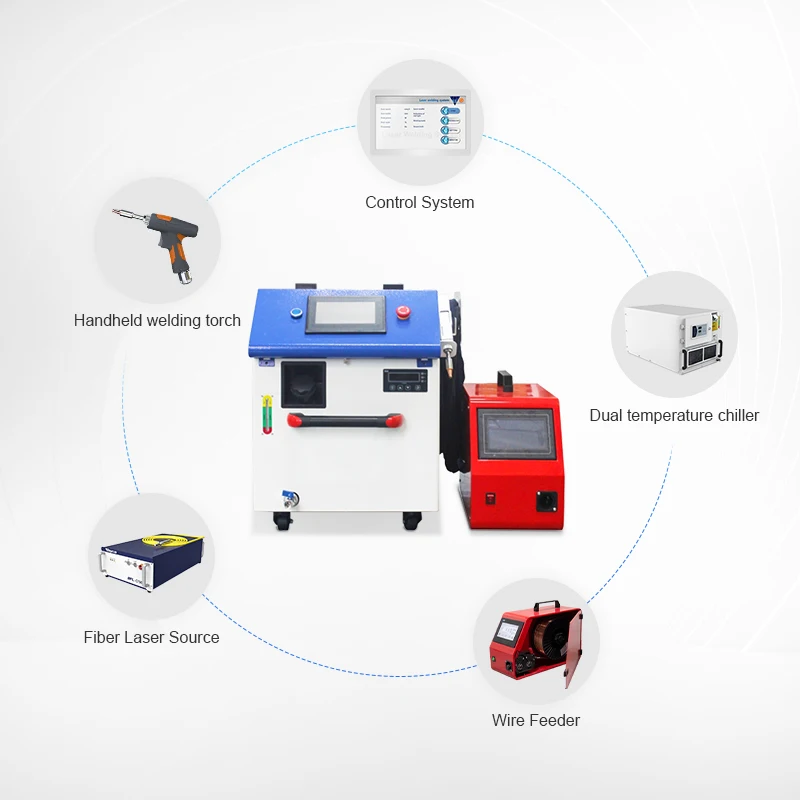

Product Overview
Description
Products Description
Product Paramenters
Model | MY-SC1000 | MY-SC1500 | MY-SC2000 | MY-SC3000 |
Laser Source | Raycus/MAX/BWT | Raycus/MAX/BWT | Raycus/MAX/BWT | Raycus/MAX/BWT |
Welding Thickness(SS) | 3mm | 4mm | 5mm | 7mm |
Welding Thickness(CS) | 3mm | 4mm | 5mm | 6mm |
Welding Thickness(AL) | 2mm | 3mm | 4mm | 6mm |
Feeding Wires' Dimension | 0.8-1.2mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-2.0mm |
Output Fiber Length | 5/10/15m(Optional) | 5/10/15m(Optional) | 5/10/15m(Optional) | 5/10/15m(Optional) |
Laser Wavelength | 1070+5nm | 1070+5nm | 1070+5nm | 1070+5nm |
Power Requirements | 220v土10%,50/60HZ,1P | 220v土10%,50/60HZ,1P | Raycusis 380V/3P and Max can be 380V/3P or 20V/1P,50HZ/60HZ | 220v土10%,50/60HZ,1P |
Welding Speed | 0-120mm/s | 0-120mm/s | 0-150mm/s | 0-160mm/s |
Gross Power | 10KW | 12KW | 15KW | 20KW |
Air Humidity | 10-90% | 10-90% | 10-90% | 10-90% |
Laser Frenquency | 50-5000HZ | 50-5000HZ | 50-5000HZ | 50-5000HZ |
Position System | Red Light Indicator | Red Light Indicator | Red Light Indicator | Red Light Indicator |
Welding Head | Wobble LaserWelding Head | Wobble LaserWelding Head | Wobble LaserWelding Head | Wobble LaserWelding Head |
Power Adjustment | 10-100% | 10-100% | 10-100% | 10-100% |
Cooling Method | Water Chiller | Water Chiller | Water Chiller | Water Chiller |
Shielding Gas Flow | 15-20L/min(Ar or N2) | 15-20L/min(Ar or N2) | 15-20L/min(Ar or N2) | 15-20L/min(Ar or N2) |
Machine Size (Mini Design) | 450*1000*680mm | 450*1000*680mm | 450*1000*680mm | 450*1000*680mm |
Weight(Mini Design) | 100 KG | 100 KG | 100 KG | 100 KG |
Machine Size (Standard Design) | 720*950*1080mm | 720*950*1080mm | 720*950*1080mm | 720*950*1080mm |
Weight (Standard Design) | 200 KG | 200 KG | 200 KG | 200 KG |

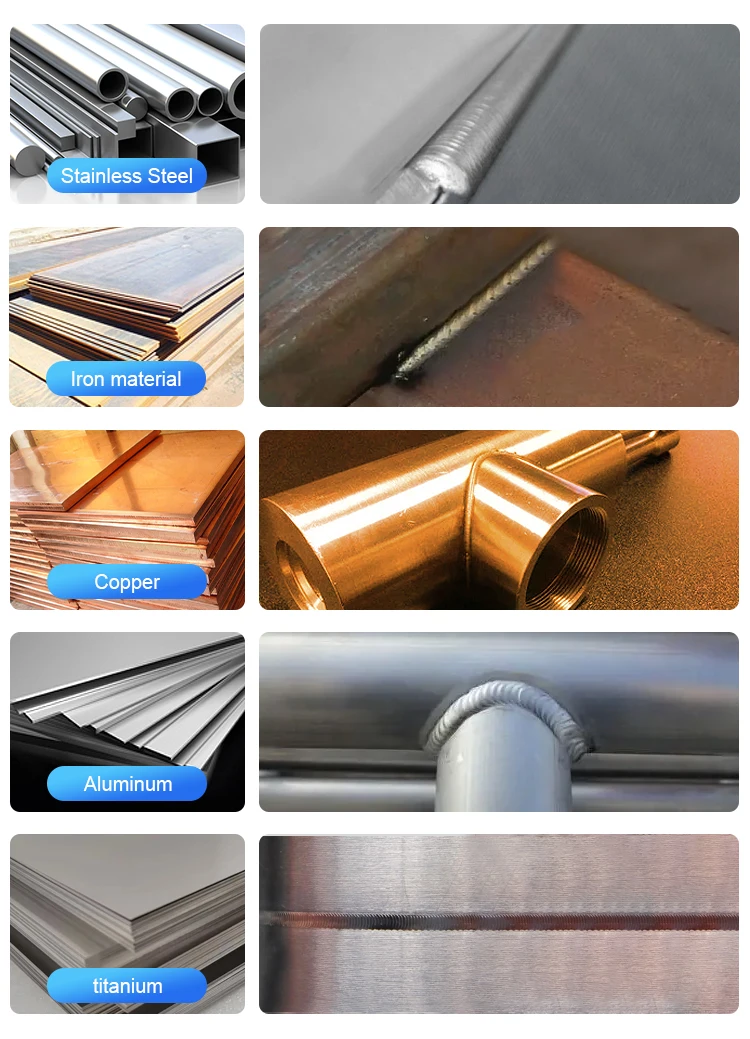

Possibilities And Materials
Our Advantages

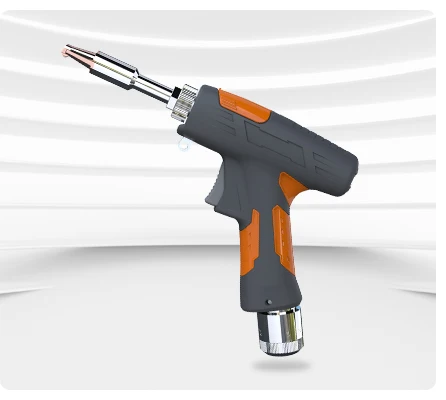

Performing extremely simple operations on the operation screen can realize the conversion of 6 kinds of welding spots,and the 6 kinds of spot modes are also the
most current handheld welding guns.
most current handheld welding guns.

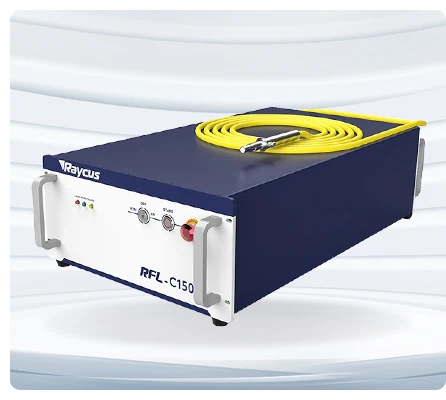

1000/1500/2000W
Laser Source
It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmission
system, which has obvious advantages over other lasers of the same type in the market.
system, which has obvious advantages over other lasers of the same type in the market.

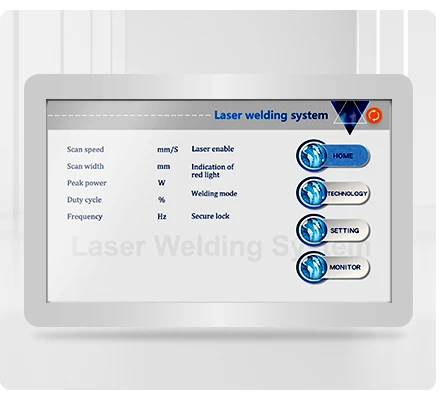

Humanized design operation panel with touch control by hand, full functions including working mode of welding/cleaning/cutting, special laser source data monitoring page, technical information, support 8
languages to meet more customers' requirements.
languages to meet more customers' requirements.

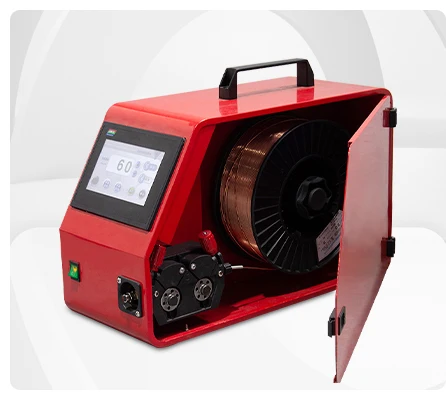

Self-developed metal sheet wire feeding control system, with function of pulling back to make up the wire. Full-featured english version control system, which can directly set the wire feeding speed/running status/continuous.
Myoung Laser Vs Other Brands
Contact Us

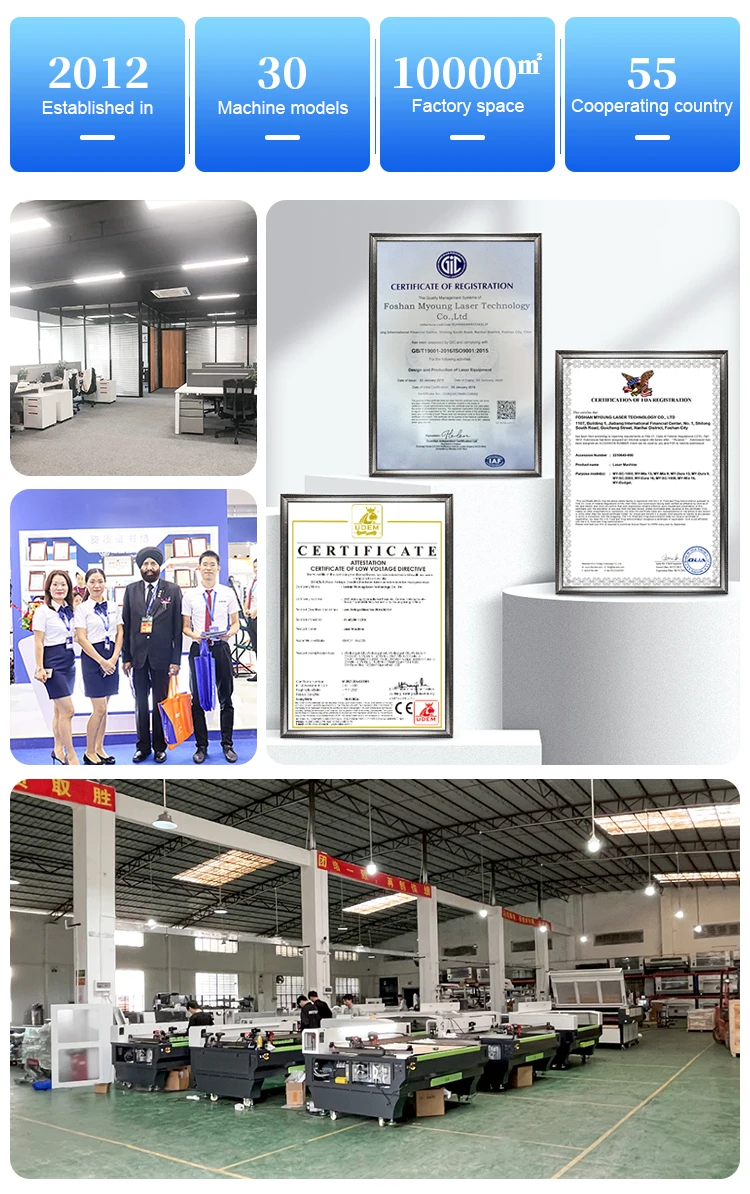

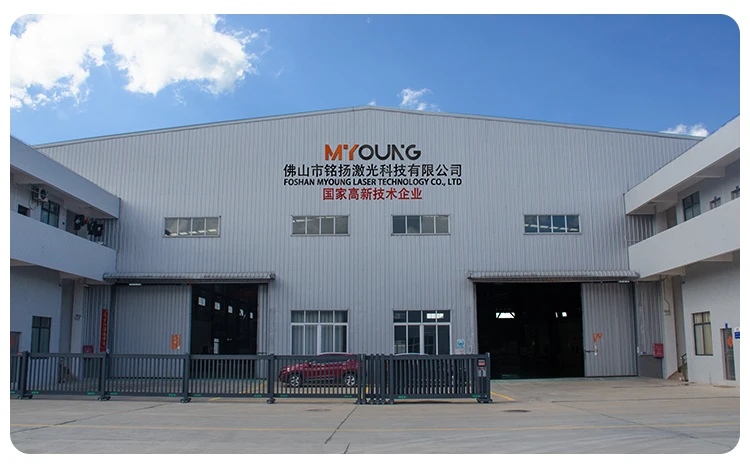

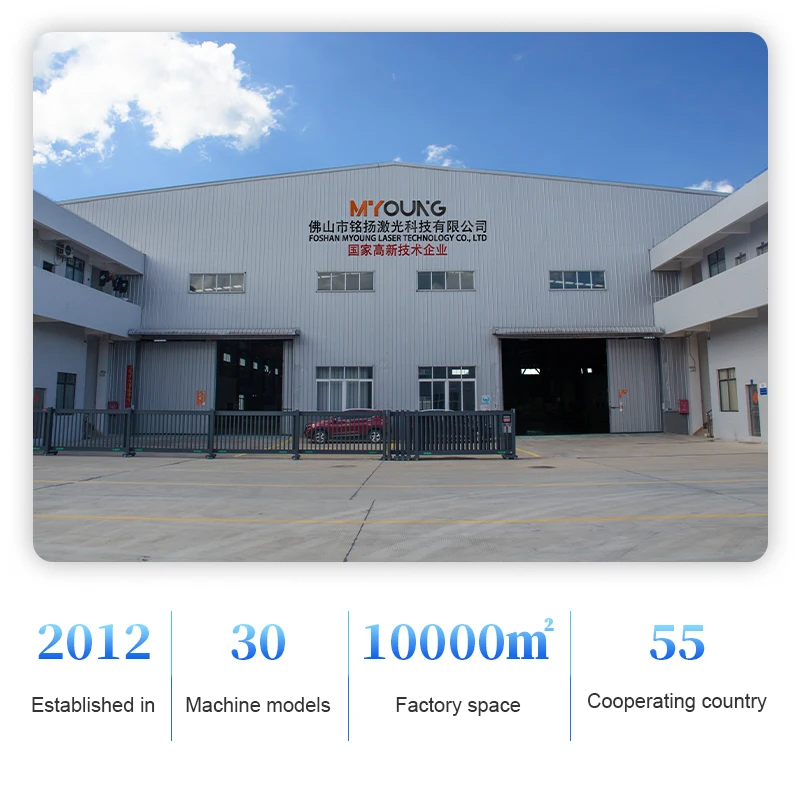

Enterprise information
Foshan Myoung Laser Technology Co., Ltd. was established in 2012. It is an emerging enterprise of laser equipments integrating R & D, manufacturing, sales and service. lt is engaged in laser process research and development, laser equipment design and
development, production, technical support, customized services and consulting .The mair products include aser cutting machines, laser welding machines, aser marking machines. industry-specific and automated laser equipments,etc.
development, production, technical support, customized services and consulting .The mair products include aser cutting machines, laser welding machines, aser marking machines. industry-specific and automated laser equipments,etc.
FAQ
Q1: What materials is this machine suitable for?
Mainly used for laser welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metals.
Q2: lf we don't know how to use the machine, do you have teaching ortraining class for us?
Yes. We have fully customers service training video for your kindlyreference, attached will also be machine cutting parameters and worknotes. lfyou still confused about it, please contact our sales and we willhelp you any mins as your service.
Q3: How long is the delivery time?
For standard machines, it would be 1-2 weeks; For non-standard machinesand customized machines according to clien's specific requirements, itwould be 3-4 weeks.
Q4: How do you guarantee the quality of the machine?
The whole production will be under regular inspection andstrict quality control. Myoung machines will be tested before shipmentwith our fully quality control system. CE Certificate qualified, meetEuropean and American standard.ean and American standard.
Q5: Do you arrange shipment for the machines?
Yes, any shipping terms could be negotiable. For EXW price,clients needto arrange shipment by themselves or their agents.
