ONU Gpon Dual band WiFi EG8145V5 Optical Terminal Unit

Product Overview

Description

Overview

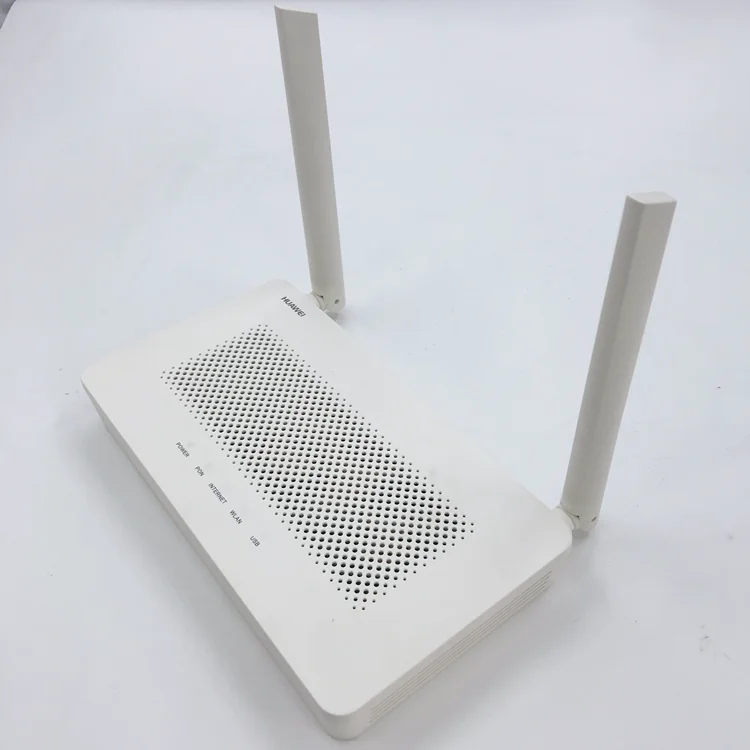

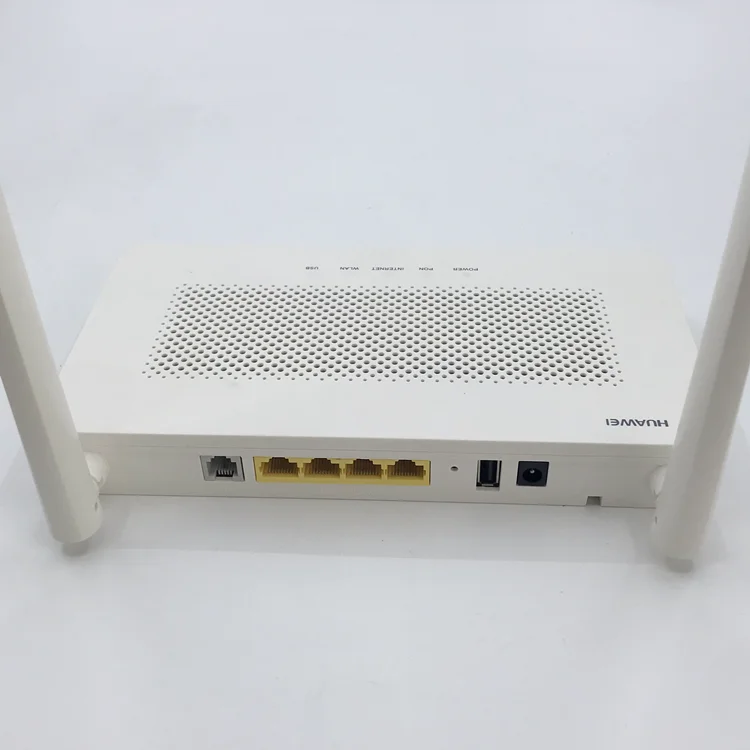

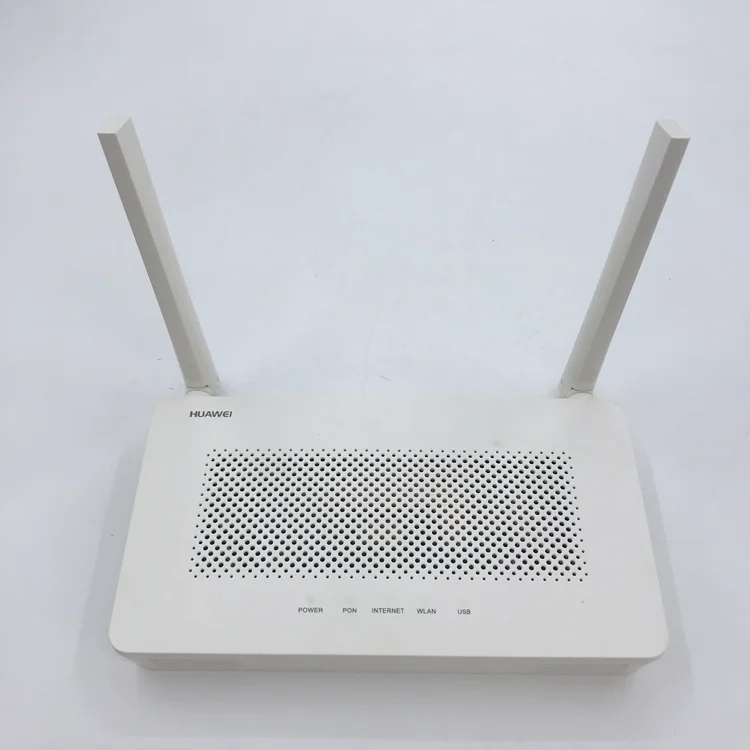

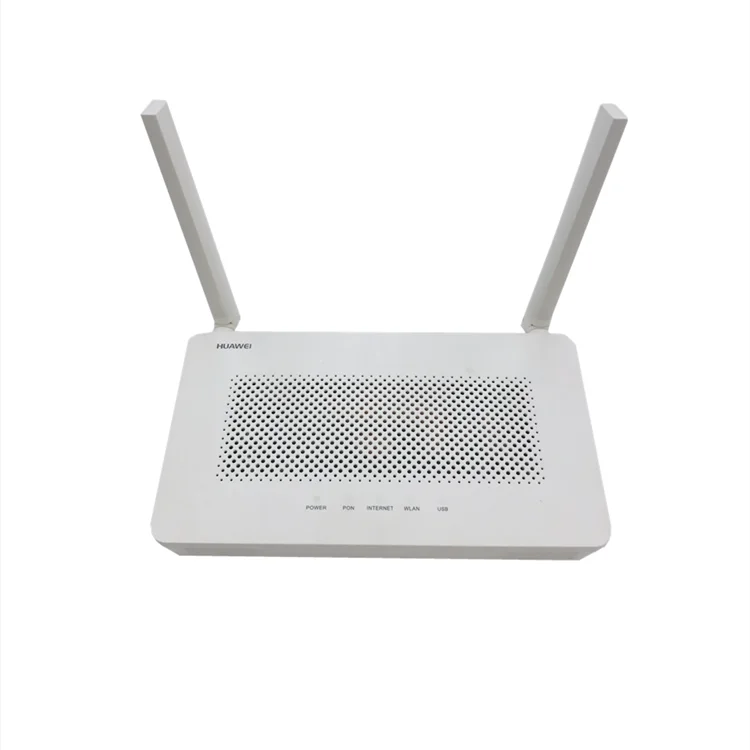

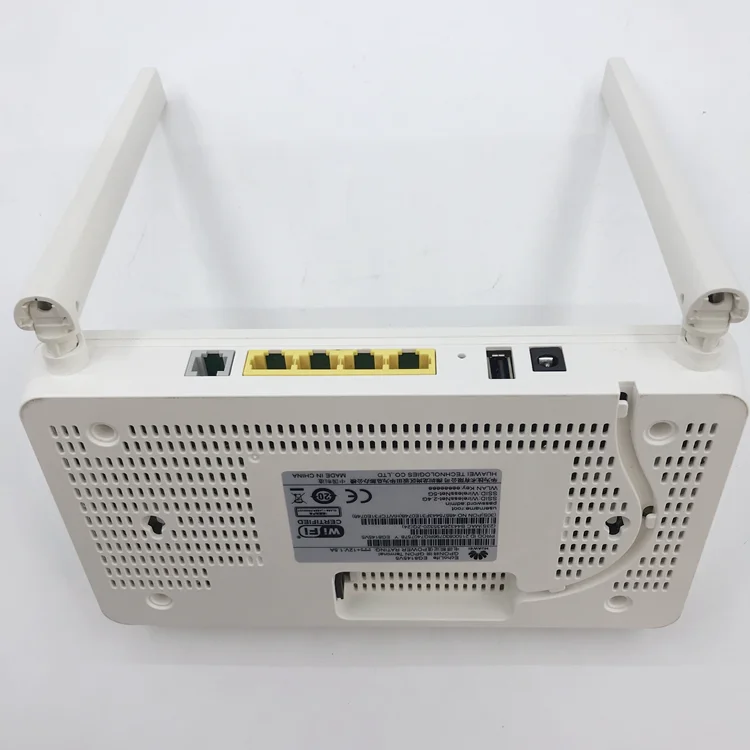

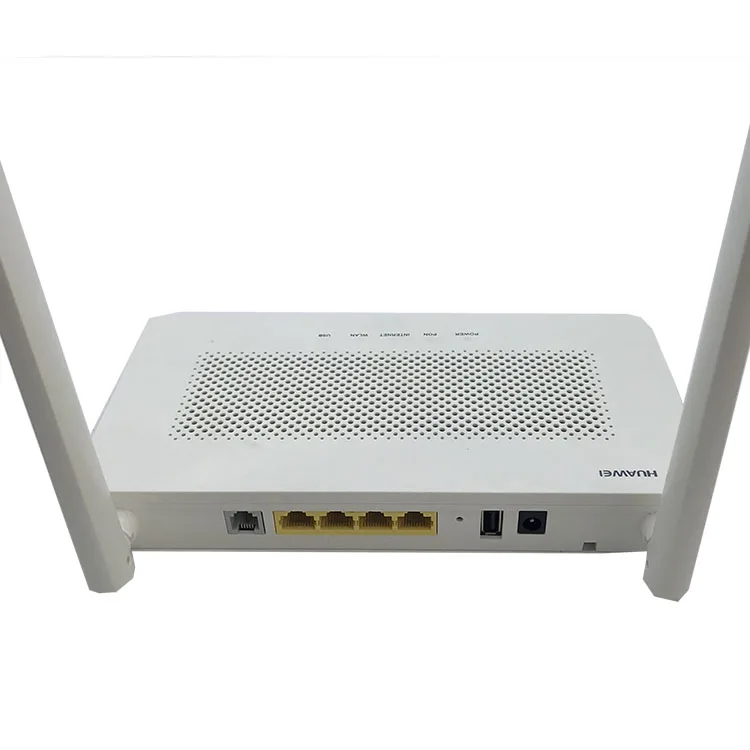

Huawei EG8145V5 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Datasheet

Brand	Huawei
Model	EG8145V5
Type	Routing
Dimensions (H x W x D)	173 mm x 120 mm x 30 mm (without antenna and pads)
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50 Hz/60 Hz
System Power Supply	11V to 14V DC, 2A
Network-side Ports	GPON
User-side Ports	1 POTS + 4 GE + Wi-Fi + USB
Indicators	POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS



Pictures
