Electric Wood Planer straight cutter surface planner Woodworking Surface Planer

Share on (1600613488555):


Price:$1,700.00 - $1,850.00

Quantity:


Product Overview

Description



PRODUCT OVERVIEW


wood surface planer
width is available as 300 mm, 400 mm, 500 mm, table length is 1800 mm, 2000 mm, 2200 mm, 2500 mm. blade optional is spiral cutter. basic mode is a flat cutter spindle. the machine mainly used to planing the surface of the wood.


DETAILS OF MACHINE

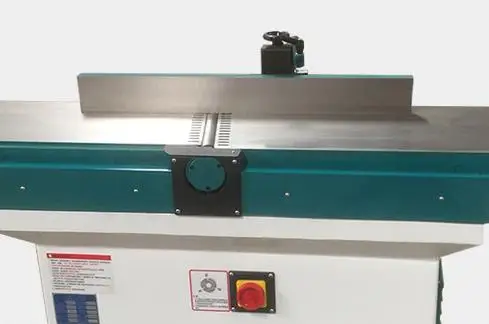

Table
table is made by our special cast iron, is more strong than others, and more durable.
table have micro adjusting. make sure the machine can work long time in high precision.


high quality motor
Machine motor is heavy duty model, lower noisy, long time working stable and powerful.


TECHNICAL PARAMETERS


Max processing width
400mm
500mm
Max planing depth
4mm
4mm
Installation power
3kw
4kw
Main Spindle speed
5800r/min
6000r/min
Working table dimension
1800*445mm
1800*545mm
Weight
370kg
420kg
Overall dimensions
1800*750*1000mm
1800*850*1000mm
