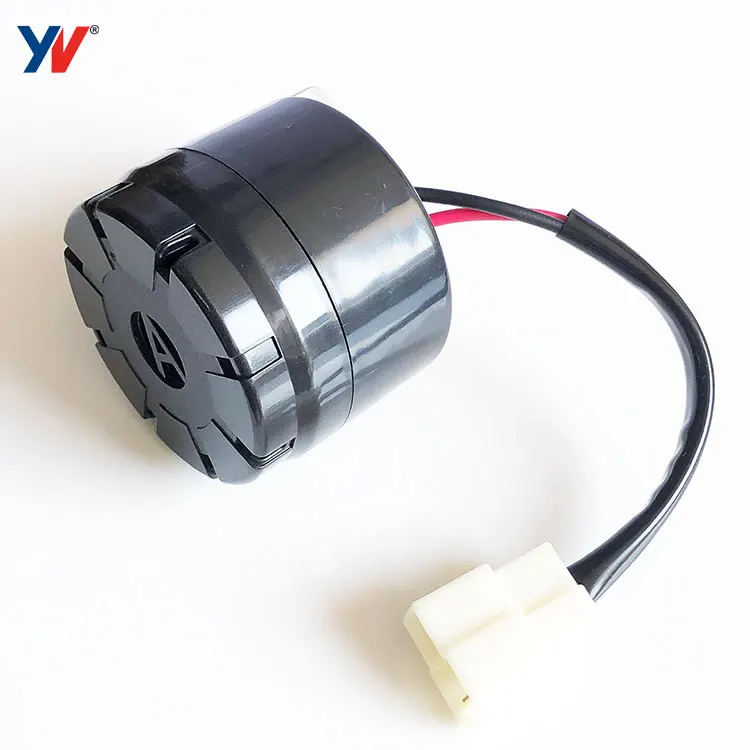

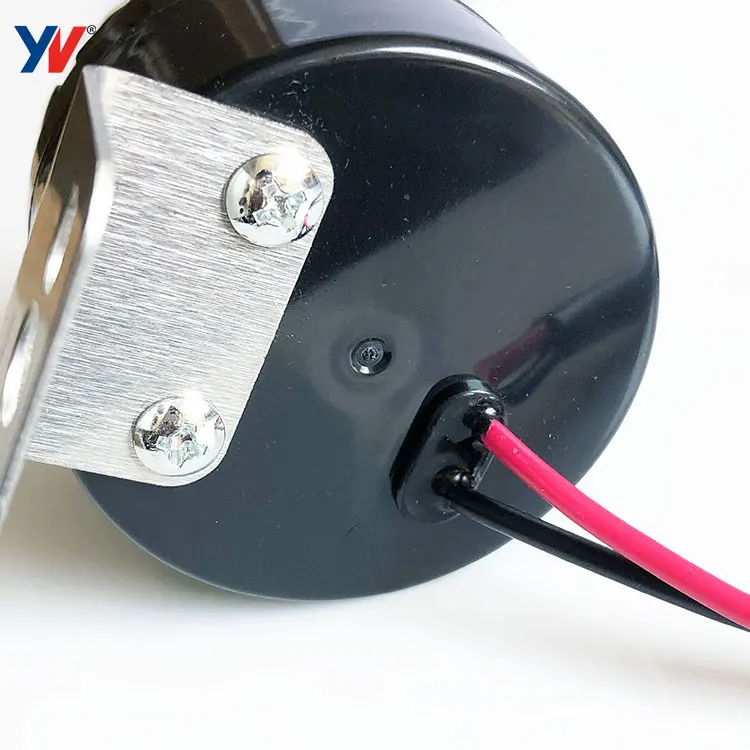

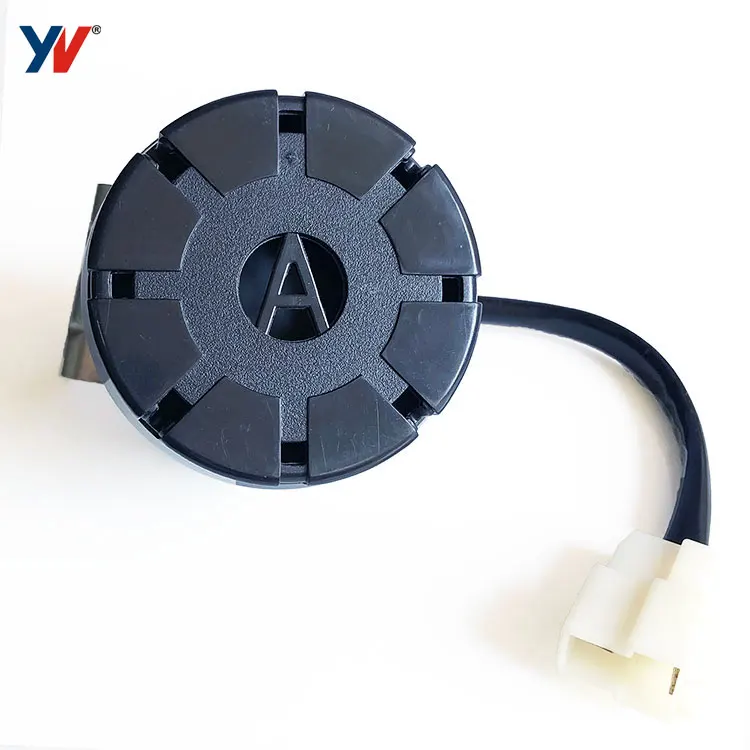

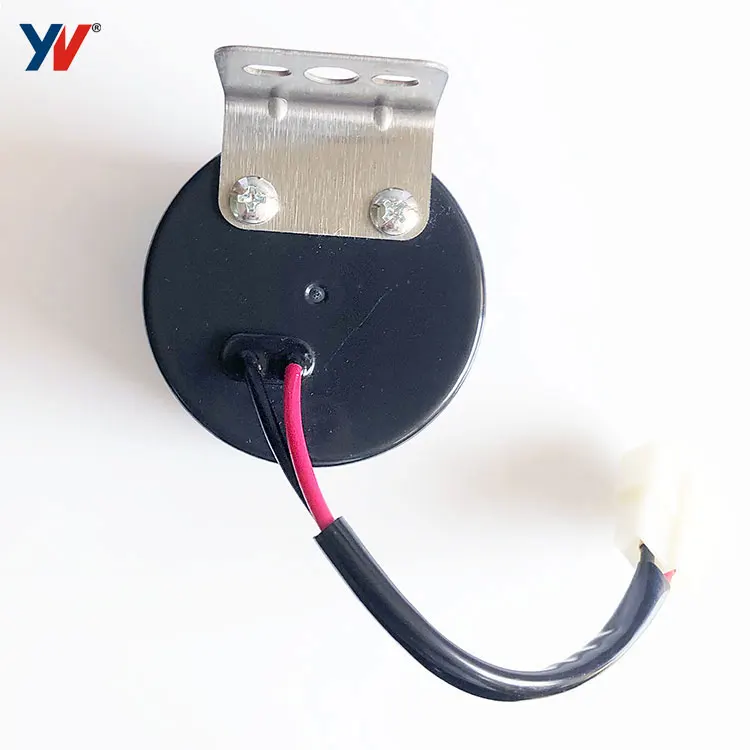

6048 60mm high quality active piezo electronic loud warning 110db siren security 12v alarm buzzer
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600613497401):
Product Overview
Description
6048 60mm high quality active piezo electronic loud warning 110db siren security 12v alarm buzzer
Product Name | 6048 60mm high quality active piezo electronic loud warning 110db siren security 12v alarm buzzer |
Type | Buzzer |
Rated Voltage | 12Vo-p |
Operating Voltage | 6~15Vo-p |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -20℃～+70℃ |
Rated Current | Max.300mA |
Sound Output at 10cm | Min. 110dB |
Tone Nature | Constant |
Resonant Frequency | 2800±500Hz |
Input Type | DC |
Technolgy | piezo |

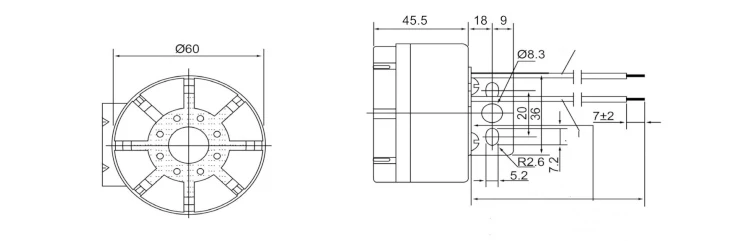

1. Piezo Buzzer Dimensions

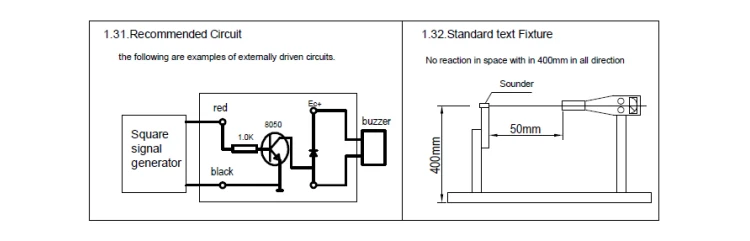

2. Piezo Buzzer Test Circuit

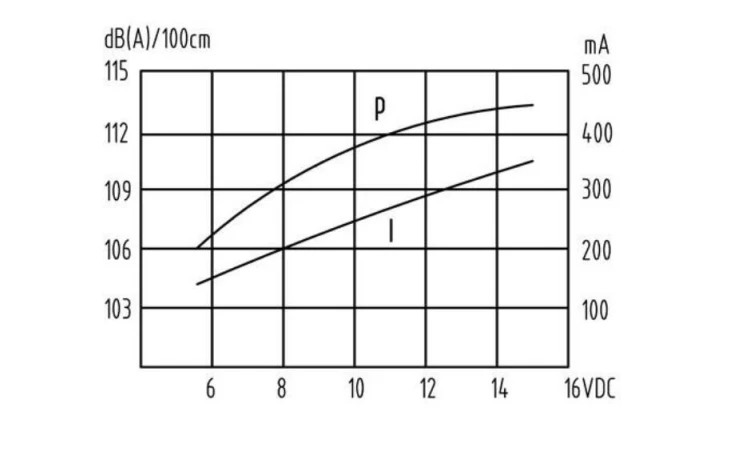

3. Piezo Buzzer Frequency Response
Note:
1. In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
2. In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.
Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .
Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.
Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.
Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.
Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
