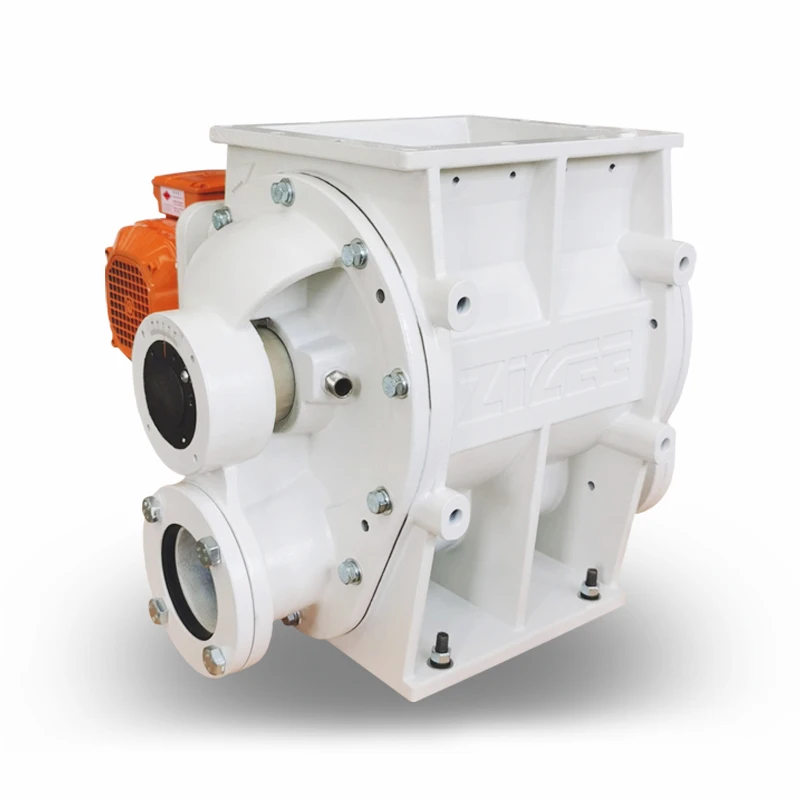

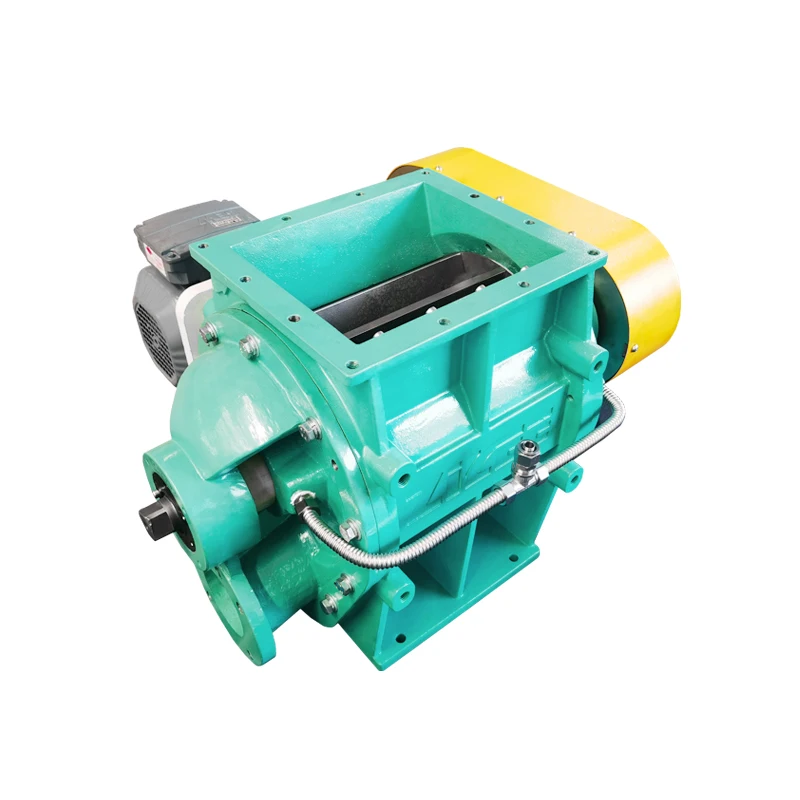

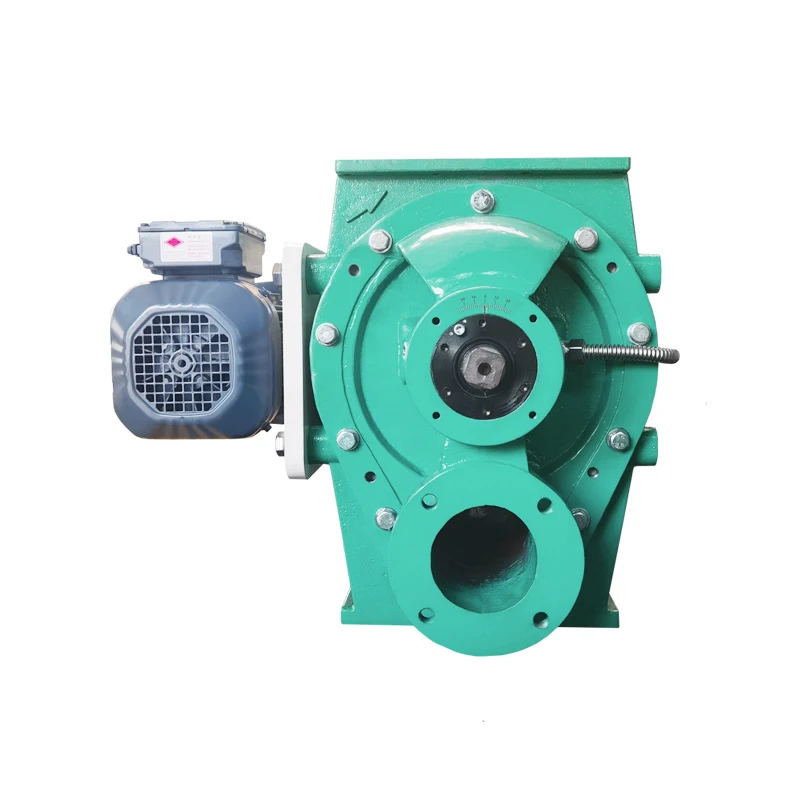

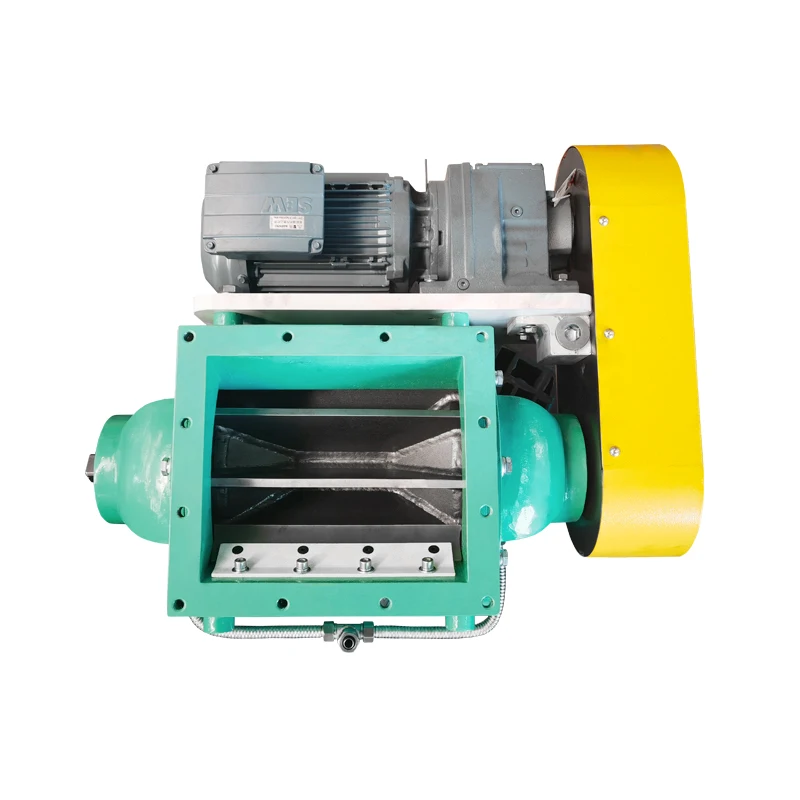

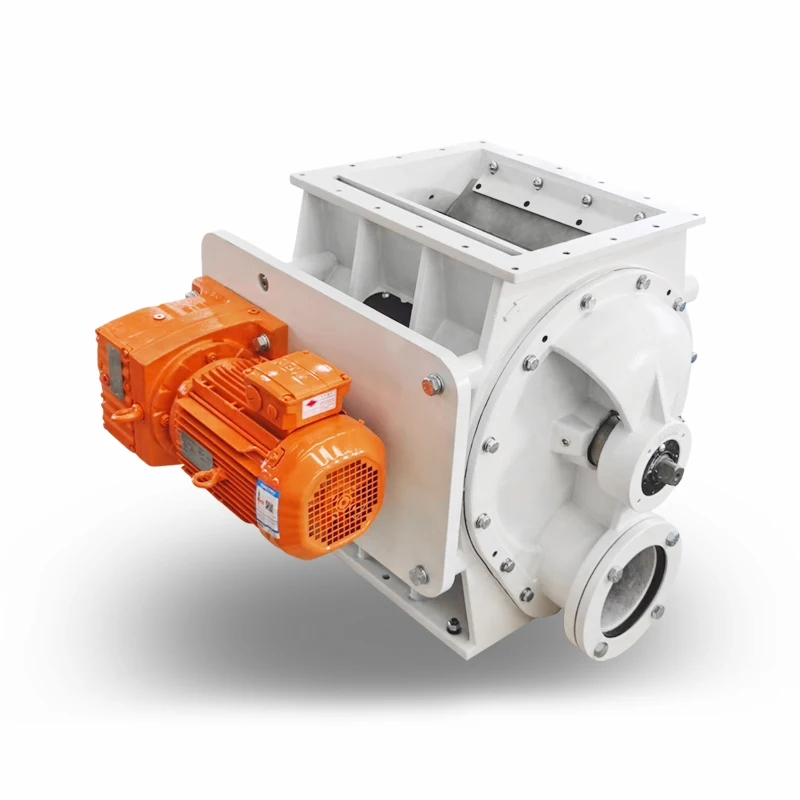

2022 hot sale wear resistant rice husk unloading rotary airlock valve under silos
- Category: >>>
- Supplier: Sichuan Zili Machinery Co. Ltd.
Share on (1600613505995):
Product Overview
Description

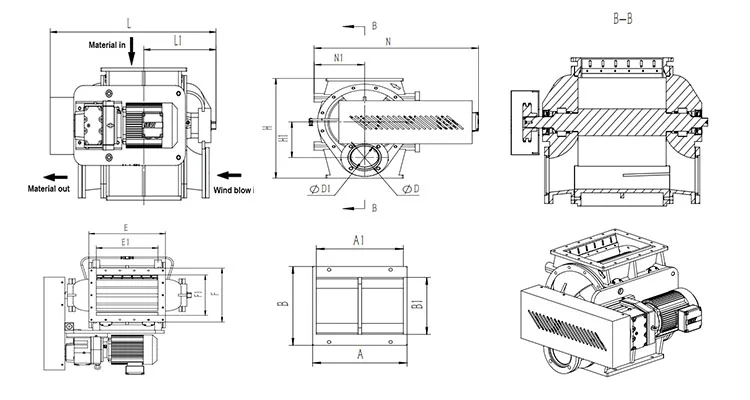

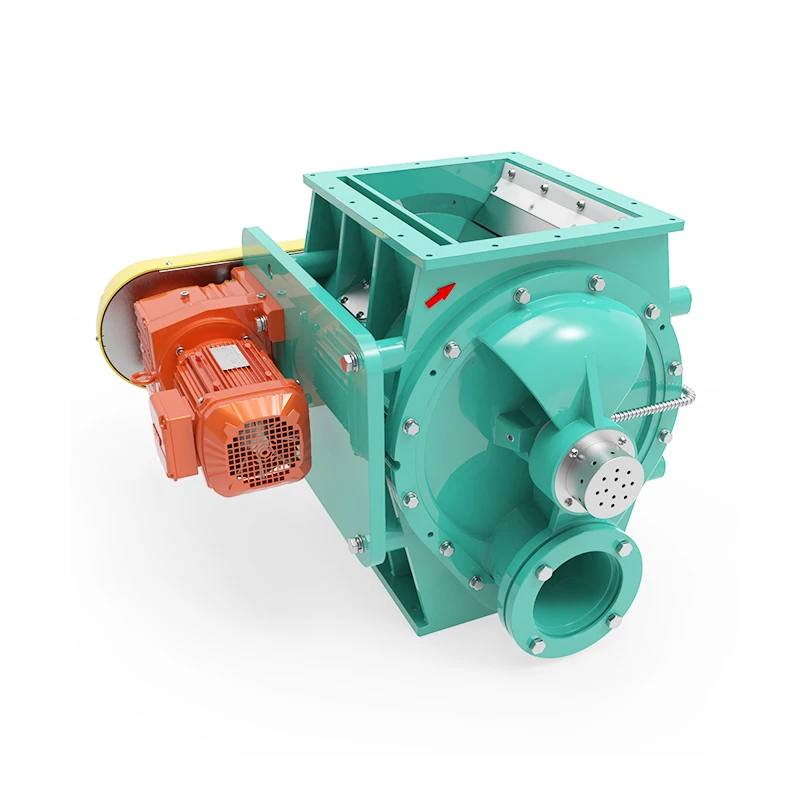

Positive Pressure Bow-Through Rotary Airlock Valve
Output G Calculation Formula
G = 0.06 VnKρ (t/h)
In the formula: V---- volume of rotary valve (L) n---- speed (r/min) ρ---- bulk density of material (t/m³)K---The filling factor is 0.6~0.8 for particles and 0.4~0.6 for powder
For example：a 9L flour pneumatic conveying rotary valve output：
G=0.06*9*53*0.5*0.5=7.155（t/h）
The displacement (production capacity) is proportional to the rotational speed within a certain range, but it will be greatly reduced after a certain range
The fill factor is inversely proportional to the rotational speed within a certain range, but after a certain critical point, the filling factor will decrease rapidly
Within a certain range, the wear amount of the equipment is proportional to the rotational speed. Once the critical point is exceeded, the wear amount will increase exponentially.

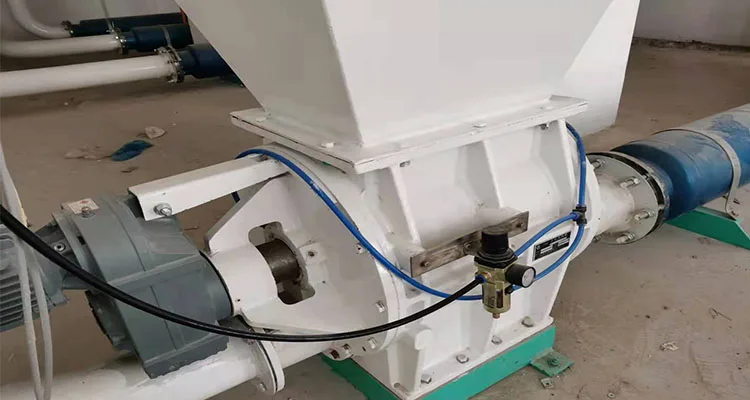

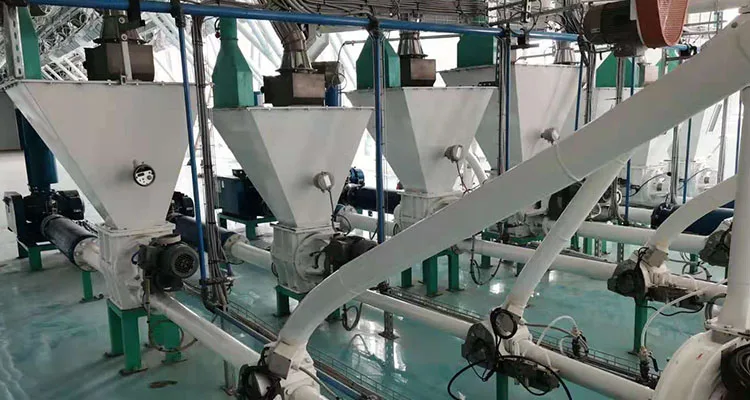

Blow-Through Rotary Airlock Valve Installation Specifications
Our blow through rotary airlock valves are widely used in grain, food, animal feed, pharmaceutical and chemical industries pneumatic conveying systems.
As the company cooperates with more and more customers, it has higher and higher requirements for factory performance. At present, the factory has purchased several CNC machine tools, automated welding equipment and automatic painting systems, which not only increases production capacity but also guarantees product quality.

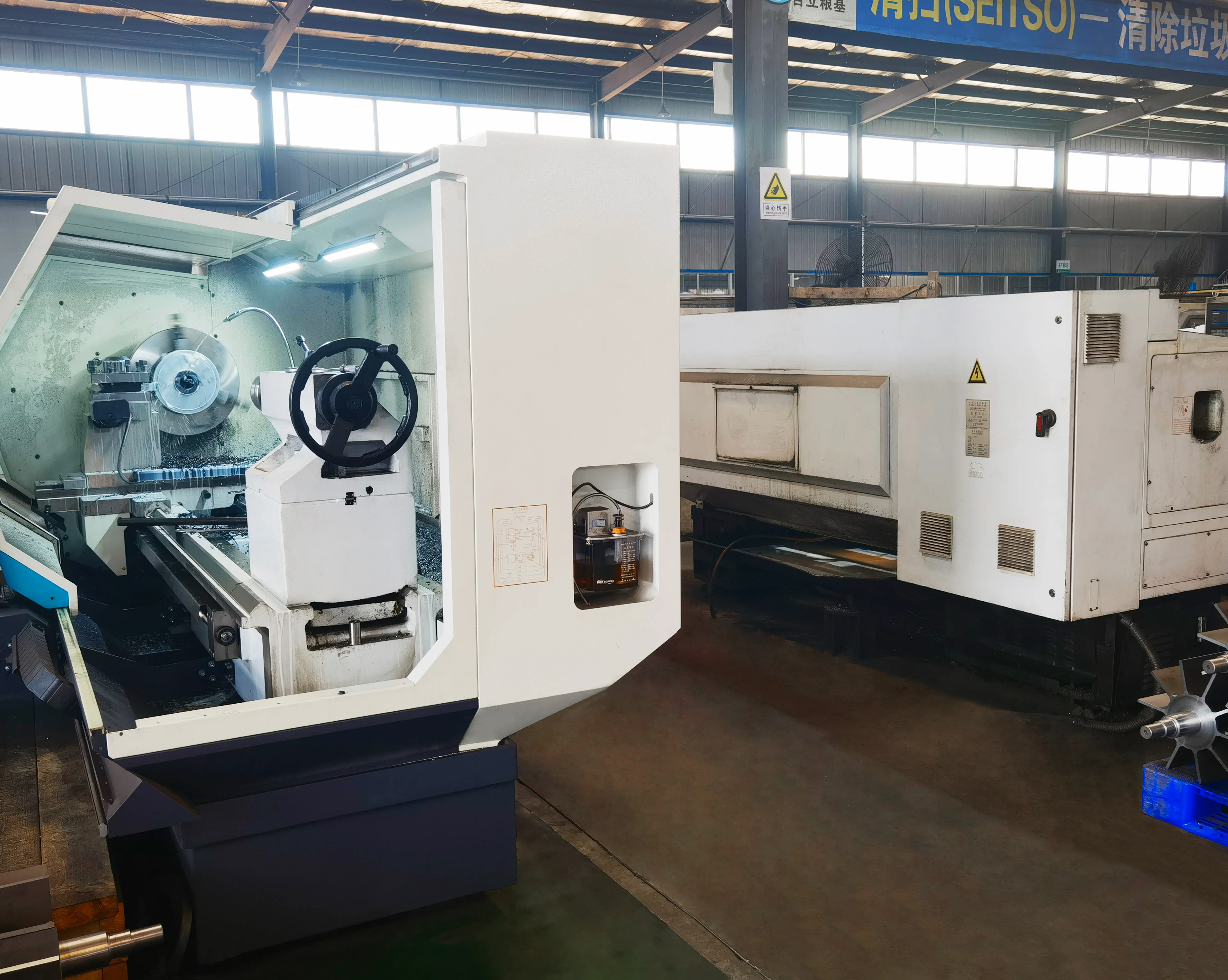

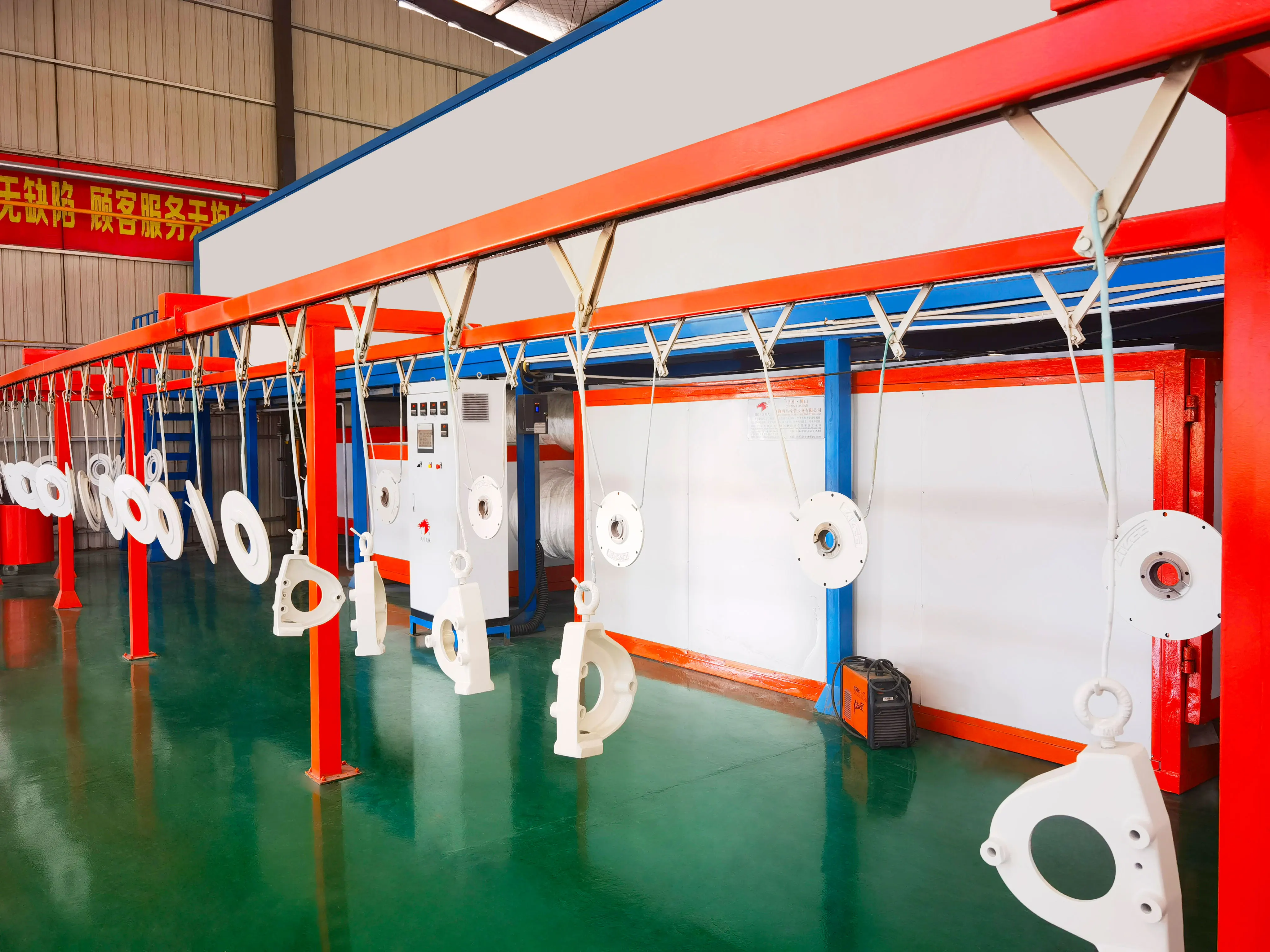

A View Of Our Factory Prodcution Line
FAQ
Q1. What are your advantages ?

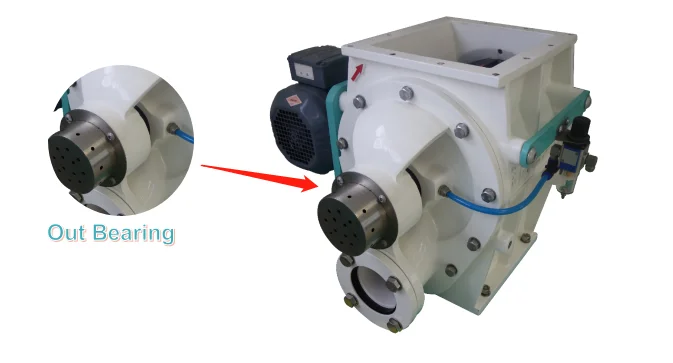

A1.Our Airlocks can operate smoothly for 6-8 years with SKF Bearings, ISO 600-3 nodular cast iron material, and professional design with our own patents. Since we are manufacturer, we have our own supply chain and quality control system. So we can provide competitive price as well as good quality.
A1.Our Airlocks can operate smoothly for 6-8 years with SKF Bearings, ISO 600-3 nodular cast iron material, and professional design with our own patents. Since we are manufacturer, we have our own supply chain and quality control system. So we can provide competitive price as well as good quality.

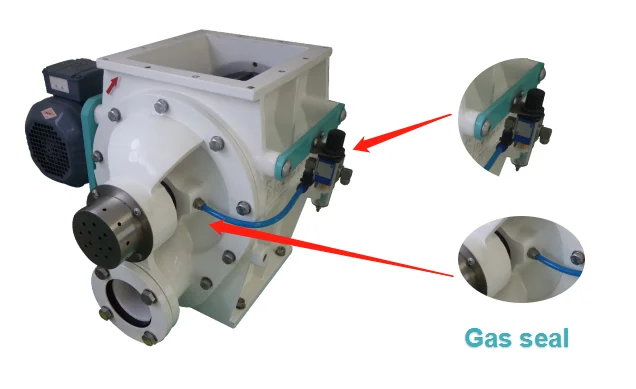

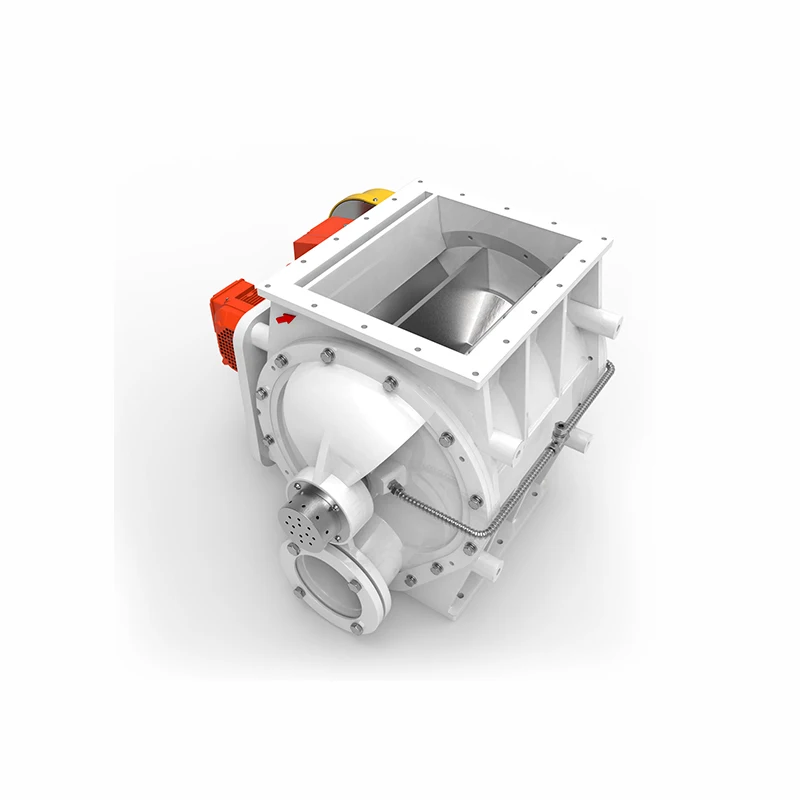

Blow through Rotary Airlock Valve
Q2. What kind of payment terms and transportation do you accept ?
A2. We accept payment through Alibaba, TT, LC, air transportation and sea transportation are available.
Q2. What kind of payment terms and transportation do you accept ?
A2. We accept payment through Alibaba, TT, LC, air transportation and sea transportation are available.
Blow Through rotary airlock valve
Q3.Can you do the supporting installation and design according to our needs or do you only sell rotary valves ?
Q3.Can you do the supporting installation and design according to our needs or do you only sell rotary valves ?
A3.Yes, that is available for use to do the installation and design according to you demands.
Blow through rotary airlock valve
