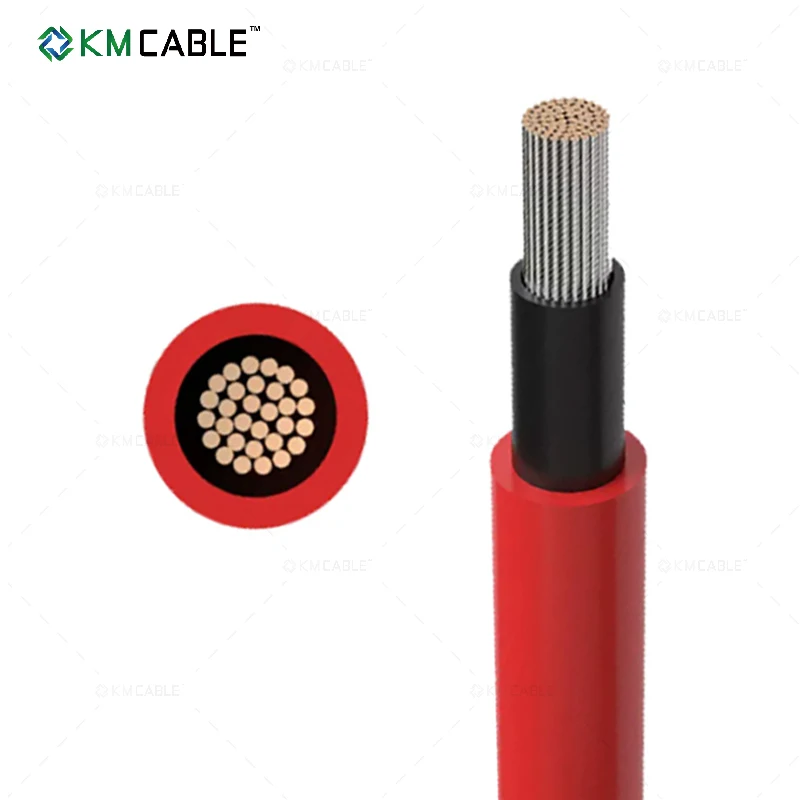

Black Red sheath 200m 500m Tinned annealed copper solar electrical wire,1500V high voltage 6mm dc pv1f pv solar wire cable
- Category: >>>
- Supplier: Shanghai Kmcable Group Co. Ltd.
Share on (1600613554430):
Product Overview
Description
Products Description
Specifications
Model | H1Z2Z2-K |

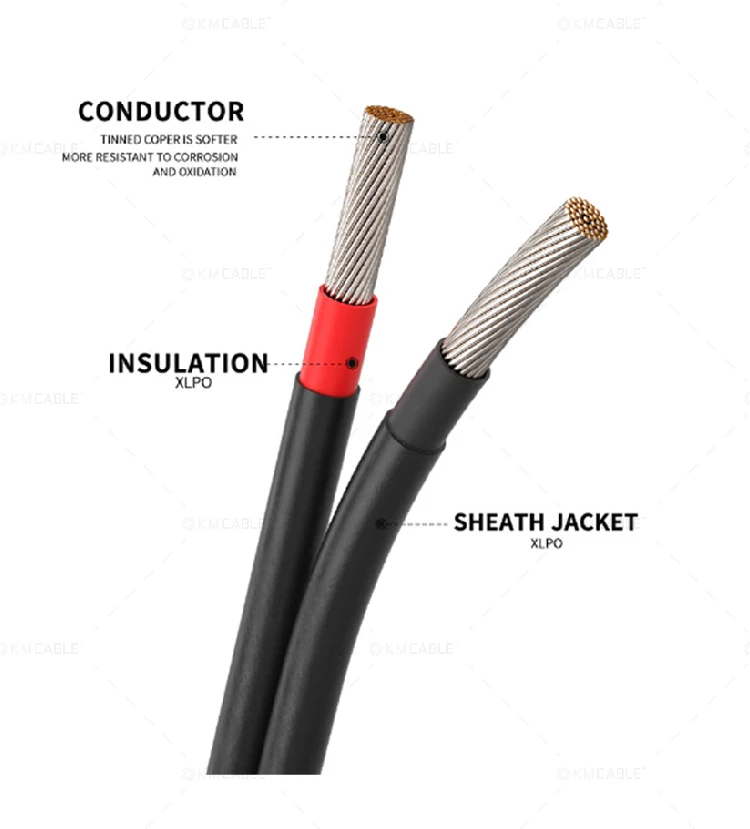

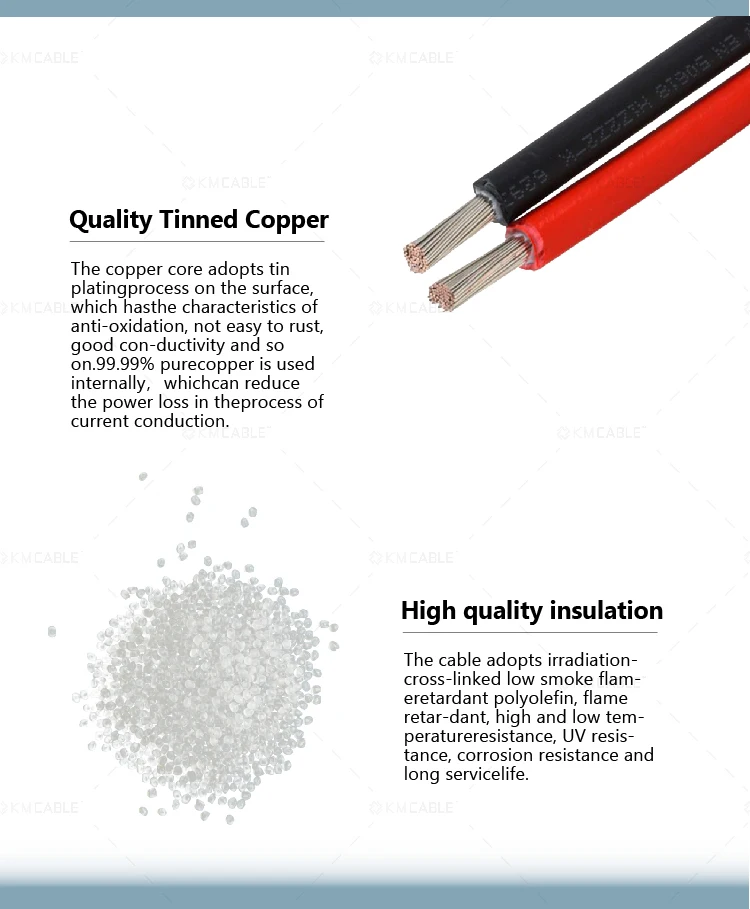

Conductor | Class 5 tinned copper conductor |

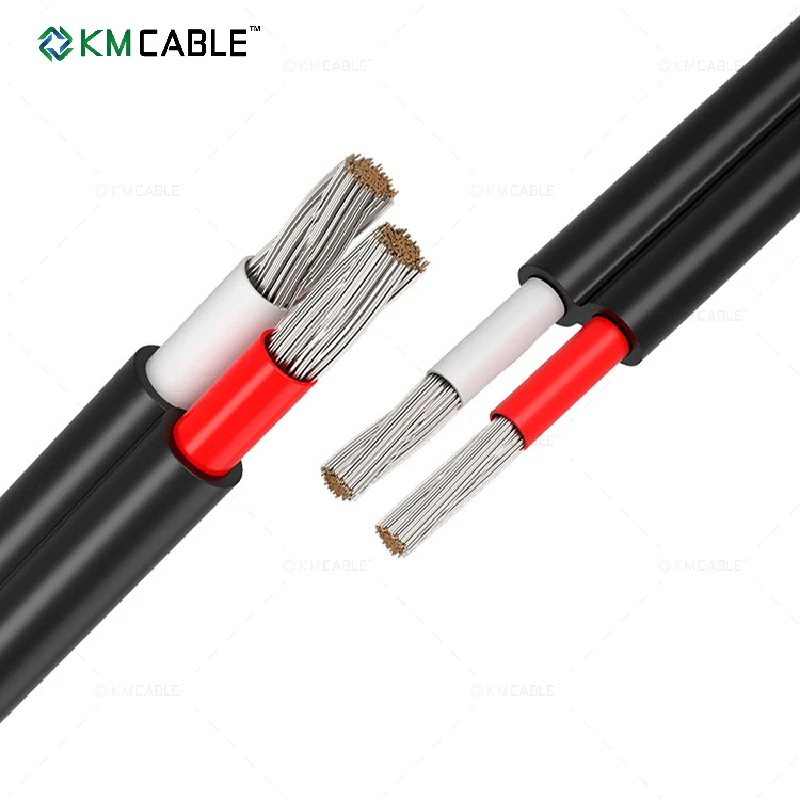

No. of Cores | 1-3 |
Conductor Type | stranded |
Insulation | 125℃ cross-linked polyolefin |
Jacket(Sheath) | 125℃ cross-linked polyolefin |
Standards | BS EN 50618:2014 |
DC | 1.5 KV |
AC | 1.0/1.0 KV |
Nominal cross-sectional area of conductor(mm²) | 1.5~240(mm²) |
Application | Photovoltaic power generation system |
Colors | Red Black or custom |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |
cross sectional area mm2 | (tinned copper) conductor type | Calculated cable overall diameter (mm) | Max.DC resistance at 20℃ | Calculated cable weight(kg/km) |
1*1.5 | 30/0.25 | 4.90 | 13.30 | 41 |
1*2.5 | 50/0.25 | 5.45 | 7.89 | 53 |
1*4 | 56/0.3 | 6.10 | 4.75 | 73 |
1*6 | 84/0.3 | 7.20 | 3.39 | 96 |
1*10 | 142/0.3 | 9.00 | 1.95 | 149 |
1*16 | 228/0.3 | 10.20 | 1.24 | 208 |
1*25 | 361/0.3 | 12.00 | 0.795 | 310 |
1*35 | 525/0.3 | 13.8 | 0.565 | 411 |
1*50 | 720/0.3 | 14.8 | 0.363 | 520 |
1*70 | 988/0.3 | 16.9 | 0.21 | 645 |
Details Images

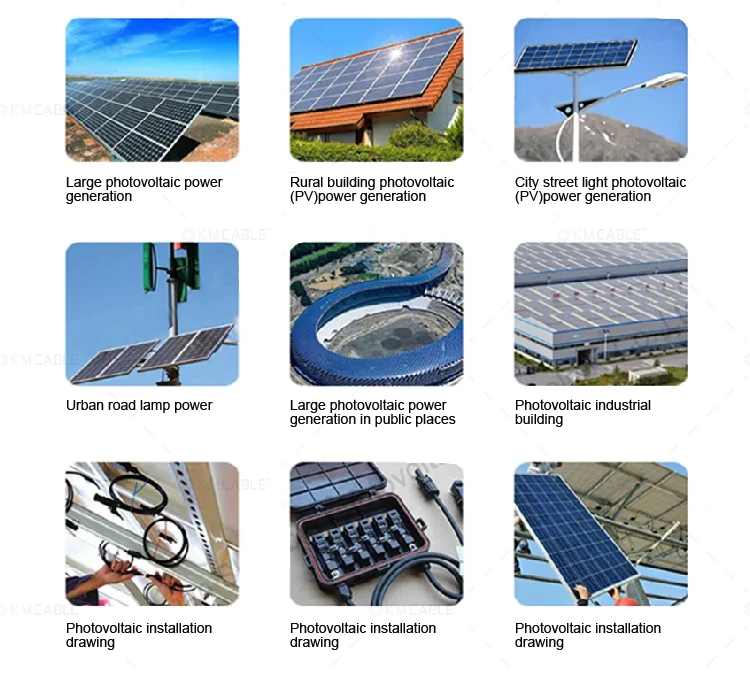

Application
