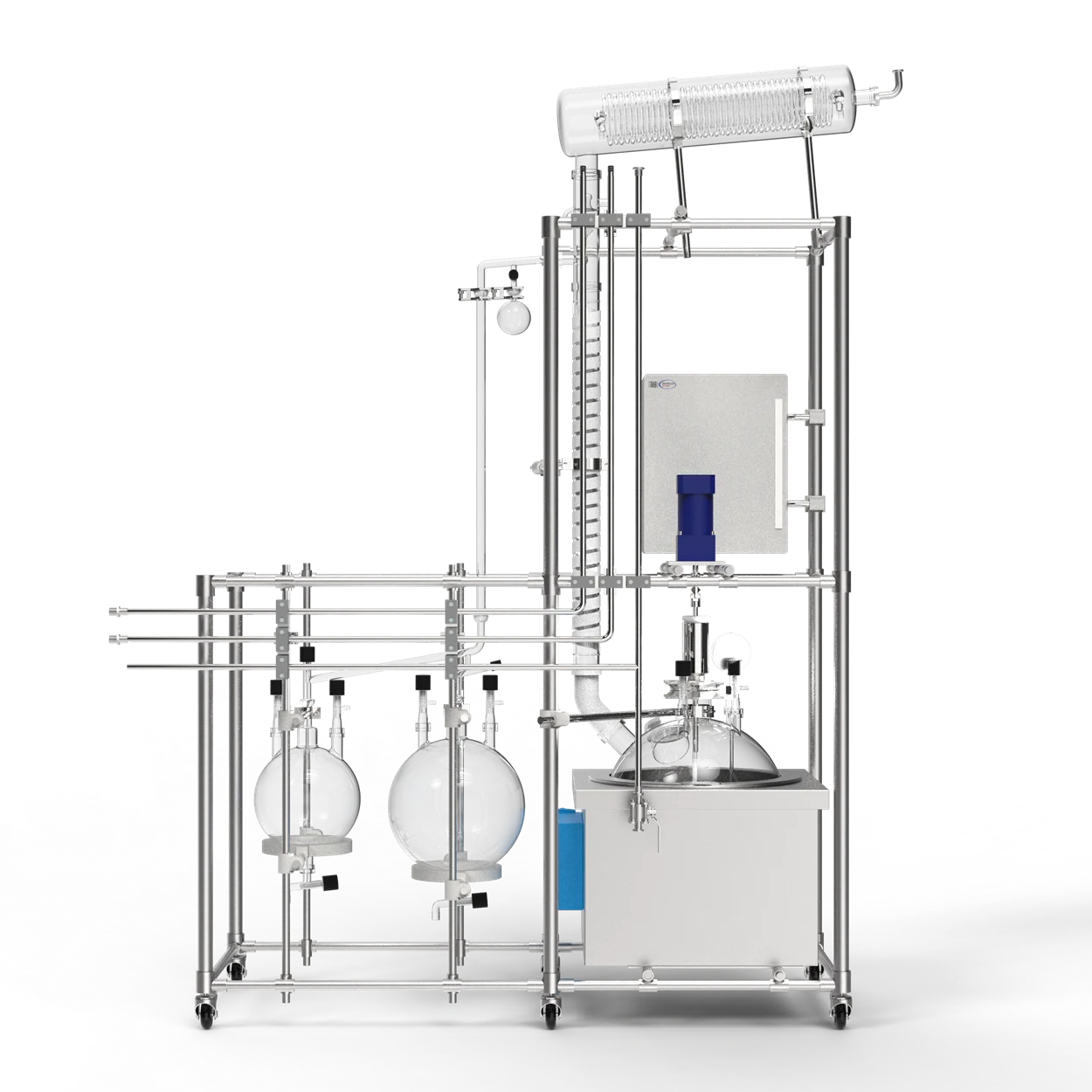

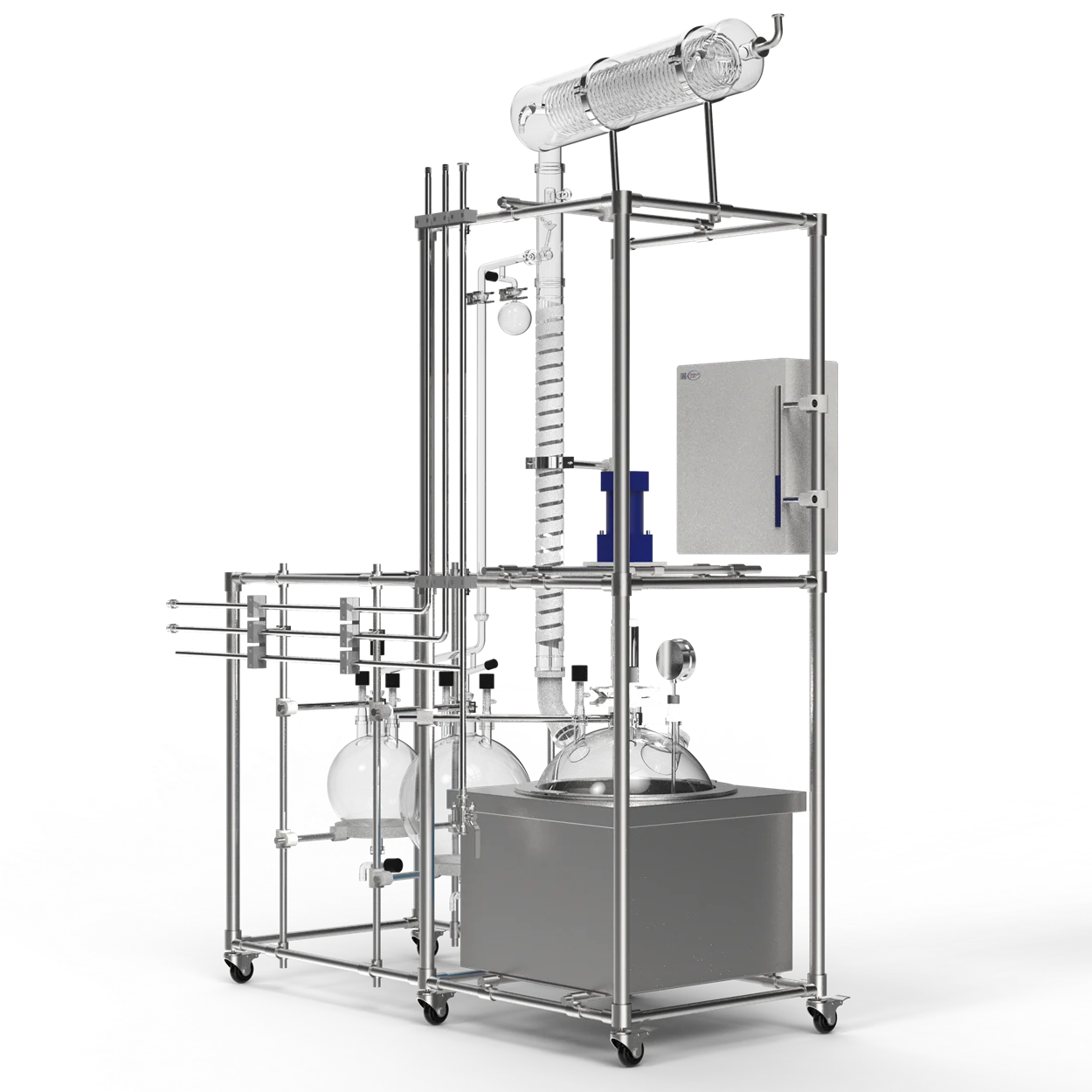

Valuen 20L Hot Sale Fractional Distillation Unit Industrial Distillation Equipment Lab Distillation Glass rectification
- Category: >>>
- Supplier: Shanghai Valuen Industrial Co. Ltd
Share on (1600613629010):
Product Overview
Description
Product Description

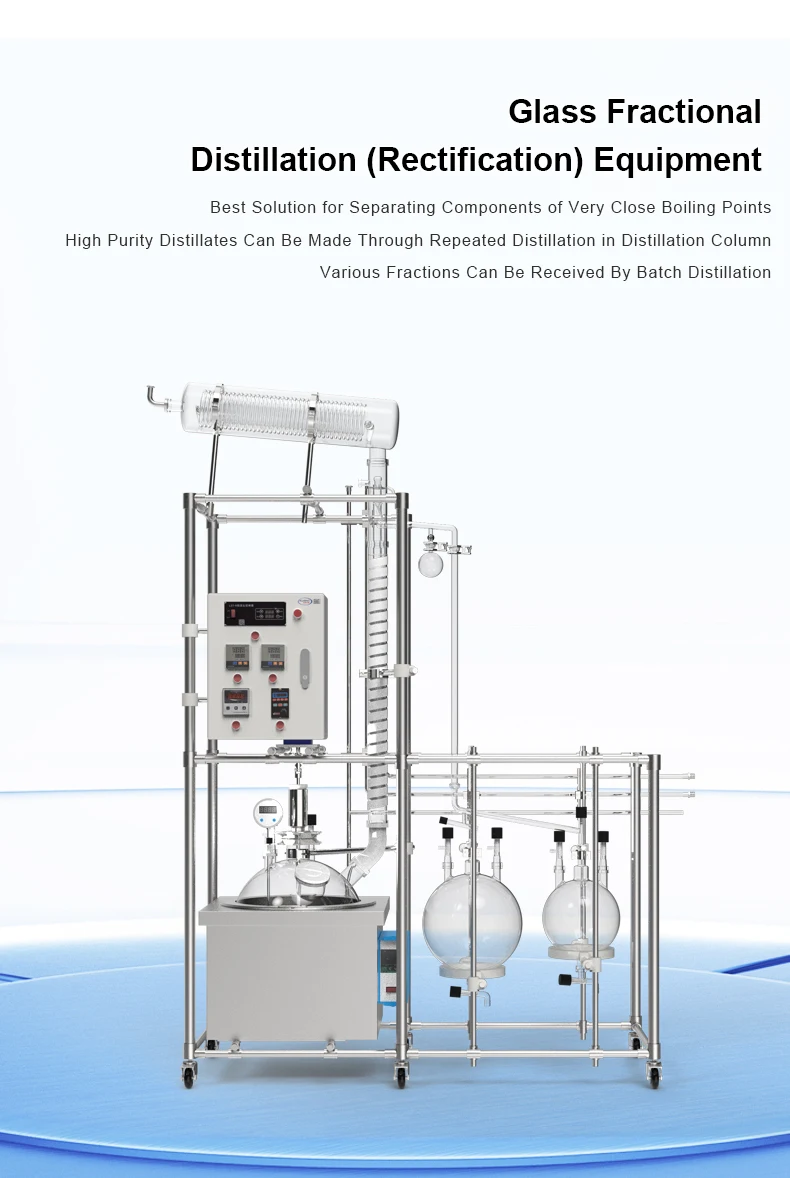

Glass Fractional Distillation (Rectification) Equipment Best Solution for Separating Components of Very Close Boiling Points High Purity Distillates Can Be Made Through Repeated Distillation in Distillation Column Various Fractions Can Be Received By Batch Distillation | ||||||||
Model | VRR02G | VRR05G | VRR10G | VRR20G | |||
Boiling Flask Capacity | 2L / 0.528Gal | 5L / 1.32Gal | 10L / 2.6Gal | 20L / 5.28Gal | |||
Receiving Flask Capacity | 0.5L / 0.132Gal | 2L / 0.528Gal | 2L / 0.528Gal | 5L / 1.32Gal | |||
Receiving Flask Quantity | 1-4 pcs (quantity customizable as collected fractions) | ||||||
Glass Material | High Borosilicate Glass 3.3 (Sanitary Grade) | ||||||
Heating for the Tank | Heating Mantle or Oil Bath Heater | ||||||
Distillation Column Height | Height customizable as required theoretical plates quantity | ||||||
Distillation Column Diameter | 40mm, 50mm, 80mm, 100mm or other customizable size | ||||||
Heating for the Distillation Column (Optional) | Heating Tape or Coils | ||||||
Stirring Mode | Magnetic Stirring via magnetic rotor or Top Head Stirrer (Magnetic or Mechanical Sealing) | ||||||
Working Temperature Range | Room Temperature to 250°C | ||||||
Control System | Digital Display Stirring speed controller, Controller of reflux-receiving dispenser, Heating temperature controller for heating coils or tape, Heating temperature controller if boiling flask heated by oil bath | ||||||
Utilities (Optional) | Cooling Circulator for Condenser, and Vacuum Pump | ||||||
Power Supply | 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase | ||||||

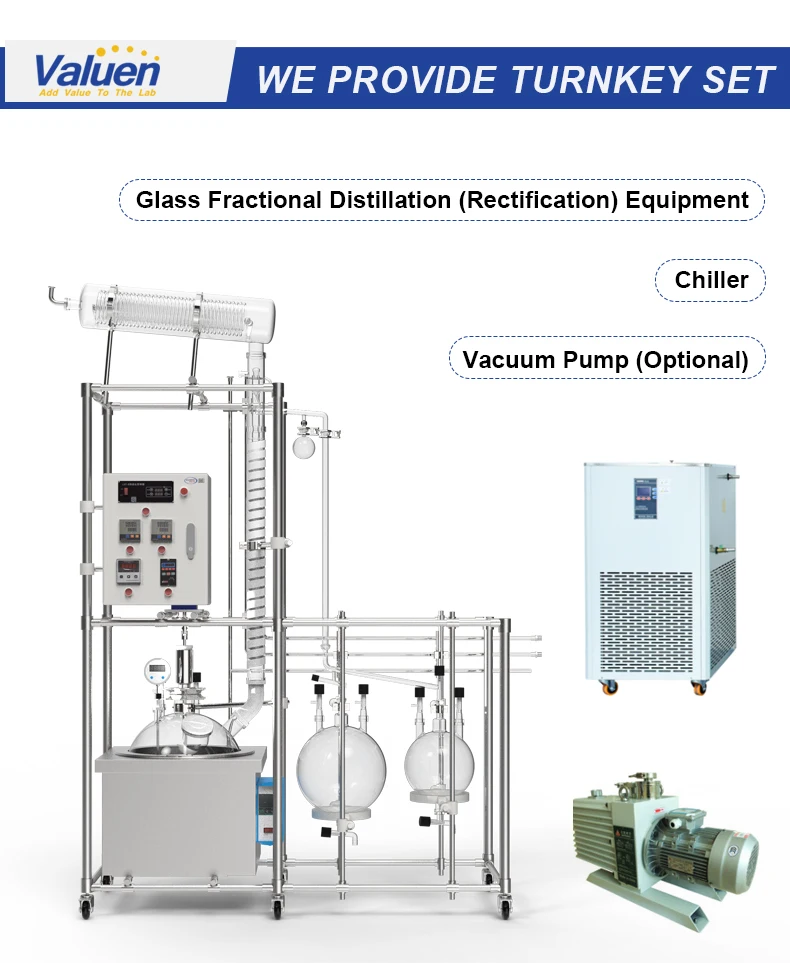

We Provide Turnkey Set Glass Fractional Distillation (Rectification) Equipment Chiller Vacuum Pump (Optional) | ||||||||
Company Profile
With more than 15 years’ industry experiences, Valuen team are experts in the design, development, and manufacture of premium quality products for chemists and chemical engineers in areas such as academia, pharmaceutical, chemical, food, flavor & fragrance, and petrochemical industries as well as many others. Our products cover a broad range of applications from distillation, concentration, reaction, extraction, isolation, purification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices, both of lab and scale production.
FACTORY STRENGTH | ||||||||
Packing & Delivery
