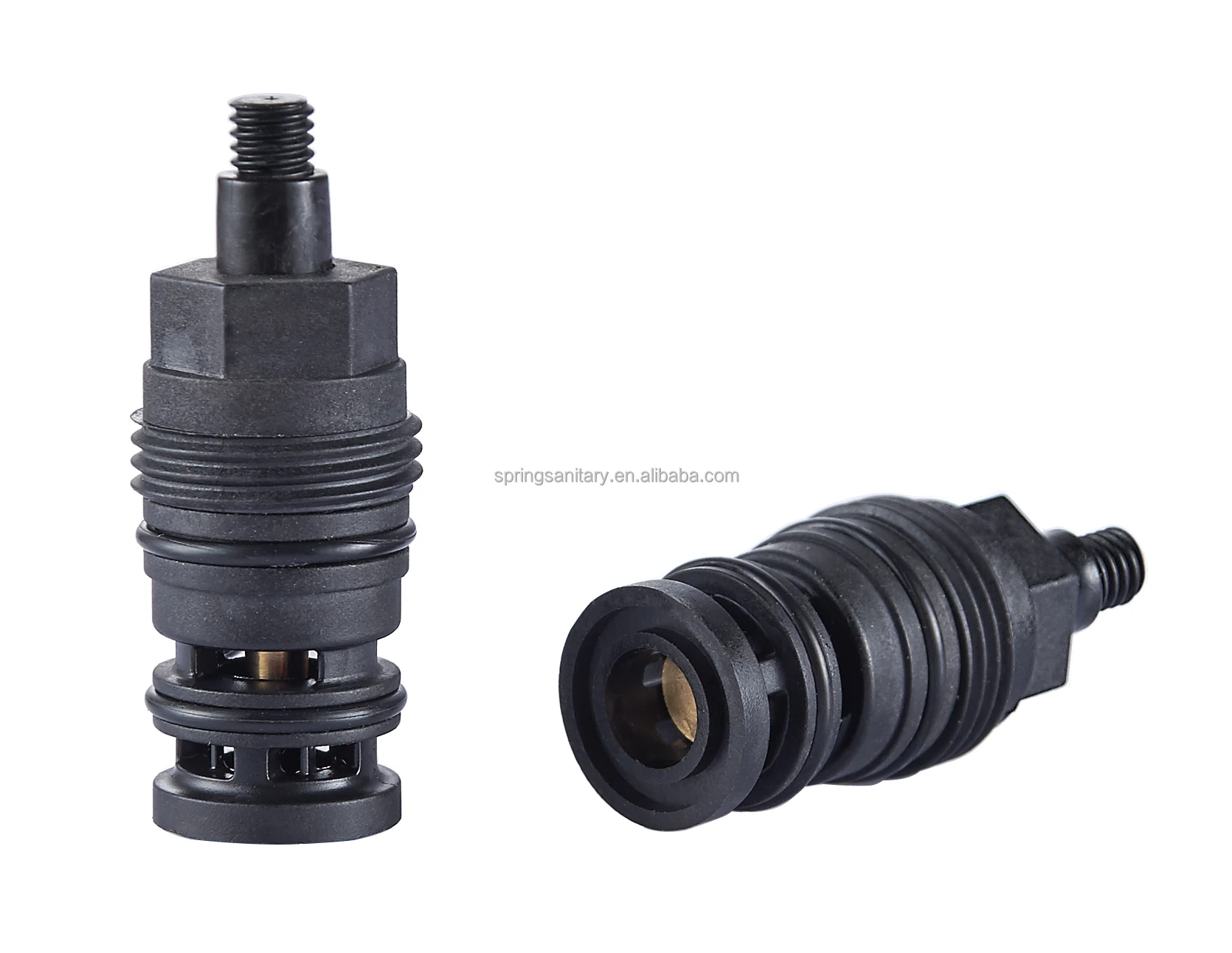

Tehe press button 19mm external male thread button faucet cartridge
Tehe press button 19mm external male thread button faucet cartridge

Tehe press button 19mm external male thread button faucet cartridge

Share on (1600613637317):


Price:$0.29 - $0.38

Quantity:


Product Overview

Description



Products Description




Parameter
Max.Turning Angle
-
Lever Break Torque
 >=8 N.m
Max.Temperature
 90
Gland Nut Torque
8-10N.m
Max.Opening Angle
-
Pressure(bar)
0.5
1
1.5
2
2.5
3
3.5
Average Flow Rate(L/min)
 11.2
13.5
15.4
16.8
19.3
21
22.3
Testing Performance
Noise Level
Max.20db at 3bar(with noise reducer)
Noise Reducer
Selectable
Air-Leak Test
0.8MPa(fully tested one by one)
Ceramic Disc
AL2O3 95%
Burst Test
static water pressure max.3.5MPa
Life Test
According to the En817,GB18145-2003 Standard>70.000cycles
according to the ASME,A112.18.1-2005 Standard>500.000cycles
Ceramic Disc Date
Material:   Ceramic disc
Hardness: >1000 Hv5
Flatness:<=0.3um
Surface Roughness Ra:<0.2um




Company Profile


introduction
Our factory was build in 2008 , with production and development experience more than 10 years .We have professional equipments to
die casting,test the function ,finishing thickness, material componern,swivel/torque force ,lifetime ,thread data and so on.
Major Product Range:Shower,faucet,Bathroom accessories, etc
Own Brand Name:WHENZHOU SPRING TRADING CO., LTD
Existing Markets:Middle East,Estern Asia ,Western Europe,Eastern Europe,etc
OEM:Yes
ODM:Yes
Factory Location:Jinhai Three Road,Economic and Technological Development Zone, Wenzhou City, Zhejiang Province .
