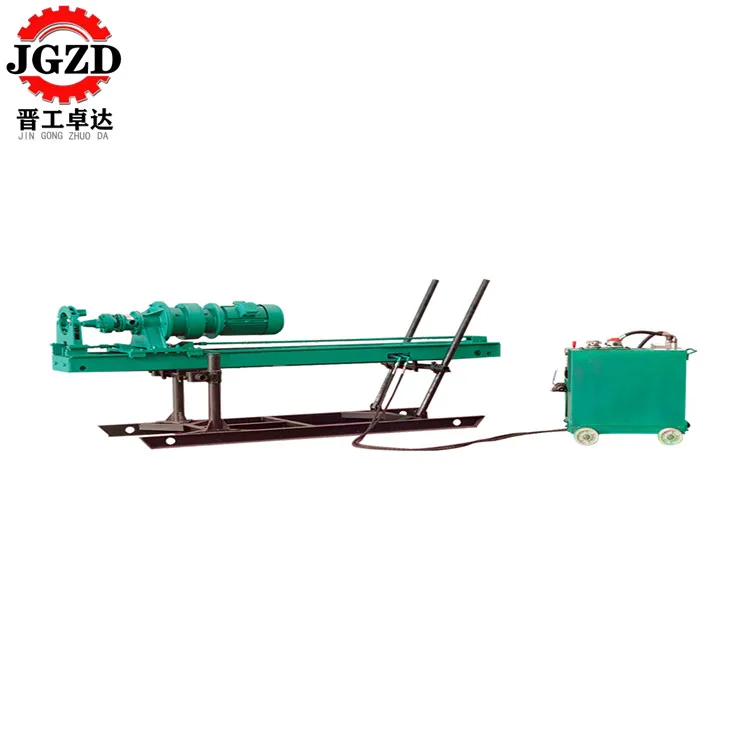

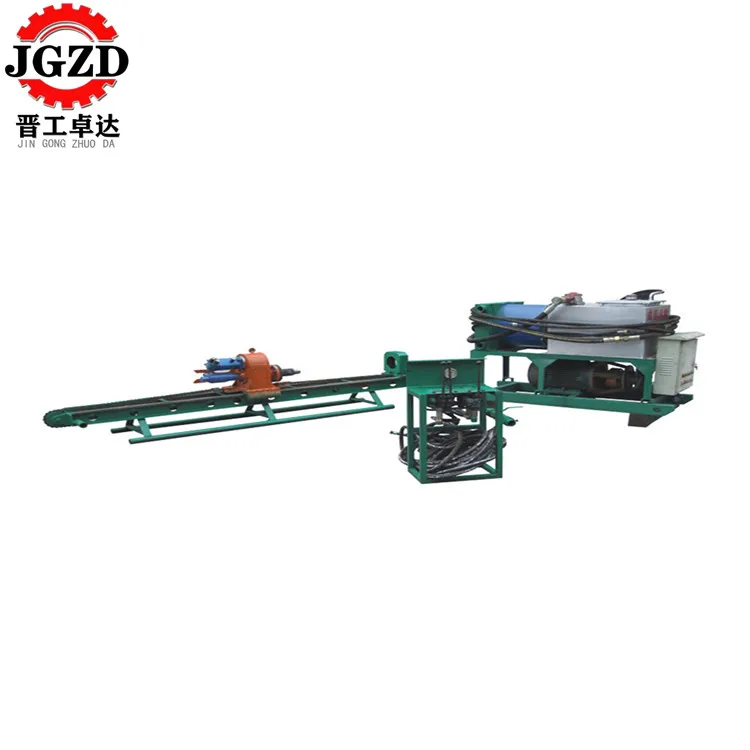

tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter
tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter
tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter
tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter
tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter
tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter

tunnel geological exploration rigs big diameter drilling machines hydraulic roof bolter

Share on (1600613640818):


Price:$6,860.00 - $9,760.00

Quantity:


Product Overview

Description

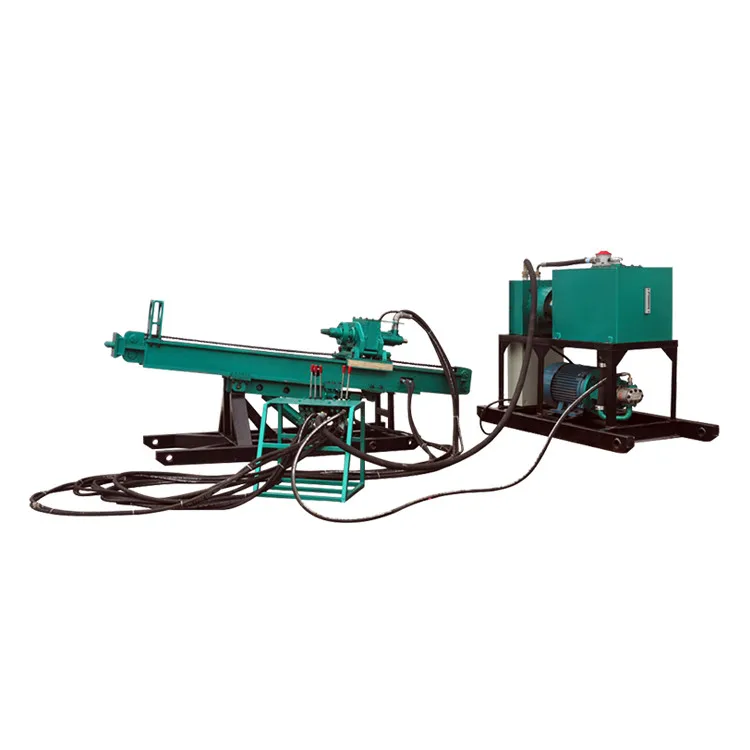

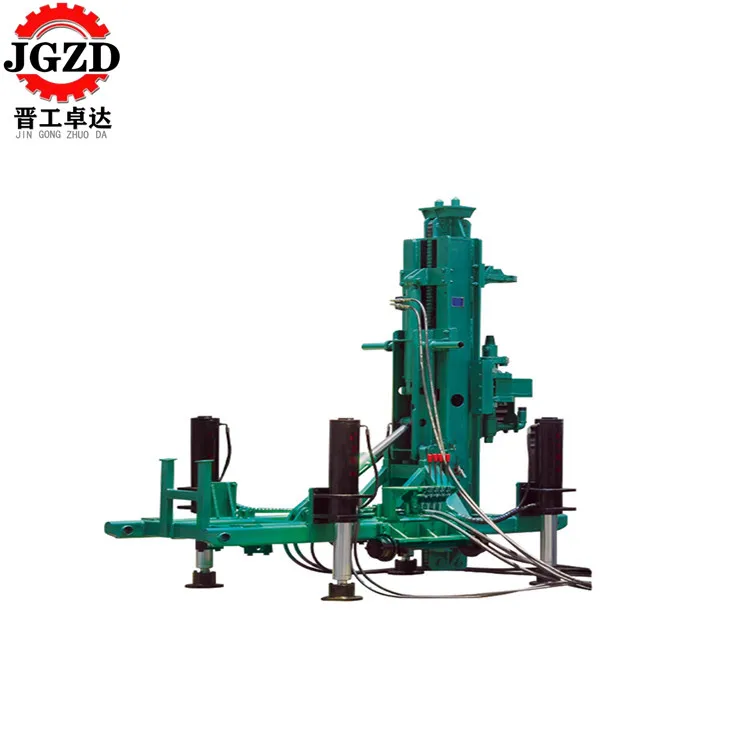

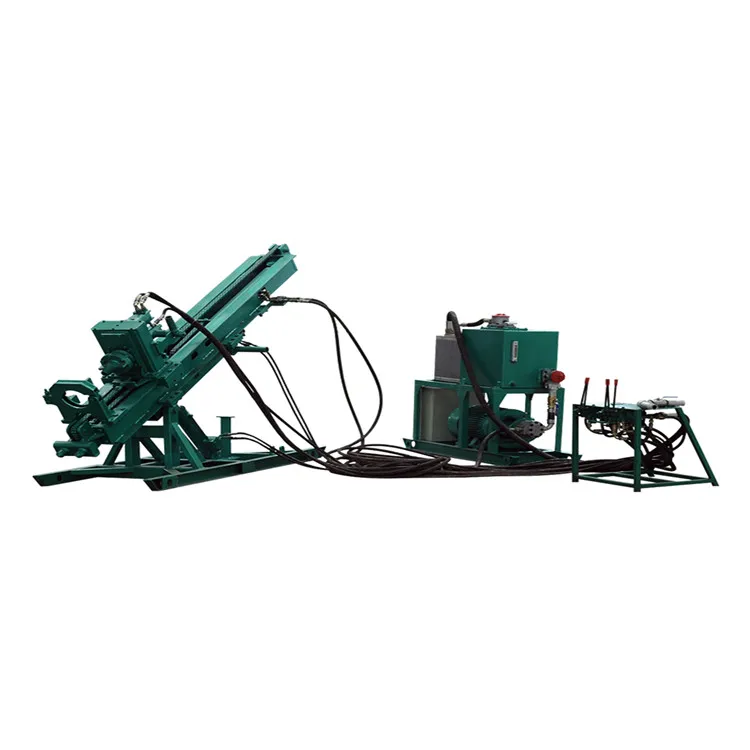

Product Description1_.jpg2__.jpg3_.jpg4_.jpg5_.jpg





Specification

Specification



























































































Model


YGMG-40


YGMG-50


YGMG-70


YGMG70A


Drilling Depth(m)


10-60


25-70


35-80


35-80


Drilling Diameter(mm)


90-180


90-165


110-230


110-230


Drilling Pipe Diameter


φ76*1500


φ76*1500
φ89*1500


φ76*1500
φ89*1500


φ76*1500
φ89*1500


Borehole Inclination Angle


0-90°


0-90°


0-90°


0-90°


Power Head Output Torsion Speed(rmp)


--


0-70


0-50


--


Rated Output Torque of Power Head(N·m)


2400


2500


3900


3900


Max Travel of Power Head(mm)


--


1800


--


1800


Propeller Compension Stroke(mm)


--


500


500


500


Oil Pump Motor Power(kw)


4


22


22


22


Weight(kg)


500


1300


1400


1600


Dimensions(m)


2.8*0.8*1.4


3*0.78*1.36


3.1*1*1.5


3.1*1*1.5

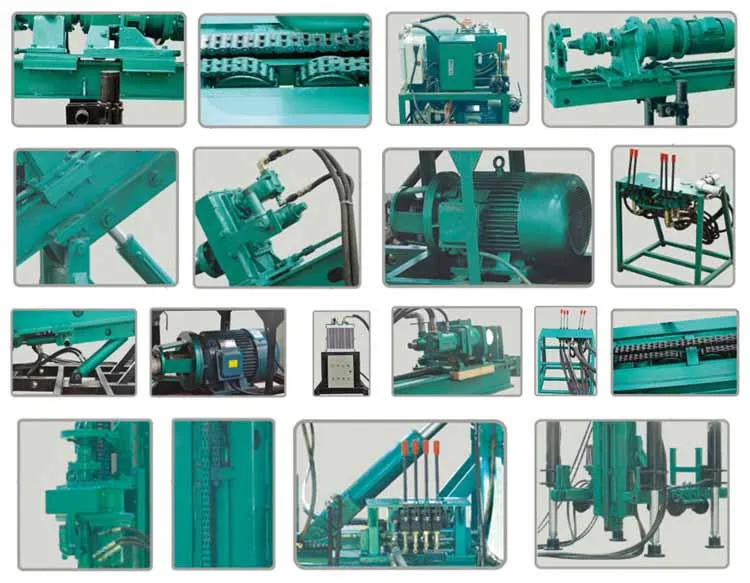

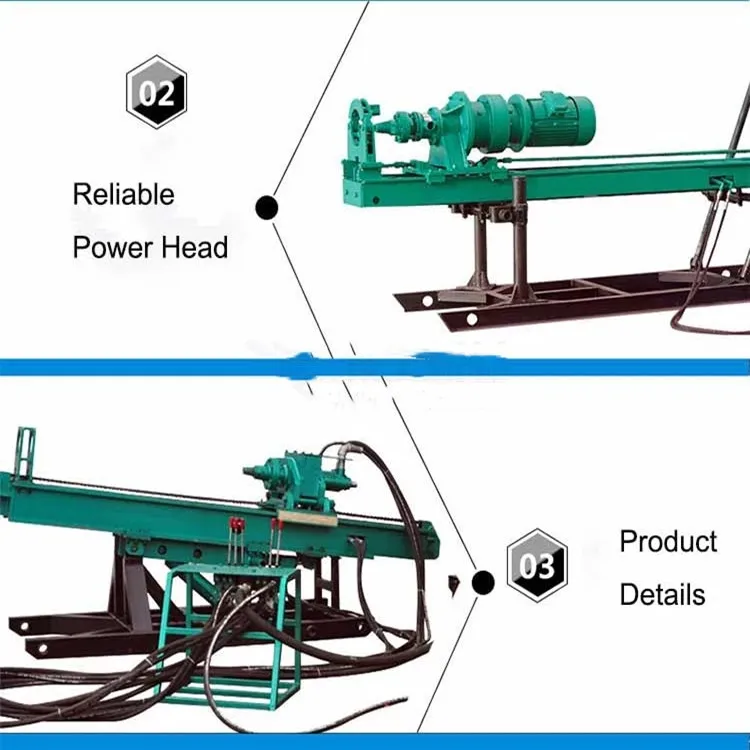

Details Images

Product Features




The anchor drilling rig is used for hydro power station/railway/highway slope reinforcement, and all kinds of geological disaster prevention and control of landslides and dangerous rock anchoring engineering, especially suitable for high slope rock anchoring engineering, used for anchoring holes.






Standard export wooden case for machine and parts, to make sure safety during sea shipping.









Application

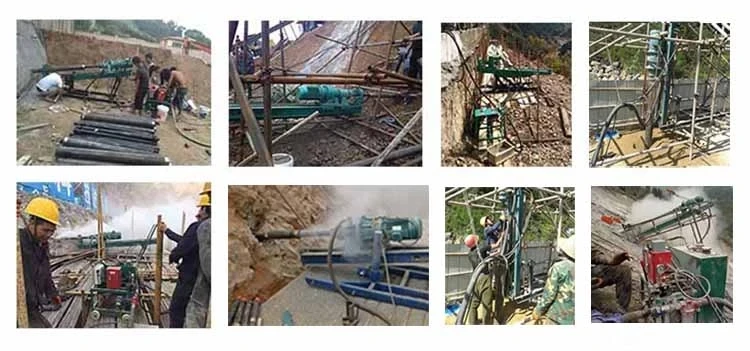

The anchoring drill is also suitable for the construction of deep foundation pit support, anti-floating anchor rod and foundation grouting reinforcement engineering holes, blasting engineering blasting holes, high-pressure rotary jet pile, tunnel pipe and roof support holes, etc.24.jpg









Company Profile11.jpg77.png66.jpg
