Homebrewing Equipment 100L Nano size Brewery Equipment Beer Recipe Testing Whole System Electric Steam Gas Heating for Sale

Product Overview

Description

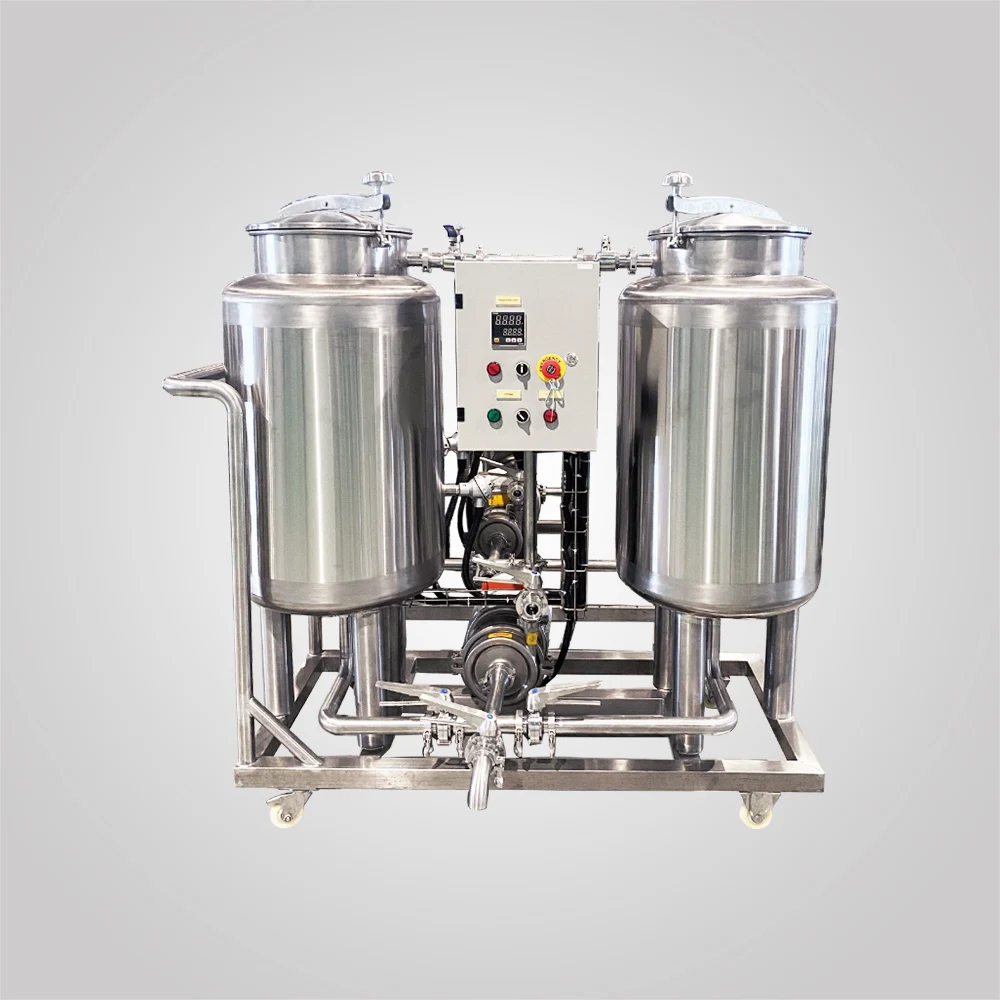

Just like the other sizes of brewery equipment, this 1bbl nano-size beer brewing system also has the classic combination of 2 vessel brewhouse,

which is Mash/Lauter Tun+Kettle/Whirlpool Tun+double batch HLT.

The whole system is being installed on a four-wheel cart for the better moving.

Although the capacity is small, all of its configurations are designed according to strict production standards just like the other normal sizes of equipment,

Because we understand that for clients who love beer like us, it is both great pleasure to enjoy no matter the brewing process or the final product.

So we care more about quality.



 Features:

Material	304/316 Stainless Steel/Copper
Welding	100% TIG automatically welding with pure argon gas shield
Interior shell	Stainless Steel, Thickness:3mm
Exterior shell	Stainless Steel, Thickness:2mm
Insulation	TH=80mm with low thermal conductivity PU
Cooling	35% Glycol liquid -5℃
Cooling jacket	Dimple plate on bottom and side wall
Jacket working pressure	<2bar/30psi



Part 3: Power request specification
 Heating Elements: 6kw; 220v/50,60Hz-1p;
Wort pump:0.55kw; 220v/50,60Hz-1p;

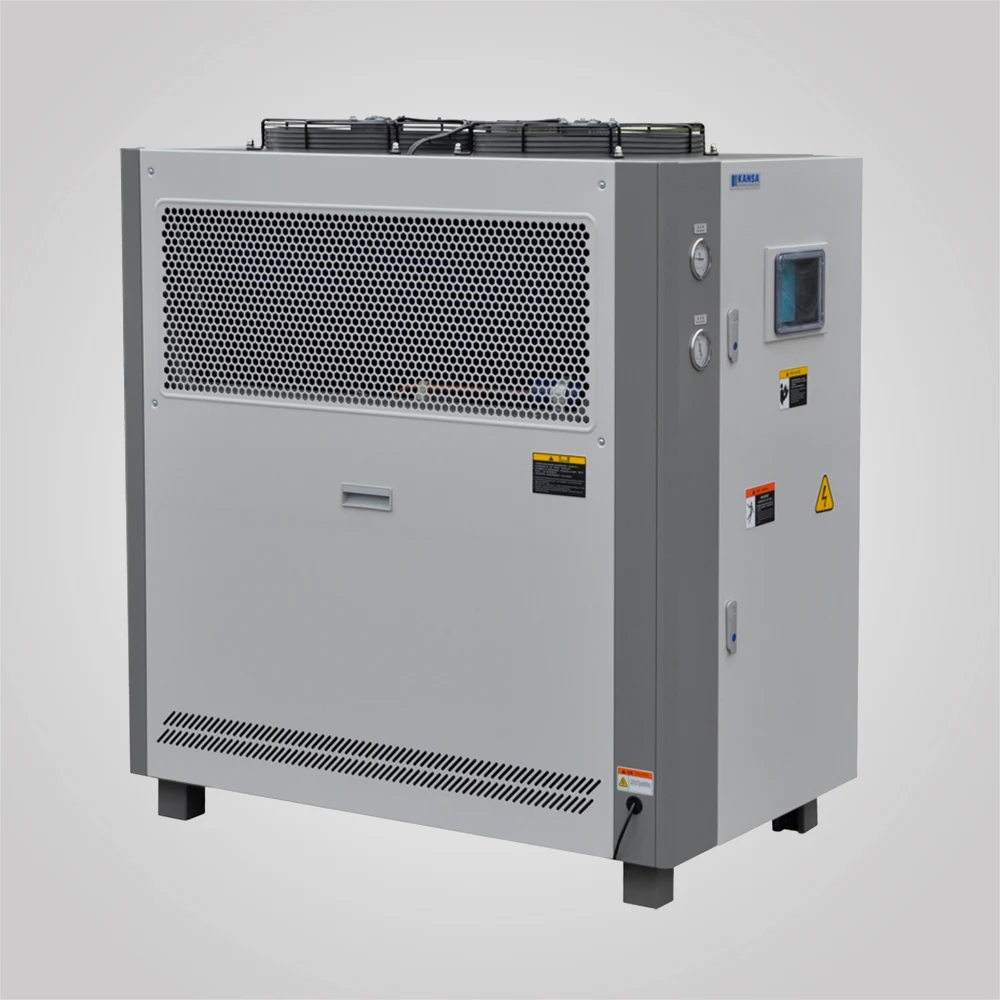

Refrigerator:1.5KW; 220v/50,60Hz-1p.



Part 4: Package
Fumigation-free veneer crates packing; All system is packed in one veneer crate.
Net Weight: 280kg
Dimension: 2100 x800 x1750mm
Installed area:1.7m2

\\
