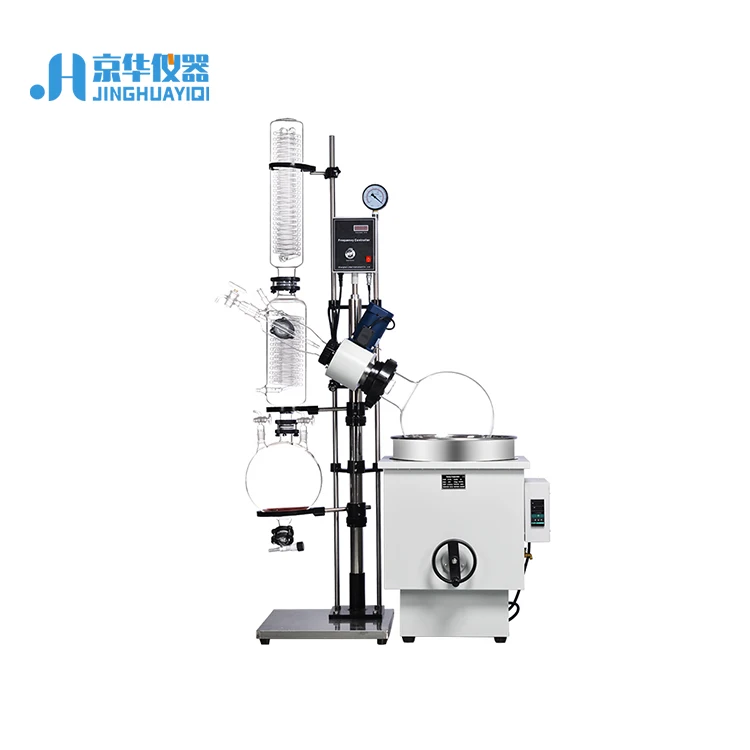

20L Lemongrass Essential Oil Extraction Rotary Evaporator with Vacuum Pump
- Category: >>>
- Supplier: Gongyi Jinghua Instrument Co. Ltd.
Share on (1600613678024):
Product Overview
Description

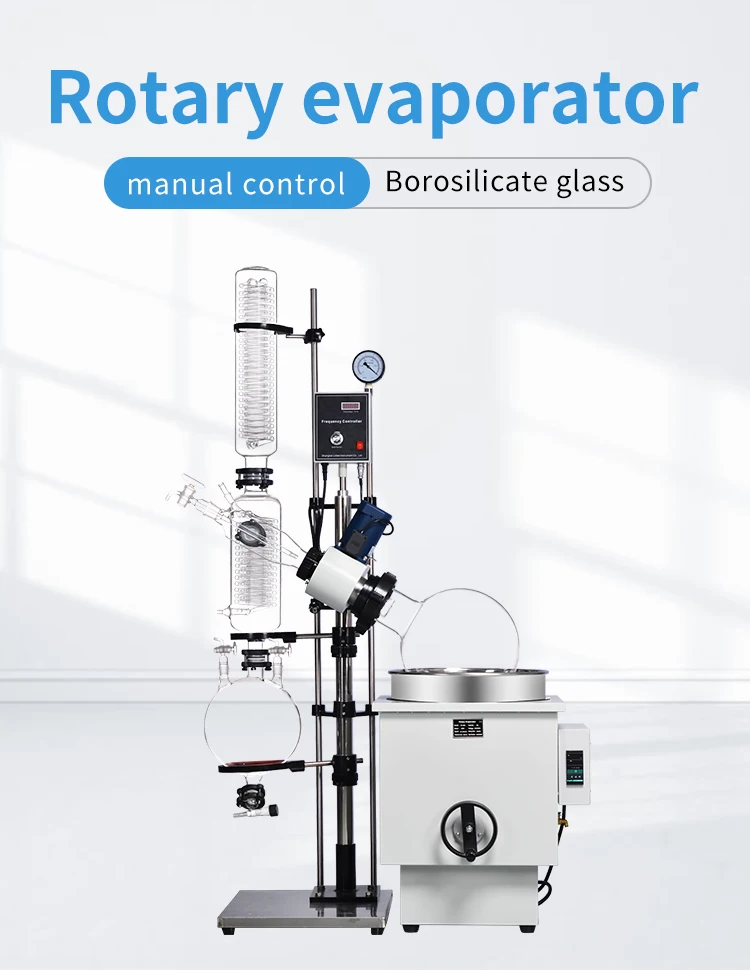

20L Lemongrass Essential Oil Extraction Rotary Evaporator with Vacuum Pump
Product Description

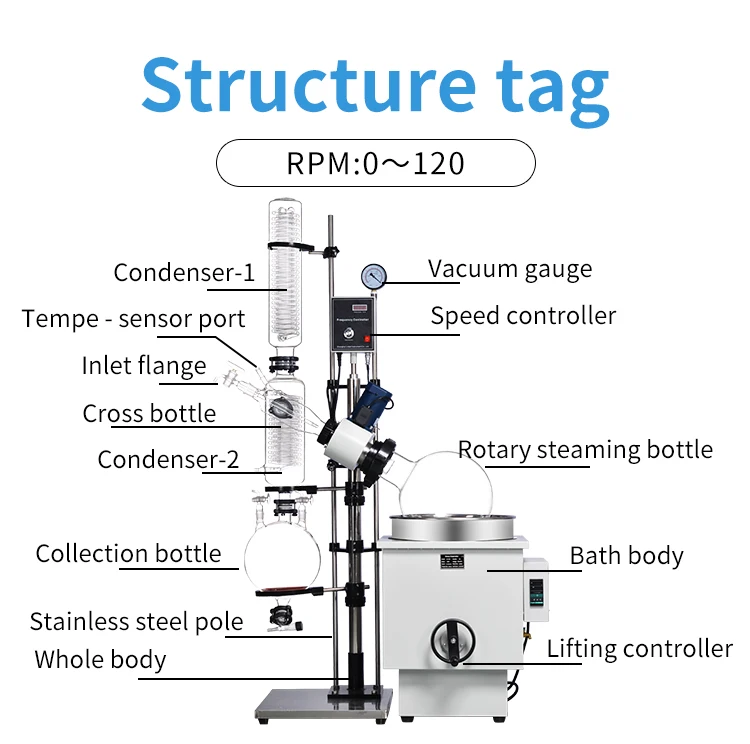

| Model | RE-1002 | RE-2002 | RE-3002 | RE-5002 |

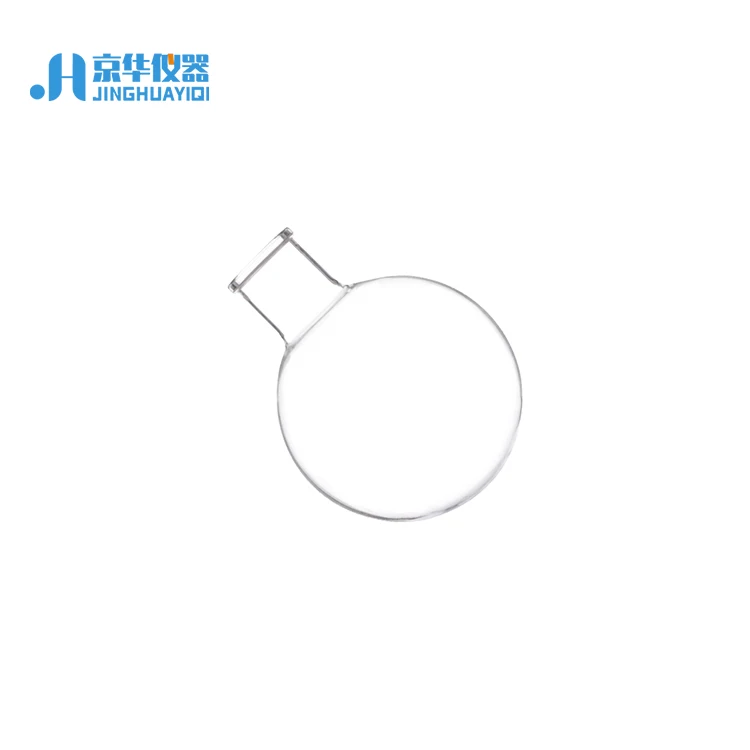

| Rotary flask(L) | 10 | 20 | 30 | 50 |
| Collection flask(L) | 5 | 10 | 20 | 20 |
| Evaporation speed(Water) | >3L/h | >5L/h | >7L/h | >9L/h |
| Condensation area(m2) | 0.57 | 1 | 1.2 | 1.5 |

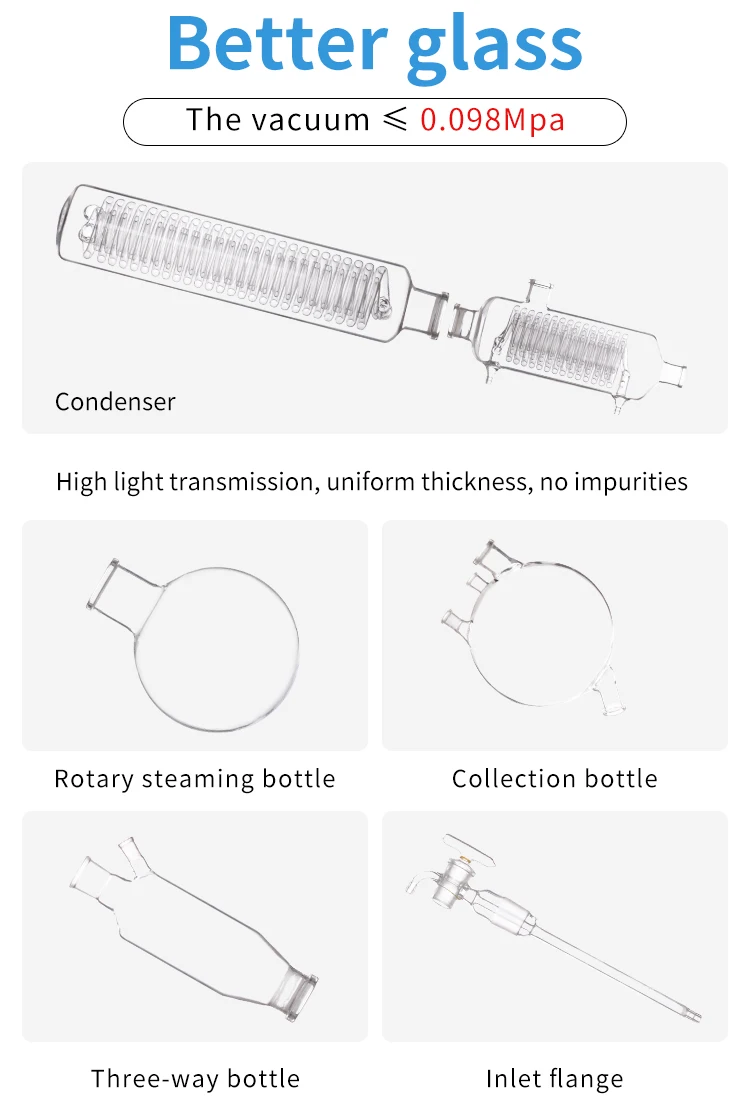

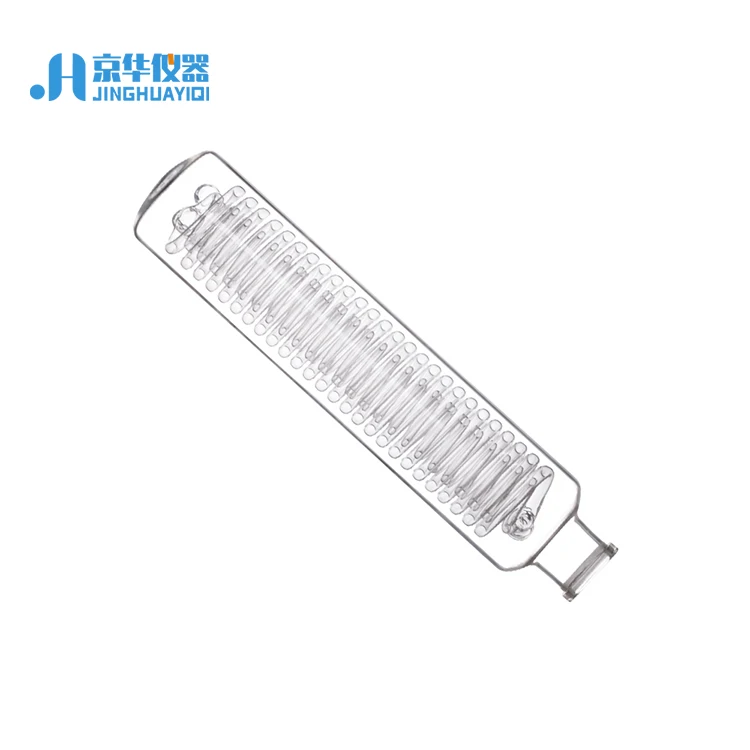

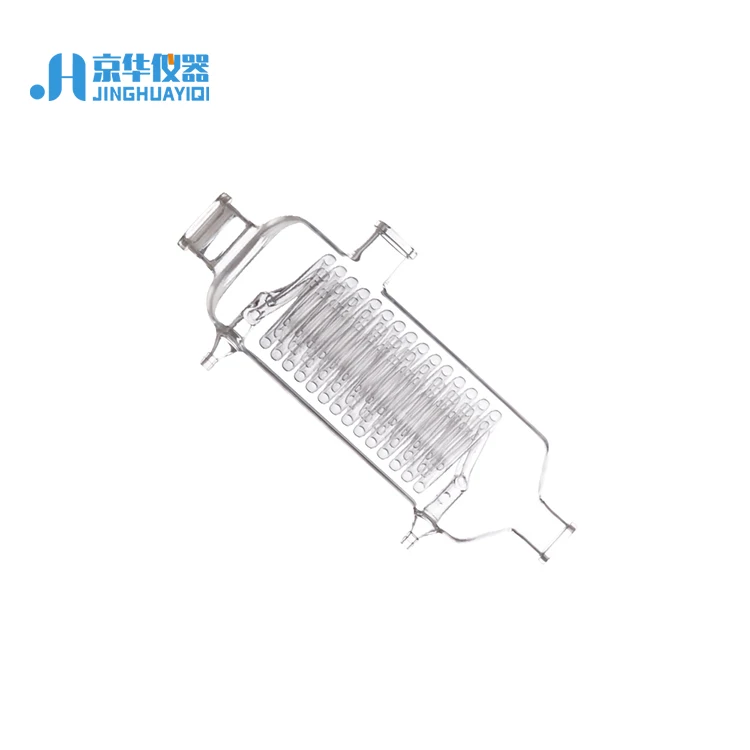

| Condenser | Vertical, main cold + sub cold, high efficiency three-return condenser | |||
| Motor power(W) | 120 | 180 | ||
| Engine speed | 3~110rpm Speed digital display | 3~90rpm Speed digital display | ||
| Bath power(W) | 3000 | 5000 | ||
| Power supply(V/Hz) | 220/50 AC induction motor, explosion-proof optional | 380/50 | ||
| Temperature control | Water:RT~90℃ ±0.2℃ Oil:RT~200℃ ±0.2℃ | |||
| Glass material | GG-17 (3.3) borosilicate glass | |||
| Attainable vacuum | ||||
| PTFE discharge valve | Standard configuration | |||
| PTFE combined seal | Standard configuration | |||
| Vacuum gauge | Standard configuration | |||
| Heating block | Stainless steel Manual lift or upgrade electric (automatic) lift | |||
| Bath size(mm) | 950*850*900 | 950*850*900 | 1000*900*950 | 1060*620*1200 |

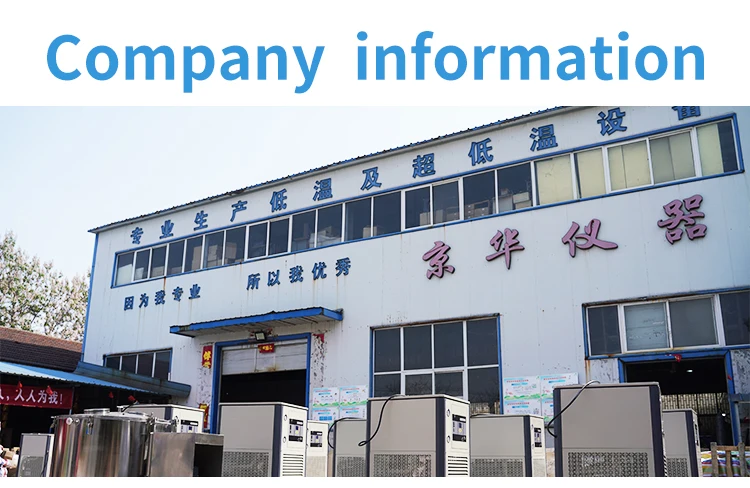

Company Information

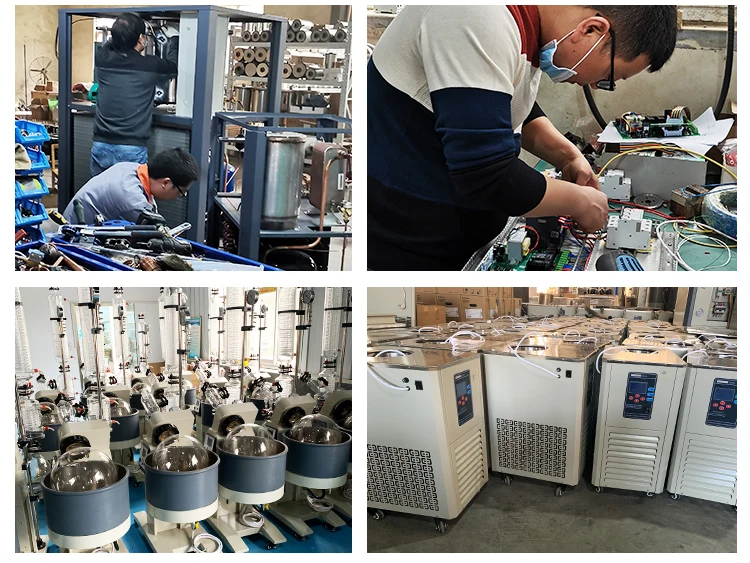

Gongyi Jinghua Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel.Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing. So we look forward to working with you to bring you the best results.
FAQ
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Contact Us
Jack Zhang
Email: info@linbel.com
linbel.com
Add: 1000 Chengliu Middle Road, Jiading Dist, Shanghai, China
Don't hesitate to contactg us, this is the product you need. Please click "Send" immediately!
