Product Overview
Description
Products Description

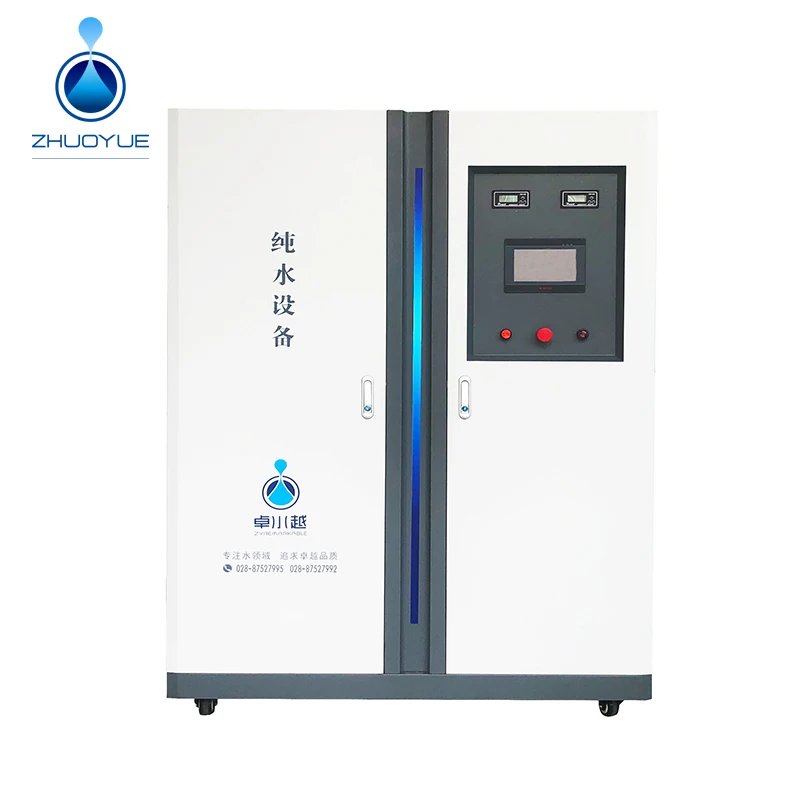

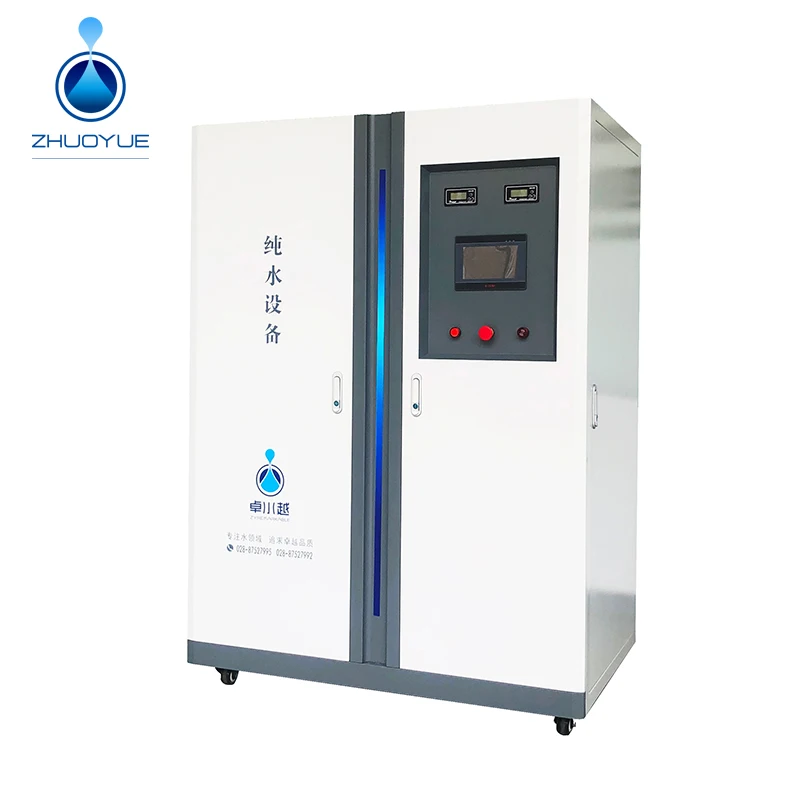

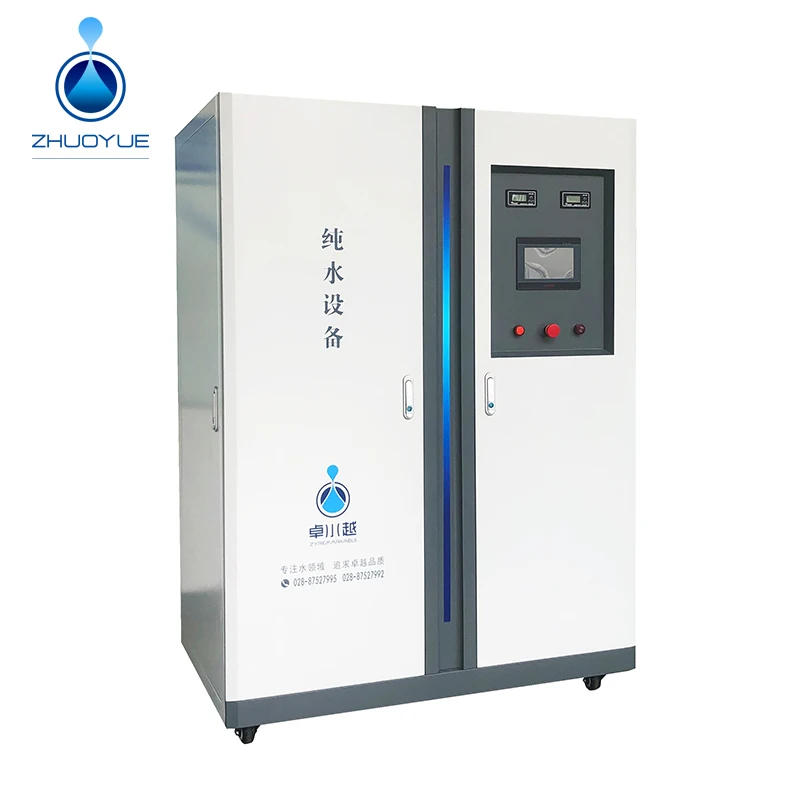

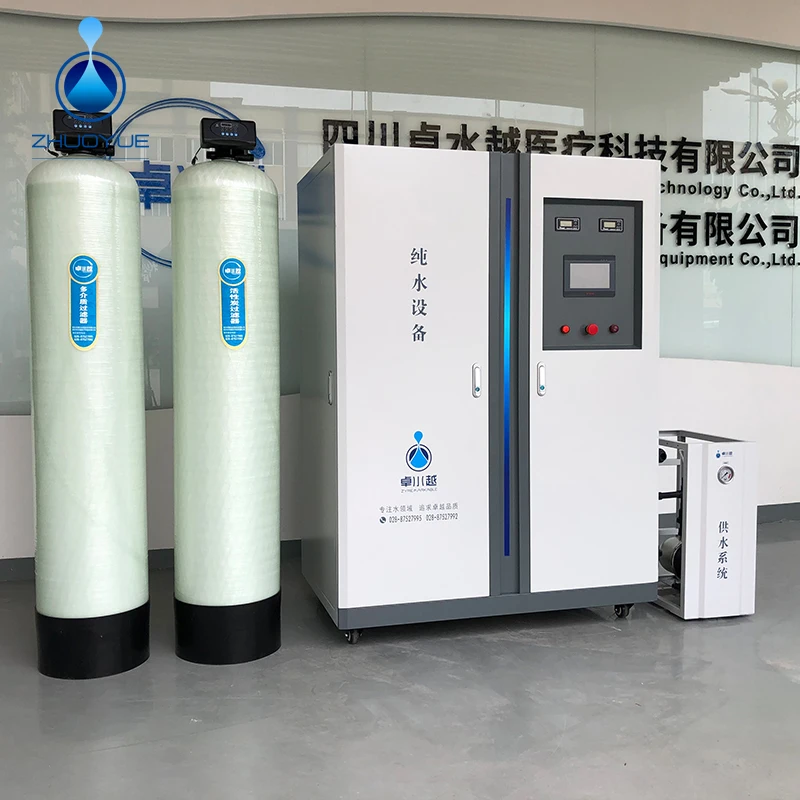

ZYQX sterile pure water machine uses reverse osmosis and disinfection technology to purify and sterile tap water to pure water
which meets the standard of hospital supply room.
which meets the standard of hospital supply room.
Model list
Model | ZYQX-250/500/750/1000/1500/2000/2500/3000L | ||||||||||||||
Feed water | Urban tap water (TDS＜400ppm), water pressure 3.0～5.0kg/cm2, working water temperature 10～30℃ Influent conductivity monitoring range 0-2000uS/cm (online monitoring) | ||||||||||||||
Capacity | 250L | 500L | 750L | 1000L | 1500L | 2000L | 2500L | 3000L | |||||||
Power(KW) | 1.8-2.4 | 2.2-2.7 | 2.7 | 2.7 | 3.6 | 3.6 | 6.8 | 7.0 | |||||||
Effluent quality (uS/cm) | Conductivity ≤ 15 uS/cm (on-line monitoring) Micro particulate matter (≥0.2um)<1/ml,ion removal rate:≥99% endotoxin and bacteria removal rate: ≥ 99%; Recovery rate: ≥50~75%; | ||||||||||||||
water pretreatment | MMF+ACF+SFF built-in one-piece | MMF+ACF+SFF built-in one-piece | MMF+ACF+SFF external integrated | ||||||||||||
size(mm) | 750*1600*1700mm | 750*1700*1700mm | 780*1200*1700mm | Size customization | |||||||||||
Product weight(kg) | ＜150KG | ＜200KG | ＜300KG | ＜450KG | |||||||||||

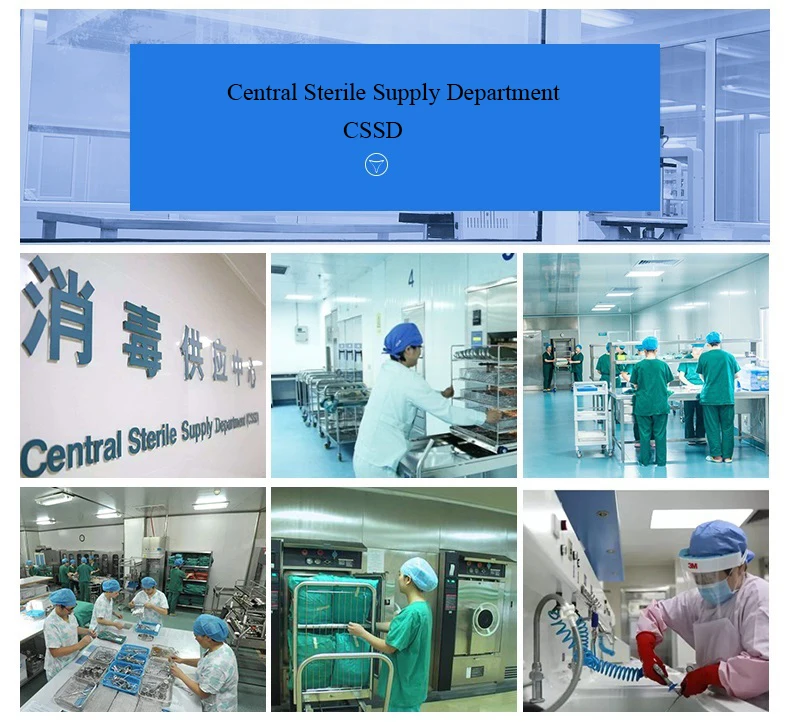

Application | Hospital disinfection supply room water (all kinds of cleaning machines, cleaning vehicles, ultrasonic cleaning, high pressure sterilization equipment supporting use), hospital pharmacy department, supply department preparations, preparations, dispensing water container cleaning water; | ||||||||||||||
pure water tank | Standard 300L (D730*H950mm) | Standard 500L (D860*H1100mm) | Standard 1000L (D1050*H1350mm) | ||||||||||||
Note | If the water conductivity is required to be less than 5uS/cm, the two-stage reverse osmosis process ZYQX-D-XXXL can be selected. | ||||||||||||||
Product features
Features and Advantages of Mineral Water Processing Machine:
1. Standard integrated appearance, compact structure saving floor space
2.Standard blue glass steel pretreatment tank, beautiful appearance, higher cost of appearance
3.Manual and automatic control in case of any emergency to facilitate the usage in emergency situations. Higher cost of electronic
control
4, Electrical control with stainless steel 304 rack and shell, with a full closure plate shape, compared to the semi-closed plate
shape, higher cost
5, The entire department uses ultra-pure water for ultra-clean PVC pipe fittings, low dissolution, prevent the secondary pollution
of pure water
6. The electronic control device adopts one power and one control. Each electronic component has independent layout and does not
interfere with each other. The failure rate is lower, and the extended function wiring port is reserved to facilitate the
customer's new functions and use later.
7. The pre-treatment regeneration washing function is interconnected with the host electronic control to ensure that the
pre-treatment system is flushed and reproduced more fully, and the replacement frequency of consumables is reduced, and the
service life is longer.
1. Standard integrated appearance, compact structure saving floor space
2.Standard blue glass steel pretreatment tank, beautiful appearance, higher cost of appearance
3.Manual and automatic control in case of any emergency to facilitate the usage in emergency situations. Higher cost of electronic
control
4, Electrical control with stainless steel 304 rack and shell, with a full closure plate shape, compared to the semi-closed plate
shape, higher cost
5, The entire department uses ultra-pure water for ultra-clean PVC pipe fittings, low dissolution, prevent the secondary pollution
of pure water
6. The electronic control device adopts one power and one control. Each electronic component has independent layout and does not
interfere with each other. The failure rate is lower, and the extended function wiring port is reserved to facilitate the
customer's new functions and use later.
7. The pre-treatment regeneration washing function is interconnected with the host electronic control to ensure that the
pre-treatment system is flushed and reproduced more fully, and the replacement frequency of consumables is reduced, and the
service life is longer.

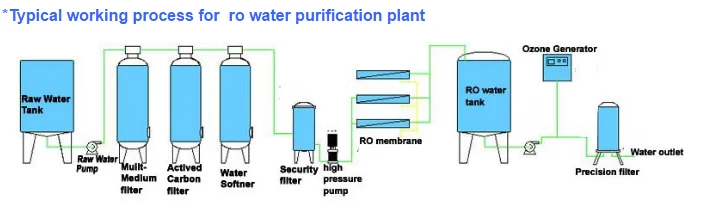

The process flow
*. Quartz sand filter: filtrate sediment, suspended matter, colloid, rust, etc.
*. Active carbon filter: adsorb free chlorine, smell, color and parts of microorganism.
*. Softener filter: uses Na+ to replace Ca2+ and Mg2+ to change hard water to soft water.
*. Brine tank: regenerate softener resin and let it keeps activity.
*. High pressure pump: offer pressure to RO membrane.
*. RO membrane: 0.0001-0.001um; remove more than 99% salt ions, inorganics, organics, microorganism, bacteria, pollutant matters,
heavy metal ions and so on.
*. UV lamp and ozone generator: 2 stage disinfection parts to completely remove bacteria and microorganism in the water pipe or
water tank.
*. Active carbon filter: adsorb free chlorine, smell, color and parts of microorganism.
*. Softener filter: uses Na+ to replace Ca2+ and Mg2+ to change hard water to soft water.
*. Brine tank: regenerate softener resin and let it keeps activity.
*. High pressure pump: offer pressure to RO membrane.
*. RO membrane: 0.0001-0.001um; remove more than 99% salt ions, inorganics, organics, microorganism, bacteria, pollutant matters,
heavy metal ions and so on.
*. UV lamp and ozone generator: 2 stage disinfection parts to completely remove bacteria and microorganism in the water pipe or
water tank.

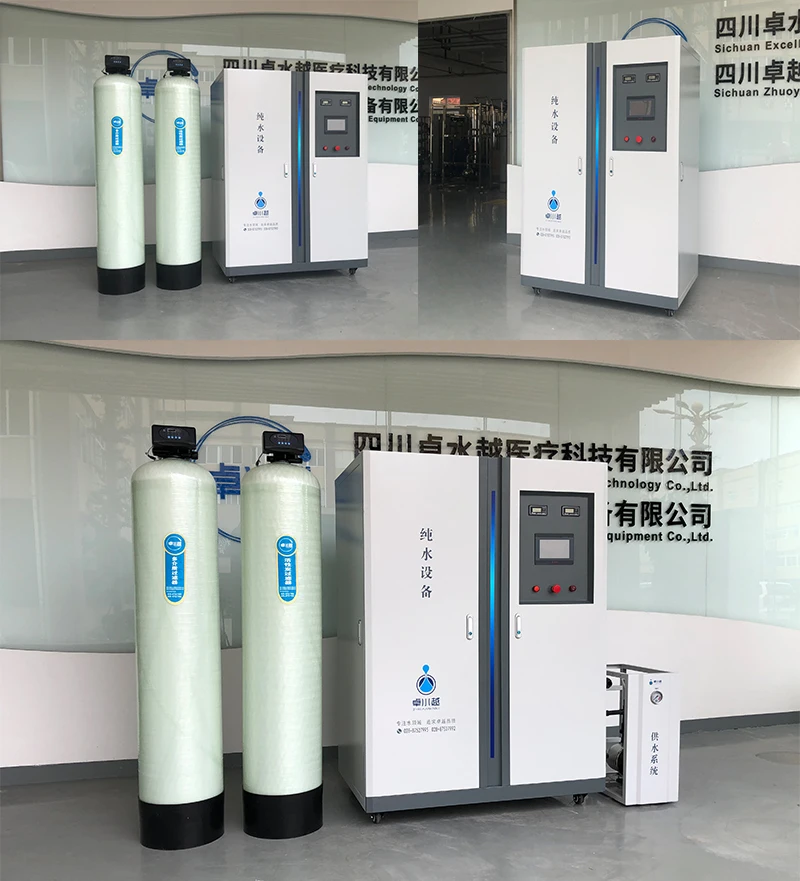

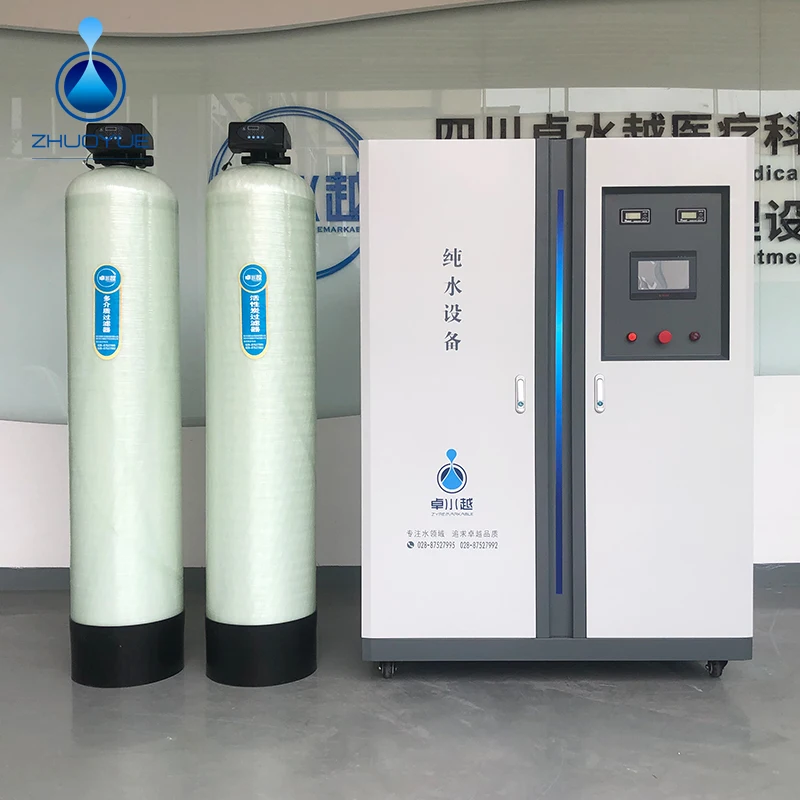

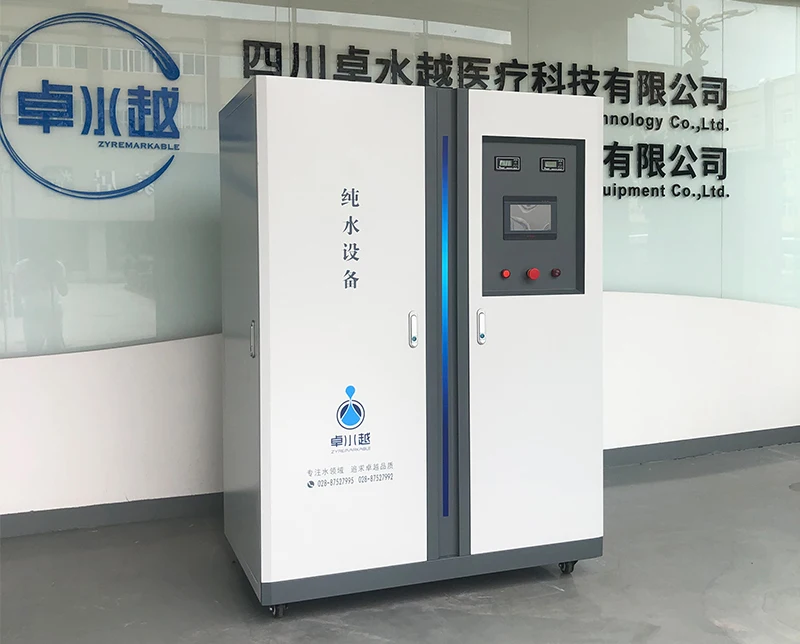

Product exhibition
Compang information
Sichuan Zhuoyue Water Treatment Equipment Co., Ltd. was established in 2009. It is a comprehensive water treatment manufacturer integrating R&D, production, sales and after-sales. It specializes in R&D and production of laboratory ultrapure water systems, medical pure water systems, and pharmacopoeia purified water systems. , industrial ultra-pure water system, commercial pure water system, waste water treatment system, membrane separation system and related water treatment system. At present, the company has a 4000M2 modern production base and marketing service center in Chengdu, Sichuan, and has established perfect after-sales service network.
Product packaging
Why Choose Us
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
