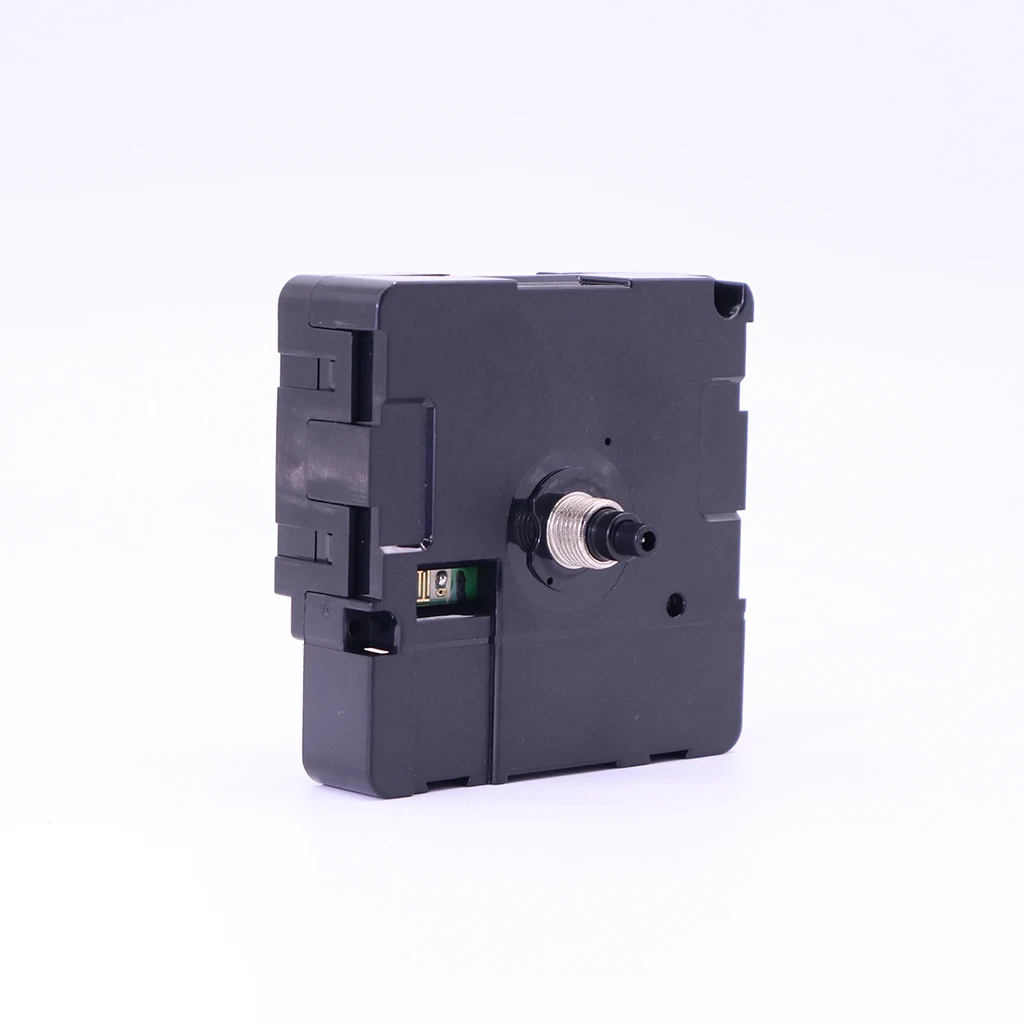

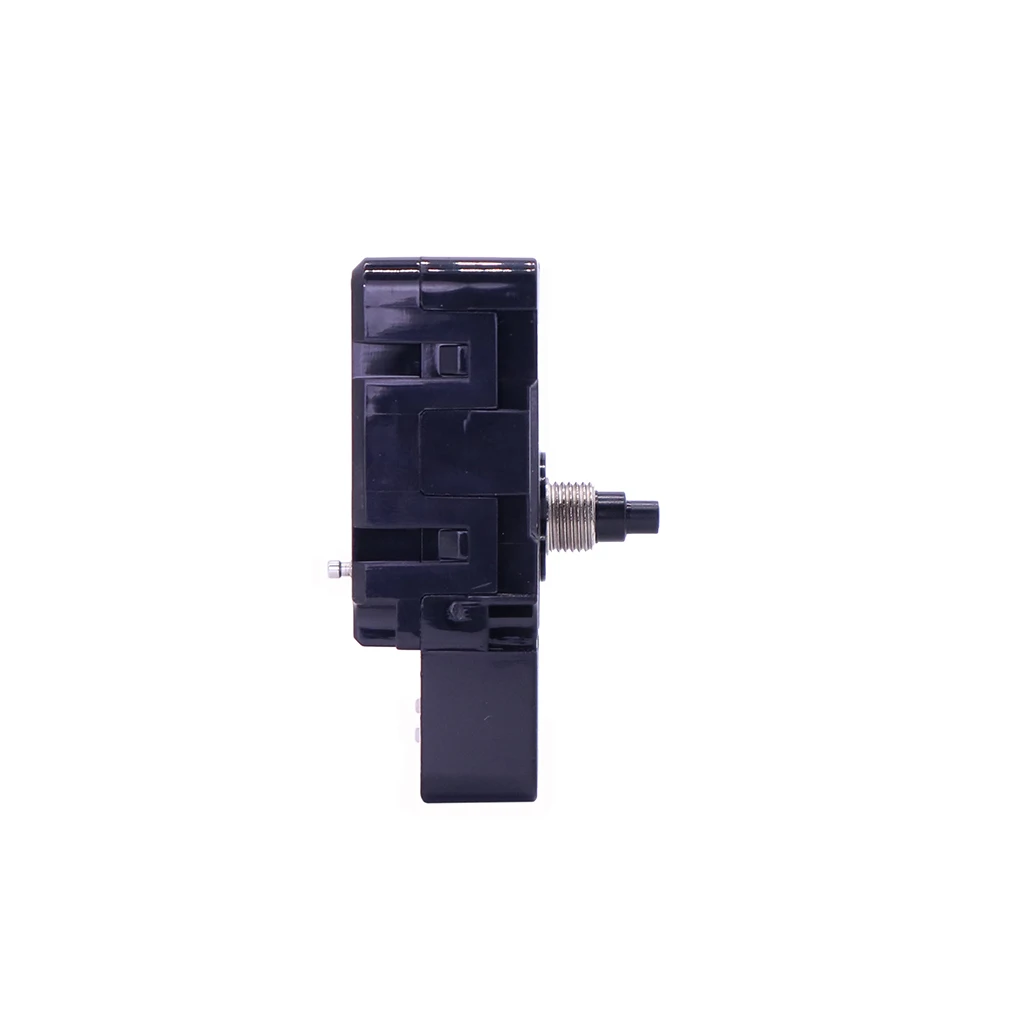

BPC/DCF/JJY/MSF Automatic Radio Controlled Clockwork Non ticking Silent Sweeping Wall Clock Movement
- Category: >>>
- Supplier: Dongguan Heng-Rong Hardware Electronic Technology Co. Ltd.
Share on (1600613748133):
Product Overview
Description
Product Description
This ZD-9688 Radio Controlled Sweep Wall Clock Movement has 5 shaft lengths, each shaft length fit to different thick clock dial, you can choose suitable shaft length according to your wall clock.

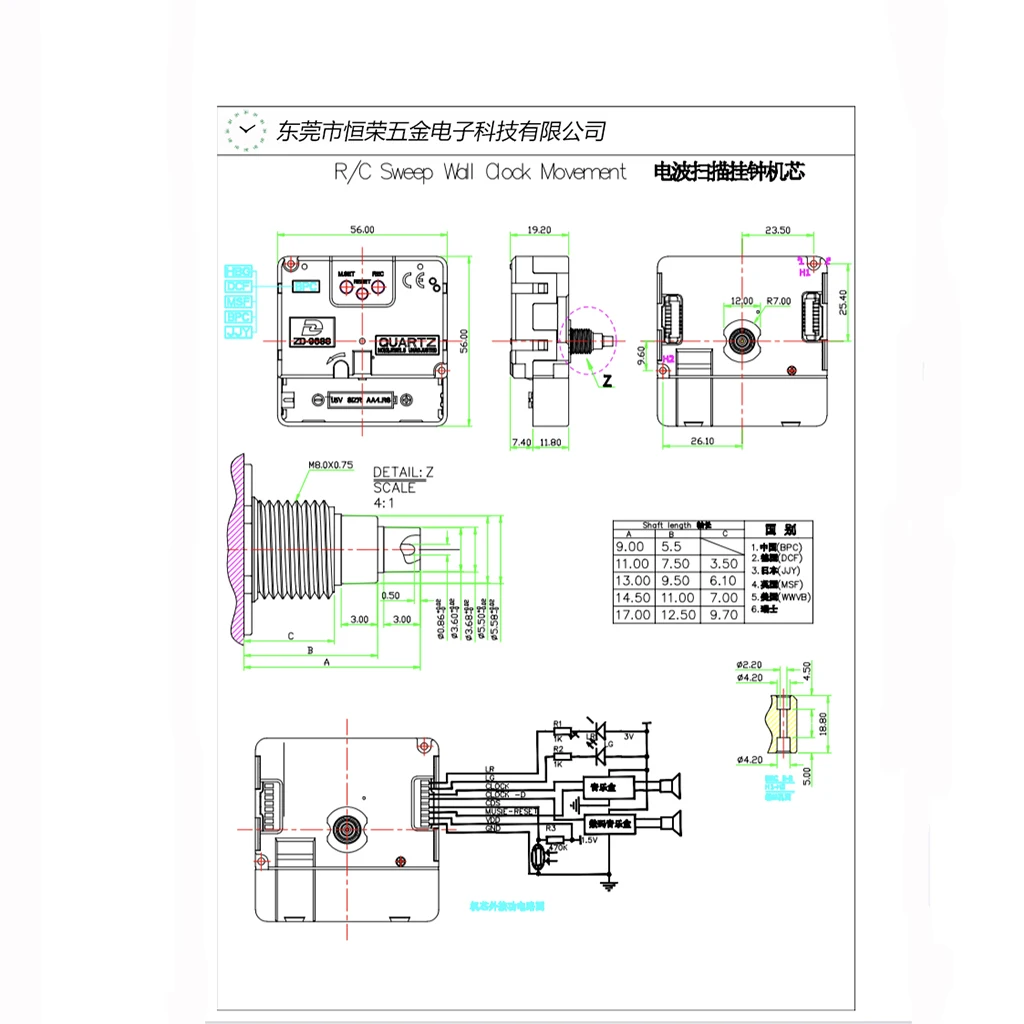

Version | Model | Shaft length | Thread length | Fit to the thickness of clock dial |
BPC DCF JJY MSF | ZD-9688FRCSA | 9mm | / | |
ZD-9688FRCSB | 11mm | 3.5mm | 1mm | |
ZD-9688FRCSC | 13mm | 6.1mm | 2-3mm | |
ZD-9688FRCSD | 14.5mm | 7mm | 3-4mm | |
ZD-9688FRCSE | 17mm | 9.7mm | 4-6mm |

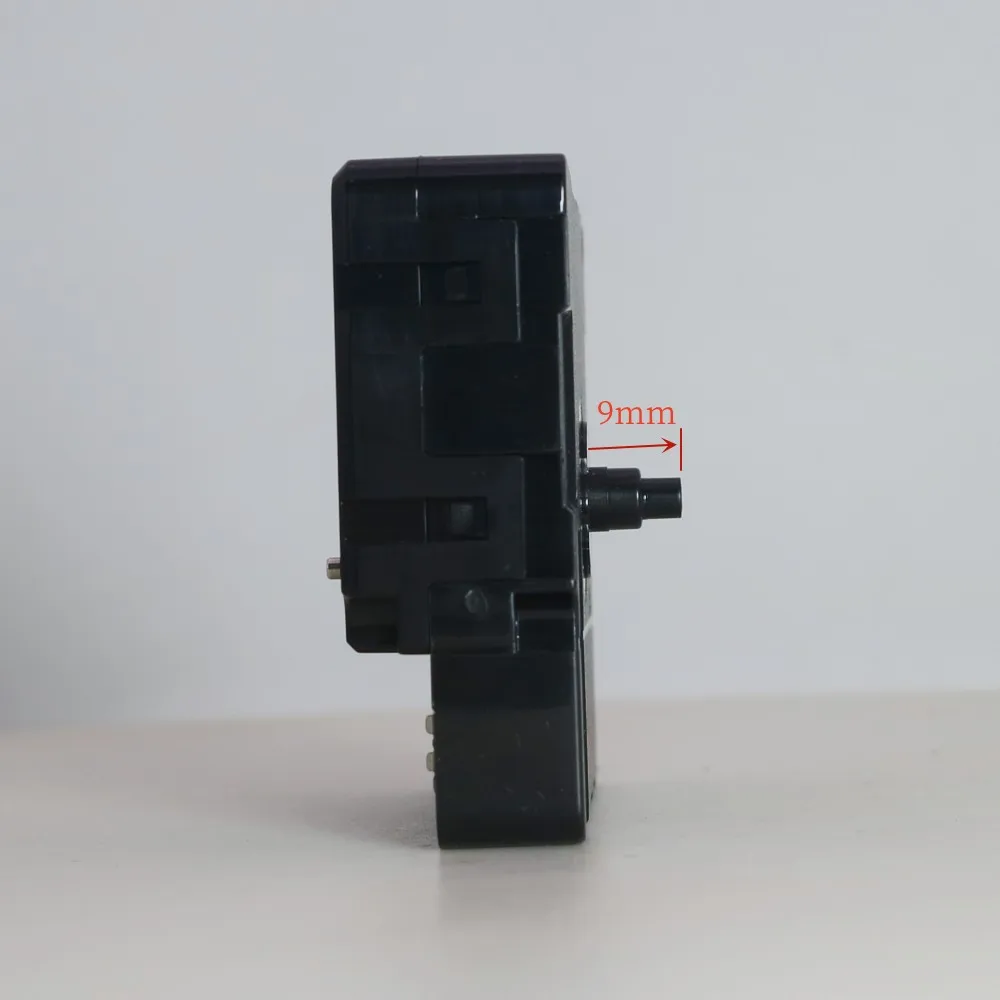

Shaft length 9mm (short shaft), without thread

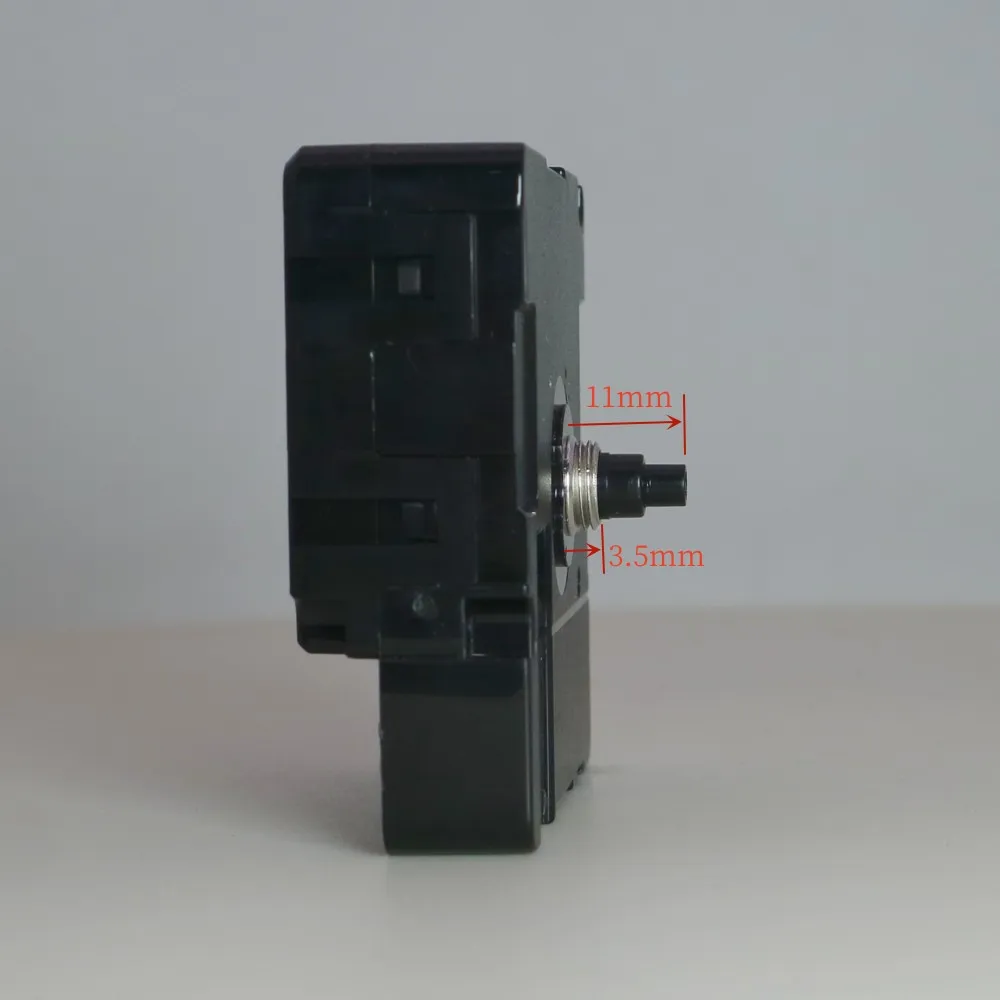

Shaft length 11mm , with 3.5mm thread, suitable for 1mm thickness of clock board

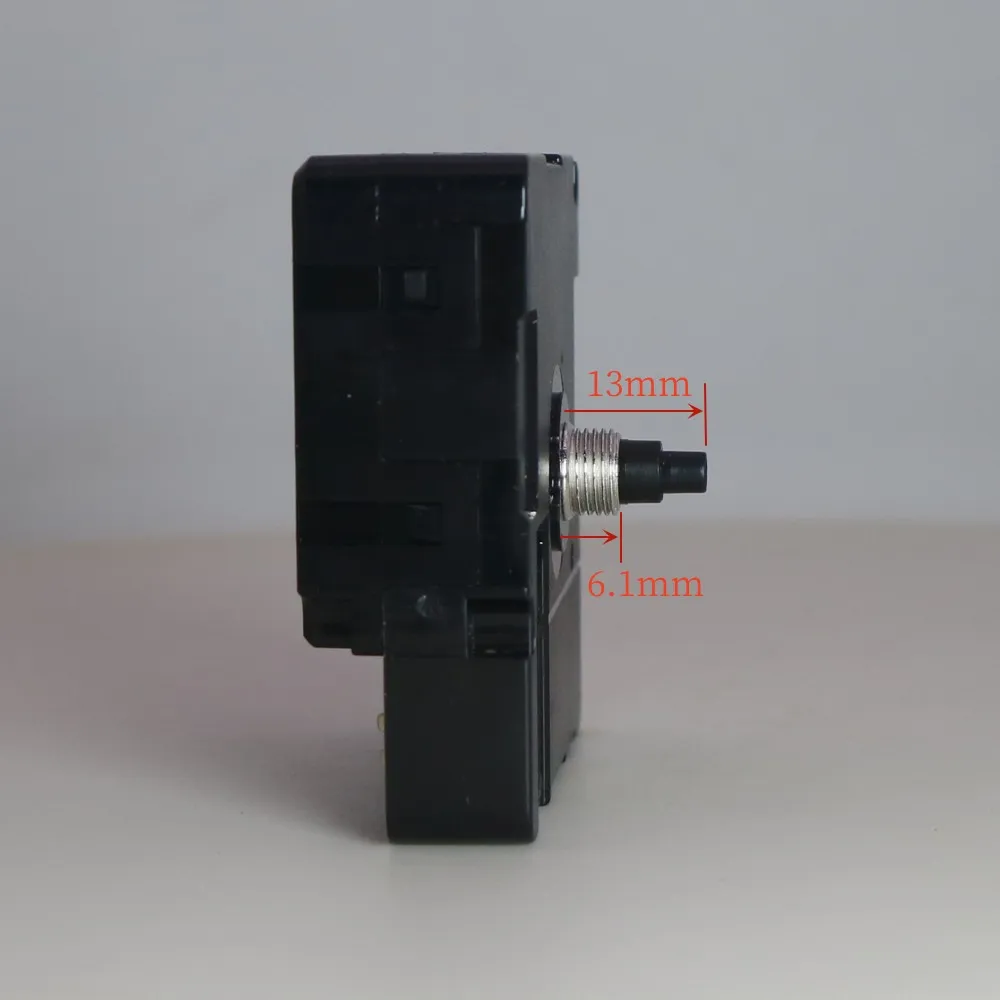

Shaft length 13mm , with 6.1mm thread, suitable for 2-3mm thickness of clock board
Shaft length 14.5mm , with 7mm thread, suitable for 4mm thickness of clock board

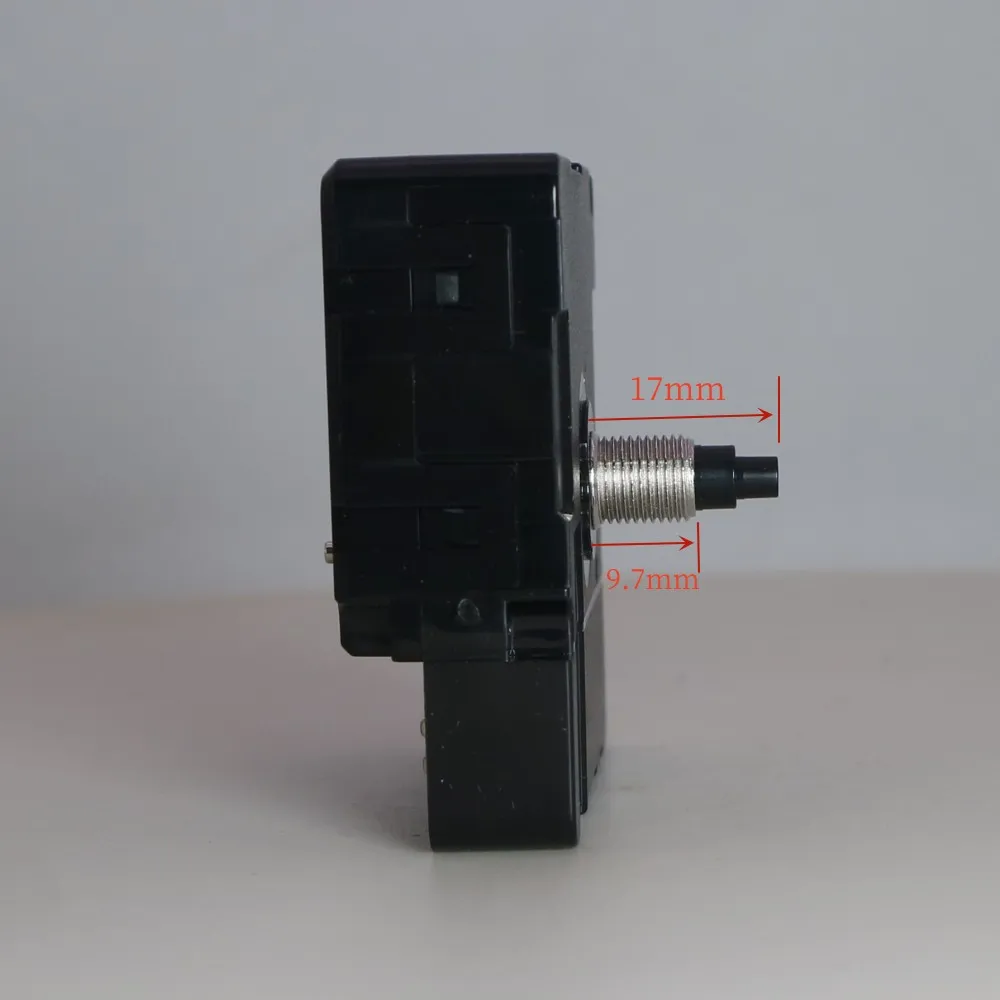

Shaft length 17mm , with 9.7mm thread, suitable for 5-6mm thickness of clock board
Version | BPC | DCF | JJY | MSF |
Receiving Frequency | 68.5KHZ | 77.5KHZ | 40/60KHZ | 60KHZ |
Barrery size | AA/LR6 | AA/LR6 | AA/LR6 | AA/LR6 |
Operating Voltage | 1.30-1.70V | 1.30-1.70V | 1.30-1.70V | 1.30-1.70V |
Quartz Adjustment at 25℃ | ±1 s/d | ±1 s/d | ±1 s/d | ±1 s/d |
Operating Temperature | 5℃ - 55℃ | 5℃ - 55℃ | 5℃ - 55℃ | 5℃ - 55℃ |
Storage Temperature | 20℃ - 70℃ | 20℃ - 70℃ | 20℃ - 70℃ | 20℃ - 70℃ |
Current Consumption (1.5V) | ≤160μA | ≤160μA | ≤160μA | ≤160μA |
Sensitivity | 70μA/m | 70μA/m | 70μA/m | 70μA/m |
Receiving Time | 2-9min | 2-9min | 2-9min | 2-9min |
Reception | 3x/day | 3x/day | 3x/day | 3x/day |
Second Hand Torque | 0.6 gf/cm | 0.6 gf/cm | 0.6 gf/cm | 0.6 gf/cm |
Operating Noise | ≤30db | ≤30db | ≤30db | ≤30db |
Recommend Products

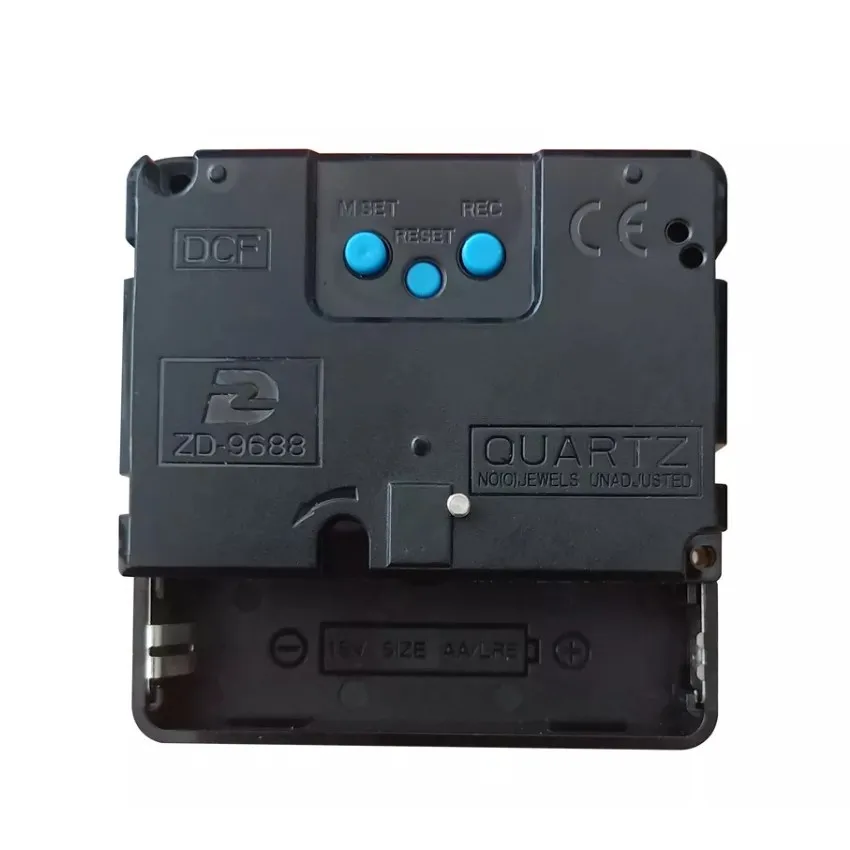

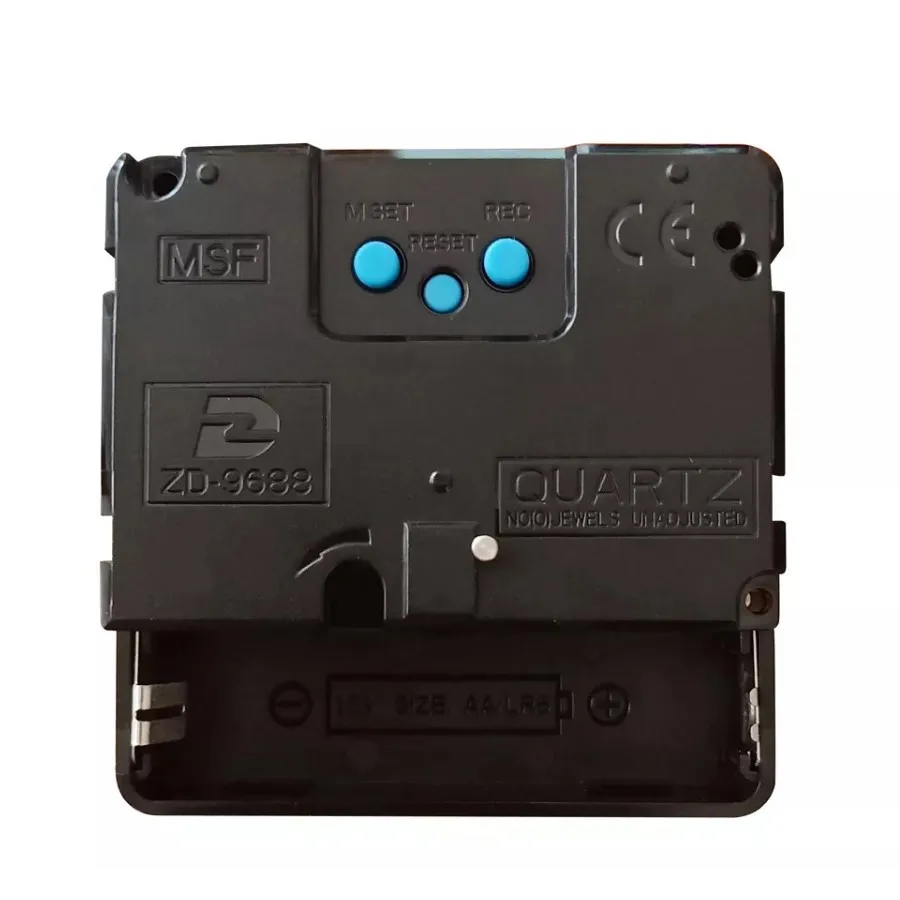

This ZD-9688 Radio Controlled Sweep Wall Clock Movement has 4 versions, each version apply to different countries, please choose correct version according to your market.

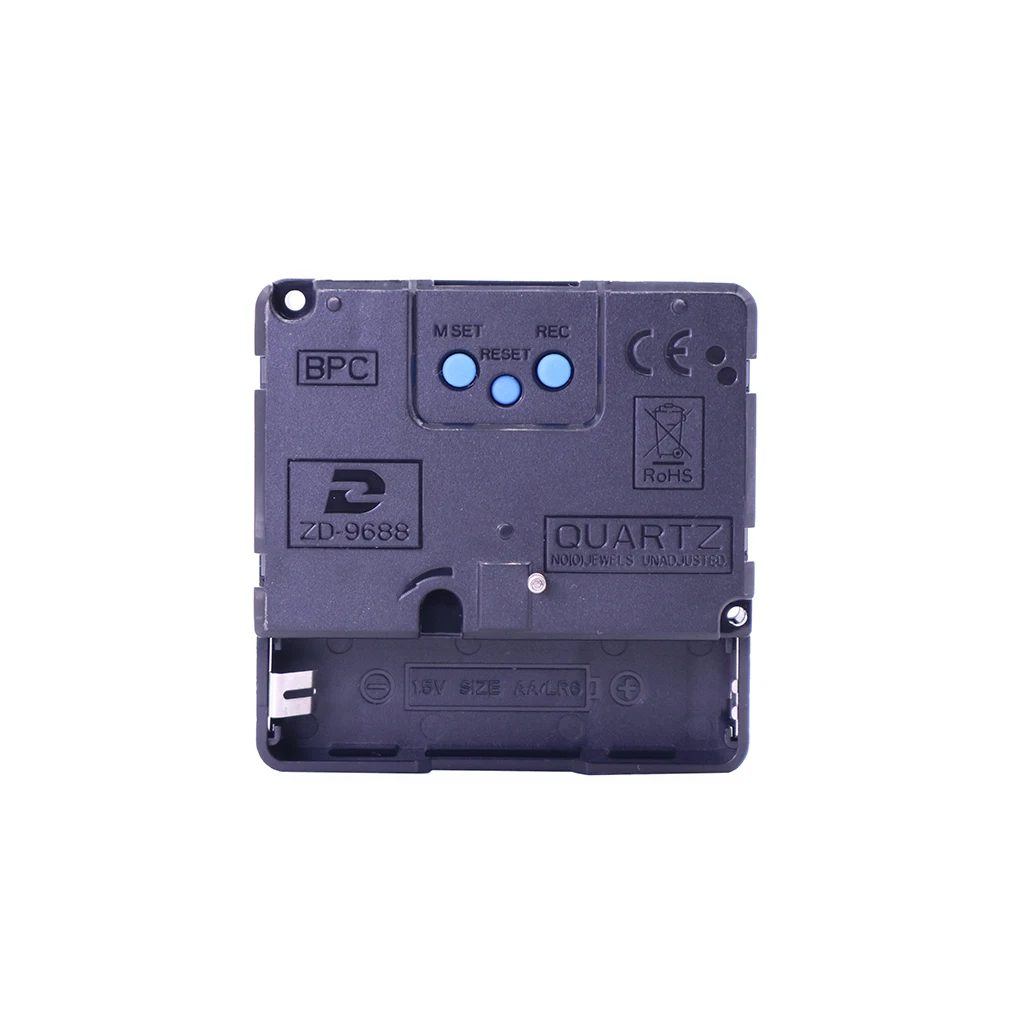

BPC version, suit for China

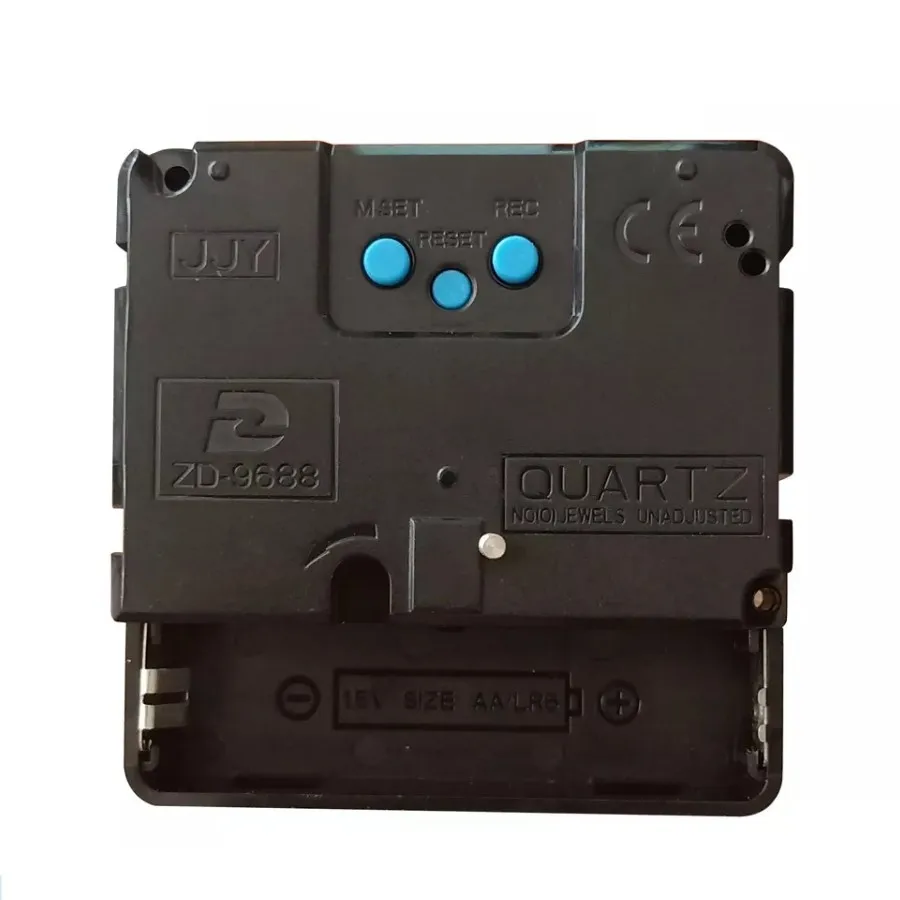

JJY version, suit for Japan
Packing details

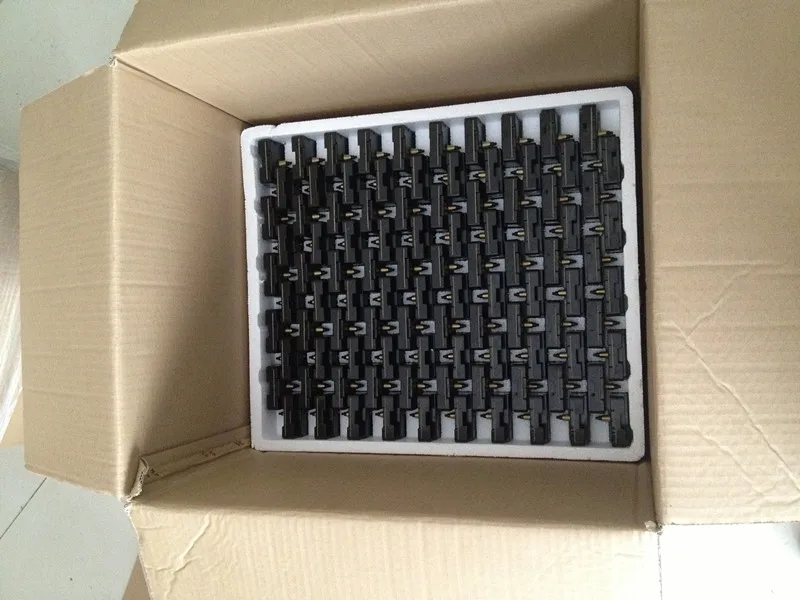

Standard packaging of ZD-9688 Radio Controlled Sweep Wall Clock Movement
300 pcs/carton, 13.6kg/carton, carton size: 48.5*30*35.7cm

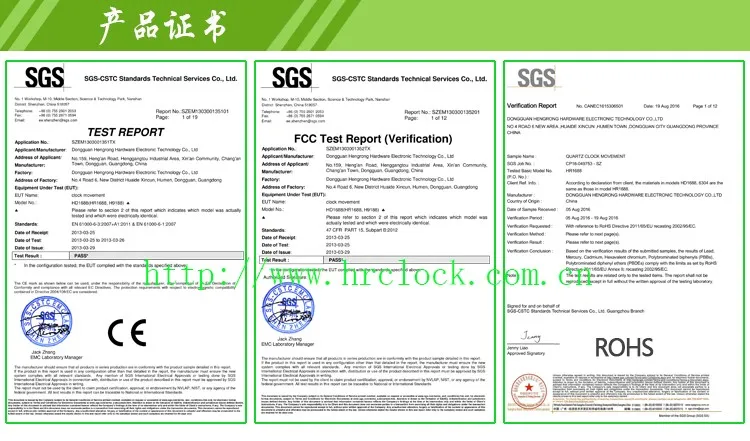

Certifications
FAQ
1Q: How fast can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
2Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
2-3set sample for free.You only pay freight cost.
3Q:Is the MOQ fixed?
A:MOQ 300 pcs per model.
If the Items you need have stock. order quantity can be negotiable.
4Q: Is there any discount possible if I place an order?
A:Yes.we have different price ranges based on different order quantities. Please contact our sales for detailed price information.
5Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
Produce time is about 28 days.
If you need goods urgently,You can talk with our sales to confirm shortest produce time
6.Q:Do you have "CE" and "ROHS"certificate?
A:Yes."CE" and "ROHS"certificate is available,Our main market Europe, United States, Australia, New Zealand, Australia and so on
7.Q: What is your terms of delivery?
A: We accept Paypal, T/T and Western Union for money transfer.You can choose the one which is the most convenient or cost
effective for you.
8.Q:What if the clock movement is defective after we get?
A: Good after-sale service is our promise.
If clock movement can't work without human factor in 2 years.
New one sent to you.
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
2Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
2-3set sample for free.You only pay freight cost.
3Q:Is the MOQ fixed?
A:MOQ 300 pcs per model.
If the Items you need have stock. order quantity can be negotiable.
4Q: Is there any discount possible if I place an order?
A:Yes.we have different price ranges based on different order quantities. Please contact our sales for detailed price information.
5Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
Produce time is about 28 days.
If you need goods urgently,You can talk with our sales to confirm shortest produce time
6.Q:Do you have "CE" and "ROHS"certificate?
A:Yes."CE" and "ROHS"certificate is available,Our main market Europe, United States, Australia, New Zealand, Australia and so on
7.Q: What is your terms of delivery?
A: We accept Paypal, T/T and Western Union for money transfer.You can choose the one which is the most convenient or cost
effective for you.
8.Q:What if the clock movement is defective after we get?
A: Good after-sale service is our promise.
If clock movement can't work without human factor in 2 years.
New one sent to you.
