NTR RP630/700/1000/1300 wide belt calibration wood sanding machines
- Category: Other Woodworking Machinery >>>
- Supplier: Qingdao Sefe Trading Co. Ltd.
Share on (1600613818192):
Product Overview
Description
Product Description
This type characters:

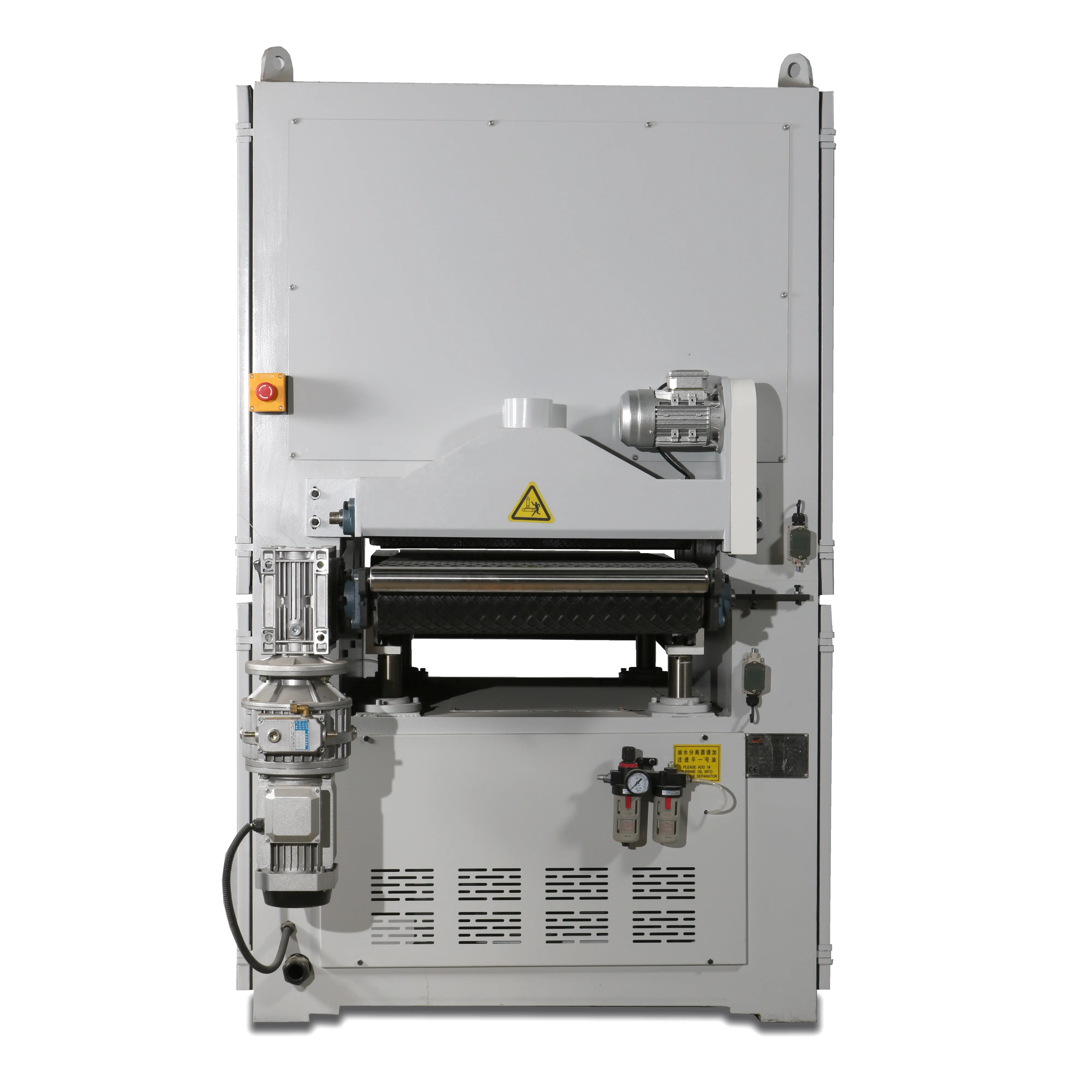

1.wide belt sanding machine

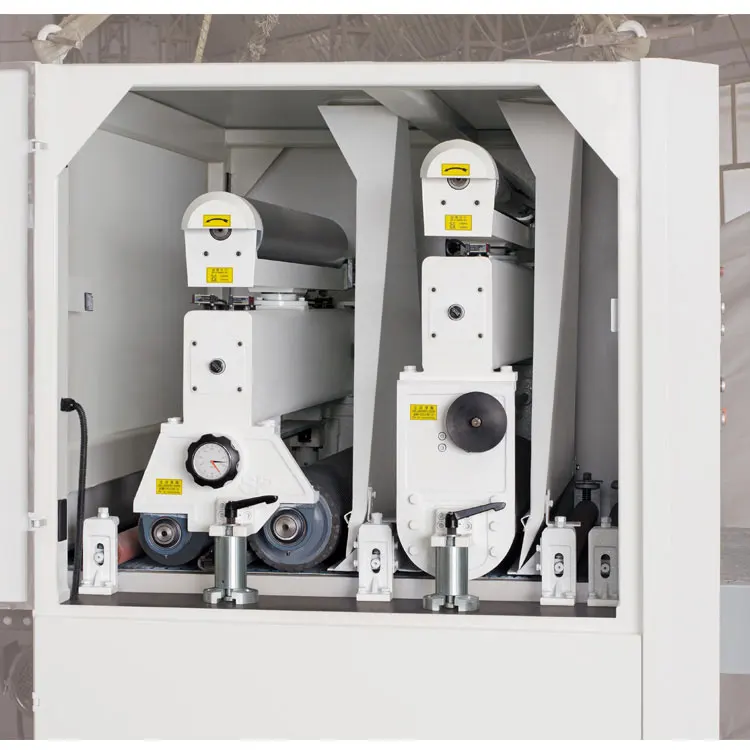

2.has two heads,with sanding pad
3.sanding and polishing
1.wide belt sanding machine
2.has two heads,with sanding pad
3.sanding and polishing

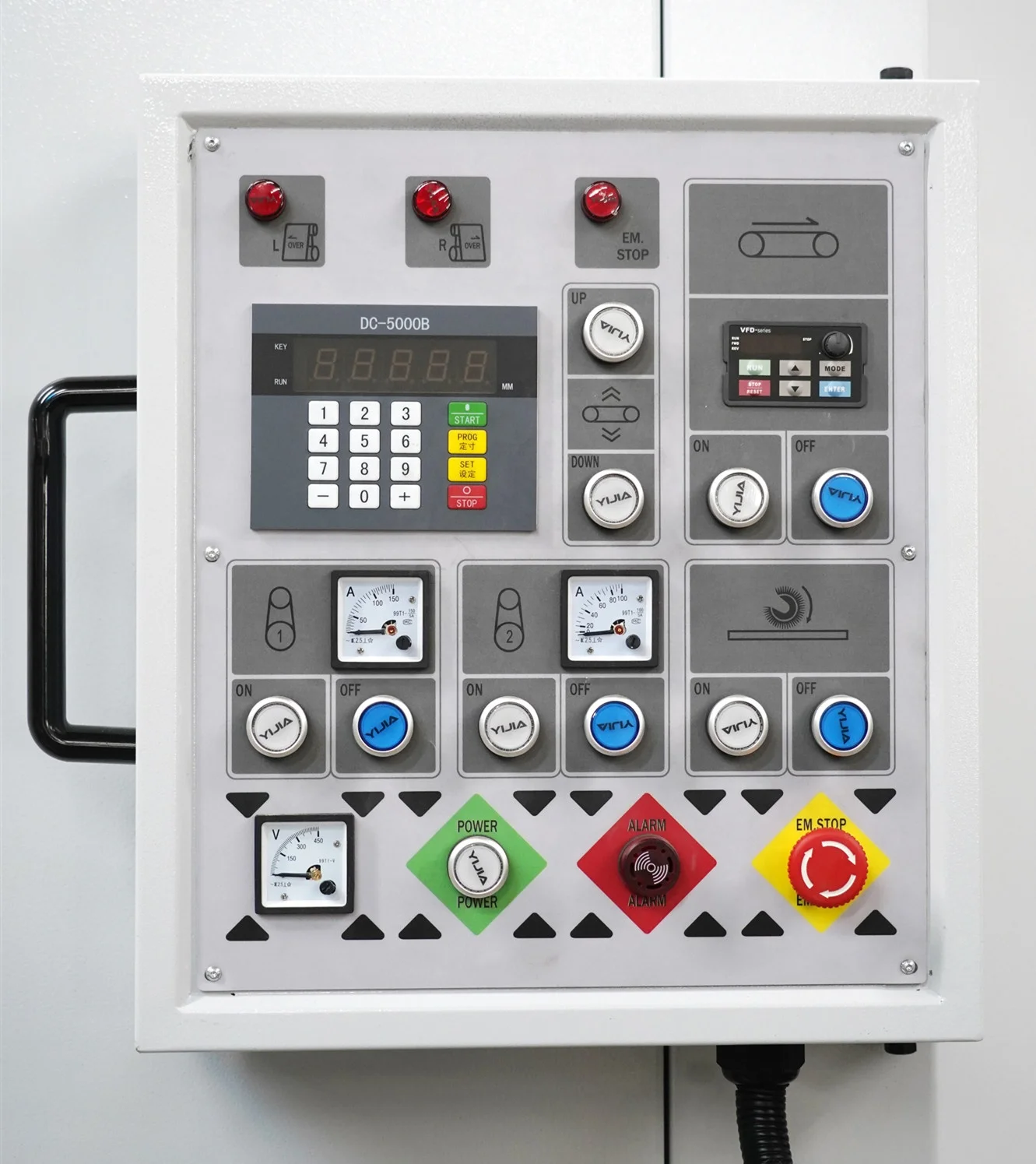

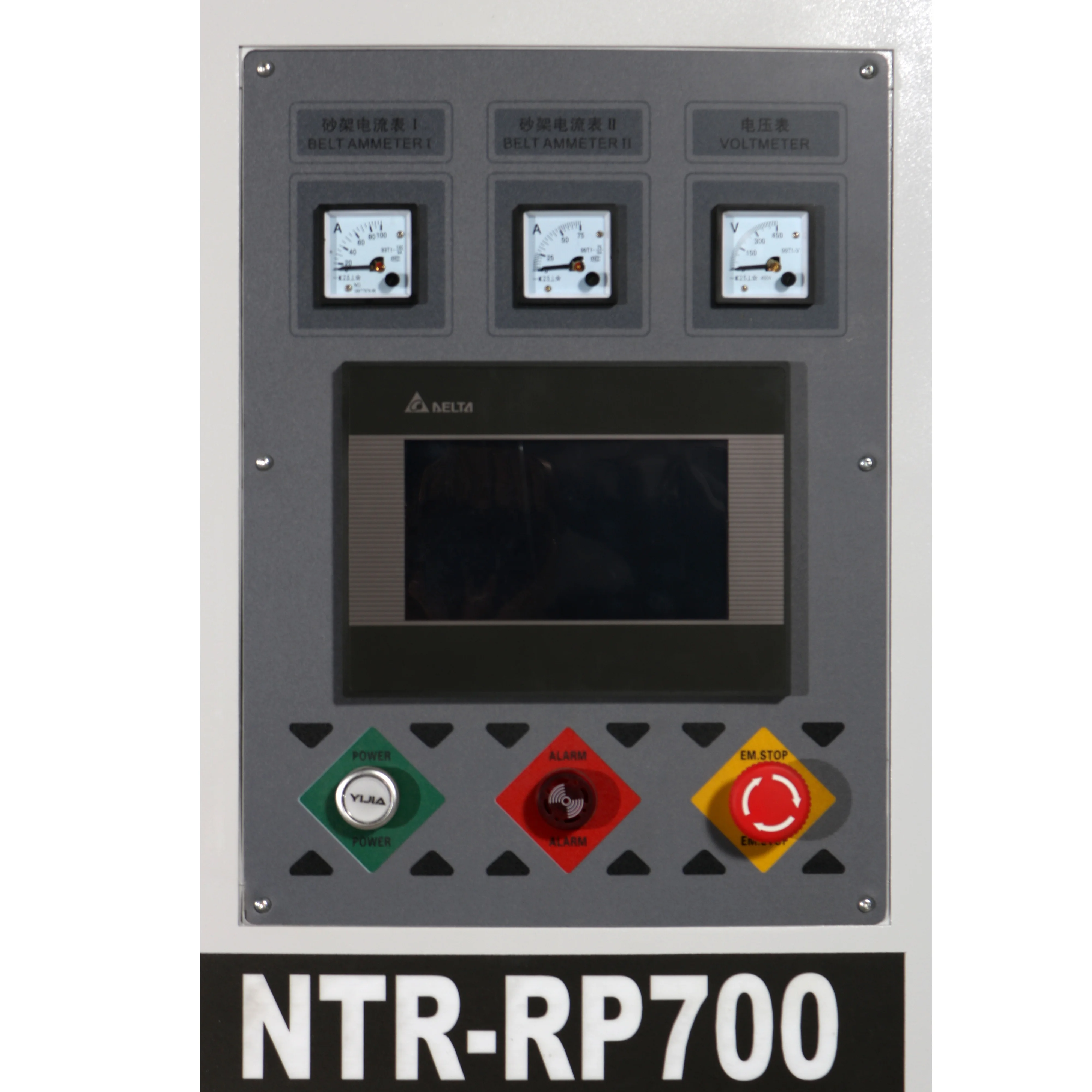

-Front microcomputer control panel,easy operation,high accuracy.
-Block siding and beams using precision castings,small deformation,well shock-absorbing effect.
-Steel roller go up and down,partial sanding easy to adjust,the fixed thickness thick roller with thicker adhesive layer to improve the accuracy of sanding.
-Has the fault displaying function,maintenance more convenient, If problems happen,the device is powered down.
-If belt deviation and lack of pressure, the machine will stop working automatically and conweyor bed shut down automatically to ensure safety, the work piece will not be destroyed.
-Block siding and beams using precision castings,small deformation,well shock-absorbing effect.
-Steel roller go up and down,partial sanding easy to adjust,the fixed thickness thick roller with thicker adhesive layer to improve the accuracy of sanding.
-Has the fault displaying function,maintenance more convenient, If problems happen,the device is powered down.
-If belt deviation and lack of pressure, the machine will stop working automatically and conweyor bed shut down automatically to ensure safety, the work piece will not be destroyed.
Show details
Technical Parameters
There are two types of structures, customized according to customer requirements.
Model | NTR-RP1300 | NTR-RP1000 | NTR-RP630 |
Working width | 40-1300mm | 30-1000mm | 30-630mm |
Working thickness | 2.5-110mm | 2.5-110mm | 2.5-110mm |
Working length | ≥640mm | ≥450mm | ≥350mm |
No.1#sanding belt speed | 19m/s | 20m/s | 20m/s |
No.2#sanding belt speed | 18m/s | 18m/s | 18m/s |
Feeding speed | 6-30m/min | 4-16m/min | 4-16m/min |
Size of sanding belt(W*P) | 1330*2200mm | 1020*2000mm | 650*1920mm |
Total motor power | 63.92 kw | 35.8kw | 20.55kw |
Main motor power(two motors) | 37kw,22kw | 15kw,11kw | 11kw,7.5kw |
Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Consumption of comperessed air | 0.1m³/min | 0.1m³/min | 0.09m³/min |
Volume of sucked air | 9500m³/h | 9000m³/min | 4500m³/min |
Speed of sucked air | 25-30 m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 2260*2050*2250mm | 1900*1700*2100mm | 1800*1300*2100mm |
Net weight | 3700kg | 2200kg | 1600kg |
Factory Video Display
Company Introduction
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
With more than 30 years of experience in woodworking and metalworking, Sefe sanding machines are well-known brands in the Chinese market, including wide belt sanding machine, paint sanding machine, water sanding machine, double-sided sanding Machine,planer sanding machine, heavy-duty inclined sanding machine and sanding machine production line.
Workshop details display
Machine Assembly Workshop
Rigorous Skilled Workers
Packing&Shipping
Stretch Film or Wooden Packing
Exhibition Show
Certifications
Why Choose Us
1. We will come standard with the wearing parts.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff to overseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff to overseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
FAQ
Q1:Why is our price more expensive than our peers?
Because we do is high-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine?
We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong?
Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us?
At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
Because we do is high-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine?
We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong?
Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us?
At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
