Waterproof Micro switch 0.1/3A 125/250VAC, 12/48VDC Micro Switch G303 Momentary Push Button Switch 3 pin

Product Overview

Description

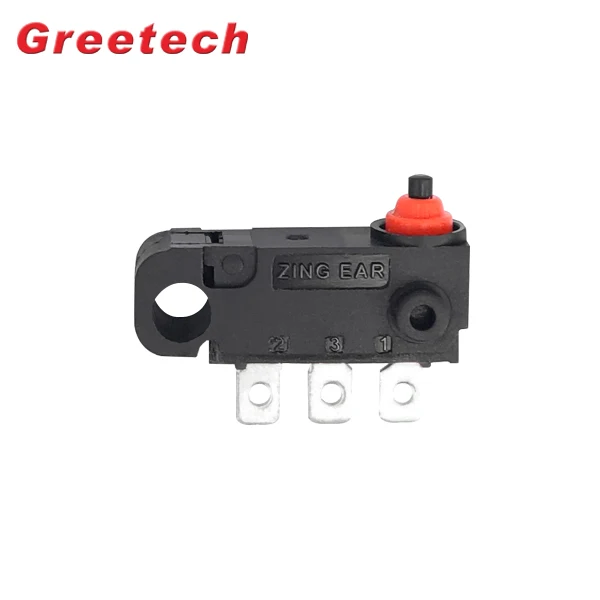

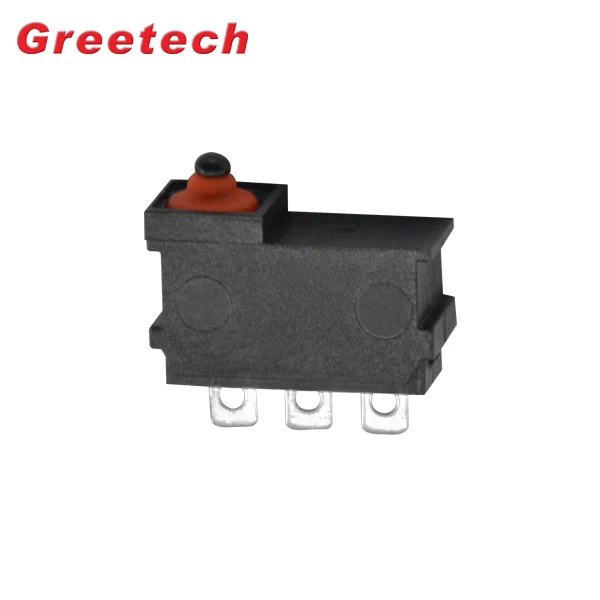

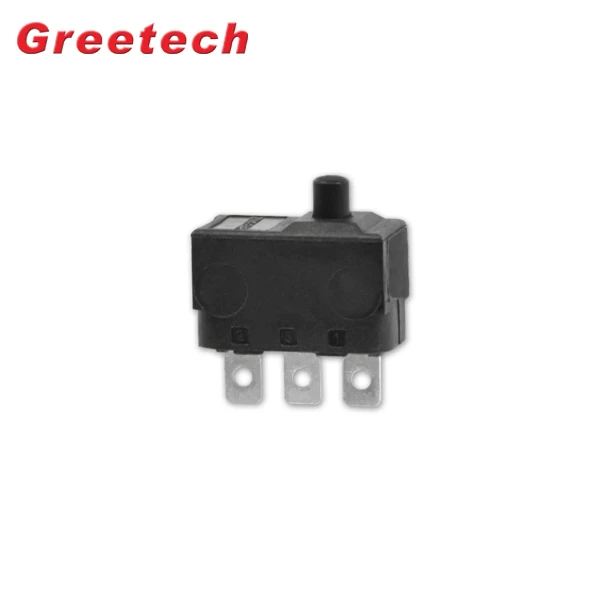

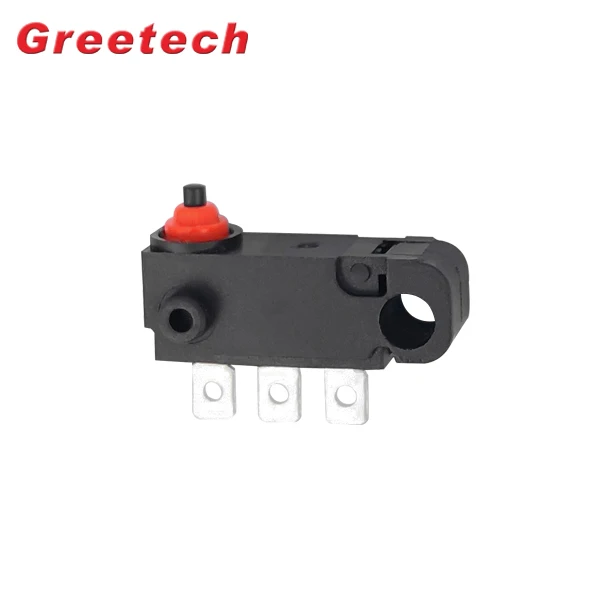

Unionwell Subminiature Sealed  Electronics Parts Micro Switch G303 Momentary Push Button Switch



Features

*Design for water and dust tight

*Small compact size

*Global safety approvals

*Long life and high reliability

*Variety of levers

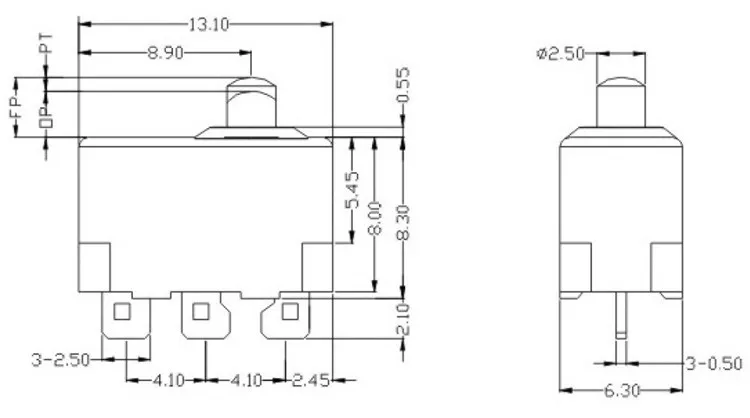

Drawing



Parameters

Rating		0.1A,125/250VAC;3A/12VDC;0.1A/48VDC
Operating Frequency	Electrical	0.1A-120cycles/min; 3A-10~30cycles/min
	Mechanical	120cycles/min
Contact Resistance(Initiative)		100mΩMax
Insulation Resistance		at500VDC,100mΩ Min
Dielectric Strength		AC 500V 50-60Hz 1min
Vibration Durability		10~55Hz
Storage Temperature		-40°C~+85°C
Storage Humidity		85%RH Max
Service Life	Electrical	Min.100,000cycles
	Mechanical	Min.500,000cycles





























Business Partners





Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=500pcs.



Q3. What’s the warranty time?

A: 1 - 2 years.



Q4. Could you offer us free samples?

A: Yes, free samples could be provided within 2-5 days.



Q5. What ‘s the lead time of mass production?

A : About 2-4 weeks.



Q6. What’s the capacity per month?

A :   Over 8 million pieces per month for micro switch series.

       Over 20 million pieces per month for keyboard switch series.



Q7. Where is your plant?

A:  Located in Huizhou city, Guangdong province, China.

     About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.



Q8 . Could you accept OEM or ODM?

A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
