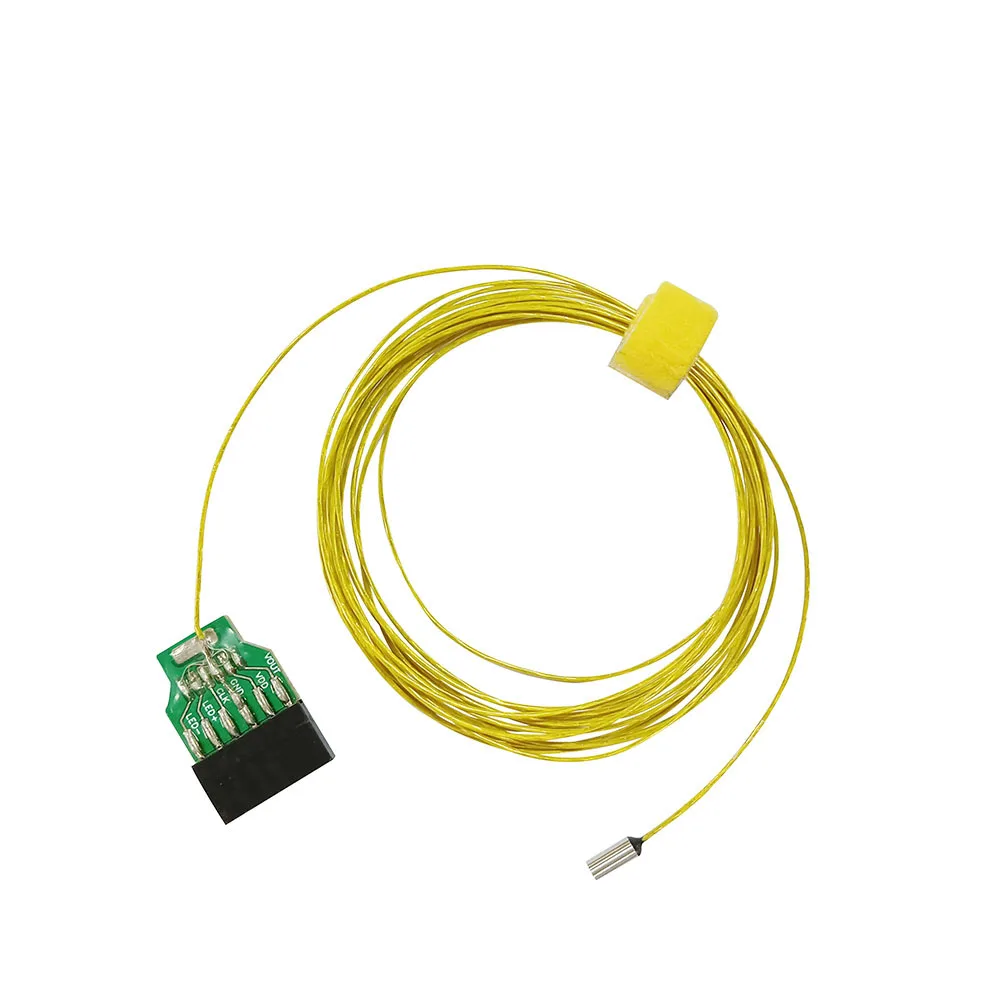

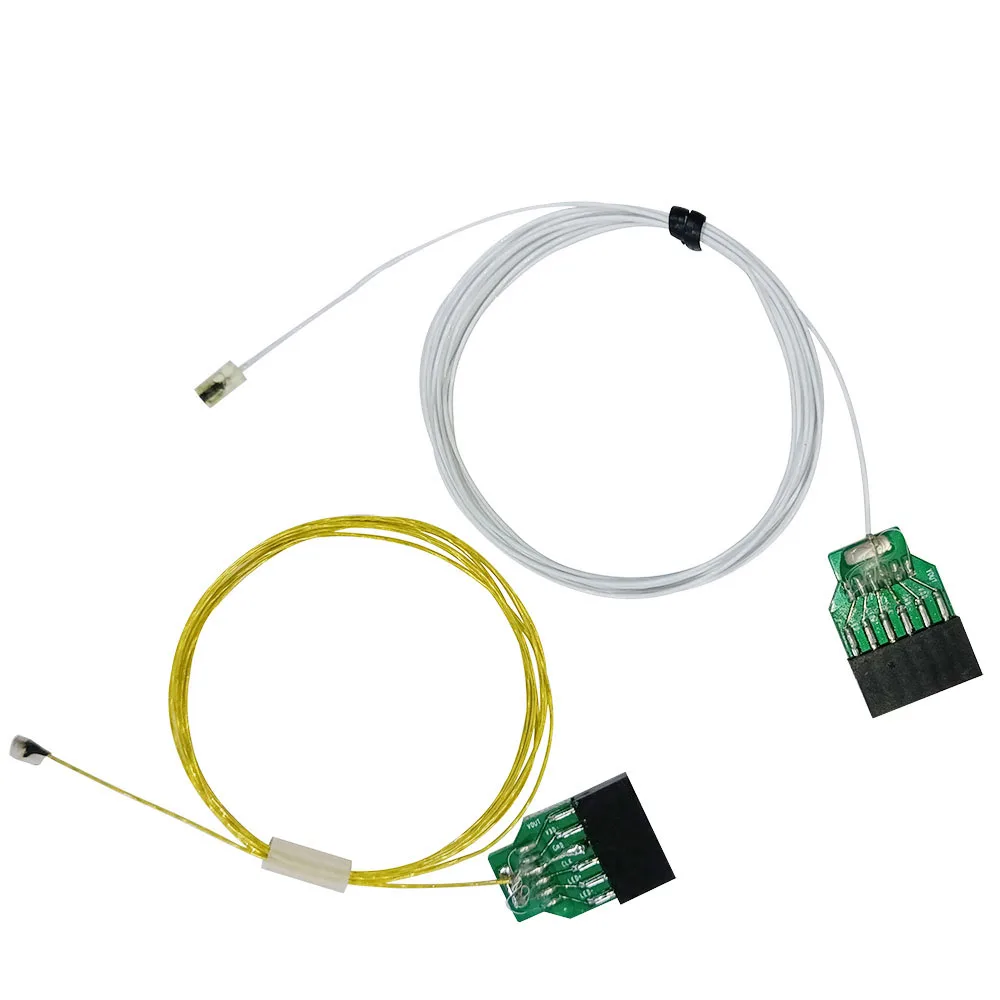

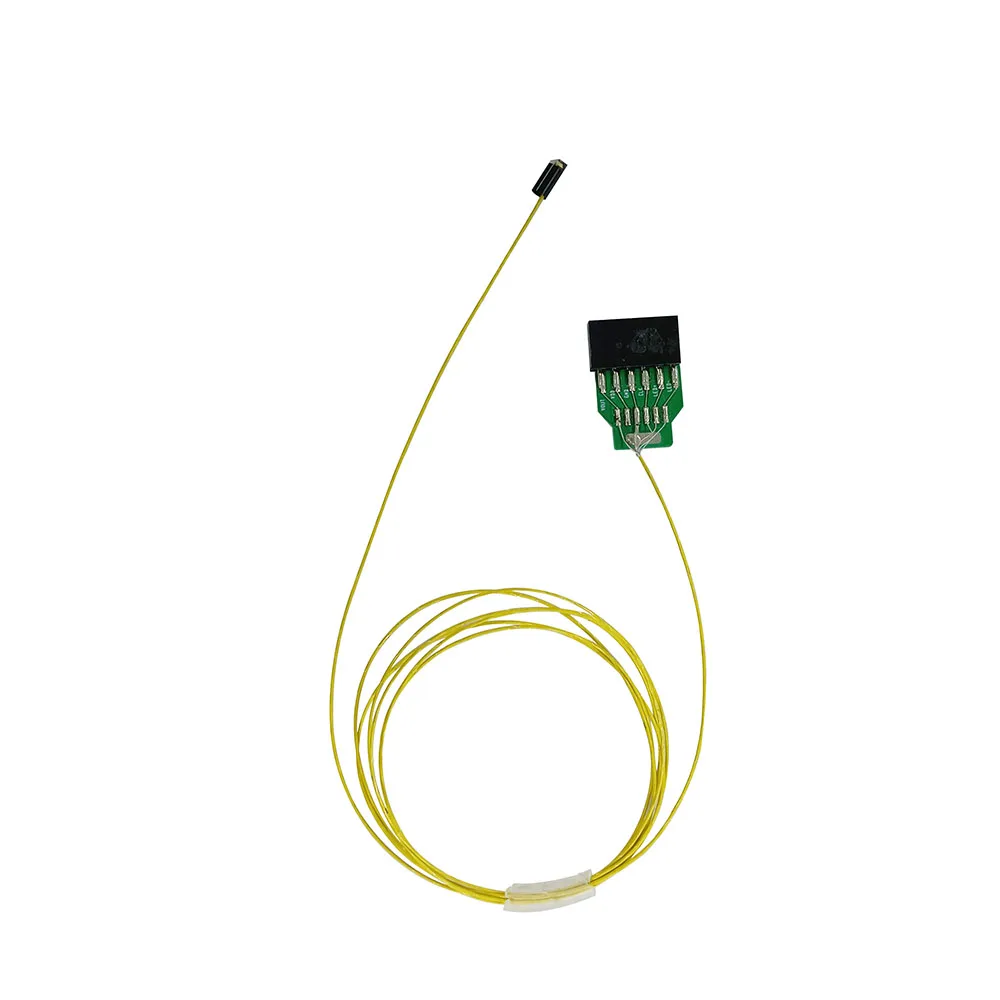

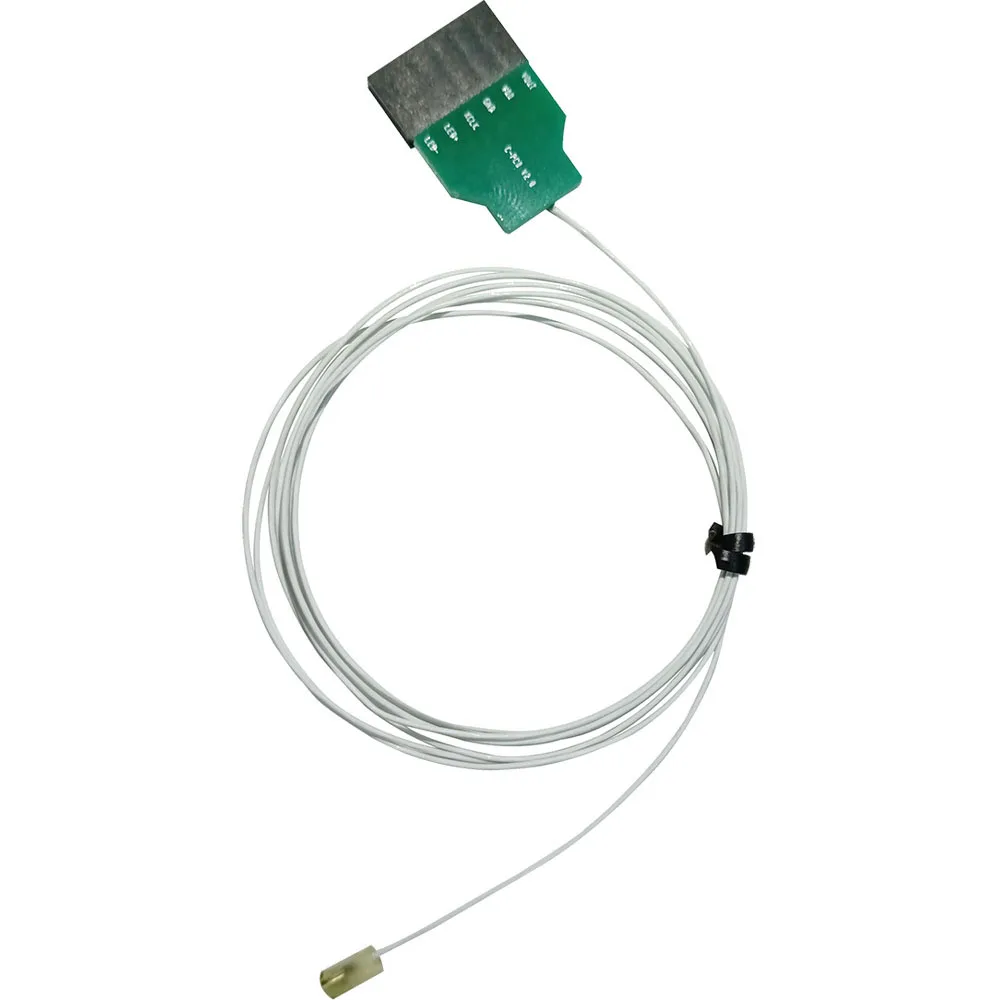

New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module
New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module

New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module

Share on (1600614112243):


Price:$150.00 - $170.00

Quantity:


Product Overview

Description

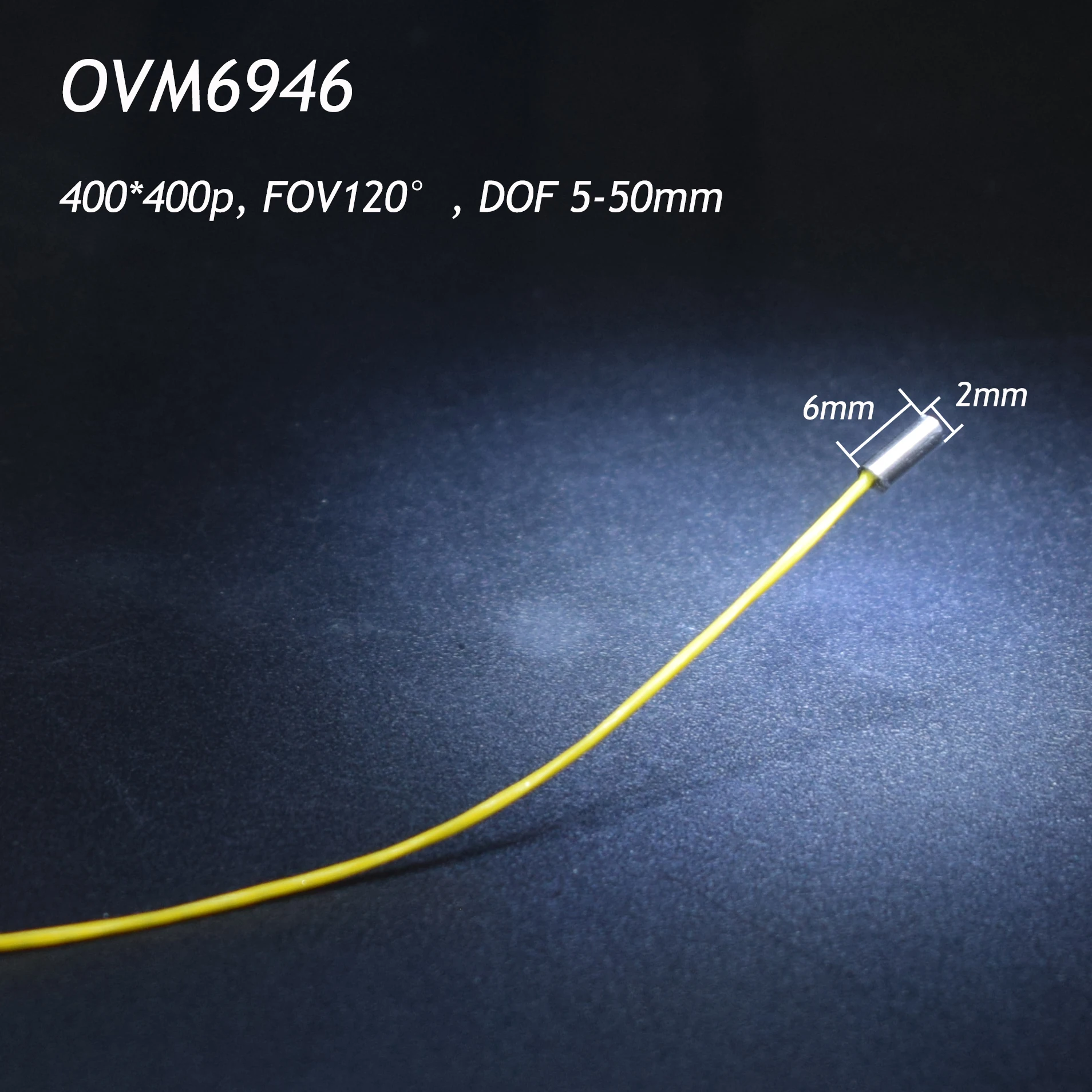

OVM6946 FOV120

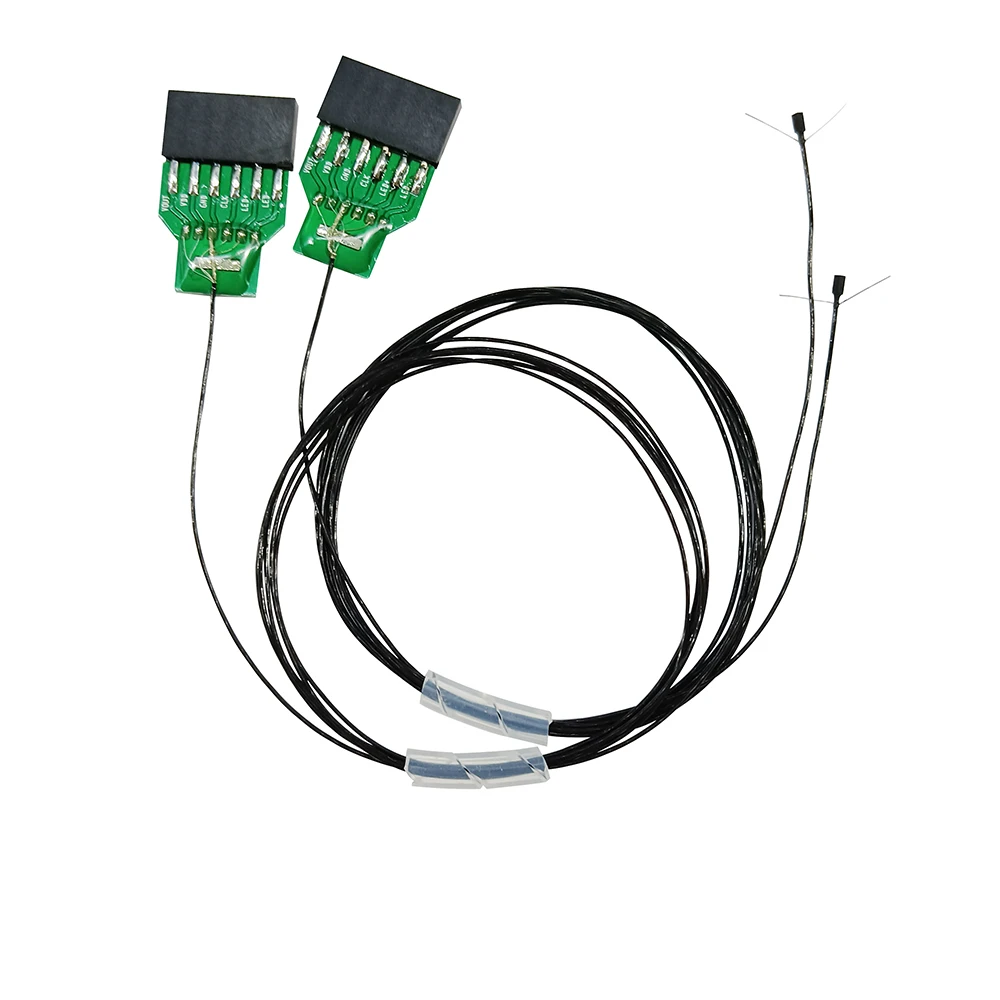

New arrival usb endoscope camera module 2.5 mm 0.16MP CMOS camera module

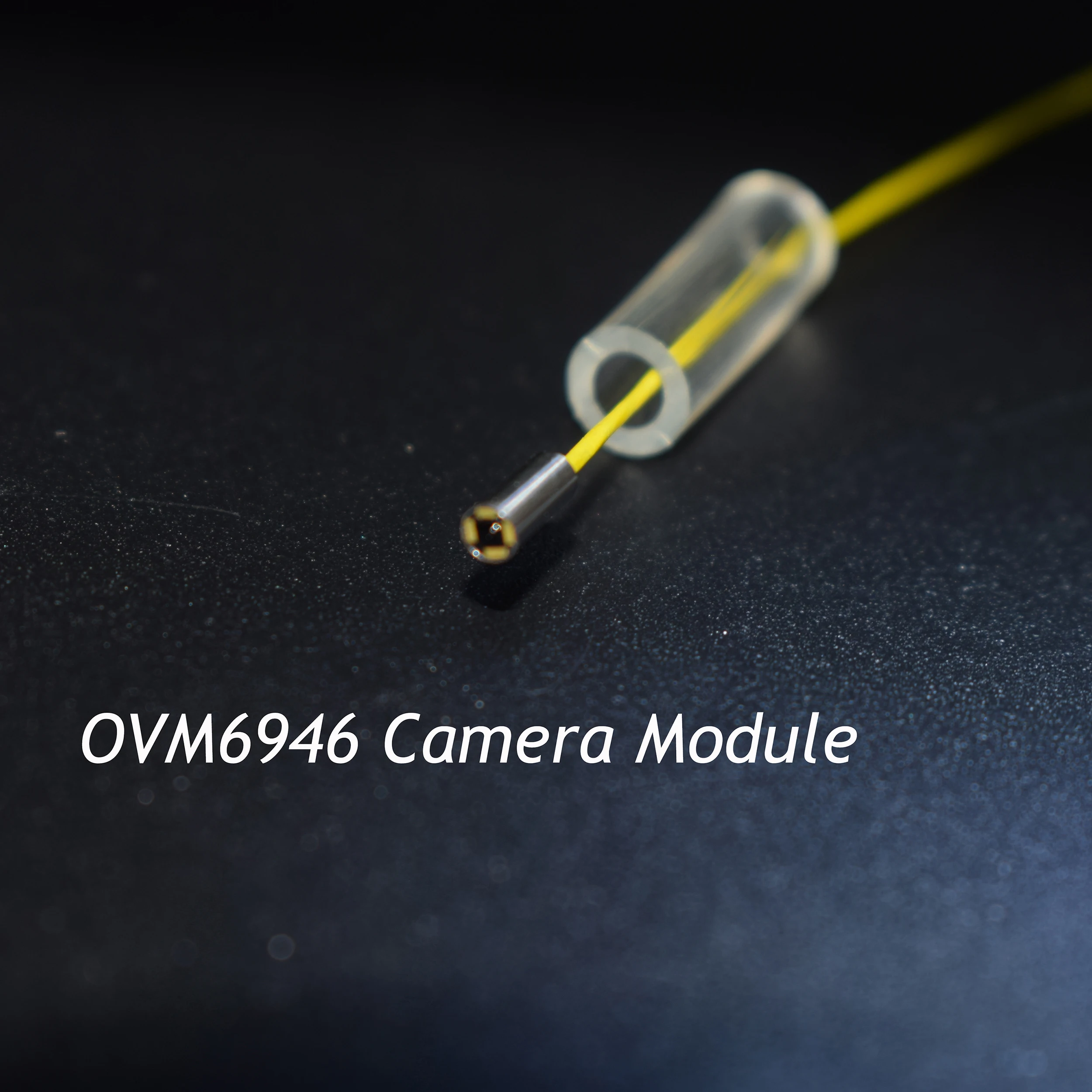

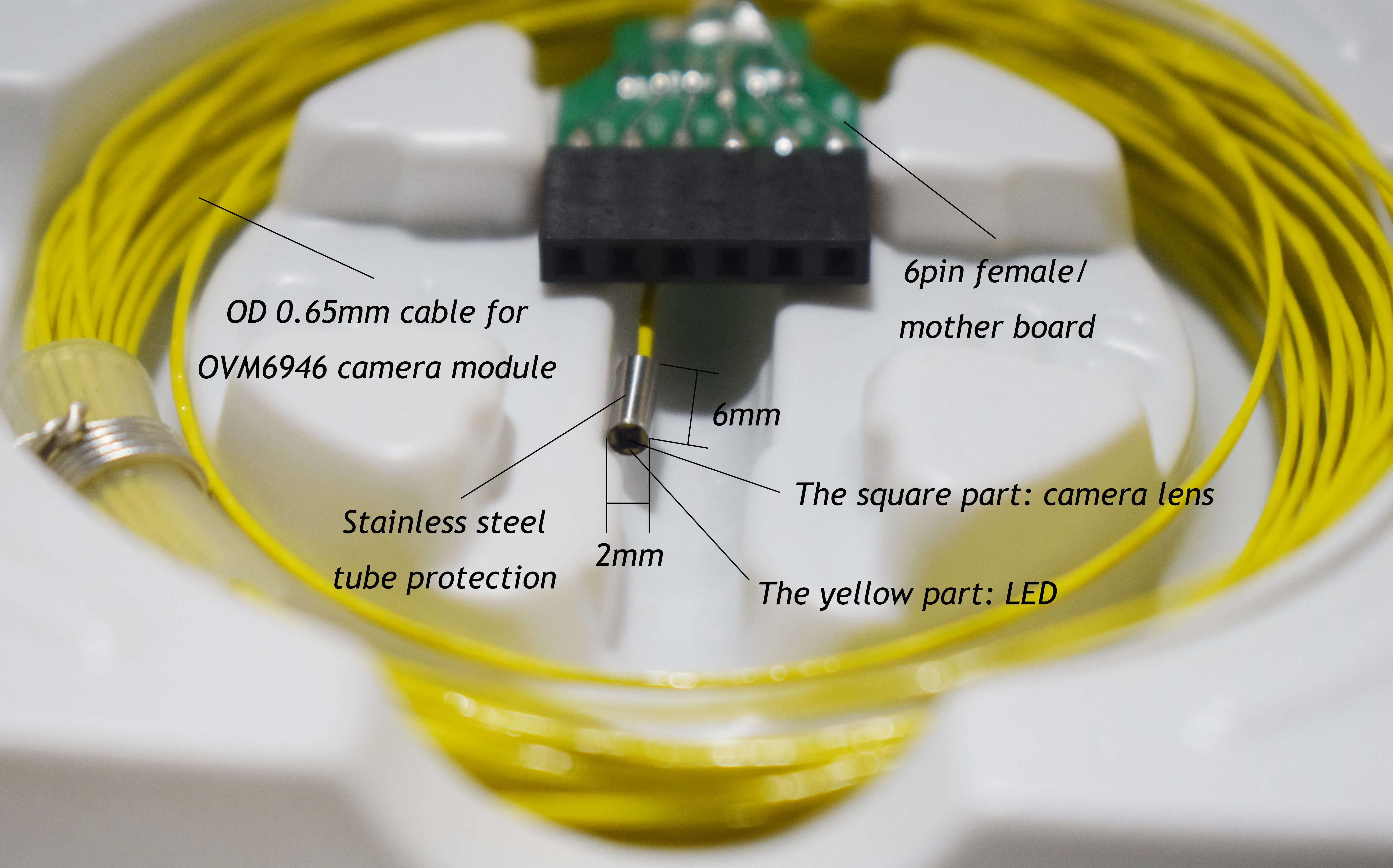

OVM6946 Camera Module:






























































































OVM6946 Camera Module

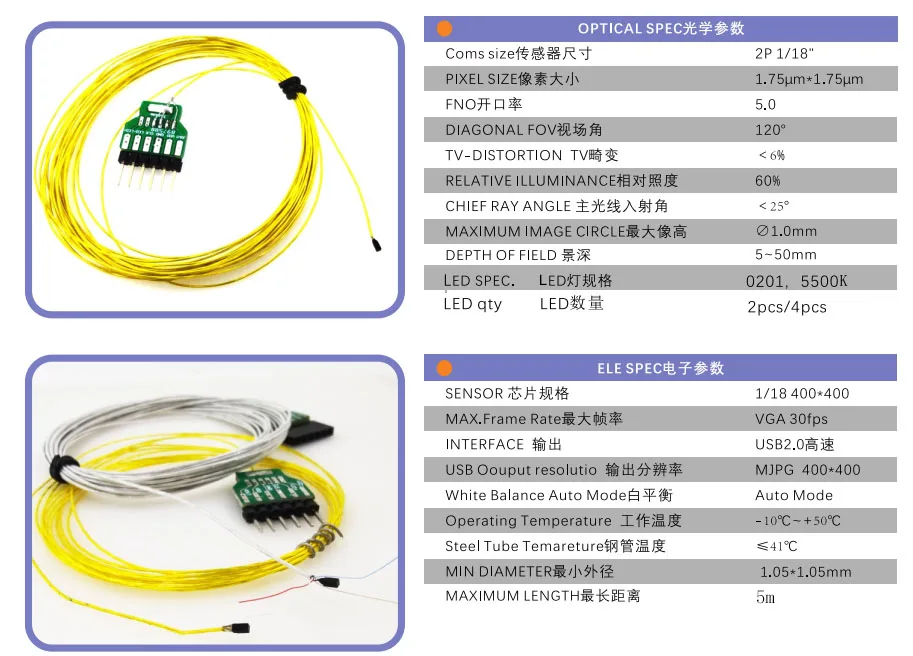

OPT SPE
CMOS/Sensor Size2P 1/18"
Pixel Size1.75*1.75um
FNO/Lens FNOF5.0
Diagonal FOV(Feild of view)120 degree
TV-Distortion <6%
Relative Illumination/Illuminlance60%
Chief Ray Angle<25%
Maximum Image Circle1.0mm
Depth of Filed5~50mm

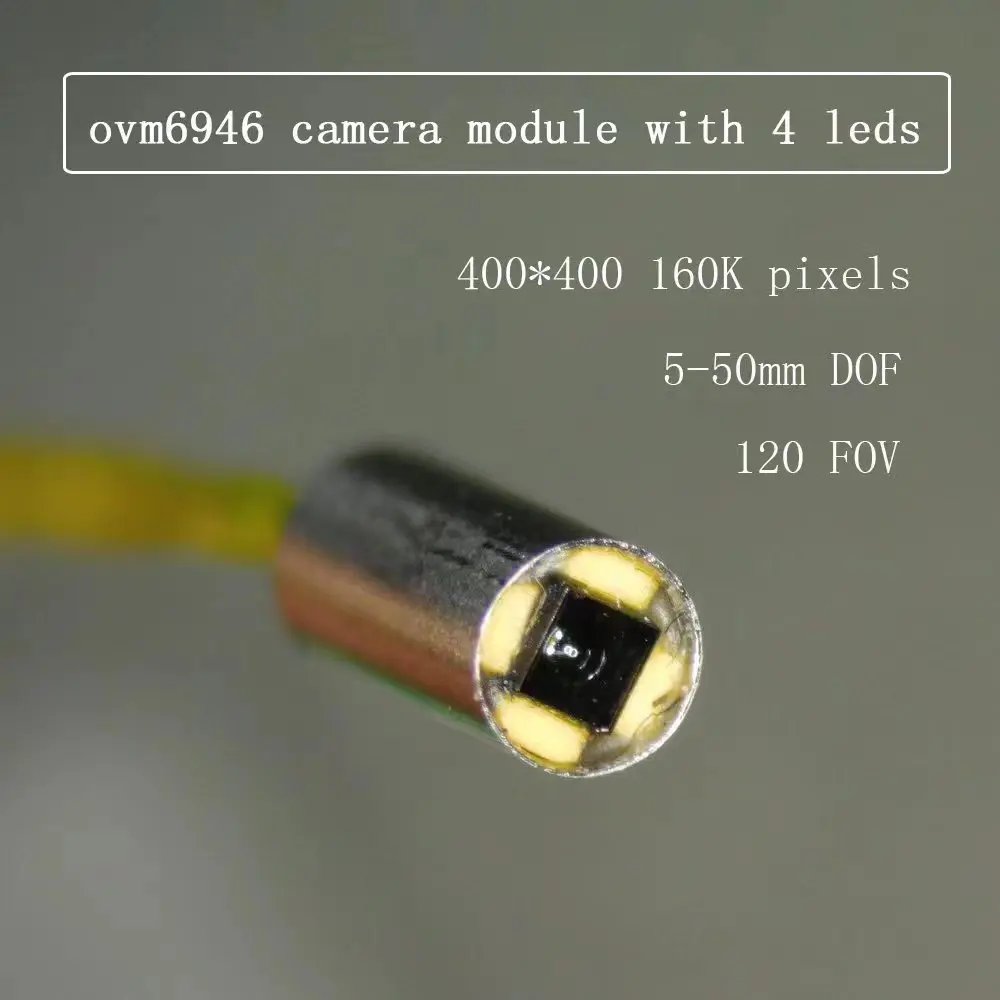

LED SPEC. LED0201,5500K
LED qty LED2pcs/4pcs
ELE SPEC
SENSOR1/18 400*400
Max.Frame RateVGA 30fps
InterfaceUSB2.0 High Speed
USB output resolutionMJPG 400*400
AWB/Auto White Balance/White Balance Auto ModeAuto
Operating Temperture -10℃~50℃
Steel Tube Temperture≤41℃
Min Diameter1.05mm
Maximum Length5M

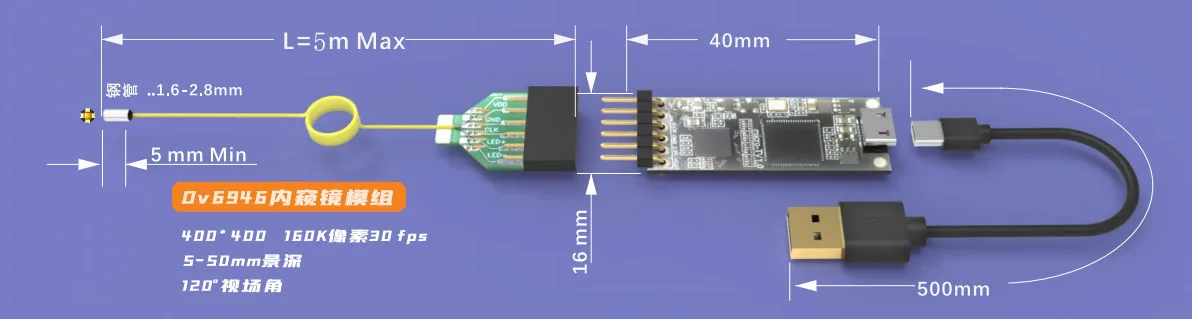

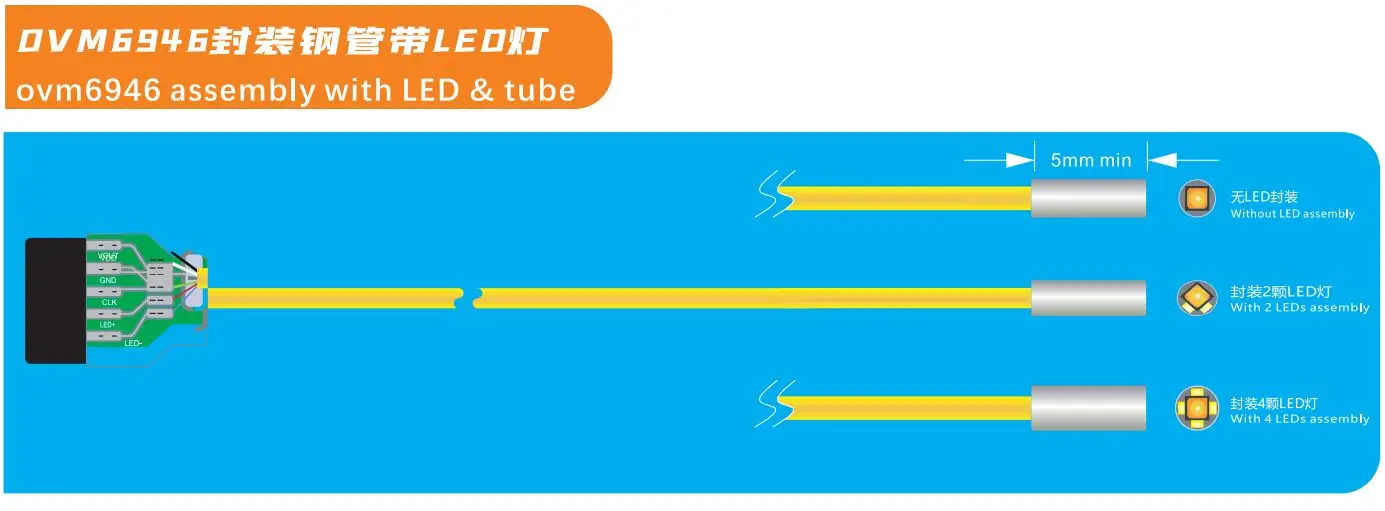

6946

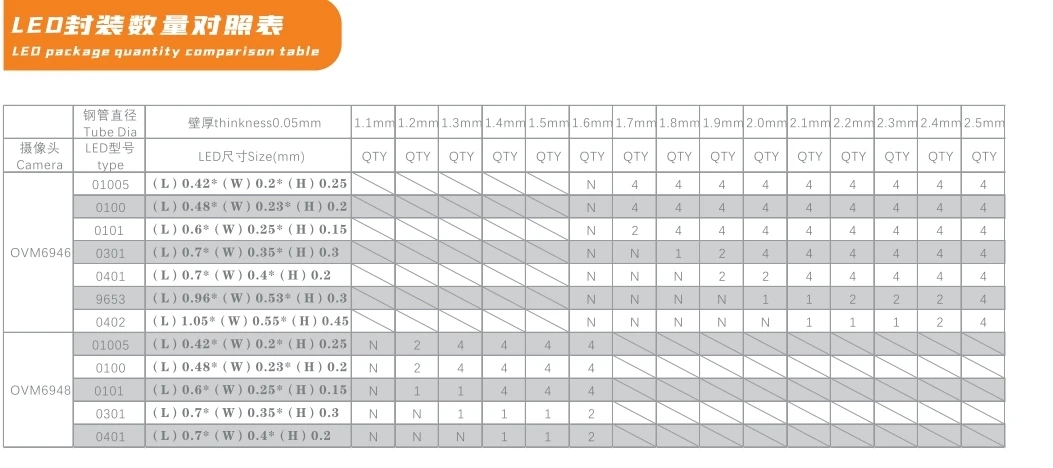

LED

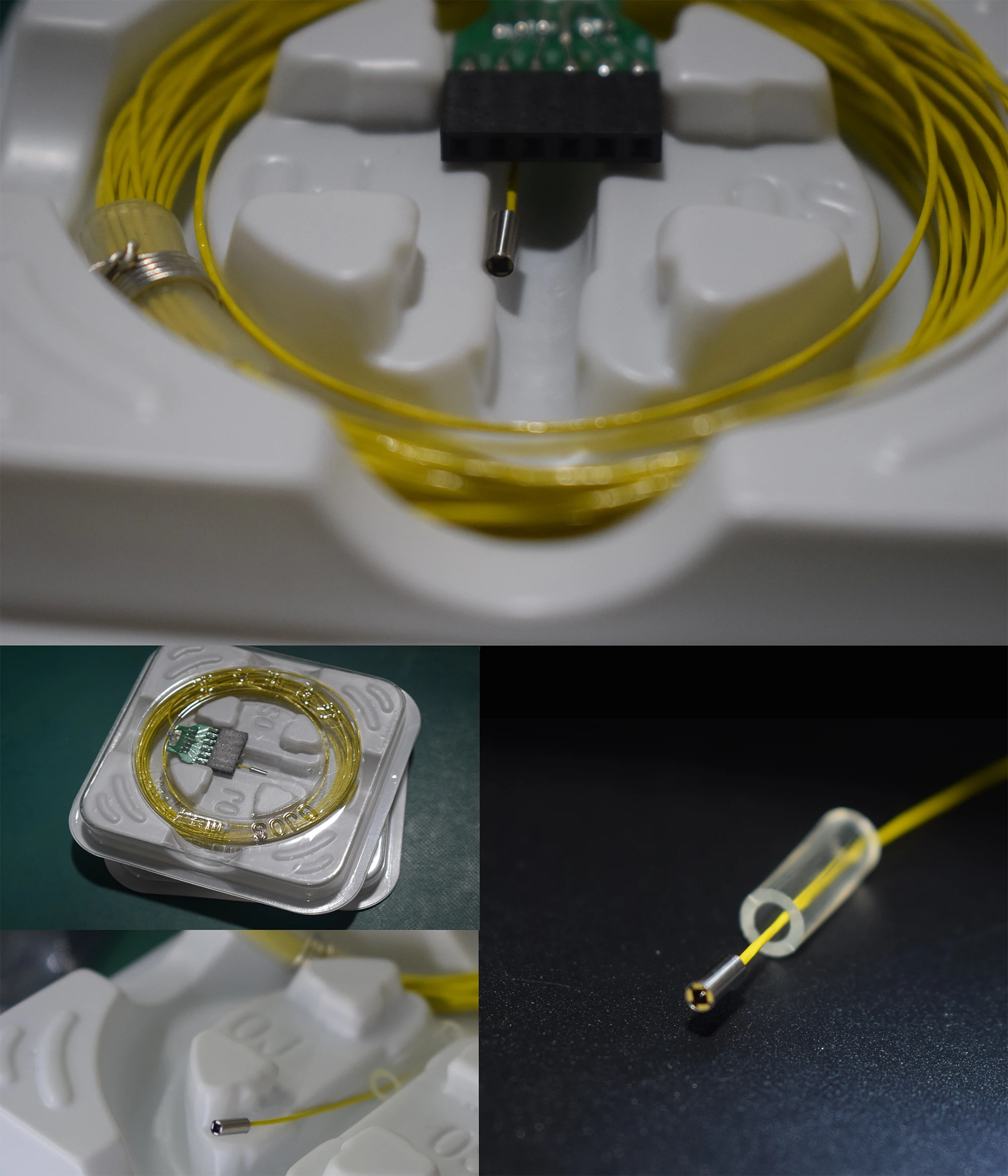

_202208171134326946 5m 2mm







Packaging & Shipping







Our Services

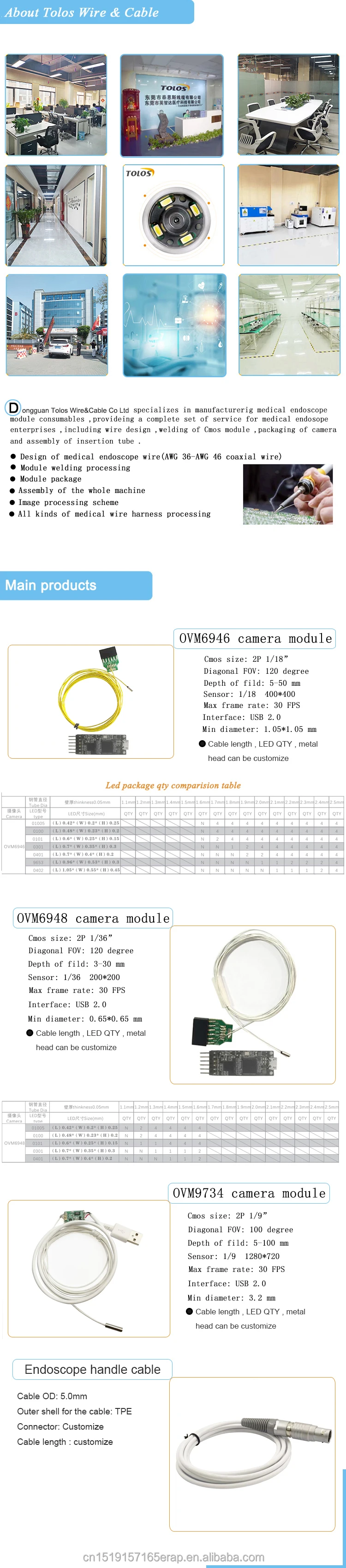

Company Information
