Product Overview


Product Description

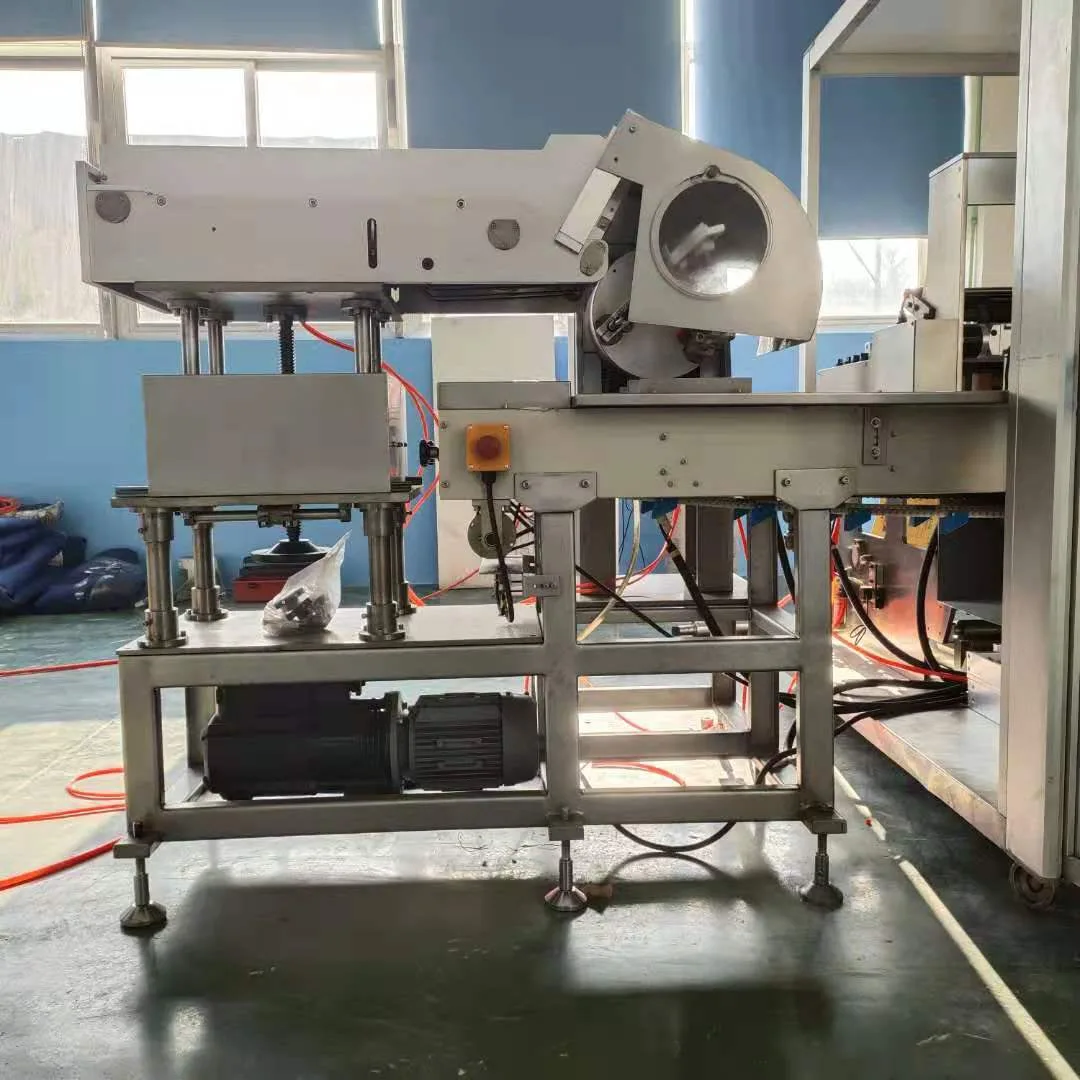

DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine

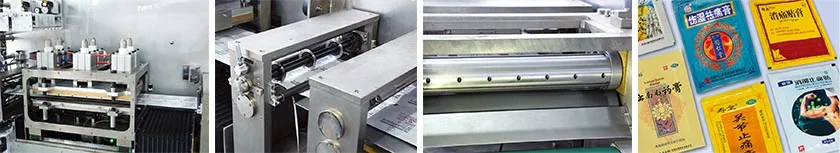

This machine is our company scientific research personnel designed based on four sides sealing automatic packing machine, and absorption of foreign advanced packaging technology, in strict accordance with the GMP requirements, specifically for the plaster packaging market design and development, is the first domestic product. The whole machine adopts the man-machine interface, PLC programmable control, the transmission parts are using servo motor independent control, total used twelve servo motors drive. High speed turntable multi pieces feeding, double servo feeding, servo unwinding, package material of upper and lower remark detection, batch printing, reciprocating sealing, easy opening, rolling and cutting waste edge, cut off the waste and collecting device, hob cutting and finished products delivery mechanism etc. The whole machine runs smoothly, the product specification is convenient to replace, and the parameters one button set. The machine superior performance, high degree of automation, is the preferred equipment for automatic packaging plaster.

1.Touch screen control operation is simple.
2.Reciprocating heat sealing, the standard size plaster one time can be heat sealed 10 bags, sealing flat, firm and beautiful.
3.Packaging film tape joint automatic detection and rejection.
4.Hot code machine missing printing automatic detection and rejection.
5.Missing blister automatic detection and rejection.
6.Package film used out alarm and shutdown.
7.Suitable for a variety of specifications plaster can be equipped with 1-5 piece automatic feeding.
8.Ethernet Remote control. Can modify the program.

Technical parameters

DSB-400H (4 line)
150-300 bags/min
Packing film Max diameter
Φ500mm max width:820 mm
Packing size
L:60-150 mm W:60-200 mm H:1-6 mm
Air compressed
Air pressure
Rated voltage
AC380V 50Hz
Total power
Overall dimension
6500×2260×2155 mm(L×W×H)

Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).

Other Products

Horizontal Automatic More Usage Packing Machine

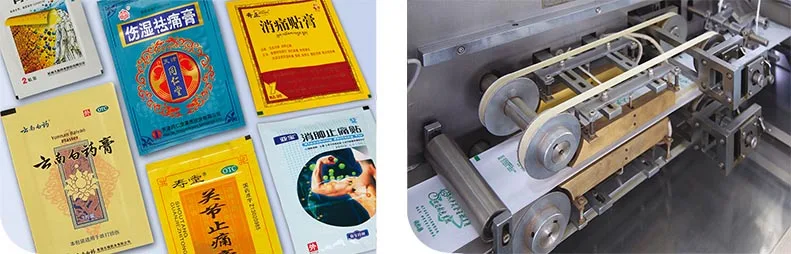

This machine is on the base of multifunctional Pillow-type Automatic Packing Machine and it is widely absorbing the advance technology from abroad and combing the real conditions at home. strictly according to "GMP" requirements, this machine is a pioneering product in China which has been designed and developed specially for packing plasters, the machine collects jobs of making bags, plasted plaster, sealing four side, cutting, and packing product out-put, finished them a time. It adopts controller to program operation, set of around phtotoelectriciry correct an error, two way compensation color code aligning, four sets of temperature controlled, cased freely ect. The successful trial production of this machine has end the history of packing bags by hand. This machine is excellent in performance and high in technology content, which is the first choice of equipment for packing plasters automatically.

1. Programmable control: It adopts PLC Programmable Controller to make running of the whole machine programmed.
2. Electronic Text Display: The information of the speed of machine, the set bag-length and the actual bag length and the packing output will be clearly displayed on the screen of display.
3. Automatic regulating of bag length: The alternation of packing length can be directly set through the display. It is very convenient and quick with anautomatic adjustment.
4. Two-way compensation of Colour Code Detection: It adopts Imported Photoelectric Detecting Sensor to detect the color code and can conduct automatic tracking through PLC computer program combined with two-ways compensating mechanism, thus making the color code detection quick and accurate.
5. Around photo electricity correct an error: It can make pack two sides align, make them more smooth and beautiful.
6. Waste material recovery device: It adopts magnetic powder control and drive device so as to balance the tension of packing material and make the whole machine run smoothly.
7. Plaster automatic feeding: It can be suitable for all kinds of single piece and multi-pieces automatic feeding. (1-5 pieces)

Main Technical Parameters:

Production Capacity
30-120 Bags/min
Packing Size
L:60-170mm, W:60-120mm, H:1-10mm
L:60-170mm, W:60-240mm, H:1-10mm
Air Compresser
≥0.7m3/min (Supply By Yourself )
≥0.7m3/min (Supply By Yourself )
Rated Frequency
Rated Voltage
AC380V(phases 4 lines)
AC380V(phases 4 lines)
Total Power
Overall Dimension
(L*W*H) 4600*2300*1650mm
(L*W*H) 4600*2450*1650mm

Related products

Our Company

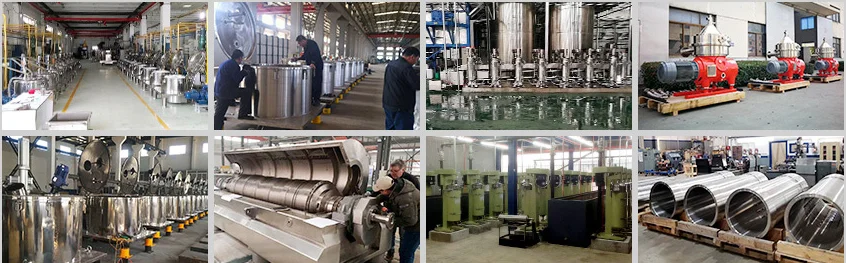

Liaoyang Xianglong Pharmaceutical Machinery Co., Ltd. is originated from Liaoyang Pharmaceutical Machinery Plant (which was the first state-owned pharmaceutical machinery plant in China and was founded in 1947), and is professional in the manufacturing & trading of variable kinds of pharmaceutical devices, including separating machines, drying machines, liquid /powder /capsule/ pills filling machine, cartonning machines, membrane packing machines and glass-lined tanks, etc. With professional technicians and strict quality control system, our machines are widely applied in industries of pharmaceutical, petrol, chemical, food and environment protecting, etc., and besides our regular customers in China, our machines have been exported to many countries & regions in Europe, America, Southeast Asia, Africa, South America and the Middle East, etc., and good reputation is gained.


Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
