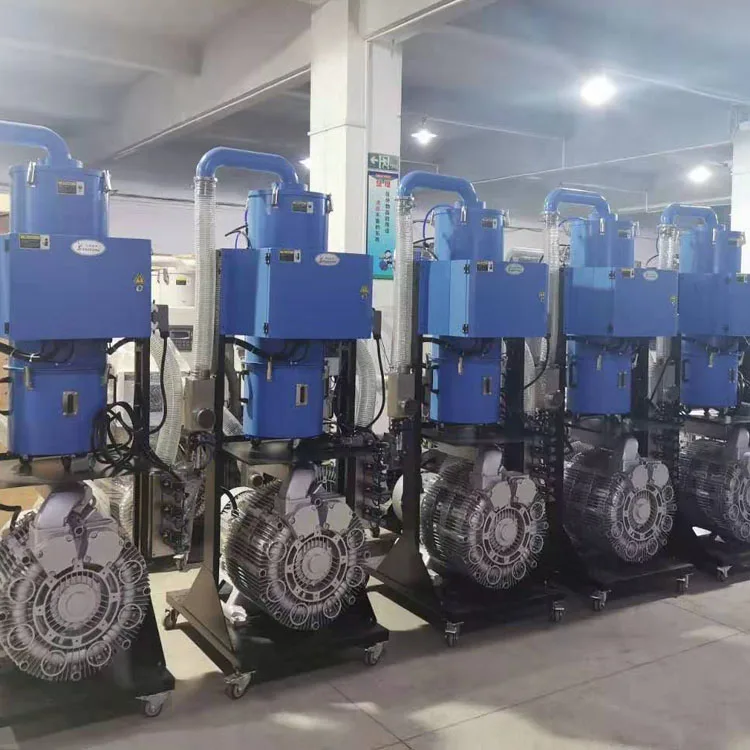

New Product Maintenance Stainless Steel Auto Industrial Machine Hopper Loader
- Category: >>>
- Supplier: Dongguan Sanzhong Machinery Co. Ltd.
Share on (1600614175236):
Product Overview
Description
Sanzhong volumetric dosing units guarantee accuracy and consistency blend of the master batch and additives.

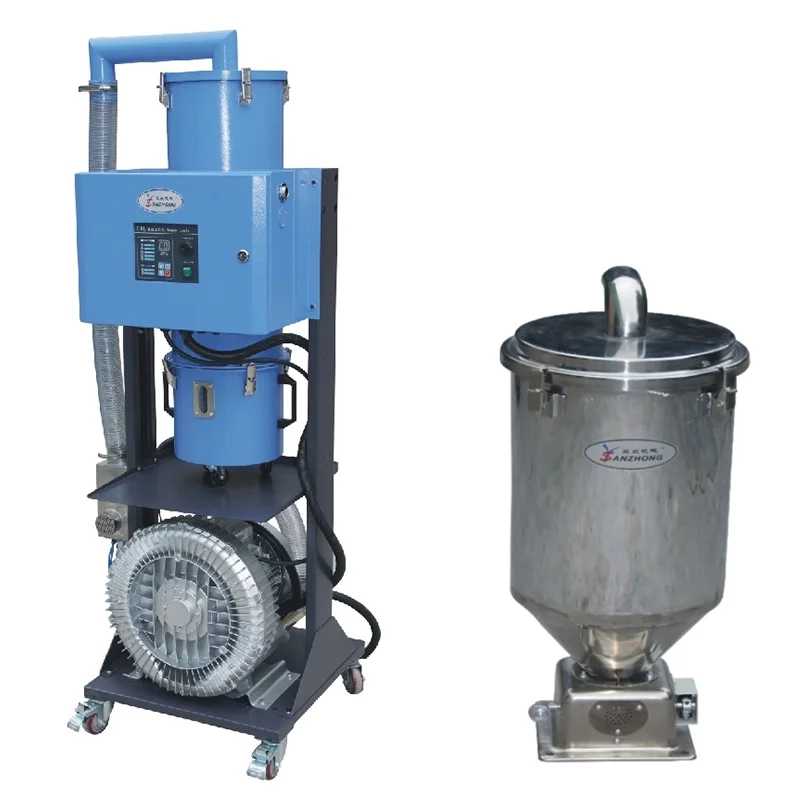

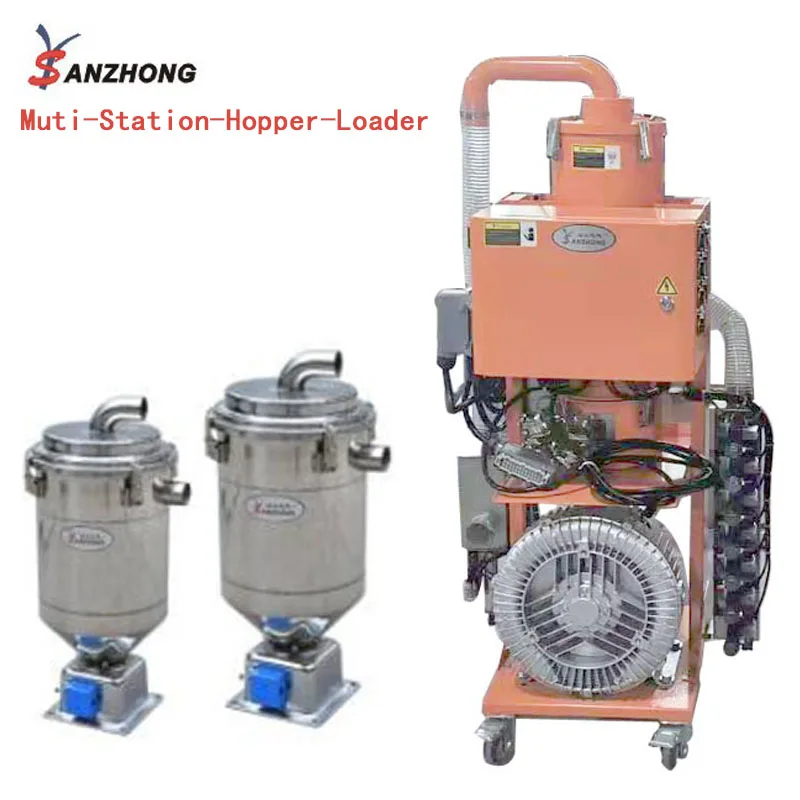

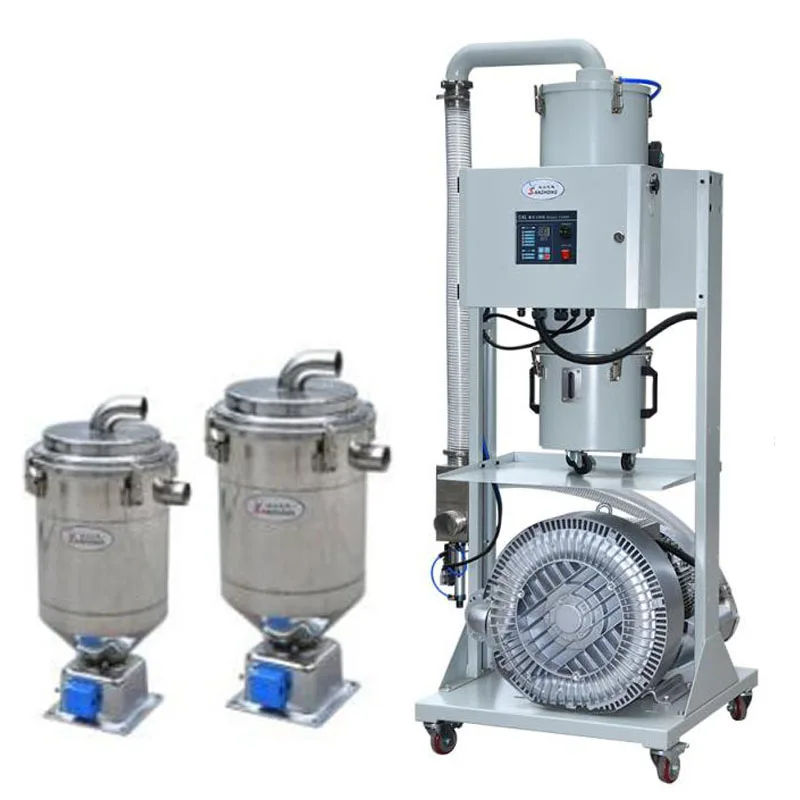

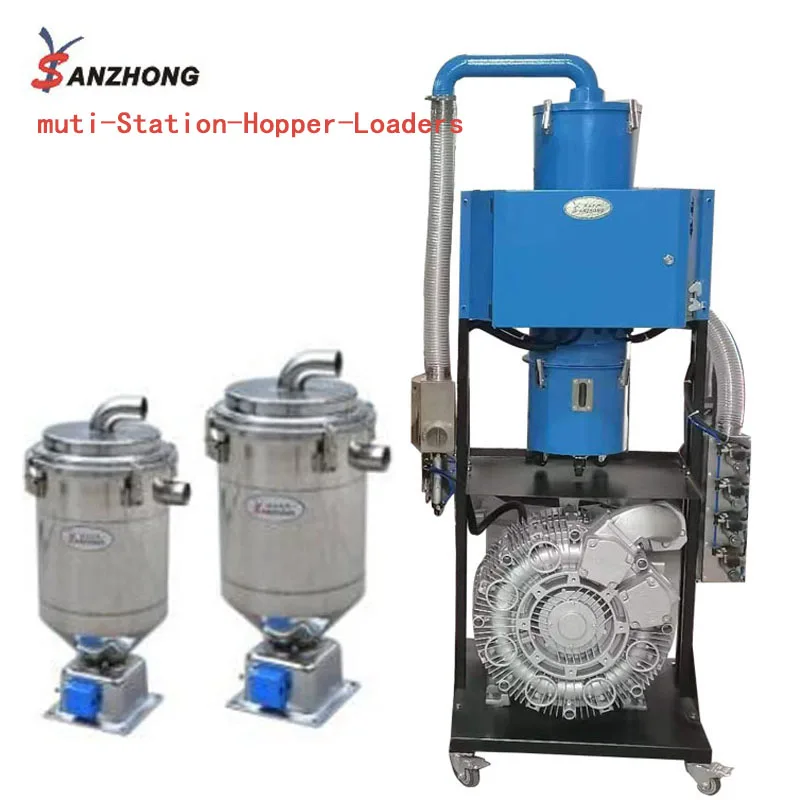

"One-to-More" Separate hopper loaders are designed and developed on the basis of original separate-vacuum Hopper Loaders. They feature more functions, easy to operate, and convenient to install. This model, equipped with a high pressure blower and more hoppers, is applicable to more dehumidifying and drying machines (dehumidifying dryer "CDD" or one gravimetric blenders "CGB" to process plastic materials. Besides that , it can also realize the one-to-more way of conveying materials to different moulding machines or hoppers to greatly lower the cost.
1.1 Features
l "One-to-More" hopper loader can greatly lower the cost.
l The dust collection chamber features a cyclone separator and a dust collective bin to effectively reduce the load of the filter.
l Separate hopper receivers are designed in classy standard style, made by stainless steel, and bringing no contamination to materials.
l One-piece PLC controller, the operation is simple, reliable performance.
l Motor protection device.
l Standard audible and visual alarm device configuration.
l When conveying materials of tiny impurity is more, or contain recycling materials, host optional store pressure tank automatic cleaning device.
Specifications
Main unit | Hopper | Loading Pipe Dia. (Inch) | Loading Capacity(kg/hr.) | ||||||
Model | Power (Kw) | Dimensions(cm) H*W*D | Weight(kg) | Applicable Model | Capacity(L) | Dimensions(cm) H*W*D | Weight(kg) | ||
CAL-2HP-G* | 1.6 | 105*43*55 | 60 | CHR-6 | 6 | 47*32*40 | 7 | 1.5” | 550 |
CHR-6-E | 70*32*40 | 12 | |||||||
CAL-3.5HP-G* | 2.2 | 138*56*61 | 130 | CHR-12 | 12 | 69*32*40 | 9 | 1.5” | 850 |
CHR-12-E | 112*36*40 | 13 | |||||||
CAL-5HP-G* | 4.0 | 138*56*61 | 175 | CHR-12 | 12 | 69*32*40 | 9 | 1.5” | 120 |
CHR-12-E | 112*36*40 | 13 | |||||||
CAL-7.5HP-G* | 4.0 | 183*72*72 | 181 | CHR-24 | 24 | 69*32*40 | 9 | 2” | 1450 |
CHR-24-E | 112*36*40 | 13 | |||||||
CAL-10HP-G* | 7.5 | 183*72*72 | 185 | CHR-24 | 24 | 69*32*40 | 9 | 2” | 1800 |
CHR-24-E | 112*36*40 | 13 | |||||||
CAL-15HP-G* | 12.5 | 220*78*85 | 255 | CHR-36 | 36 | 97*35*48 | 15 | 2.5” | 2200 |
Note:1) Model power supply : 3Φ,400V,50Hz;
2) " * " said a number, such as “ 2 ”, said a pair of two loader, “4” , says one to four suction loader;
3) CHR said vacuum hopper, CHR-E said magic eye hopper;
4) Test condition of conveying capacity: Plastic material of bulk density 0.65, dia.3 ~ 5 mm, vertical conveying height: 4 m, horizontal conveying distance: 5 m.
How can I get the right products?
We have expertise engineering team to choose the suitable machines for your unique application.
When can I get reply of my enquiry?
We have instant communication tools through alibaba, wechat or skype, and your emails will be replied within 12 hours.
What about the after-sales service?
We have after-sales team to solve any problems about machine installation, commissioning and maintenance.
What’s the warranty of your products?
We offer 15 months long warranty period starting from machine leaving factory.
What are the advantages comparing with other suppliers?
Our engineers have more than 10 years of field experiences for plastics auxiliary equipment. All our products are designed and manufactured by our own factory. We are more competitive in price and quality of the machines.
