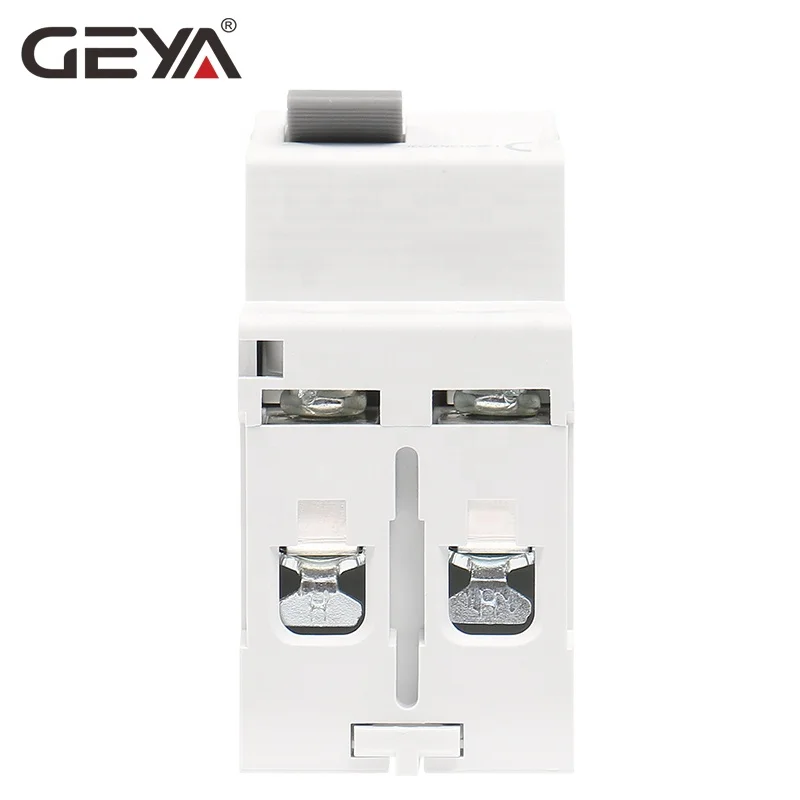

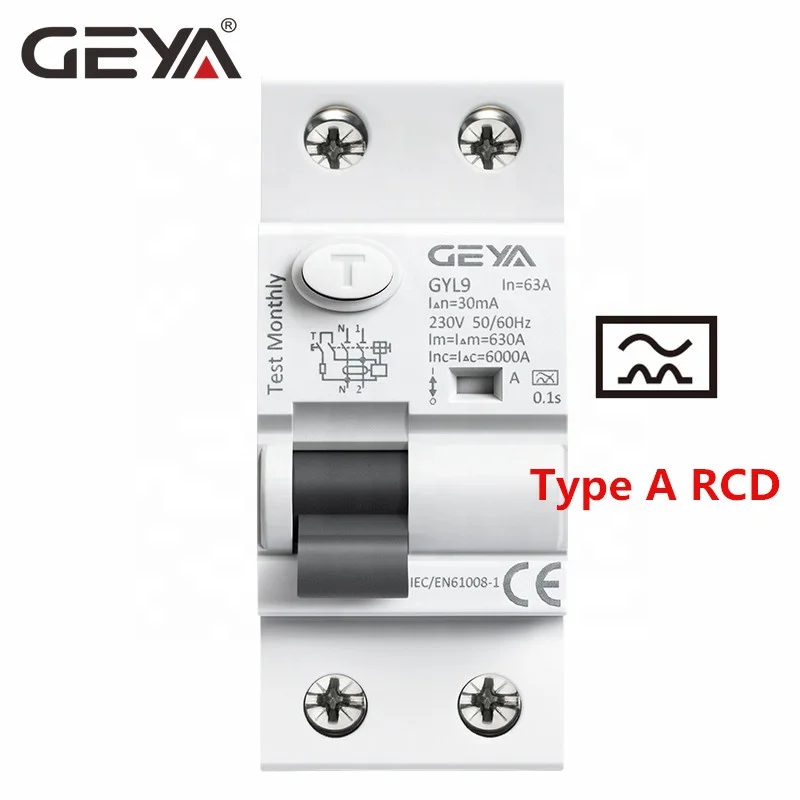

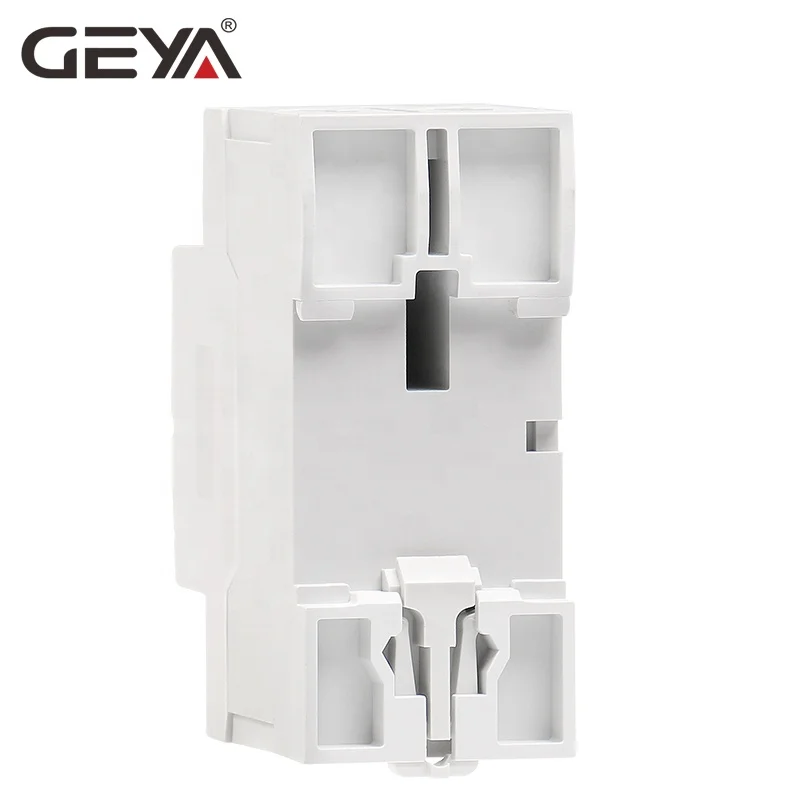

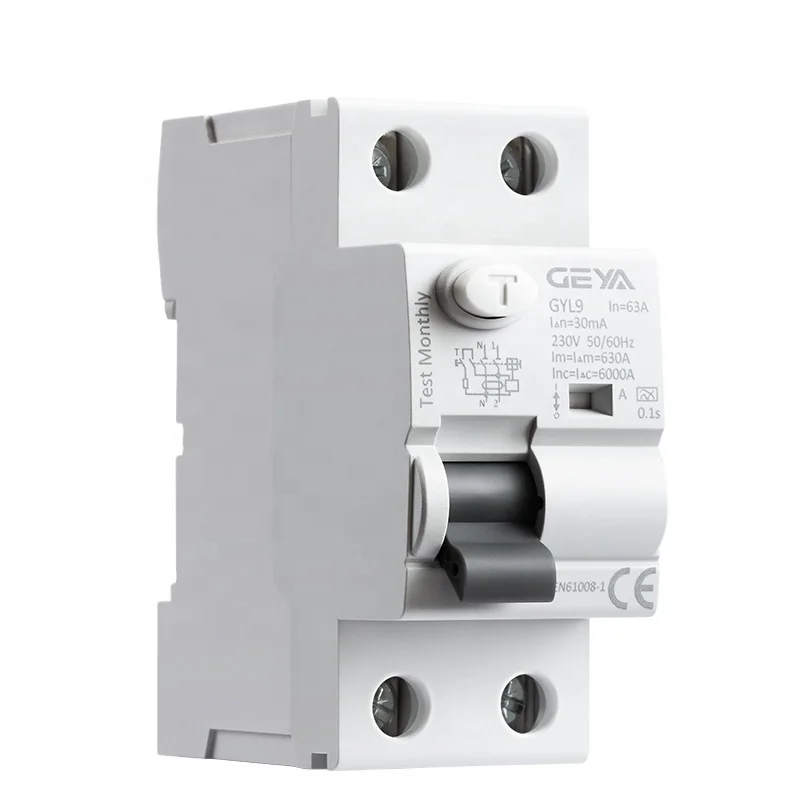

GEYA GYL9M 2P 25A RCD residual current circuit breaker
- Category: >>>
- Supplier: Zhejiang Geya Electrical Co. Ltd.
Share on (1600614175261):
Product Overview
Description
**************this link price is only for GYL9M-2P-25A**********
GYL9 residual current circuit breaker (without overcurrent protection) is suitable for AC 50Hz rated voltage 240V for two poles, 415V for four poles, and rated current up to 80A. It can quickly cut off the fault power in a very short time, To protect the safety of people and electrical equipment, it can also be used for infrequent switching of lines.
It's suitable for terminal distribution lines ir commercial office buildings, residential and general industrial use.
Compliant with: IEC61008-1, GB16916.1
It's suitable for terminal distribution lines ir commercial office buildings, residential and general industrial use.
Compliant with: IEC61008-1, GB16916.1
Product Description
Specification
item | value |
Place of Origin | ZHE |
Brand Name | GEYA |
Model Number | GYL9M-2P-25A |
Breaking Capacity | 10kA |
Rated Voltage | 1P+N:240V~ 3P+N:415V |
Rated Current | 25,40,63, 80A |
BCD Curve | C |
Type | RCCB |
Rated Frequency (Hz) | 50/60Hz |
Number of Pole | 2 |
Rated insulation voltage(Ui) | 500V |
Rated impulse withstand voltage (Uimp | 4kV |
Mechanical life /Electric life | 4000 |
Ambient temperature | -25℃+60℃ |
Storage temperature | -25℃+70℃ |
Connection | Top and bottom(ELM) Top line(ELE) |
Rated residual non-operating current | 0.5In |
Copper/Hard Wire | 1-35mm2 |
Cord/Hoop Terminals | 1-25mm2 |
MOQ | 50 |
