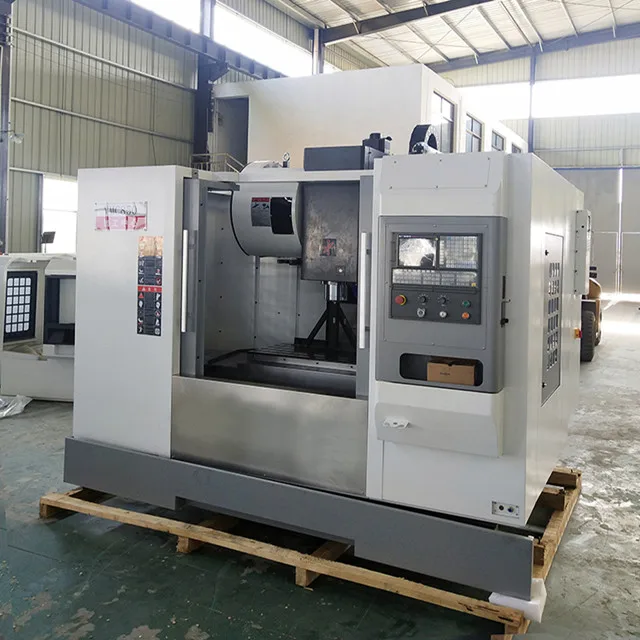

Best Selling BT spindle Casting Iron Body Cnc 5 Axis Machining Center For Metal
- Category: >>>
- Supplier: SHANDONG RAINTECH SANS TECHNOLOGY CO. LTD
Share on (1600614201169):
Product Overview
Description

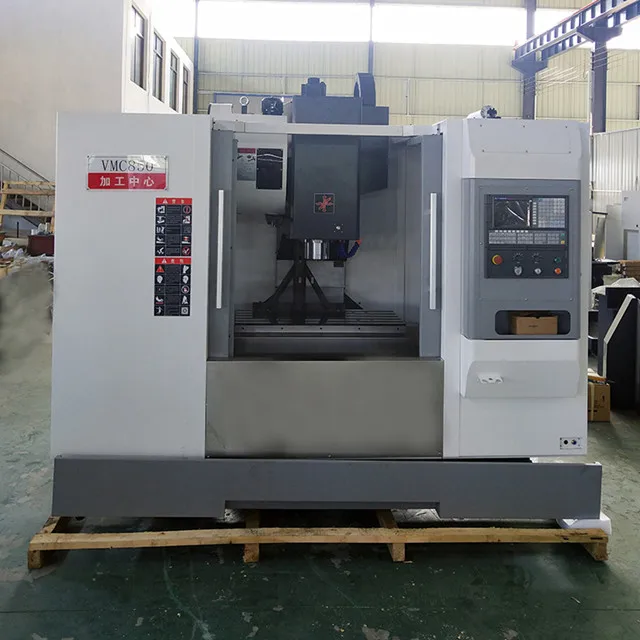

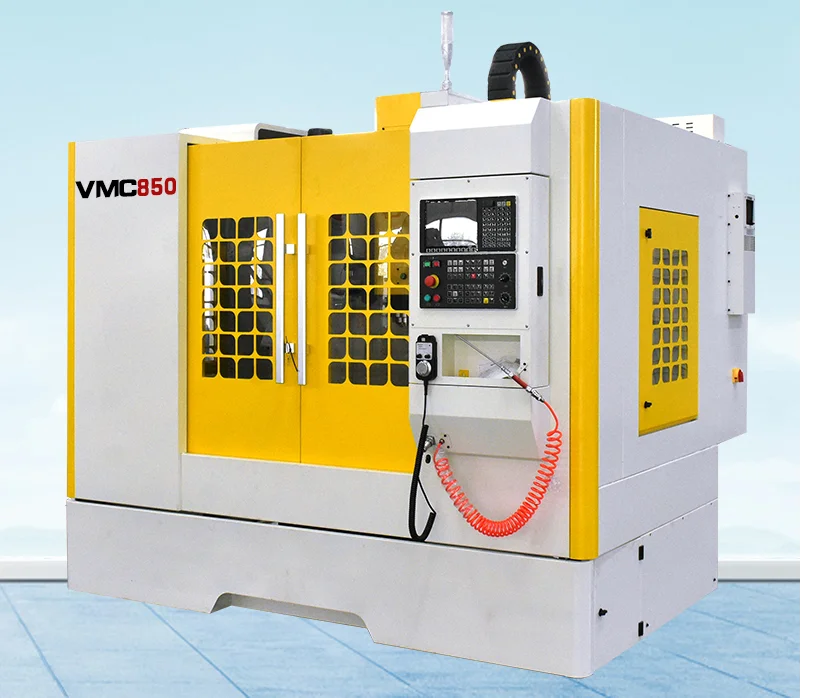

New CNC Machining Hardware Complete Shield VMC850 Vertical Machining Center
Product Description
The VMC850 vertical machining center adopts a vertical frame layout, the column is fixed on the bed, the headstock moves up and down along the column (Z direction), the sliding seat moves longitudinally along the bed (Y direction), and the worktable moves laterally along the sliding seat (X direction). to the structure. The bed, worktable, sliding seat, column, spindle box and other large parts are made of high-strength cast iron material, and the shape is resin sand process, and two aging treatments are used to eliminate stress. After optimized design, the rigidity and stability of the whole machine are improved, and the deformation and vibration of the machine tool caused by cutting force are effectively suppressed.
Technical Parameter
Model：VMC850（3 axis linear rail） | ||||
Main Spindle | Taper\\ Spindle dia | BT40\\150 | ||
Rotation speed(rpm) | 8000 | |||
Main Spindle servo motor （KW） | 7.5 | |||
Feeding motor | XYZ axis (Nm) | XY15 Z23 | ||
Stroke | X (mm) | 800 | ||
Y(mm) | 500 | |||
Z(mm) | 500 | |||
Spindle surface to work table(mm) | 120-620 | |||
Spindle center to column guide surface (mm) | 590 | |||
Work table | Work Area (mm) | 1000X500 | ||
T slot（width×qty.×distance）(mm) | 18-5-115 | |||
Load capacity (Kg) | 800 | |||
Feeding | Fast move(XYZ) (m/min) | 24 | ||
Lead screw | diameter/screw picth(XYZ) (mm) | 1--500 | ||
Rail type | linear guide rail(mm) | 40/12 | ||
Precision | Position precision(mm) | ZY45 X35 ball slide rail | ||
Repeat position precision(mm) | ±0.008 | |||
CNC System | ±0.005\\300 | |||

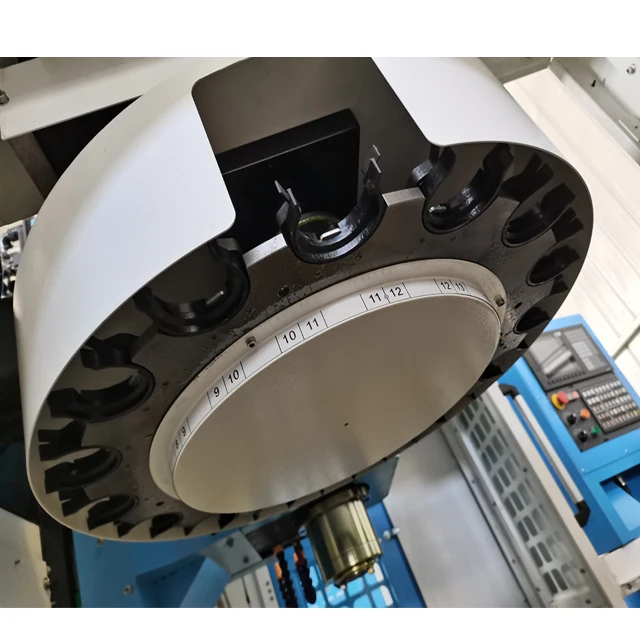

ATC | Turntable Tpye | KND2100 | ||
Robotic（Disc Type) | ||||
Other | Air source（pressure/ capacity）(Mpa) | robot24T | ||
shield | 0.6 | |||
Lubrication & cooling | Complete shield | |||
Overall Dimension（mm） | 2700X2300X2500 | |||
Weight (kg) | 5000 | |||

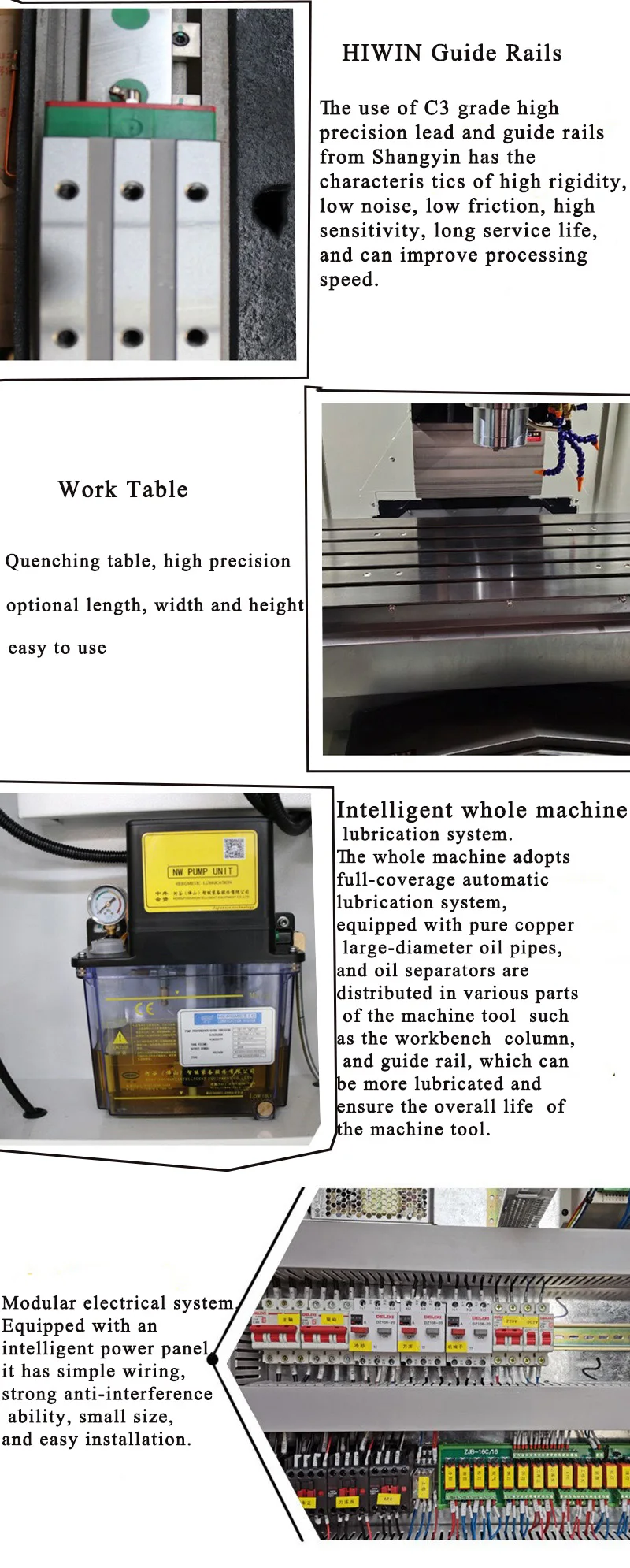

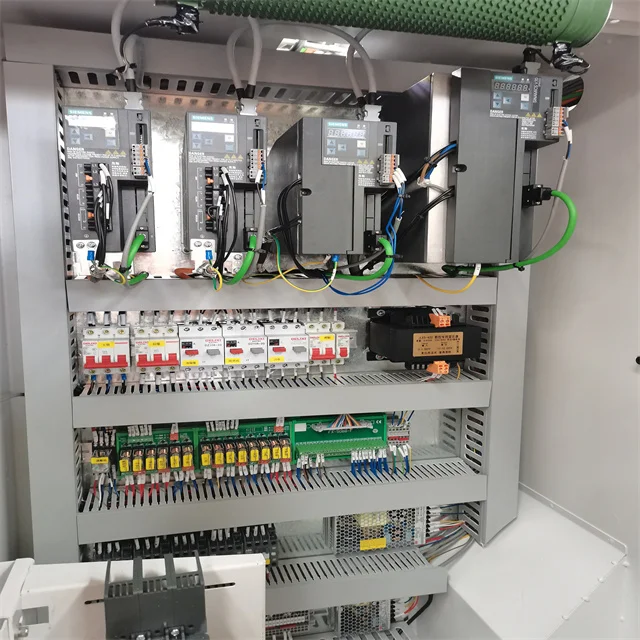

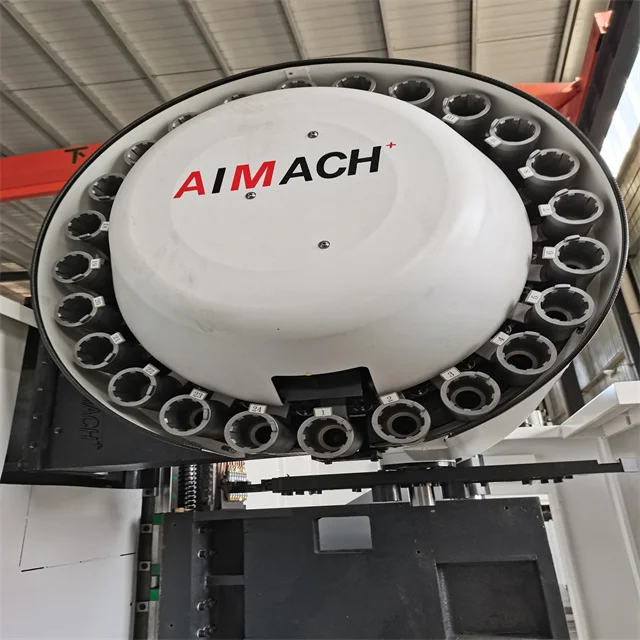

Machine Details

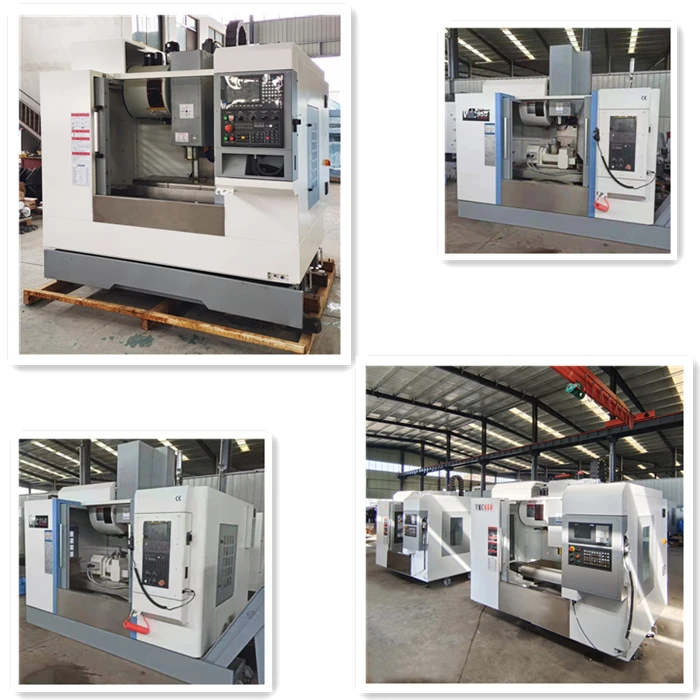

PRODUCT SHOW
Related Product
Application
Vertical machining center can be used in many fields such as machining and mold manufacturing. It can adapt to the processing requirements from roughing to finishing. It has the characteristics of high precision and high efficiency. It is widely used in aerospace, military industry, molds, automobiles, Internal combustion engines, engines, textile machinery, chemical machining, petroleum, electronics and steel structure industries.

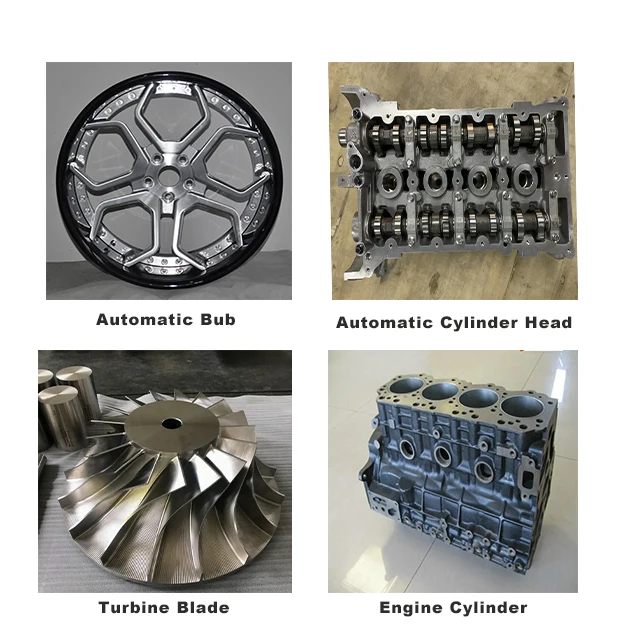

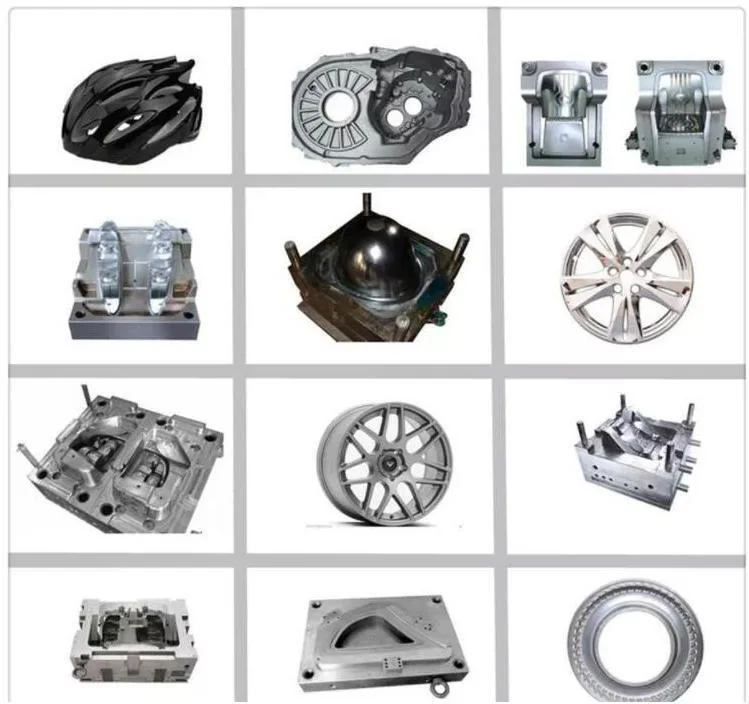

WORKPIECE SHOW
Packing&Shipping
1.The milling machine is packaging with protective film.
2.Pack the machine in a wooden box.
3.Load each wooden box into the truck.
4.Fix the milling machine inside the container.
5.Ship the goods to the destination port by sea.
3.Load each wooden box into the truck.
4.Fix the milling machine inside the container.
5.Ship the goods to the destination port by sea.

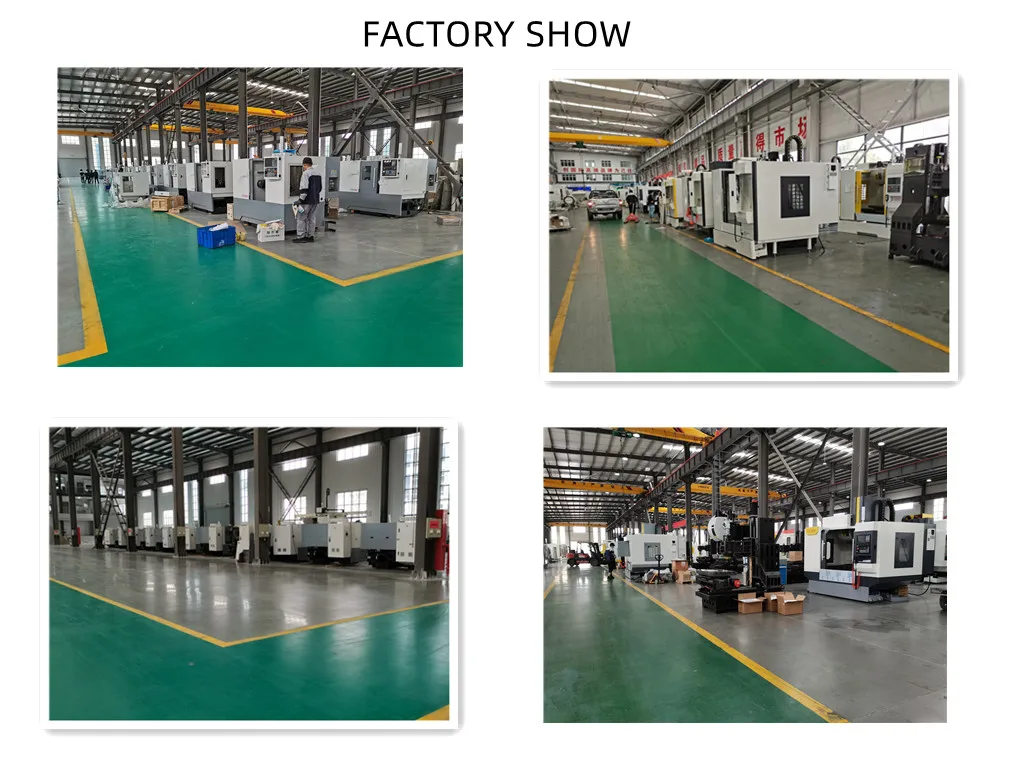

Inside Factory
FAQ
1. Q: Are you a Manufacturer or a trading company?
A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies
2. Q: How long have your factory been in this field? And how many staff do you have?
A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.
A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies
2. Q: How long have your factory been in this field? And how many staff do you have?
A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.
Why Choose Us？？
1. OEM Design&Production
Our active engineer and design team can make the special machine according to customer's special requirements.
2. Delivery in Time Assurance
We assure the machines your ordered will delivered at promised time
3. Free Installation&Training
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training; installation operation video provided
4. Your Payment Protection
You can pay through Alibaba to protect your advance payment
5. Online Factory Inspection Service
The factory inspection before your order, will be provided online by video meeting app, like room, wechat,skype etc..
6. Long Life Maintenance of Machine
We keep provide the maintenance for all machine life
7. International Third Party Inspection Supported
You can appoint the international third party party, such as TUV, SGS,BV, do inspection before shipment
Our active engineer and design team can make the special machine according to customer's special requirements.
2. Delivery in Time Assurance
We assure the machines your ordered will delivered at promised time
3. Free Installation&Training
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training; installation operation video provided
4. Your Payment Protection
You can pay through Alibaba to protect your advance payment
5. Online Factory Inspection Service
The factory inspection before your order, will be provided online by video meeting app, like room, wechat,skype etc..
6. Long Life Maintenance of Machine
We keep provide the maintenance for all machine life
7. International Third Party Inspection Supported
You can appoint the international third party party, such as TUV, SGS,BV, do inspection before shipment
