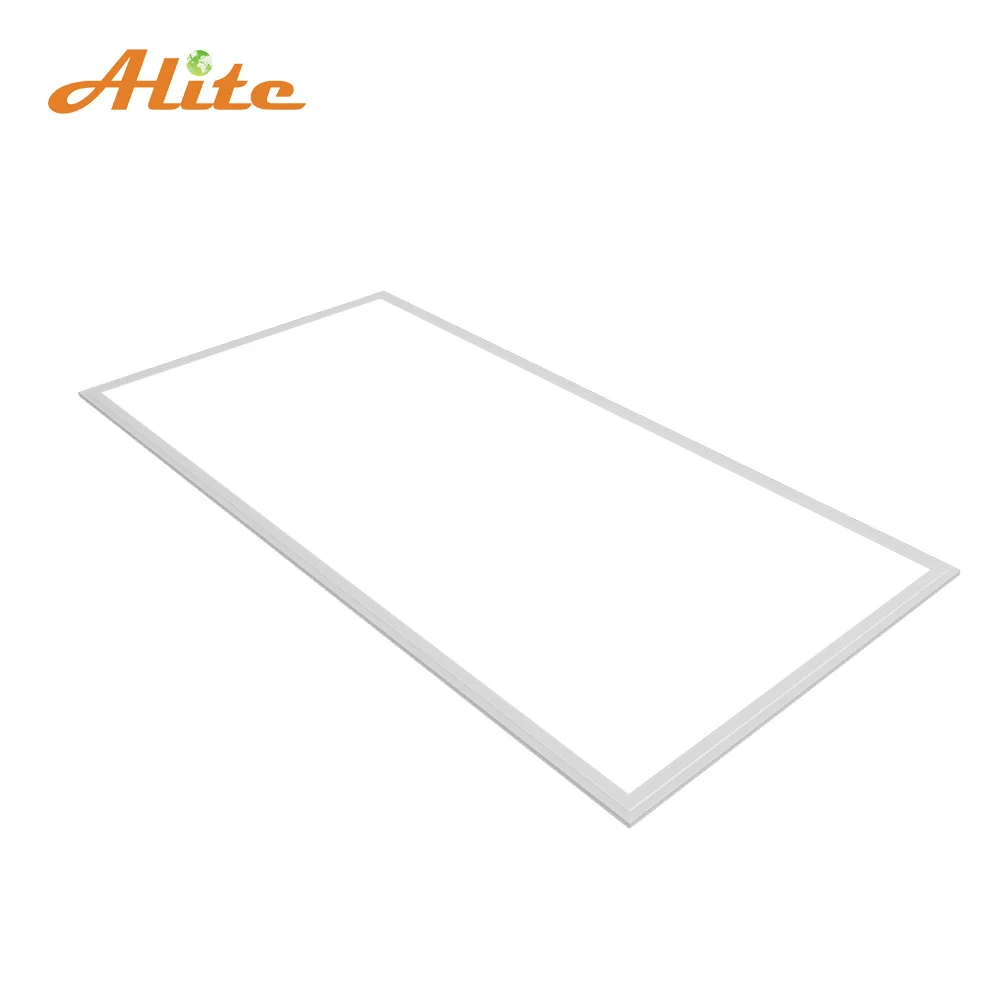

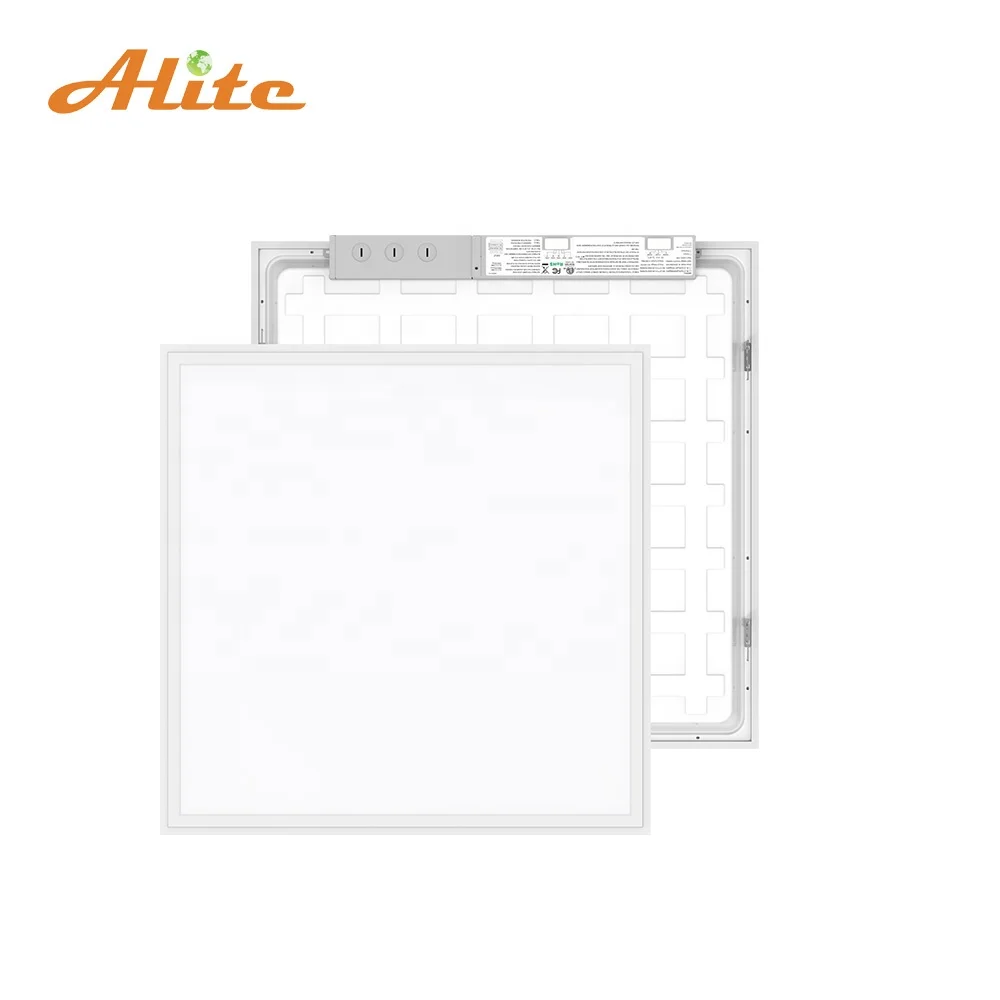

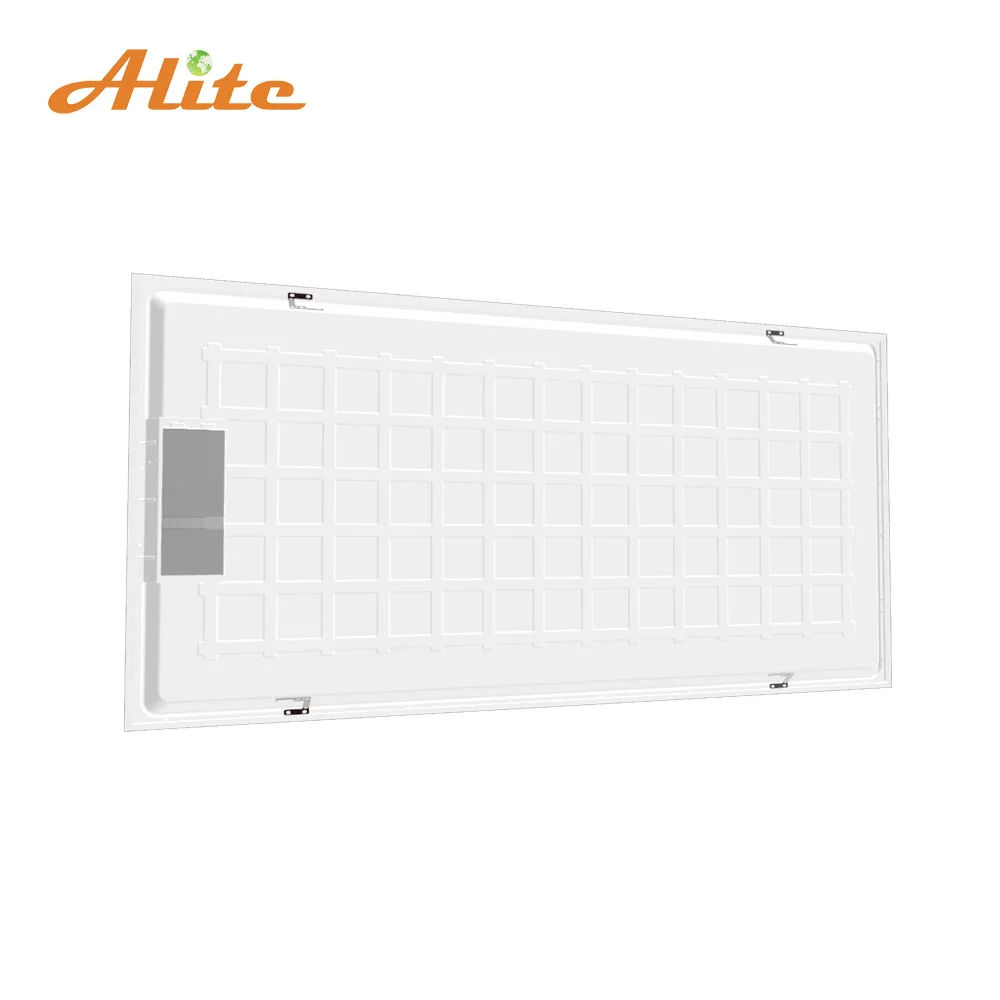

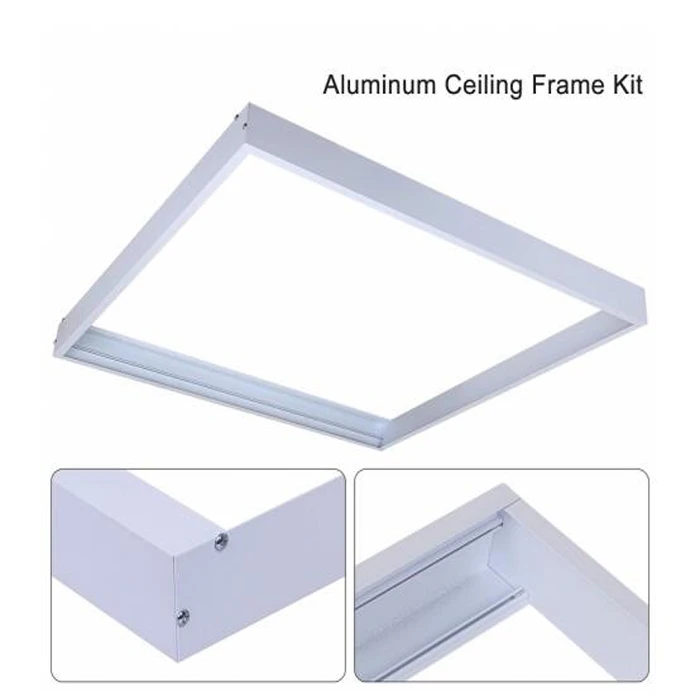

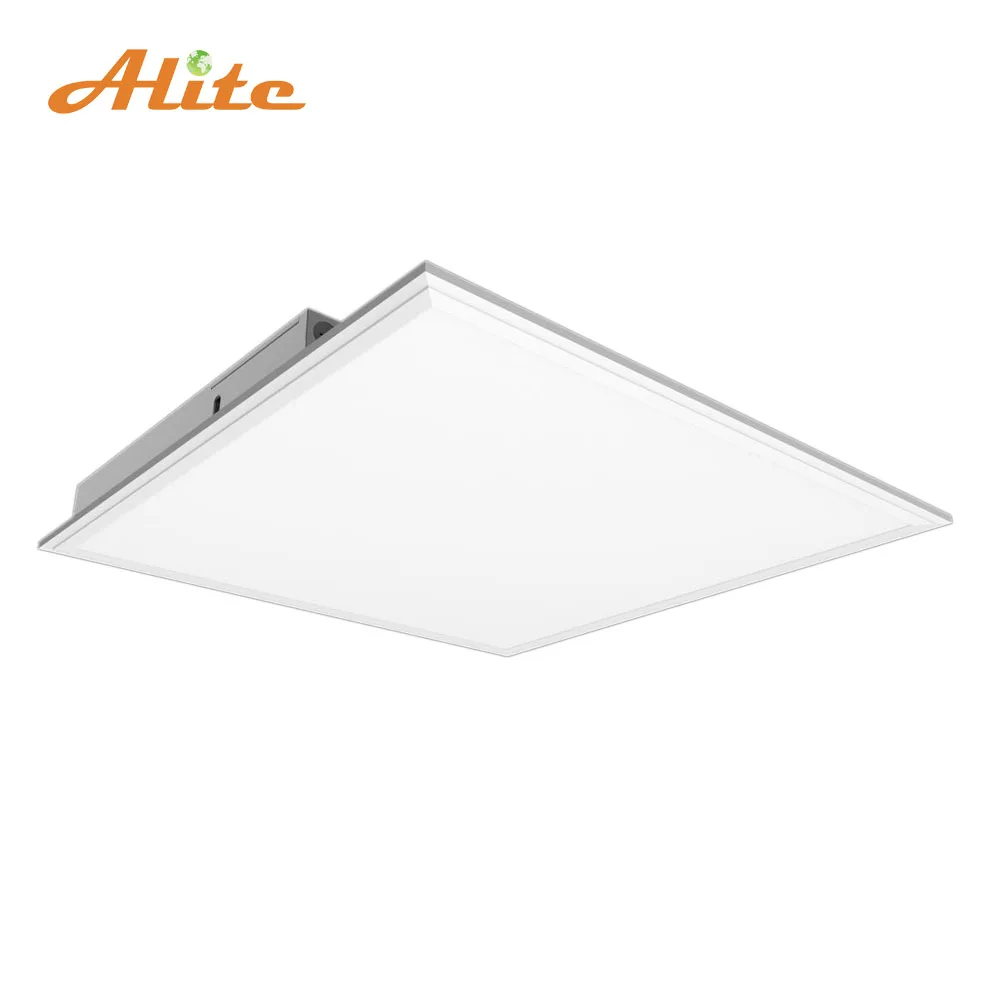

led panel light 60x60 SKD ceiling lamp housing kit aluminum frame iron cover accessories
- Category: >>>
- Supplier: Alite Co. Ltd.
Share on (1600614219158):
Product Overview
Description

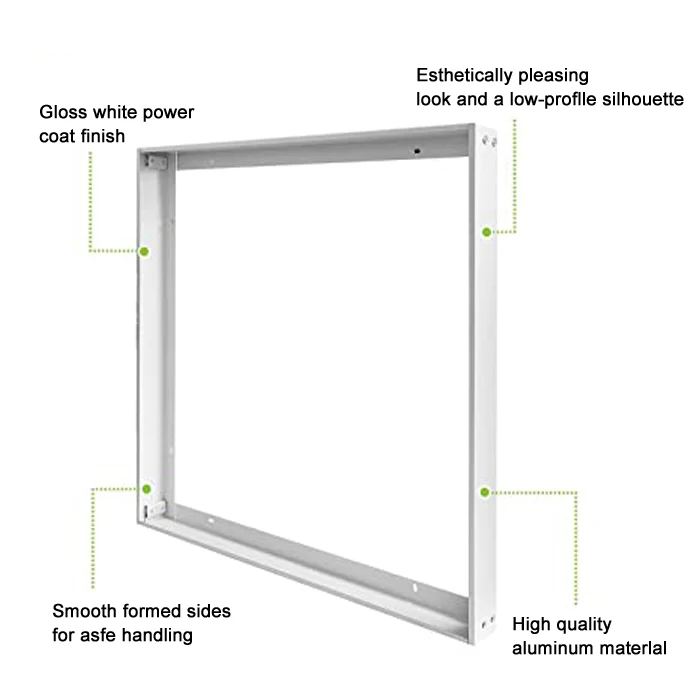

led panel light 60x60 SKD ceiling lamp housing kit aluminum frame iron cover accessories
Products Description
Details Images
Product Features of led light panel SKD:
① Small package: Save shipment cost;
② Wireless remote control: Cut down installation and maintenance cost;
③ Full range of function: 0-10V Dimmable, Emergency, Non-dimmable, or flexible combination function.
④ High quality driver and LM80 test LED,to make the 5 years warranty.
⑤ Approved by ETL SAA FCC,CE,ROHS,etc.
② Wireless remote control: Cut down installation and maintenance cost;
③ Full range of function: 0-10V Dimmable, Emergency, Non-dimmable, or flexible combination function.
④ High quality driver and LM80 test LED,to make the 5 years warranty.
⑤ Approved by ETL SAA FCC,CE,ROHS,etc.
If you would like to know more details please contact Nicole- nicole@aliteled.com.
Specification
Product Name | led light panel SKD |
Material | Aluminum body+PMMA lens |
Power | 2x2FT: 20W/25W/30W/36W/40W or tunable optional 2x4FT: 25W/30W/40W/45W/50W or tunable optional 1x4FT: 20W/25W/30W/36W/40W or tunable optional |
Voltage | 100-277VAC, 100-347VAC |
Lumen Efficiency | 110LM/W, 130LM/W |
Color Temperature | 3500K/4000K/5000K or tunable |
CRI | 82 |
Lifespan & Warranty | 50000 hours5 years, 10 years optional |
UGR | <19 is allowed to customize |
Model No. | L(mm) | W(mm) | H(mm) |
LP-0303 | 295 | 295 | 30 |
LP-0306 | 295 | 595 | 30 |
LP-0606 | 595 | 595 | 30 |
LP-1203 | 1195 | 295 | 30 |
LP-1206 | 1195 | 595 | 30 |
Function shows
Common Functions Optional of
led light panel SKD:
2.0-10V Dimmable, Motion sensor;

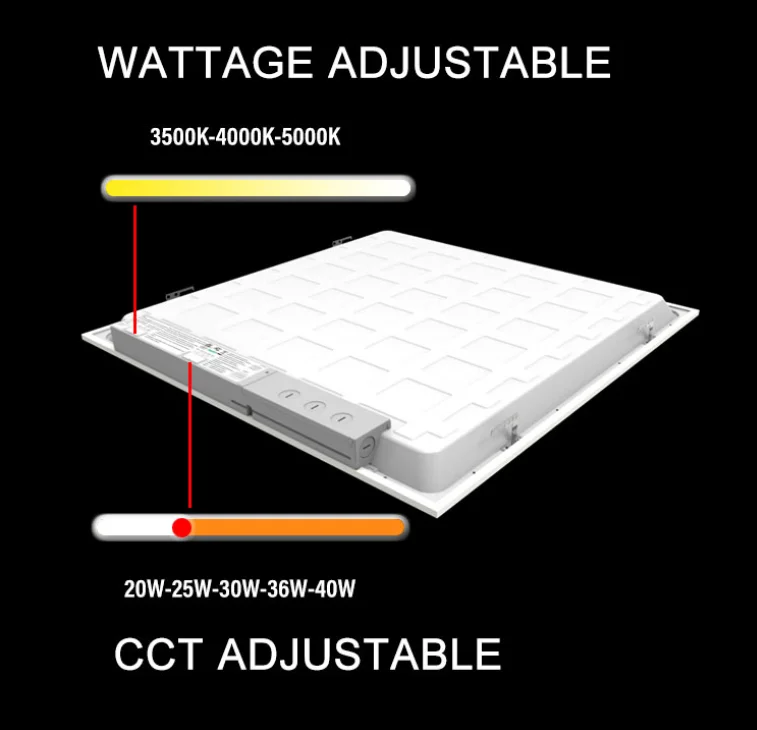

3.Equipped with a dip switch for stepwise adjustment of power and color temperature;
4.Emergency module when needed, external emergency battery back up for option.
Emergency backup kit of led light panel SKD:
1. Full 10w backup power over 90minutes dischage time.
2. Lithium iron phosphate(LiFePO4) battery, high safety performance.
3. Height <24mm, suitable for application with compact room as well.

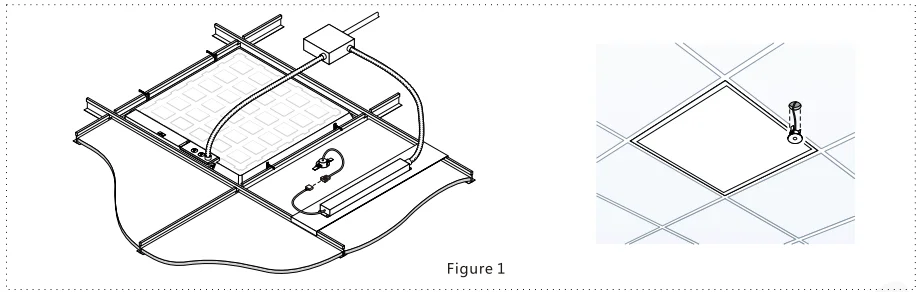

4. Remote control test, no need for test switch wiring, easy operation save wiring cost and mantain cost. Refer to Figure 1
5. Connect to AC input end directly, easy wiring.
6. Good compatibility, work with all 0-10V dim LED products(<70w).
2. Lithium iron phosphate(LiFePO4) battery, high safety performance.
3. Height <24mm, suitable for application with compact room as well.
4. Remote control test, no need for test switch wiring, easy operation save wiring cost and mantain cost. Refer to Figure 1
5. Connect to AC input end directly, easy wiring.
6. Good compatibility, work with all 0-10V dim LED products(<70w).

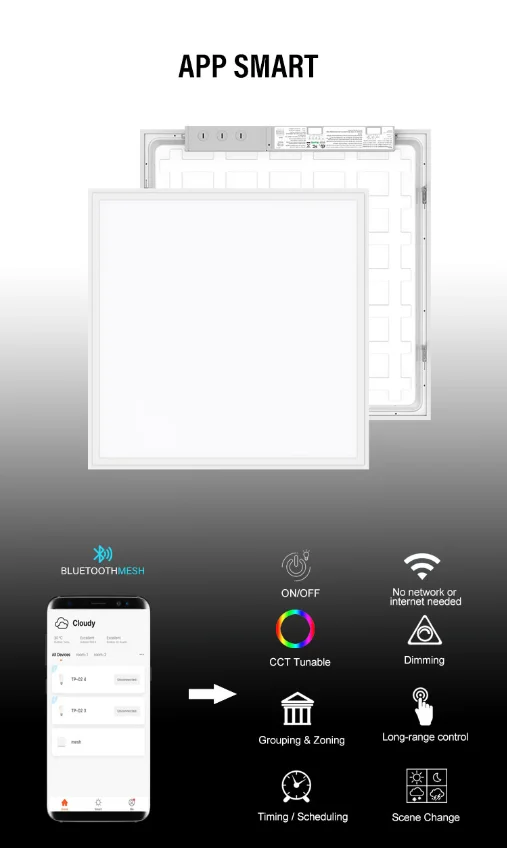

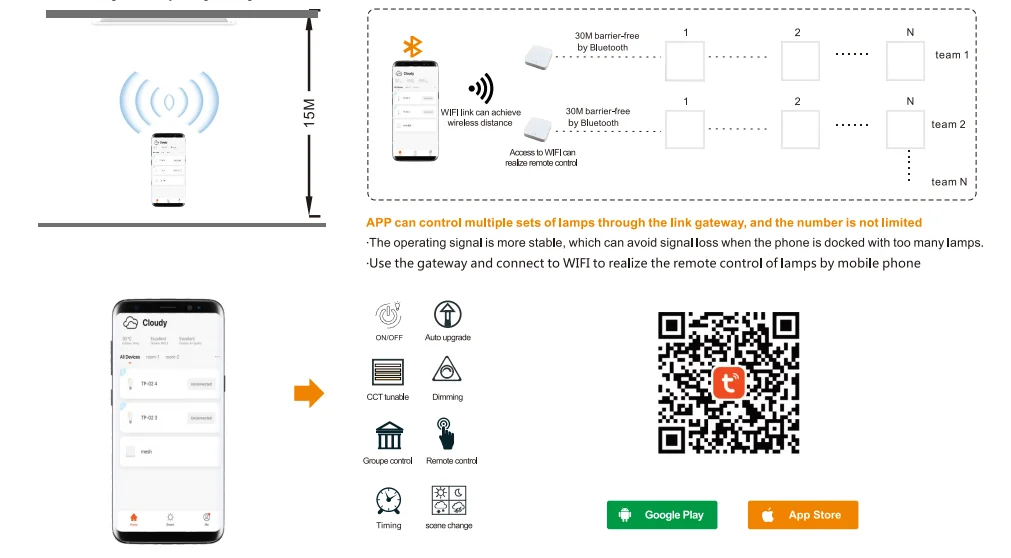

Smart APP Control of led light panel SKD:
Use the world's leading smart wireless control system -TUYA smart, via Bluetooth Mesh/Ziabee communication to manage light by APP(Android and IOS), smart control for dimming, CCT adjusting, timing, ON & OFF etc.

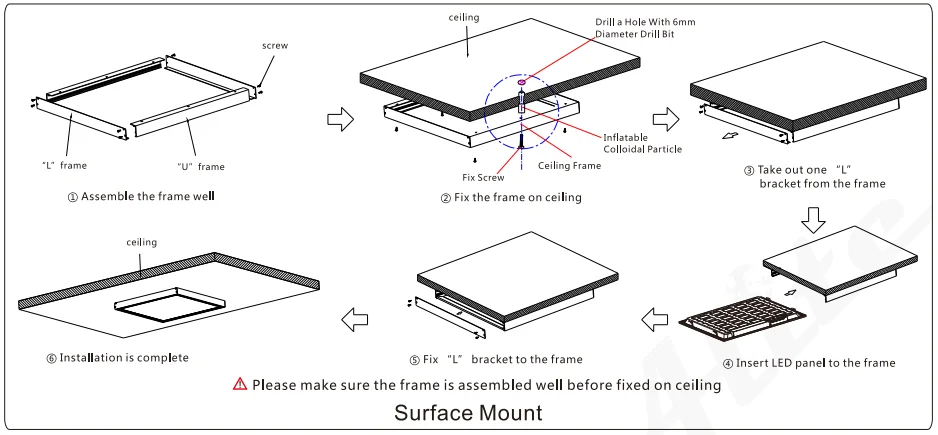

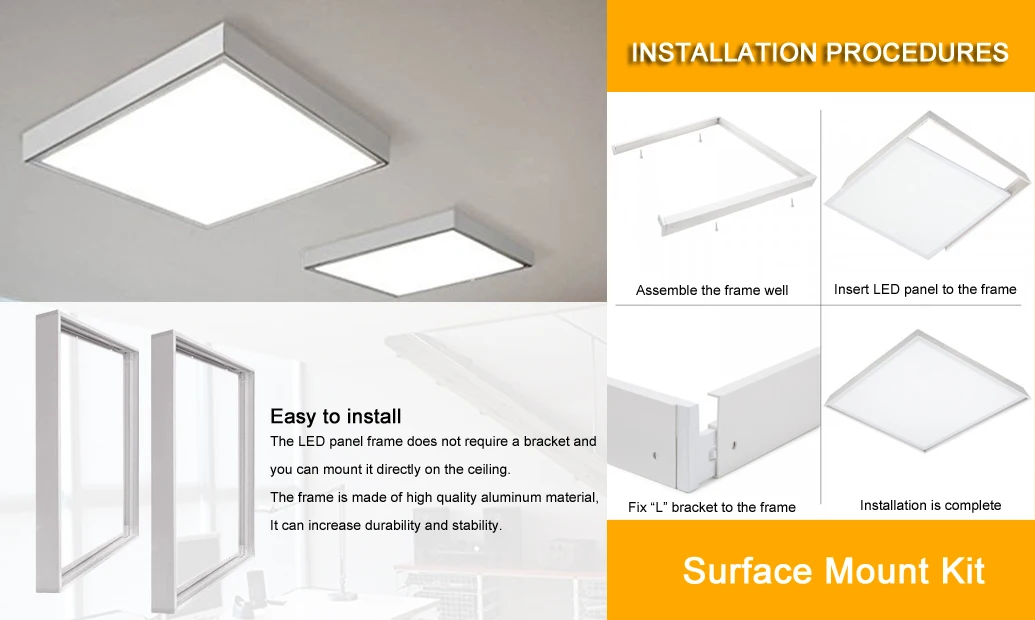

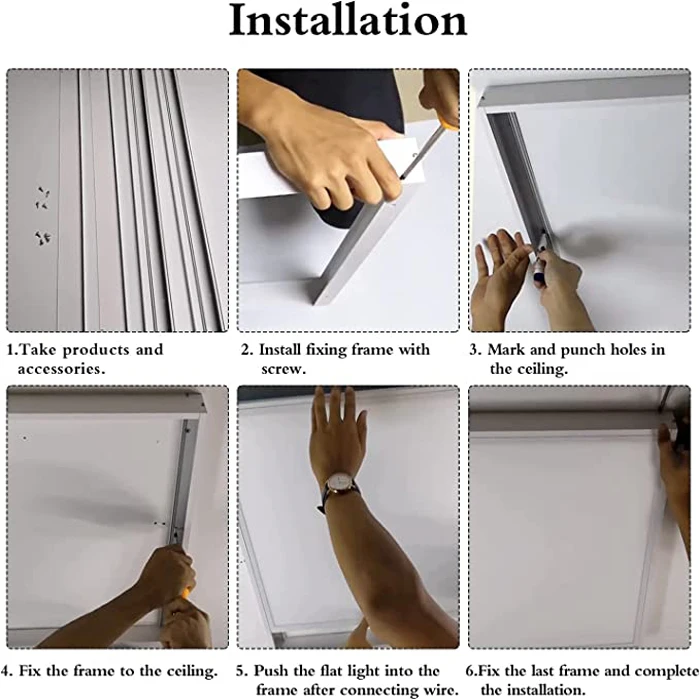

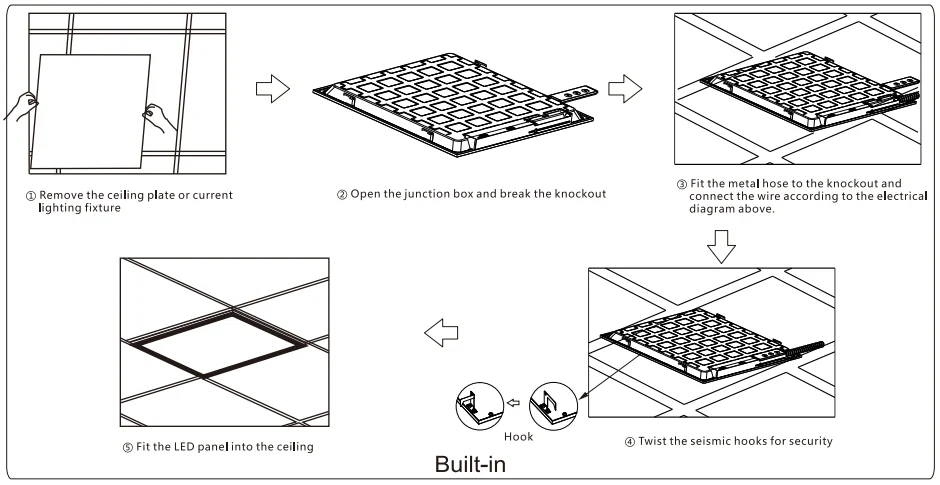

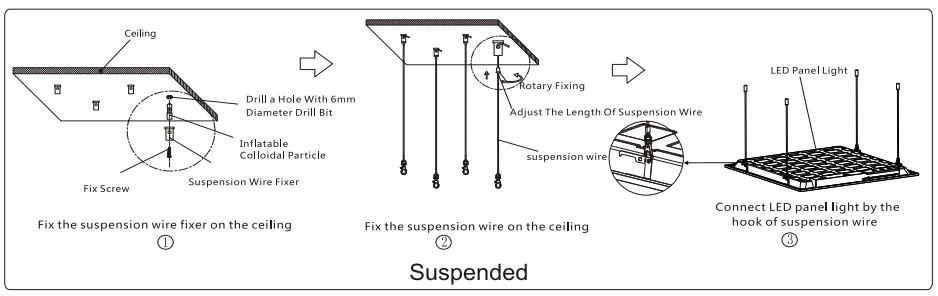

Installation Instructions
Package
Application
Indoor lighting Residential lighting, Home lighting Commercial lighting, Hotel, Shops etc.Public lighting, Hospitals etc.
Warning and caution:
Don't use in completely enclosed fixtureand damp area.
Warning and caution:
Don't use in completely enclosed fixtureand damp area.
