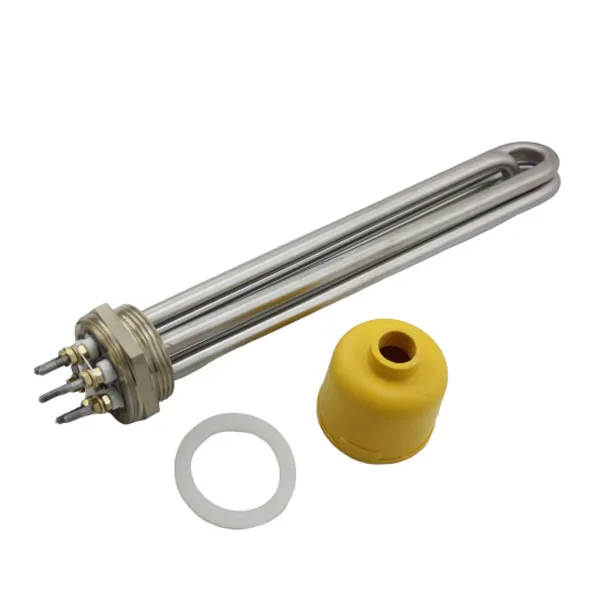

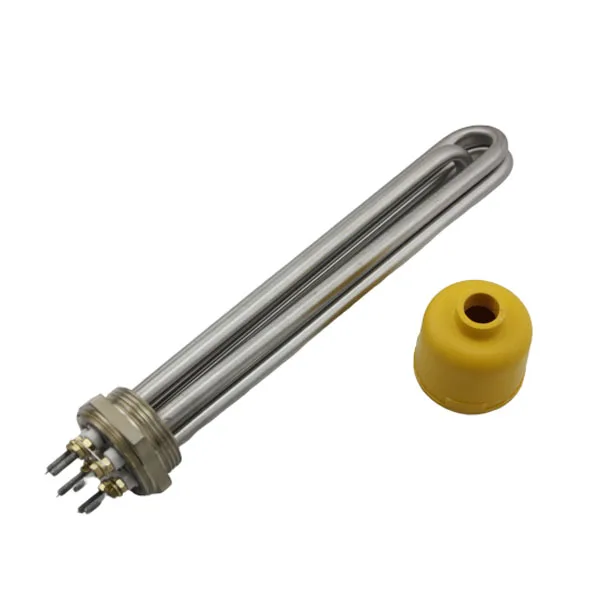

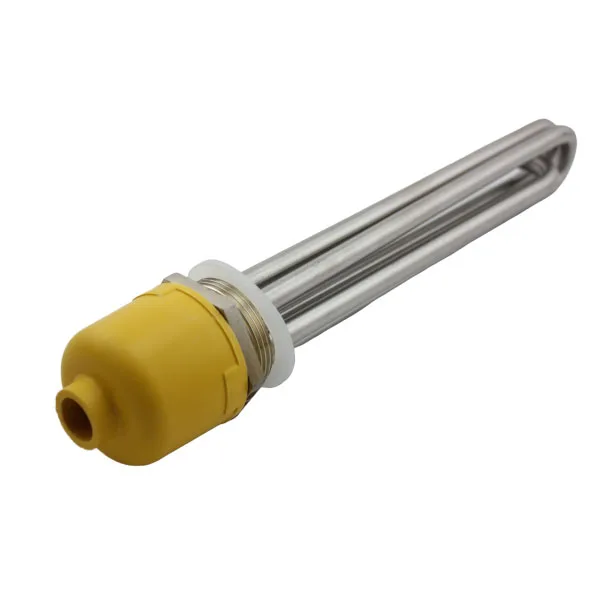

120V 240V 480V Heat Water Flange Immersion Heater Element
- Category: >>>
- Supplier: Taizhou Yuling Electrical Appliance Co. Ltd.
Share on (1600614227983):
Product Overview
Description
Product Description

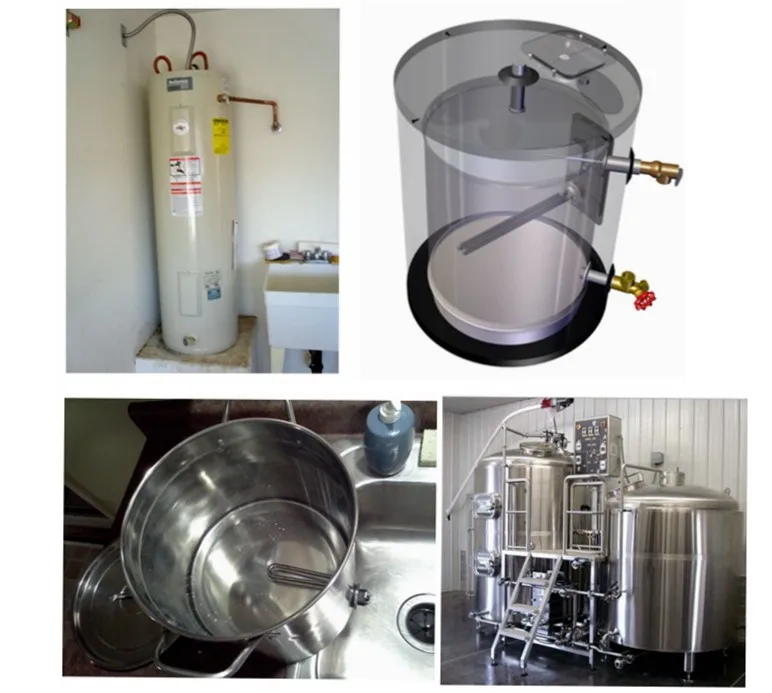

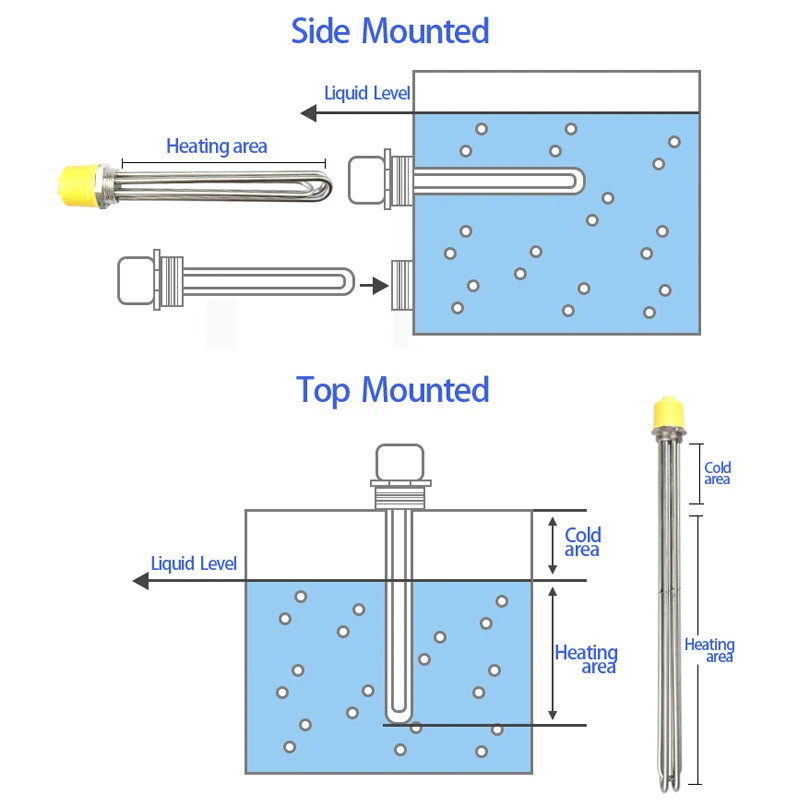

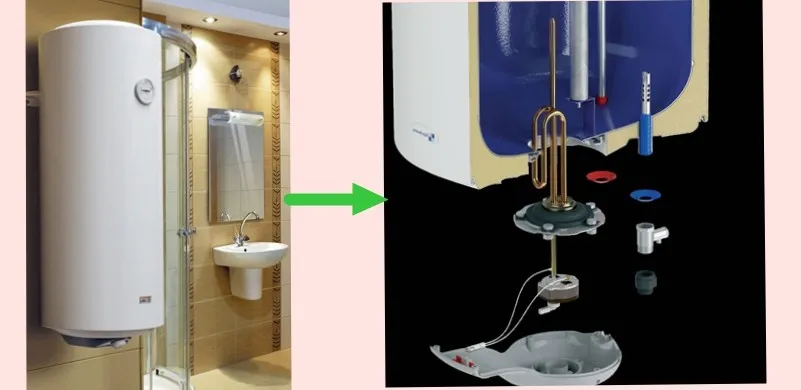

120V 240V 480V Heat Water Flange Immersion Heater Element are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.). Flange immersion heaters can be straight or L-shaped.
Flange size | DN 50 to DN 800 |
Screw plug size | 1"- 3" |

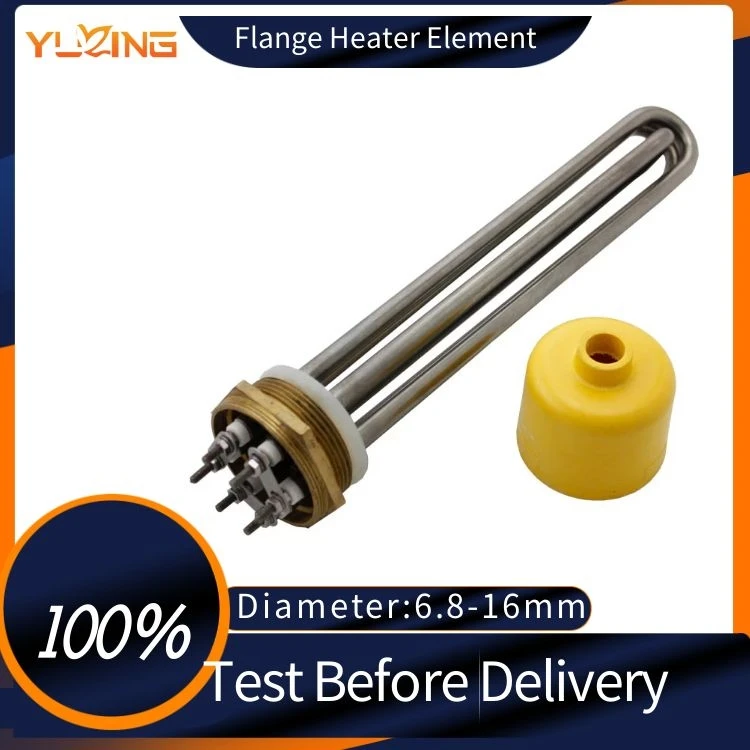

Tube Diameter | 8-16 mm |
Immersion Length | 150mm- 1500mm |
Heating Element | 3 elements, 4 elements, 6 elements, 10 elements etc under customer request |
Wattage density | 2-8W/cm2 |
Voltage | UP to 600V |
Sheath Material | Stainless Steel 304 316L 310S Copper Incoloy 800 840 |
Built in thermostat well | Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter |
>>How to choose the right Material for immersion heater?
Type | Characteristic |
Iron | Easy to rust,used in places with high loss and no special requirements |
201 Stainless Steel | Good quality than iron pipe,suitable for most working enviroments,temperature less than 300℃ |
304 Stainless Steel | Better quality than 201,can be used in a slightly corrosive enviroment,can withstand 450℃ |
316 Stainless Steel | Can be used in corrosive environments 2520 stainless steel-can withstand 1300℃,special high temperature,high cost |
Outsourcing Teflon | Special used in highly corrosive environments,99% of strong acid and alkali does not react |
Titanium | Dedicated to highly corrosive environments,high temperature resistance,expensive construction,long life |
