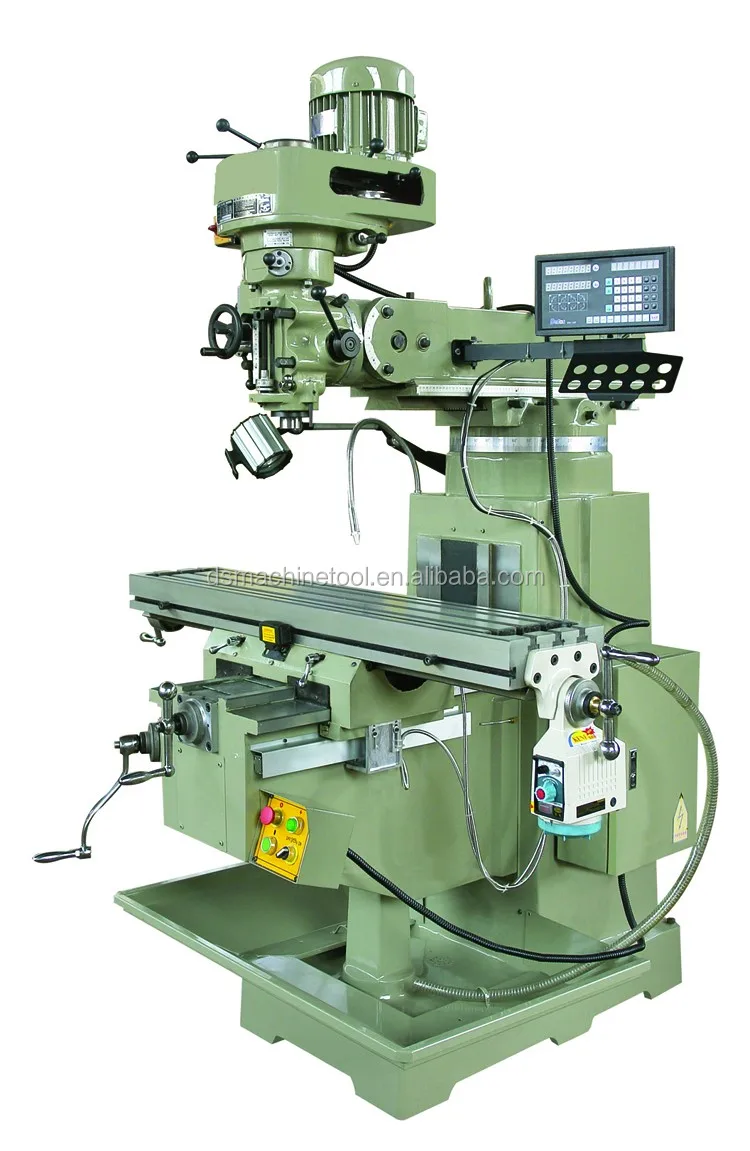

X6325 China manufacturer Taiwan head Vertical Turret milling machine





 Features:

1. 2.2kw (3hp) Taiwan high speed milling head

2. Vertical milling spindle automatic feed

3. milling head can tilt :Left / right ±90°; forward / backward ±45°

4..Cost-effective machine
5. High stability



Performance:

1.Multi-purpose milling machines for workshop, single part production, design and training;

2.Universal use;

3.Head swivel through 2 axes, swivel: 90 degree; tilt: 45 degree;

4.More rigid and powerful with (X6325) 2.2KW / (X6330) 3.7KW motor;

5.X6325 Spindle Taper ISO30/R8

   X6330 Spindle taper:ISO40/NT40

6.Manual coarse feed for quill, toggles to micro-feed;

7.Infinitely variable speed as optional;

8.Auto quill feed with 3 steps.

9. X6325: rectangular way on Y axis slideway, swallow tail way on Z axis slideway

   X6330:rectangular way on Y Z axis slideway.

10. Hardened and ground work table

11. Hardened and ground on XYZ axis slide ways



Specifications	X6325
Table size (mm)	1270*254 or 1370*254
Travel(XYZ) (mm)	750 (max:850)*400*400
T-Slot Numbe / width / spacing (mm)	3 / 16 / 65
Max.table load (KG)	350
Ram travel (mm)	400mm
Distance from spindle nose totable top (mm)	0-460
Distance from spindle to column (mm)	155-635
Spindle taper	(Standard): R8/ISO30  (Optional): ISO40
Spindle travel	127mm
Spindle speed range (r.p.m)	66-4540 (16 steps)
Milling head tilt (left/right)	90°
Milling head tilt ( front / back)	45°
Spindle Motor (HP)	3
N.W/G.W (KG)	1200/1300
Packing size (mm)	1450*1650*2200



Accessories:

1.mill chuck(8pcs)        2.machine vice(160mm)

3.machine light  4. clamping kit (58pcs)

5.coolant pump

6.chip tray

7.Electrical panel

8.tool box

9.bellow cover

10.Draw bar

11.Handle oil pump

12. Operation manual

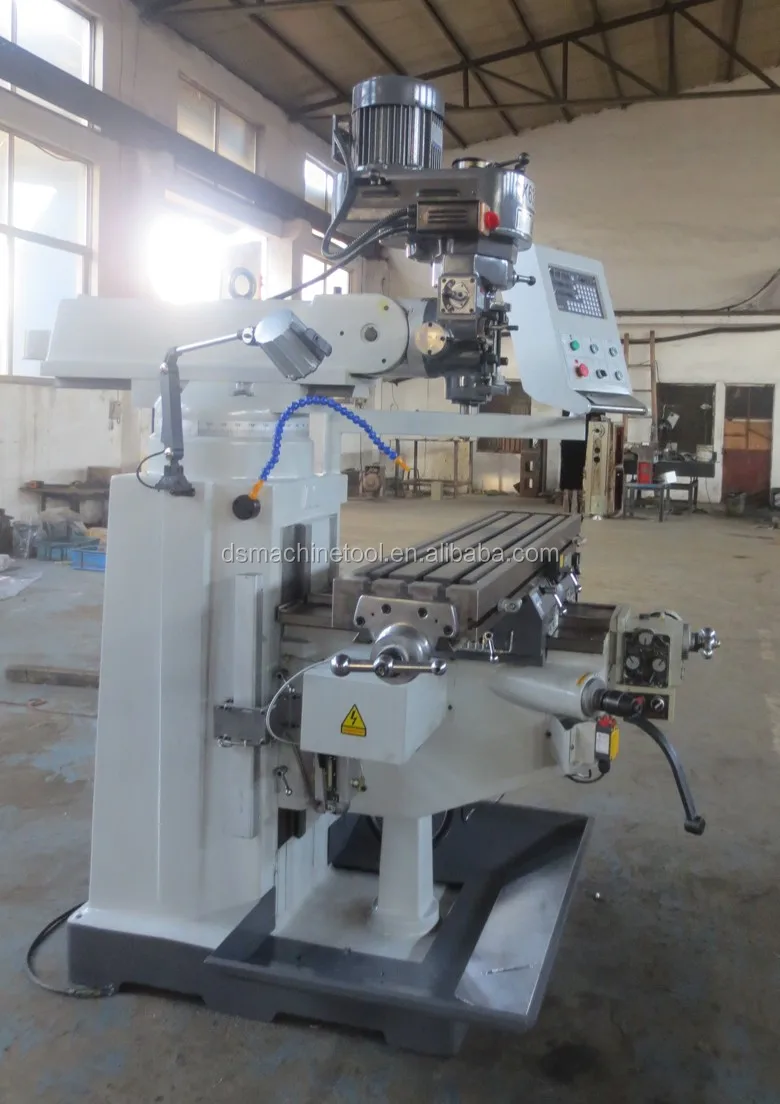

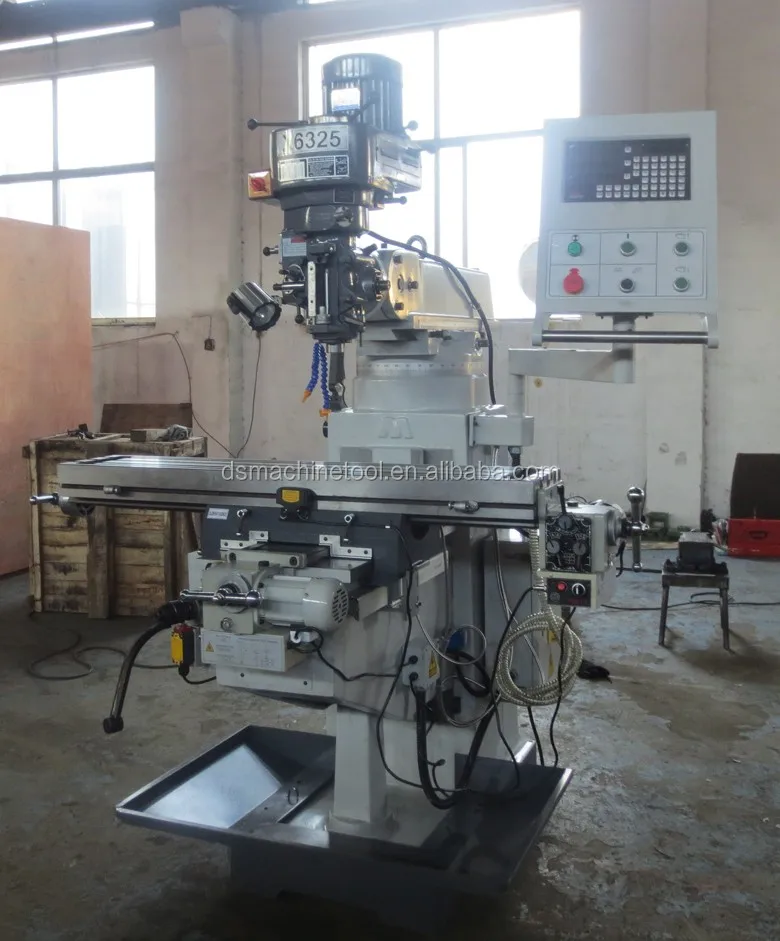

 As Blow is our X6325 with the optional accessories some pictures:

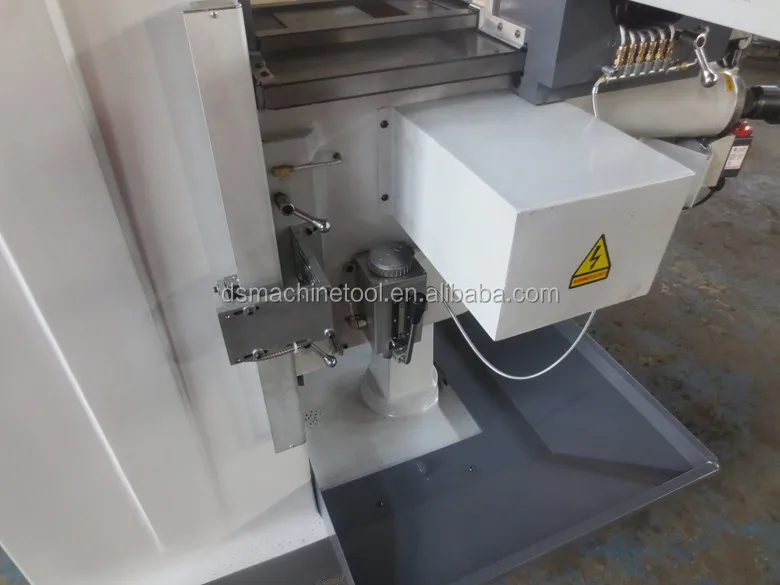

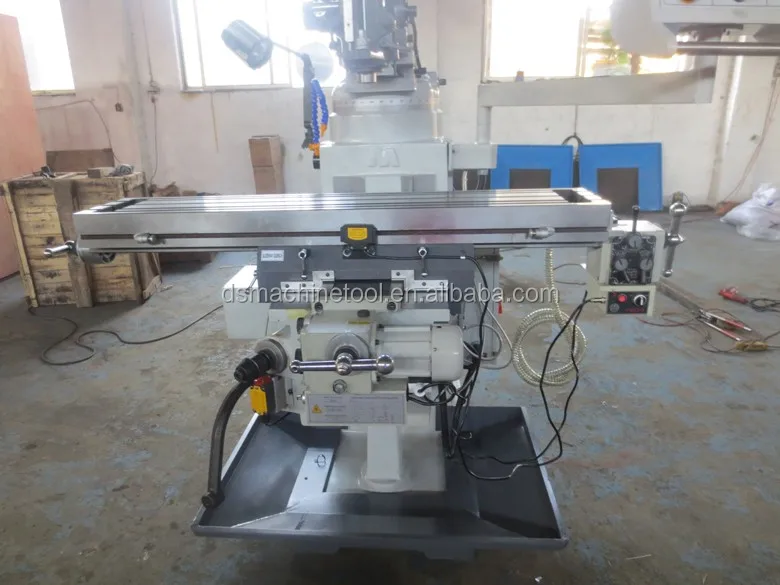

Mechanical power feed on X and Y axis, Z axis lifting and lowering:

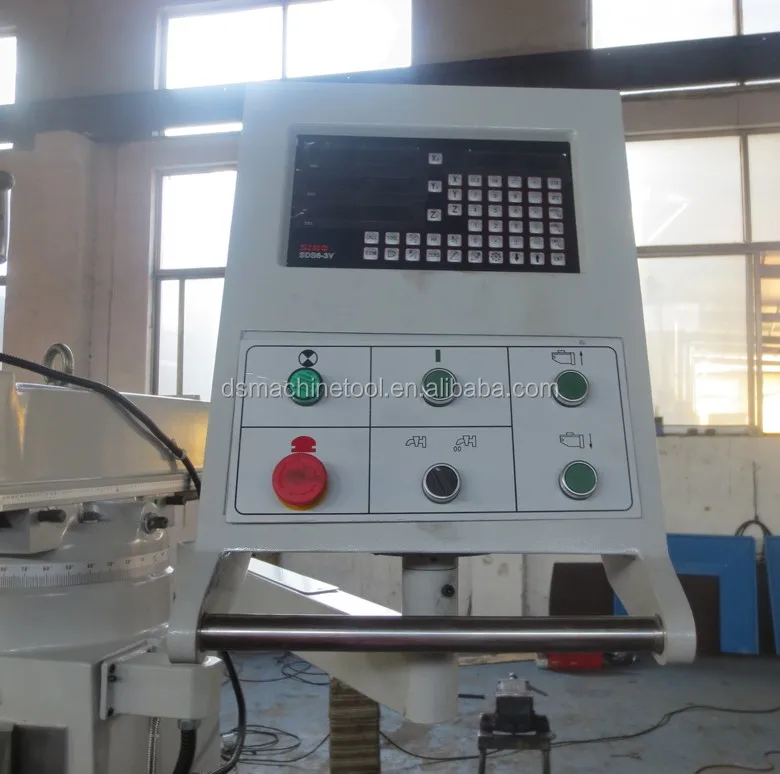

New control panel, easier control, more beautiful
