DN50 2 inch DC12/24V SS304 stainless steel electric actuator spring return motorized ball valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1600614404873):
Product Overview
Description
Product Description

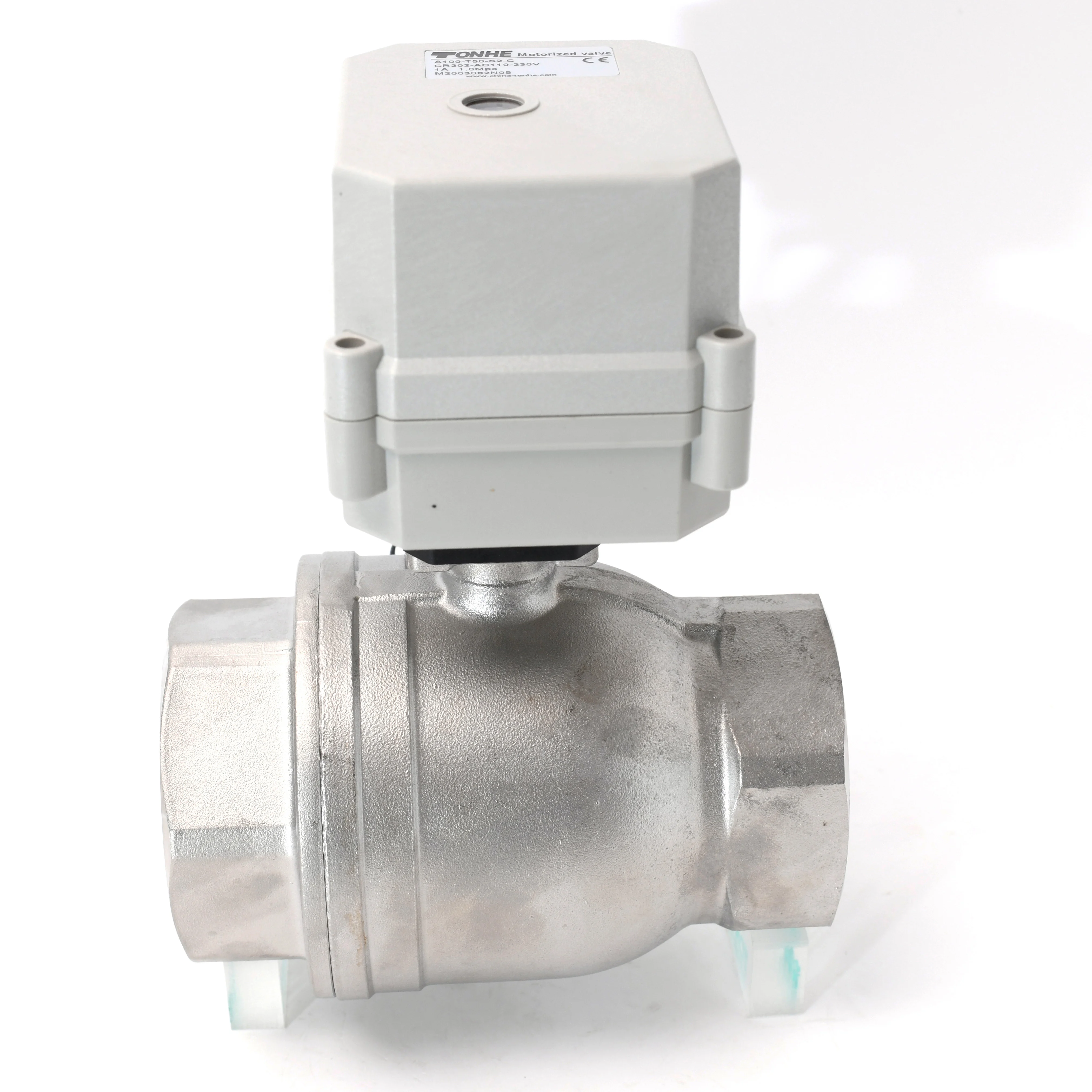

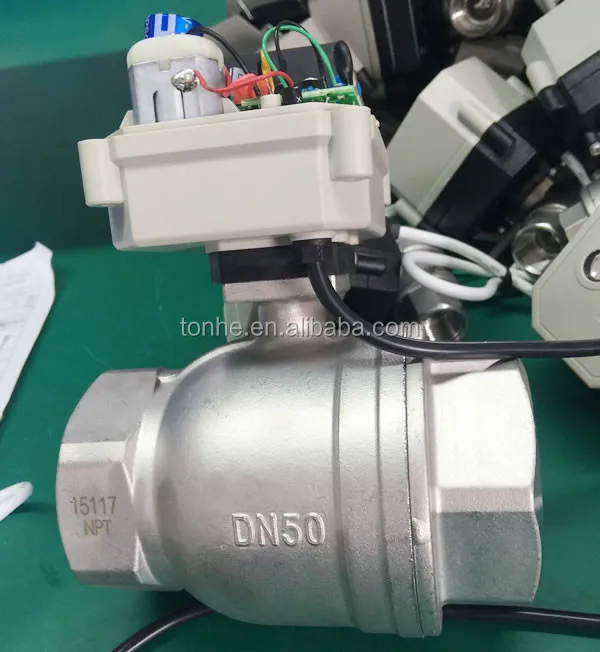

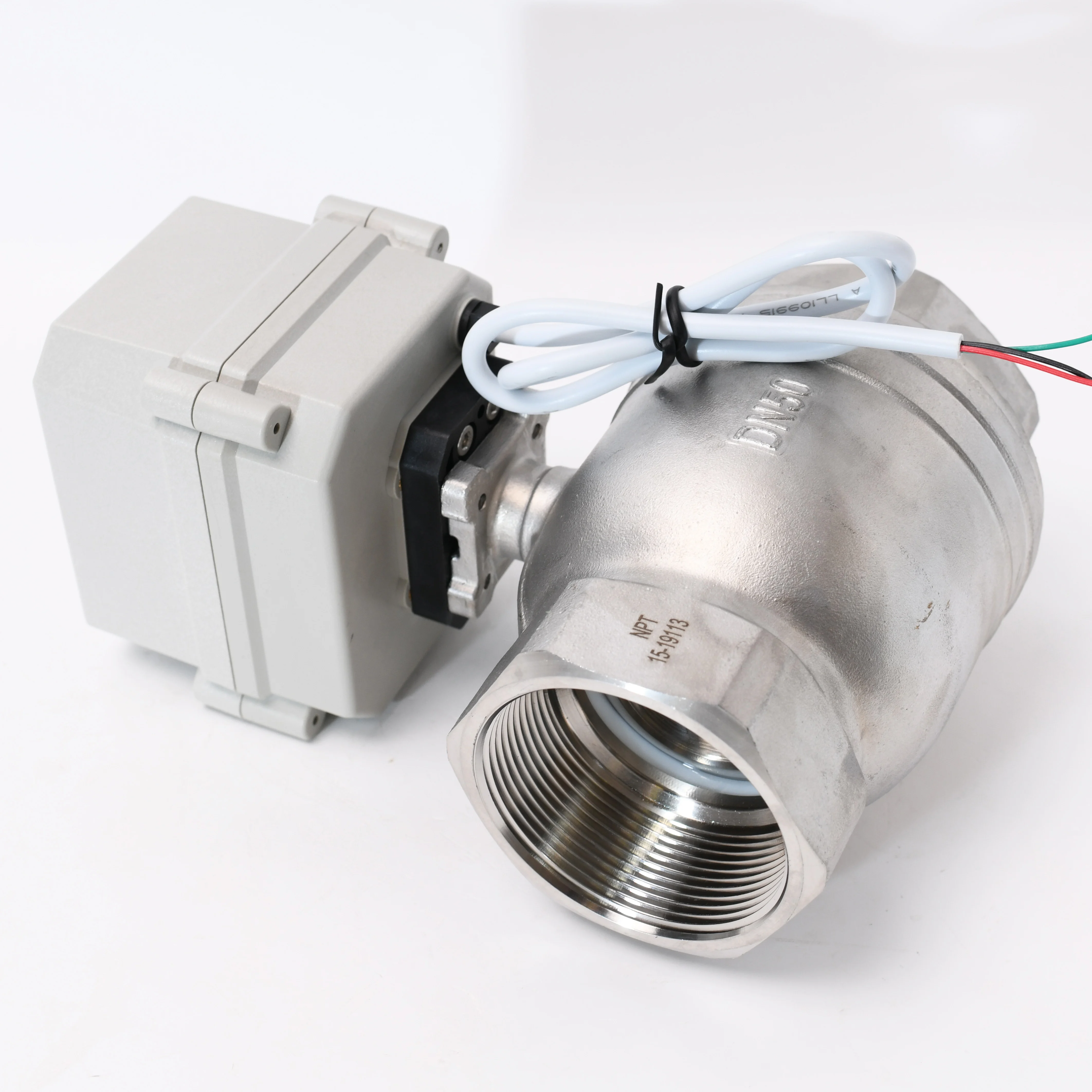

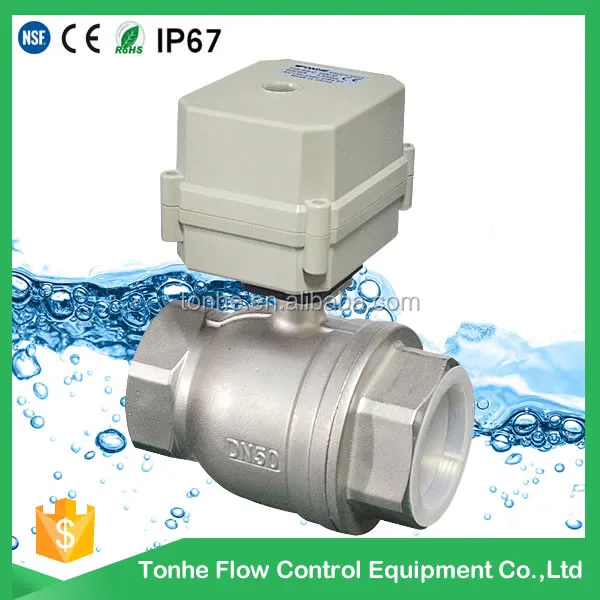

DN50 2 inch 2 way CR202 DC12/24V SS304 stainless steel electric control spring return motorized ball valve
| Product size | NPT/BSP 2" (Optional) |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid, Air |
| Rated voltage | AC/DC9-35V |
| Wiring control methods | CR2-02 Normally closed |
| Working current | ≤ 800MA |
| Open/close time | ≤ 15 Sec |
| Life time | 100000 times |
| Valve Body material | Stainless Steel 304 |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 10 Nm |
| Cable Length | 0.5m,1.5m (Optional) |
| Environment temperature | -15℃~50℃ |
| Liquid temperature | 2℃~90℃ |
| Manual override | NO |
| Indicator | Yes |
| Protection class | IP67 |
Specifications:
| Model | Wiring control | Working voltage | Max. torque |
| T50-S2-C | CR2 01 | DC12V, DC24V | 10Nm |
| T50-S2-C | CR2 02 | AC/DC9-35V | 10Nm |
| T50-S2-C | CR3 03 | DC12V, DC24V | 10Nm |
| T50-S2-C | CR4 01 | AC110-230V | 10Nm |
| T50-S2-C | CR5 01 | DC12V, DC24V | 10Nm |
| T50-S2-C | CR5 02 | AC/DC12-24V | 10N.M |
| T50-S2-C | CR7 03 | DC12V, DC24V | 10N.M |
| T50-S2-C | CR7 04 | AC110-230V | 10N.M |
Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
5, actuator cable 0.5m or 1.5m?
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Packaging & Shipping
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
