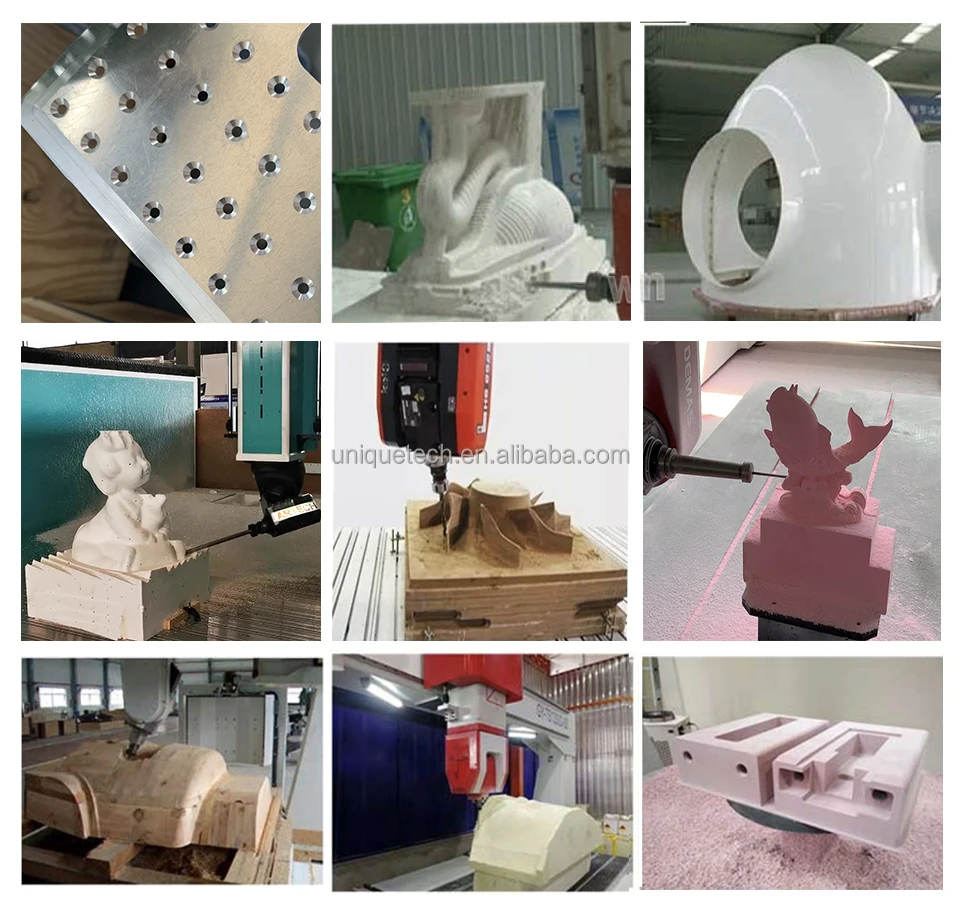

Applications of the Cnc Milling Machine 5 Axis:

1. Die industry: foam,wood,plastic,fiberglass and other soft metal materials dies.

2. Mold industry: car mold,boat mold,ship mold,vessel mold,plane mold,foundry mold,die mold,turbine blade,large metalloid moulds, automotive foam mold, rail wooden mold, wooden mold train, wooden ship model, wooden model aviation, 3D surface carving and 3D shape cutting

3. Animal and people figure,statue processing industry.

4. Plate processing industry: insulation,aluminum,plastic and chemical,epoxy,resin,ABS, PP,PE and so on.

Advantages of Unique CNC Cnc Milling Machine 5 Axis:

1. Rigid and strong machine frame. Machine base and gantry beam are thick steel welded, the "shoulders" which connect beam and base and whole Z axis are cast iron.  Reinforced bones inside the machine body.All structures are  quenching processed, the quenching can release the metal`s stress, so the machine will not deform forever and have high precision forever.

2.Unique CNC 5 axis cnc routers have high precision: Geometric accuracy is about 0.06mm/200mm. Reposition accuracy is 0.05mm.

3. World famous parts like Yaskawa servo motors, Taiwan HIWIN rails, ballscrews, airtec air components, Schneider components, Omron limit switches, Italy HITECO spindle, Demas 5 axis head and so on.

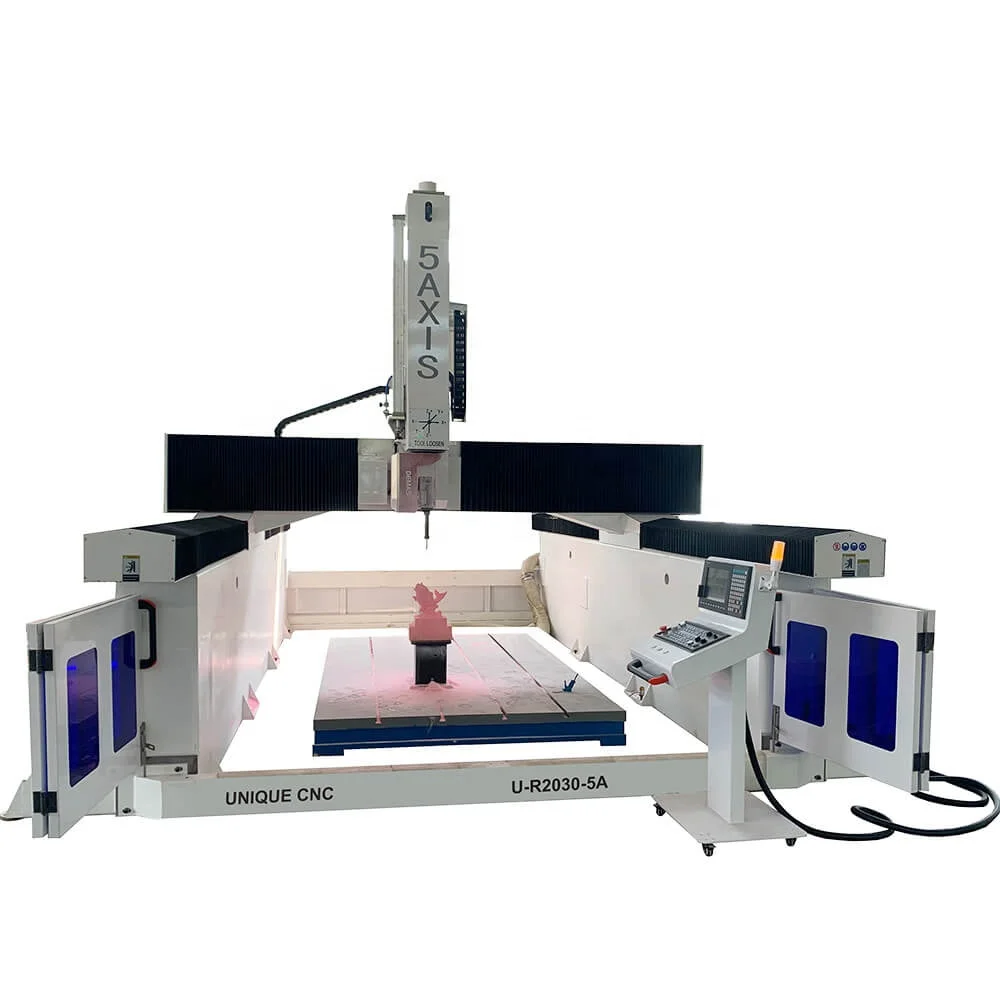

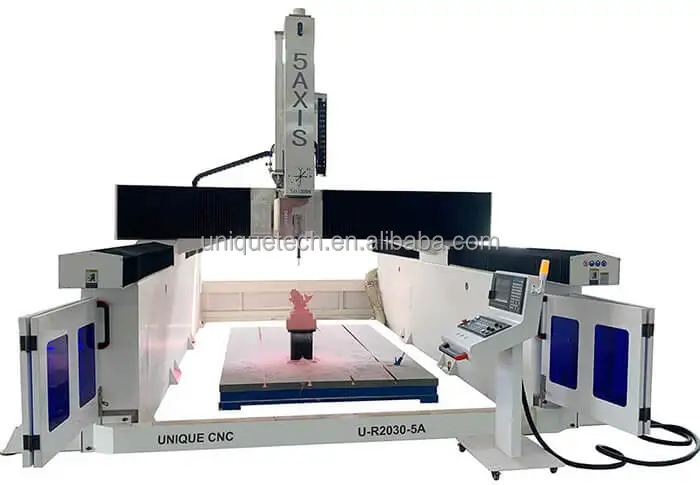

Model No.	U-R2030-5A high precision 5 axis cnc router
Function	A variety of glass fiber, carbon fiber, composites, epoxy tooling board,solid wood,etc., a multi-step multi-angle, high-efficiency, processing, etc.

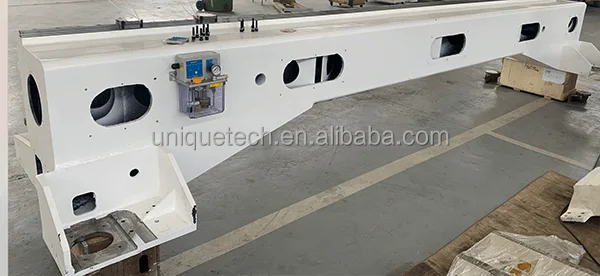

Design	The machine base and the beam gantry are welded by thick steel tube with enhanced bones inside, Z axis and two stands under beam are cast iron
Control axis	Spindle move left and right (crosswise stroke), move right is X+
	Gantry/beam move forward and backward(lengthways stroke),move forward is Y+
	Spindle move up and down(vertical direction), move up is Z+
Transmission	X,Y,Z,B,C are all control axis, 5 axis move together, X/Y/Z axis use square linear guide rail, Y/Z axis use ball screw, X axis use screw rack, B/C axis use high rigidity RV structure transmission.
Original point of control	X axis: center of spindle locate at the left of working table
	Y axis: center of spindle locate at the rear of the working table
Effective working area	X axis			2000mm
	Y axis			3000mm
	Z axis			1000mm
	A axis			±120°
	C axis			± 360°
Machine dimension	6000*5500*4500mm
Moving speed	No-loading moving speed		X axis	≥60m/min
			Y axis	≥60m/min
			Z axis	≥40m/min
			A axis	≥120°/s
			C axis	≥120°/s
	Working speed		X axis fast working speed	0-50m/min
			Y axis fast working speed	0-50m/min
			Z axis fast working speed	0-30m/min
			A axis	≥120°/s
			C axis	≥120°/s
Working table structure	Cast steel table with T-slots, biggest load capacity,no deformation forever (Optional: aluminum table or vacuum table)
Machine head	5 axis head		DEMAS L type 5 axis head
	Spindle		Original Italy HITECO ATC spindle
	Spindle power		8/12 KW
	Spindle rotating speed		3000-24000RPM
	Tool shank model		HSK63F
	Cooling type		Water-cooling
	Lubrication		free of lubrication system is equipped with spindle
Accuracy	Geometric accuracy		0.06MM/200MM
	Repositioning accuracy		≤0.05MM
NCcontrol system	Model		SYNTEC system with RTCP function
	Specification		Refer to related documents please

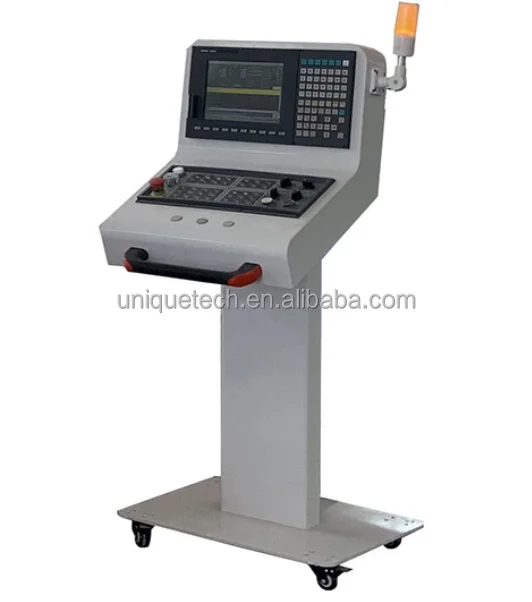

Console	Structure		Comprehensive control cabinet with wheel
	Configuration		At the front of machine
Machine structure and NC speciality	The main body of the machine is soldered, and the advanced heat treatment process and precision processing and manufacturing process are used, high-precision five faces machining center, high-precision processing, to ensure that machine tools have persistent stability, accuracy and higher strength, static And dynamic rigidity, and have good shock absorption, thermal stability and impact, ensuring the high rigidity and heavy load of the workpiece. CNC system adopted human chance, menu selection and background editing, programming function is rich, easy to learn, large memory capacity, complete diagnostic function, the alarm information display, convenient maintenance, pitch compensation, tool compensation function
Quality guarantee	Guide rail of machine are all adopted with Taiwan dust-proof and mute guide rail and ball screw, all servo motor are all from JAPAN YASKAWA, all main electric accessories are all adopted world famous brands.
Necessary power supply	Type	3 phase 380V,50/60HZ
	Capacity	around 38KW
	Air source	0.6MPa dry and no oil

Structural features of Cnc Router 5 Axis Cnc5 NEW Mini 4040 Cnc Router Cnc Milling Machine 5 Axis:

Steel worktable secured to the ground, with T-slots for mounting fixtures to secure the work piece in place.

Beam with gantry movement along the “shoulders” on ground rides and roller sliding block assemblies;the drive assembly consists of a pinion and rack system with rack precision to hundredths, with high precision reduction gears; the motorization is by world famous brushless motors.

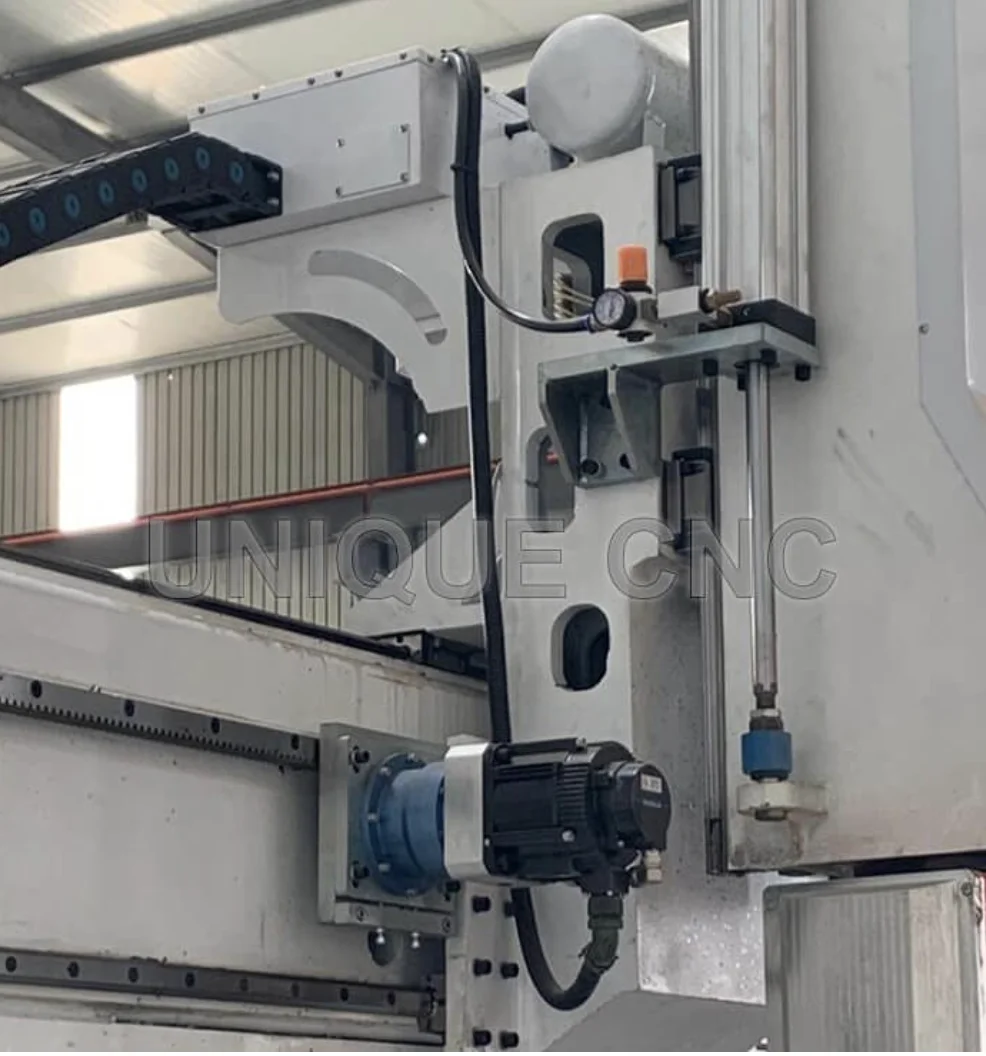

Spindle carriage manufactured from iron casting and moving on roller sliding block assemblies; the drive assembly consists of a precision pinion and rack system powered by a brushless motor. The spindle cylinder (Z axis) is positioned vertically on the inside of the carriage and is moved by a ball screw transmission system. Provided with a pneumatic balancing system.

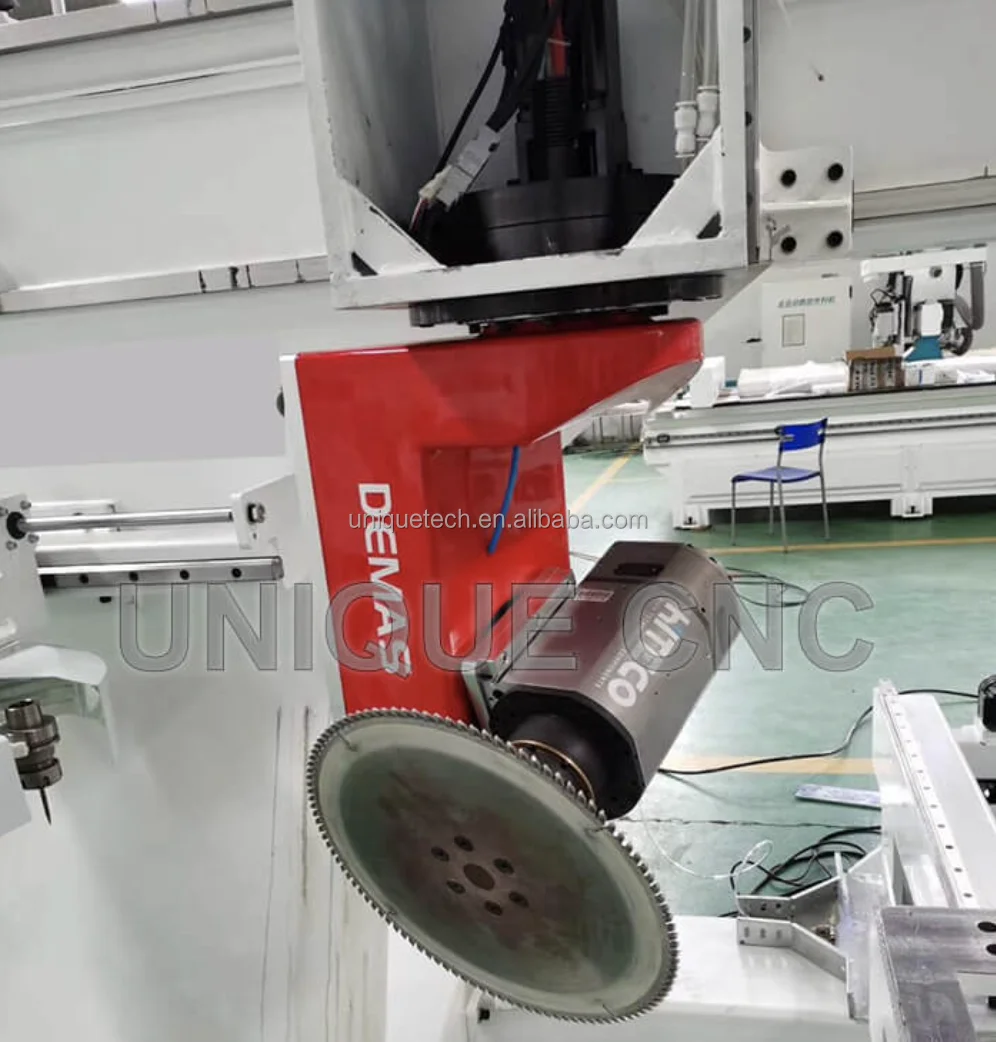

Birotary head for 5-axis machining. The head has a symmetrical structure and consists of two main structural elements, the first (C axis) for ± 220° rotation around its own vertical axis and the second element (A axis) rotating from 0° to ±115° and housing the high-frequency spindle. Rotation transmission are provided by brushless motors.

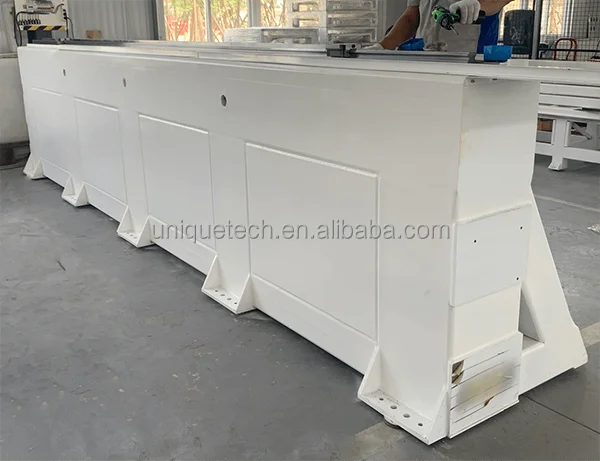

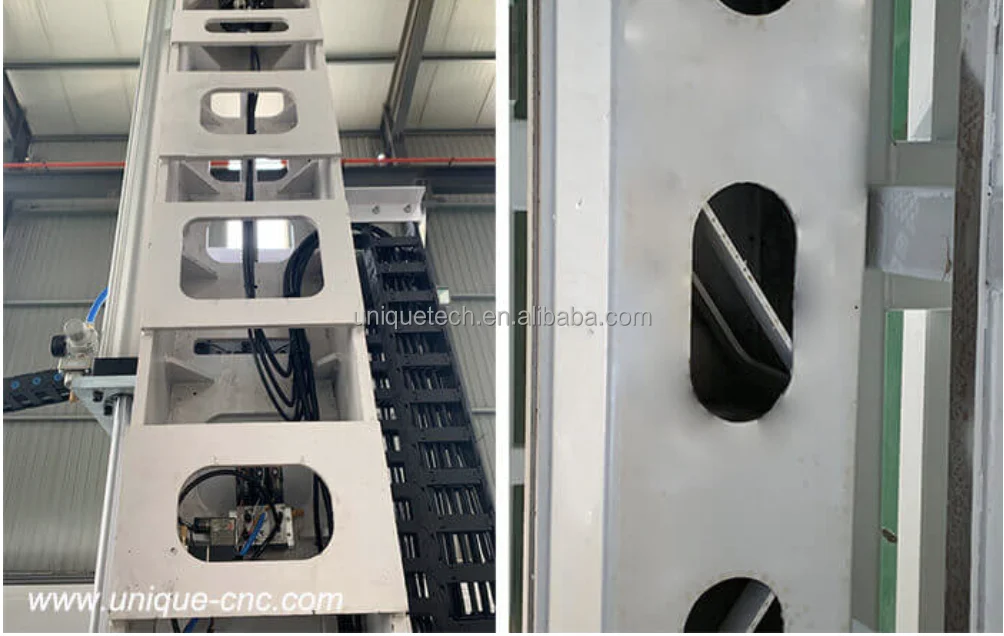

Machine body and beam have bones inside the steel tubes,enhance the strucutre rigidity and strength, the structure will not deform forever.

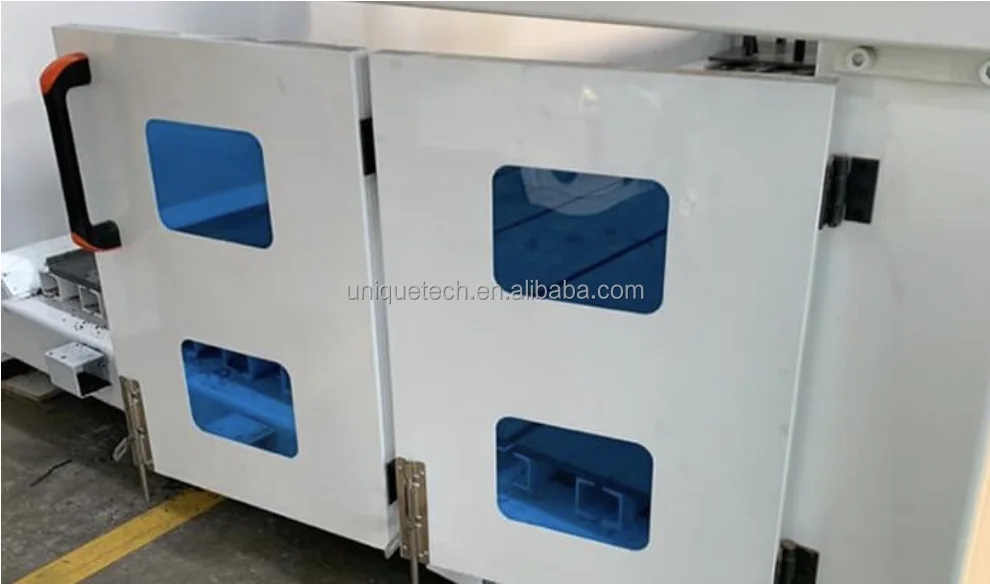

Frontal protection barrier consisting of a series of sliding doors with manual opening; doors are made from structure and are provided with wide inspection ports. The rear part of the milling centre is closed by a set of steel plate panels.





Independent control console at front of the machine, convenient to move and operate.
