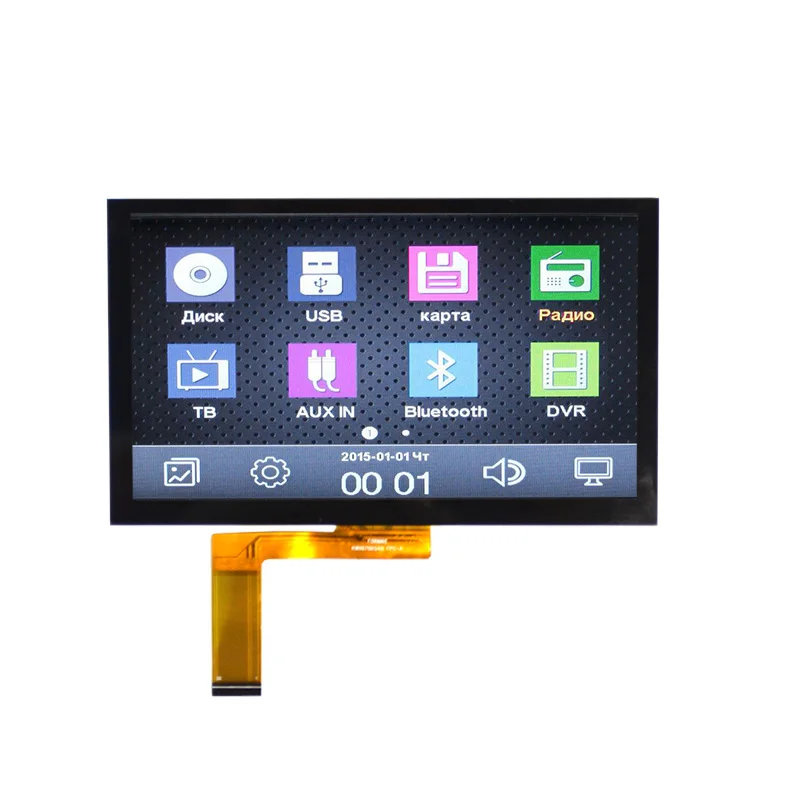

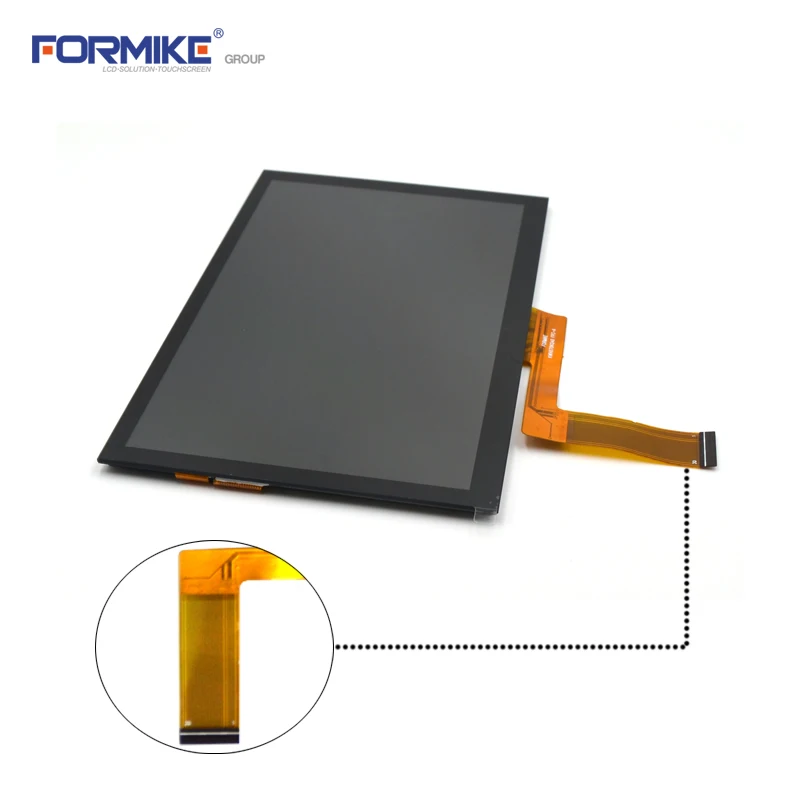

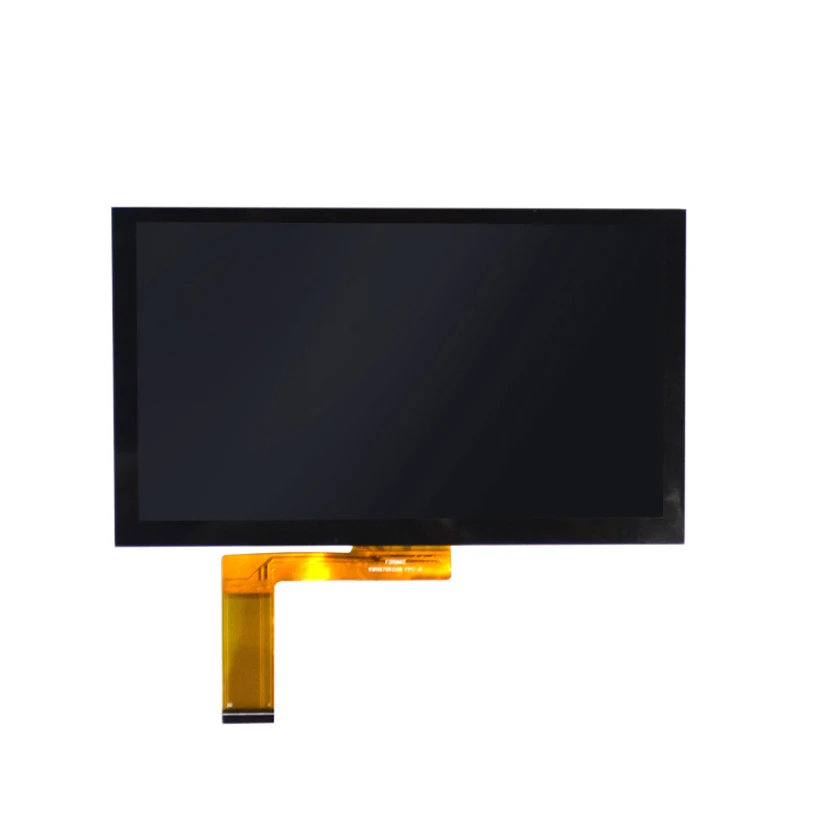

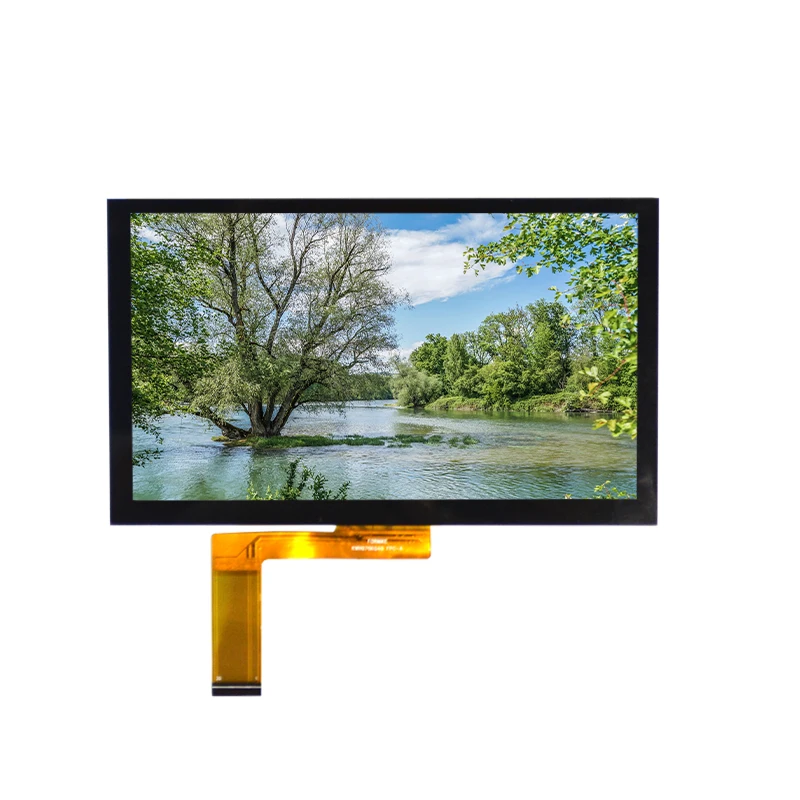

Free viewing 1024x600 7 inch IPS touch lcd panel tft display 4 lane mipi
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (1600614435254):
Product Overview
Description
Product Description
Item | Free viewing 1024x600 7 inch IPS touch lcd panel tft display 4 lane mipi |
Part Number | KWH070KQ40-C08 |
LCD Resolution | 1024(RGB) x 600 |
Display Module Type | IPS |
Outline Dimension | 168.15(W)x99.25 (H)x4.60(T)mm |
Active Area(mm) | 154.21x85.92mm |
Viewing Angle | Full viewing angle |
Brightness of LCM | 350cd/m2 |
Interface | MIPI interface, 30pins |
Touch Panel | With capacitive touch panel |
Operating Temperature | -20~70°C |
Storage Temperature | -30~+80°C |
Related Products
Product Application
Automobile products, medical treatment, instrument Deviceand other electronic Products Etc.
Company Information
21-year manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and custom LCD solution, phone parts and wifi modules. Monthly capacity of 20 million pieces, 7-day lead time, No MOQ
1) TFT display from 1.4 inches to 10.4 inches.
2) Monochromic display from TN, HTN, STN and FSTN LCD panels, as well as graphic, character and digital/segment LCD modules.
3) Front/printed glass from 0.2mm to 3.0mm thickness, tempering by ourselves.
4) LED backlight brightness of more than 10,000cd per square meter
5) Capacitive touch can be 10 multi-touch points
6) Optical bonding can be applied from cellphones and industry.
7) More than hundred kinds of wifi modules whichever you want.
8) No MOQ for Bezel and 3 days for delivery.
Certifications
Our Exhibition
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
