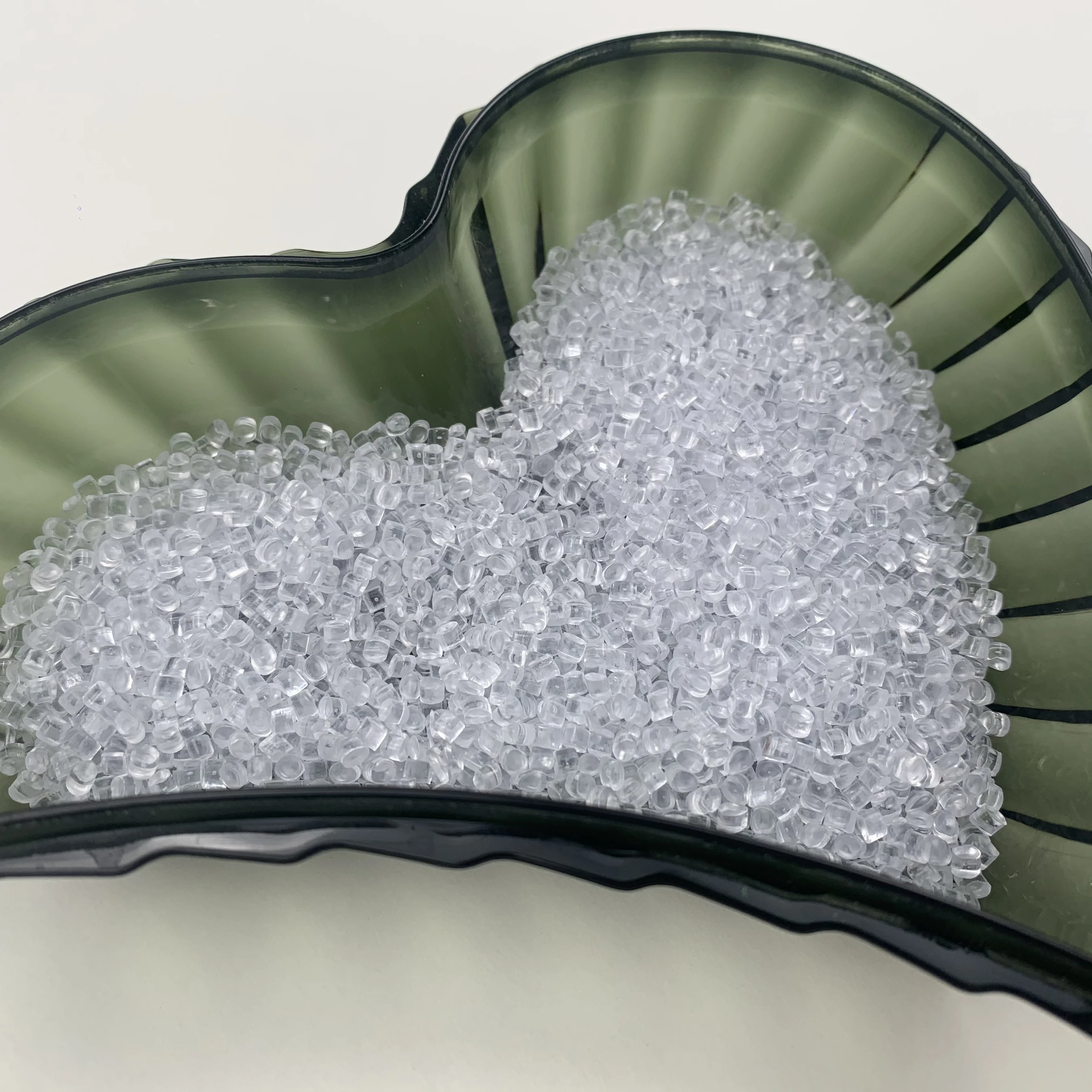

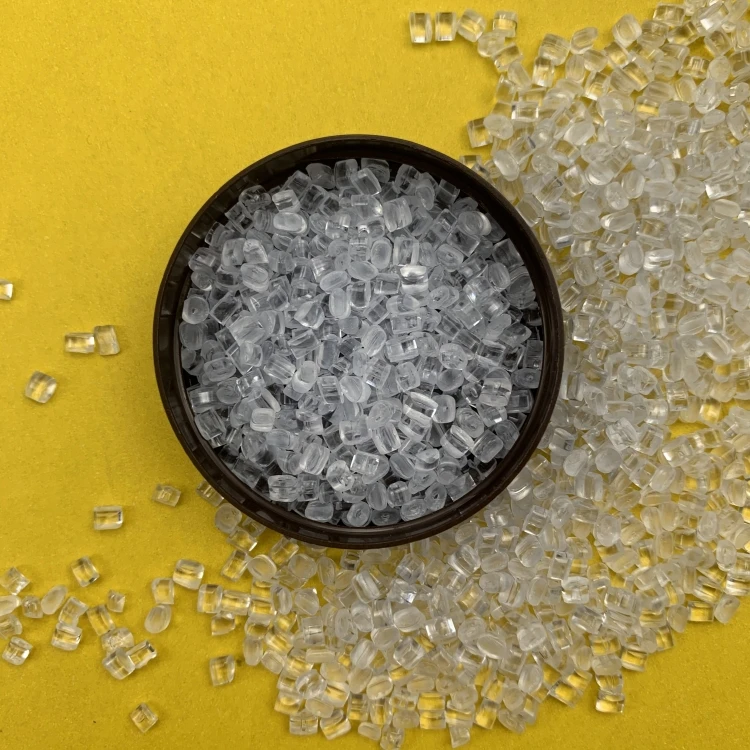

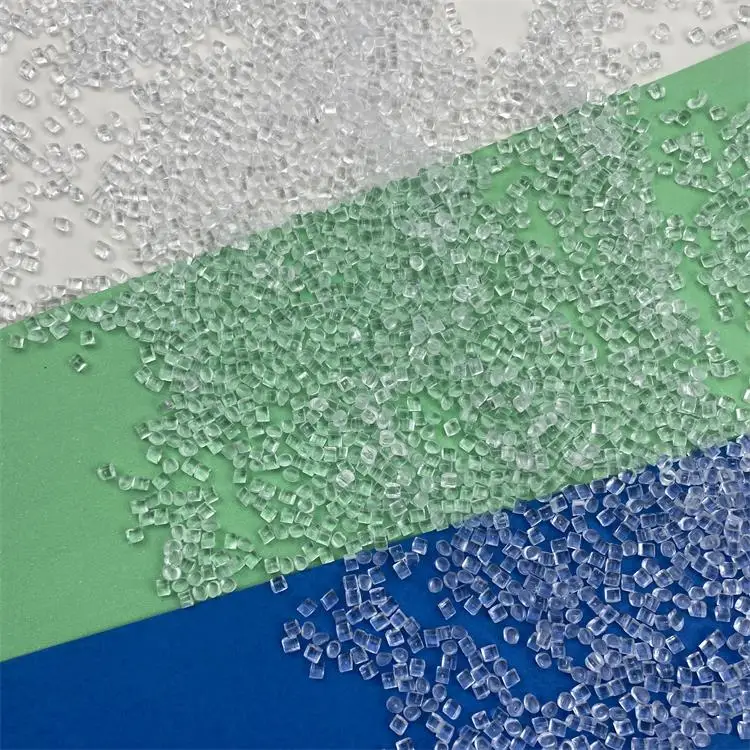

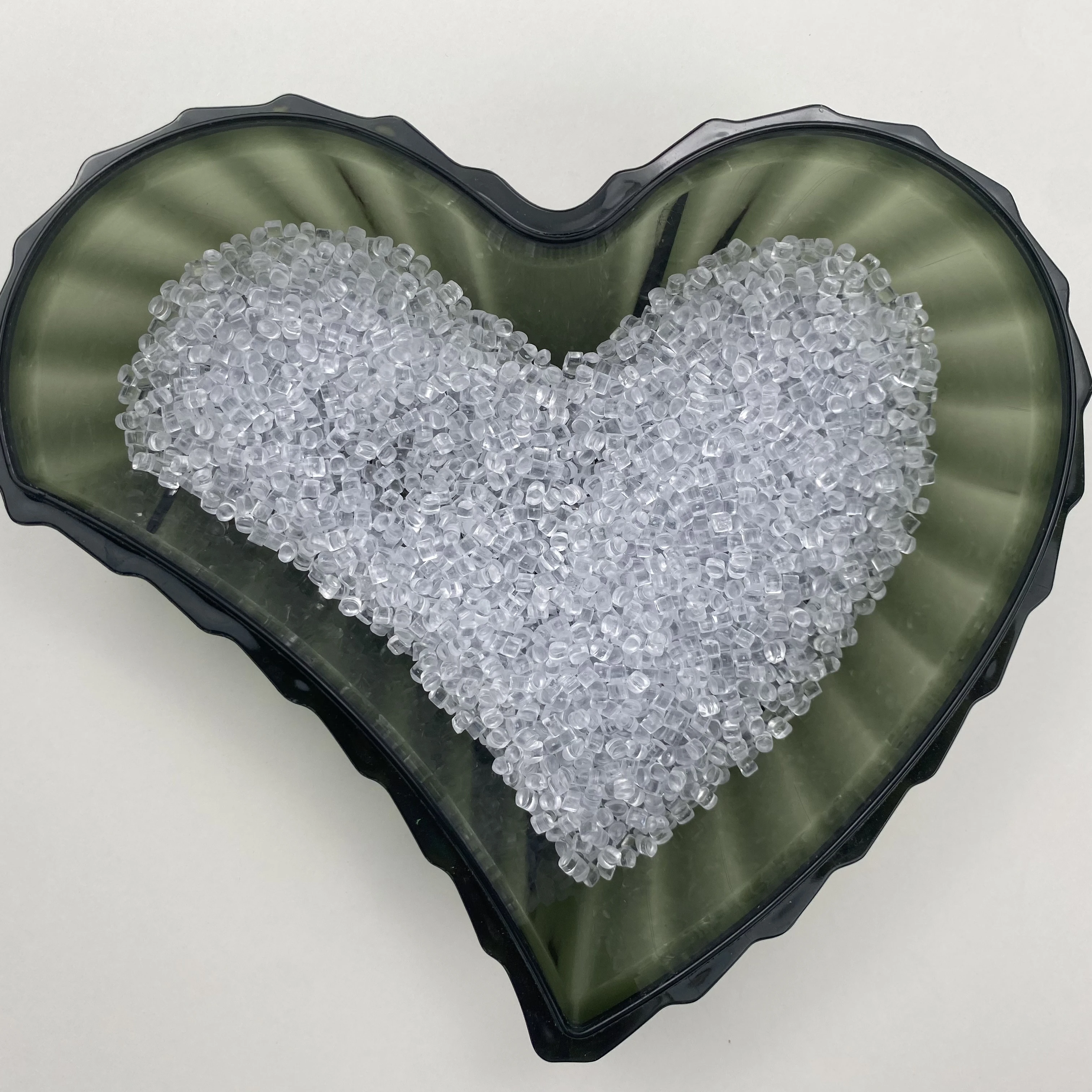

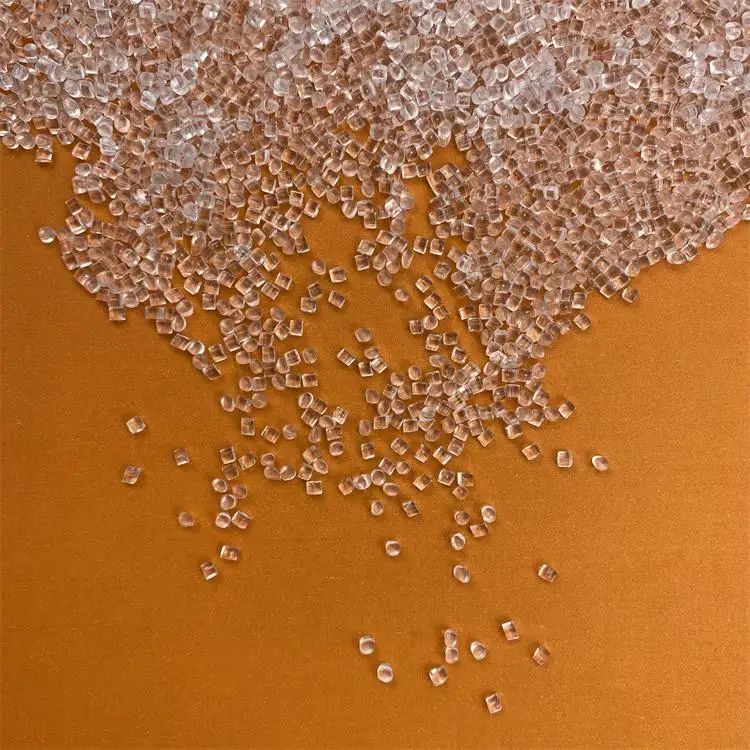

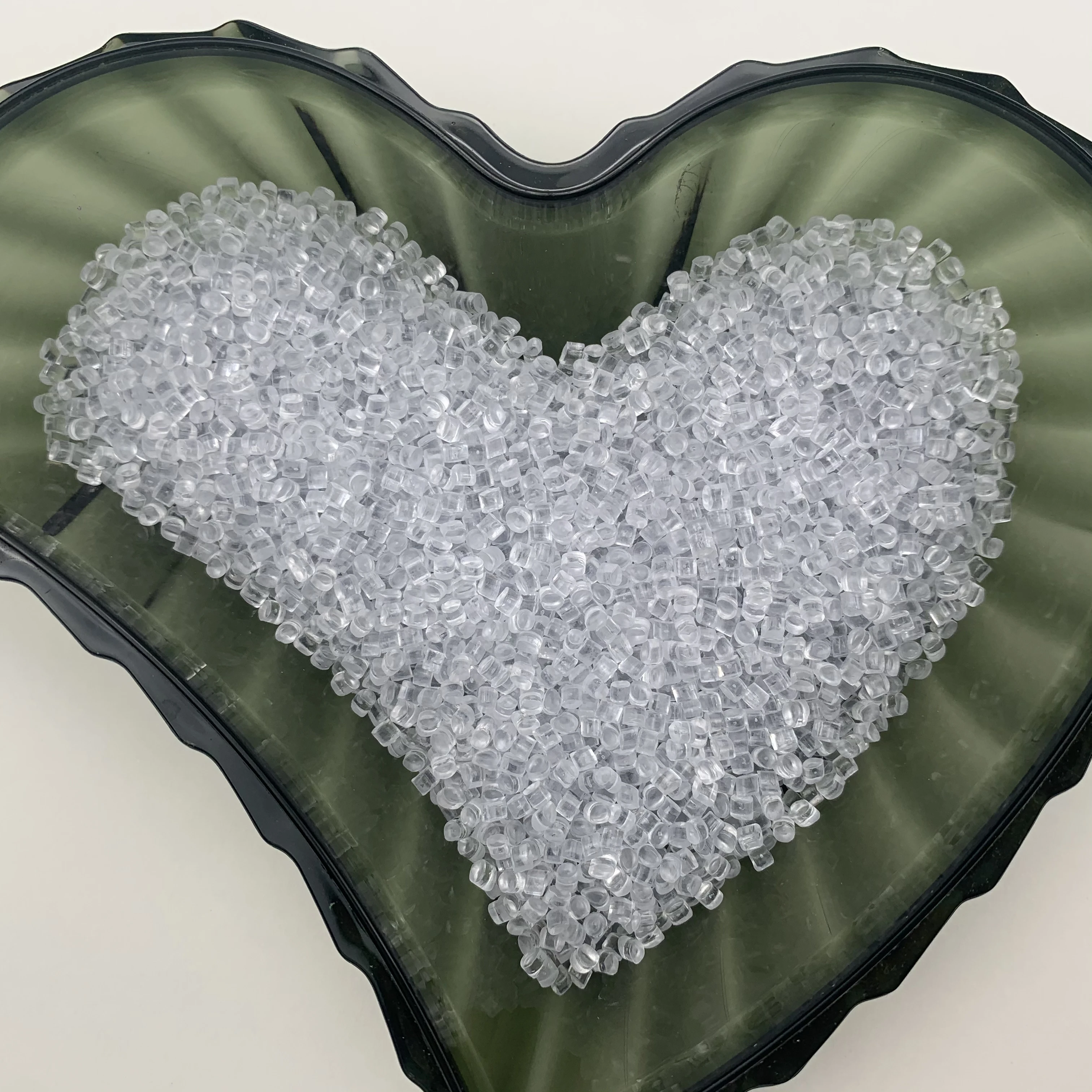

Original package Polycarbonate injection grade chemical resistance thermal stability PC Thailand Covestro (Bayer) 2858
- Category: >>>
- Supplier: Guangdong Taishi Technology Co. Ltd.
Share on (1600614442480):
Product Overview
Description
Products Description
Specification
item | value |
Place of Origin | Thailand |
Brand Name | Covestro (Bayer) |
Model Number | PC Covestro Thailand (Bayer) 2858 |
Product name | PC 2858 |
Color | transparent |
Feature | Injection Grade Chemical Resistance Thermal Stability |
Applicaition | Medical/Nursing Supplies |
Packing | Plastic bags packing |
MOQ | 25KG |

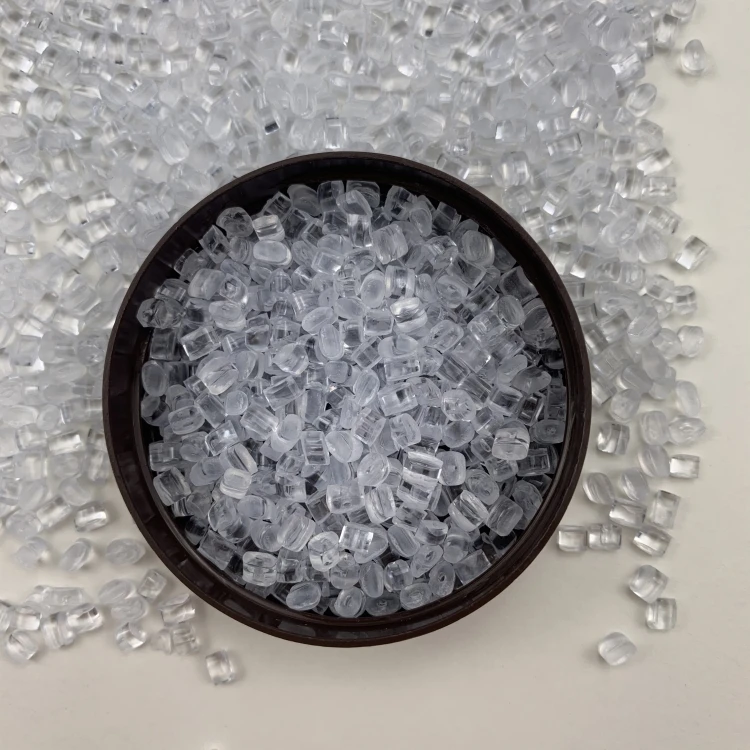

Shape | particle |
Quality | high quality |
physical property | rating | System of units | The test method |
Density (23 ° C) | 1.2 | G/cm after | ISO 1183 |
Apparent density 1 | 0.66 | G/cm after | ISO 60 |
Melt flow rate (melt flow rate) (300 ° C/1.2 kg) | 10 | g/10 min | ISO 1133 |
Melting volume flow rate (MVR) (300 ° C/1.2 kg) | 9 | Cm after / 10 min | ISO 1133 |
Shrinkage | |||
Vertical flow direction | 0.60 to 0.80 | % | ISO 2577 |
Flow direction | 0.60 to 0.80 | % | ISO 2577 |
Vertical flow direction: 2.00 mm 2 | 0.75 | % | ISO 294-4 |
Flow direction: 2.00 mm 3 | 0.7 | % | ISO 294-4 |
Water absorption | ISO 62 | ||
Saturation, 23 ° C | 0.3 | % | ISO 62 |
Balanced, 23 ° C, 50% RH | 0.12 | % | ISO 62 |
hardness | rating | System of units | The test method |
Ball indentation hardness | 115 | MPa | ISO 2039-1 |
Mechanical properties | rating | System of units | The test method |
Tensile modulus (23 ° C) | 2400 | MPa | ISO 527-2/1 |
Tensile stress | ISO 527-2/50 | ||
Yield, 23 ° C | 66 | MPa | ISO 527-2/50 |
Fracture, 23 ° C | 70 | MPa | ISO 527-2/50 |
Tensile strain | ISO 527-2/50 | ||
Yield, 23 ° C | 6.1 | % | ISO 527-2/50 |
Fracture, 23 ° C | 130 | % | ISO 527-2/50 |
Nominal tensile breaking strain (23 ° C) | > 50 | % | ISO 527-2/50 |
Tensile creep modulus | ISO 899-1 | ||
1 hr | 2200 | MPa | ISO 899-1 |
1000 hr | 1900 | MPa | ISO 899-1 |
Bending Modulus 4 (23 ° C) | 2400 | MPa | ISO 178 |
Bending stress 5 | ISO 178 | ||
3.5% strain, 23 ° C | 73 | MPa | ISO 178 |
23°C | 97 | MPa | ISO 178 |
Flexural Strain at Flexural Strength (23°C) 6 | 7.1 | % | ISO 178 |
film | rating | System of units | The test method |
Gas Permeation | ISO 2556 | ||
Carbon Dioxide : 23°C, 100.0 µm | 3800 | Cm squared after/m/bar / 24 hr | ISO 2556 |
Nitrogen : 23°C, 100.0 µm | 120 | Cm squared after/m/bar / 24 hr | ISO 2556 |
Oxygen : 23°C, 100.0 µm | 650 | Cm squared after/m/bar / 24 hr | ISO 2556 |
flammability | rating | System of units | The test method |
Flash Ignition Temperature | 480 | ° c. | ASTM D1929 |
Self Ignition Temperature | 550 | ° c. | ASTM D1929 |
Supplementary information | rating | ||
ISO Shortname | ISO 7391-PC,MR,(,,)-09-9 | ||
Impact performance | rating | System of units | The test method |
Notch impact strength of simply supported beam 7 | ISO 7391 | ||
-30 ° C, completely broken | 16 | KJ/m squared | ISO 7391 |
23 ° C, local fracture | 75 | KJ/m squared | ISO 7391 |
Notched impact strength of simply supported beam | ISO 179/1eU | ||
-60°C | No fault | ISO 179/1eU | |
-30°C | No fault | ISO 179/1eU | |
23°C | No fault | ISO 179/1eU | |
Notch impact strength of suspended wall beam 8 | ISO 7391 | ||
-30 ° C, completely broken | 15 | KJ/m squared | ISO 7391 |
23 ° C, local fracture | 70 | KJ/m squared | ISO 7391 |
Multi axial instrumented impact energy | ISO 6603-2 | ||
-30°C | 65 | J | ISO 6603-2 |
23°C | 60 | J | ISO 6603-2 |
Multiaxial instrumented peak impact force | ISO 6603-2 | ||
-30°C | 6300 | N | ISO 6603-2 |
23°C | 5400 | N | ISO 6603-2 |
Thermal performance | rating | System of units | The test method |
Thermal deformation temperature | |||
0.45 MPa, not annealed | 137 | ° c. | ISO 75-2/B |
1.8 MPa, not annealed | 125 | ° c. | ISO 75-2/A |
Glass transition temperature 9 | 145 | ° c. | ISO 11357-2 |
Vicat softening temperature | |||
-- | 145 | ° c. | ISO 306/B50 |
-- | 146 | ° c. | ISO 306/B120 |
Ball Pressure Test (136°C) | Pass | IEC 60695-10-2 | |
Linear thermal expansion coefficient | ISO 11359-2 | ||
Flow: 23 to 55 ° C | 6.50 e-05 | Cm/cm / ° C | ISO 11359-2 |
Transverse: 23 to 55 ° C | 6.50 e-05 | Cm/cm / ° C | ISO 11359-2 |
Thermal conductivity 10 (23 ° C) | 0.2 | W/m/K | ISO 8302 |
Electrical performance | rating | System of units | The test method |
Surface resistivity | 1.00 e+16 | ohms | IEC 60093 |
Volume resistivity (23 ° C) | 1.00 e+16 | Ohms, cm | IEC 60093 |
Dielectric strength (23 ° C, 1.00 mm) | 34 | kV/mm | IEC 60243-1 |
Relative permittivity | IEC 60250 | ||
23°C, 100 Hz | 3.1 | IEC 60250 | |
23°C, 1 MHz | 3 | IEC 60250 | |
Dissipation factor | IEC 60250 | ||
23°C, 100 Hz | 5.00 e-04 | IEC 60250 | |
23°C, 1 MHz | 9.00 e-03 | IEC 60250 | |
Leakage tracking index (solution A) | 250 | V | IEC 60112 |
flammability | rating | System of units | The test method |
Glow wire flammability index | IEC 60695-2-12 | ||
1.50 mm | 850 | ° c. | IEC 60695-2-12 |
3.00 mm | 930 | ° c. | IEC 60695-2-12 |
Ignition temperature of hot filament | IEC 60695-2-13 | ||
0.750 mm | 875 | ° c. | IEC 60695-2-13 |
1.50 mm | 875 | ° c. | IEC 60695-2-13 |
3.00 mm | 900 | ° c. | IEC 60695-2-13 |
LOI 11 | 28 | % | ISO 4589-2 |
optical performance | rating | System of units | The test method |
Refractive index 12 | 1.586 | ISO 489 | |
transmissivity | ISO 13468-2 | ||
1000 µm | 89 | % | ISO 13468-2 |
2000 µm | 89 | % | ISO 13468-2 |
3000 µm | 88 | % | ISO 13468-2 |
4000 µm | 87 | % | ISO 13468-2 |
Fog (3000 µ m) | < 0.80 | % | ISO 14782 |

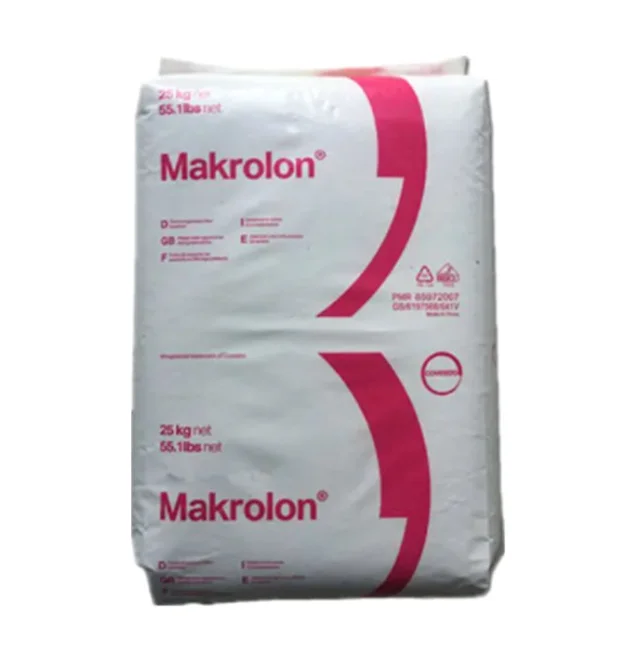

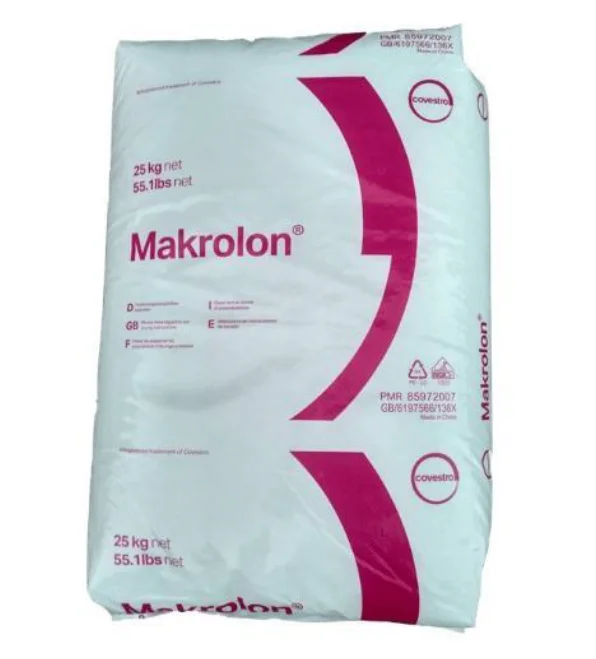

Product packaging
We have inner and outer packing
Each bag can hold 25 kilograms
Our packing is waterproof and moisture-proof
Fixed by tray andwinding film Safe and convenient handling
