Display lcd screen touch panel ili9341 2.8 inch tft lcd module with capacitive touch panel
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (1600614486019):
Product Overview
Description
Product Description
Item | Display lcd screen touch panel ili9341 2.8 inch tft lcd module with capacitive touch panel |
Part Number | KWH028Q28-C02 |
LCD Resolution | 240x(R.G.B)x320 |
Display Module | Normally White, Transmissive |

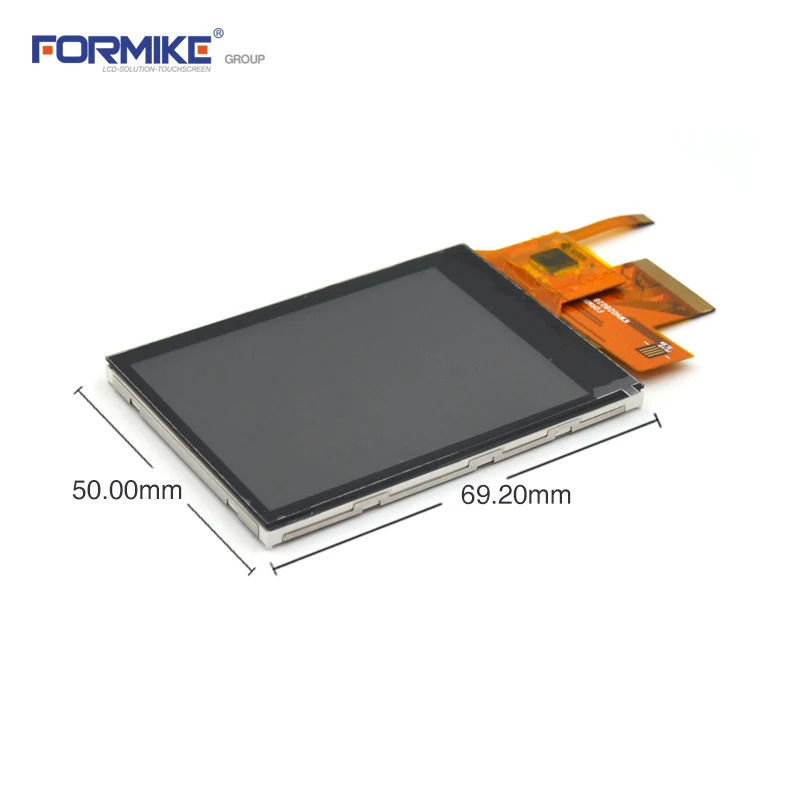

Outline Dimension | 50x69.2mm |
Active Area(mm) | 43.2x57.6mm |
Backlight life time | 50000hrs |
Brightness of LCM | 260cd/m2 |
Interface | MCU 8/16 bits |
Touch Panel | withcapacitive touch panel |
Operating Temperature | -20~70°C |
FPC Type | Connector type(can be option with soldering type) |

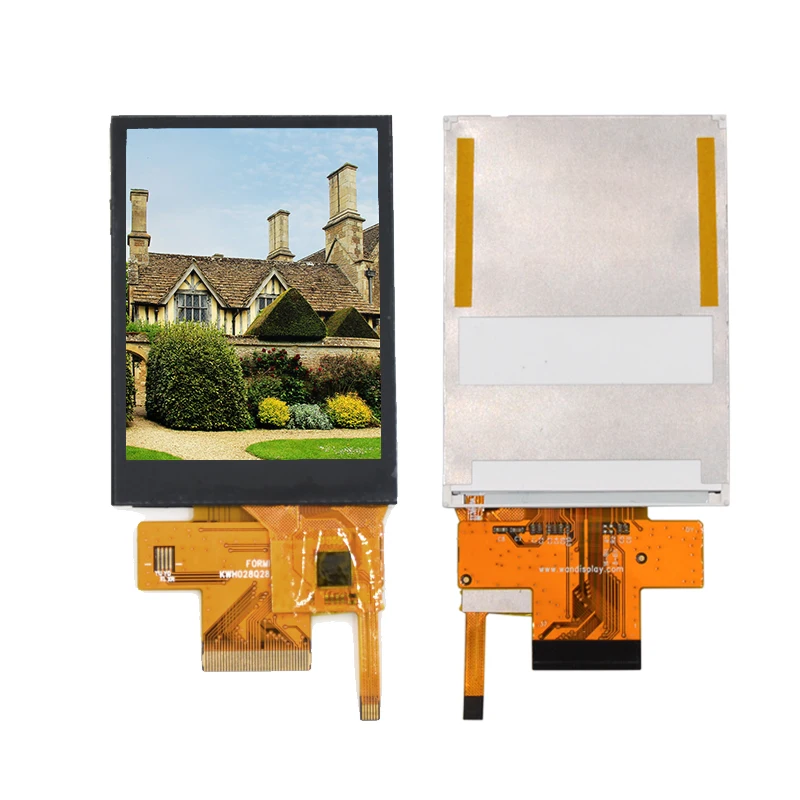

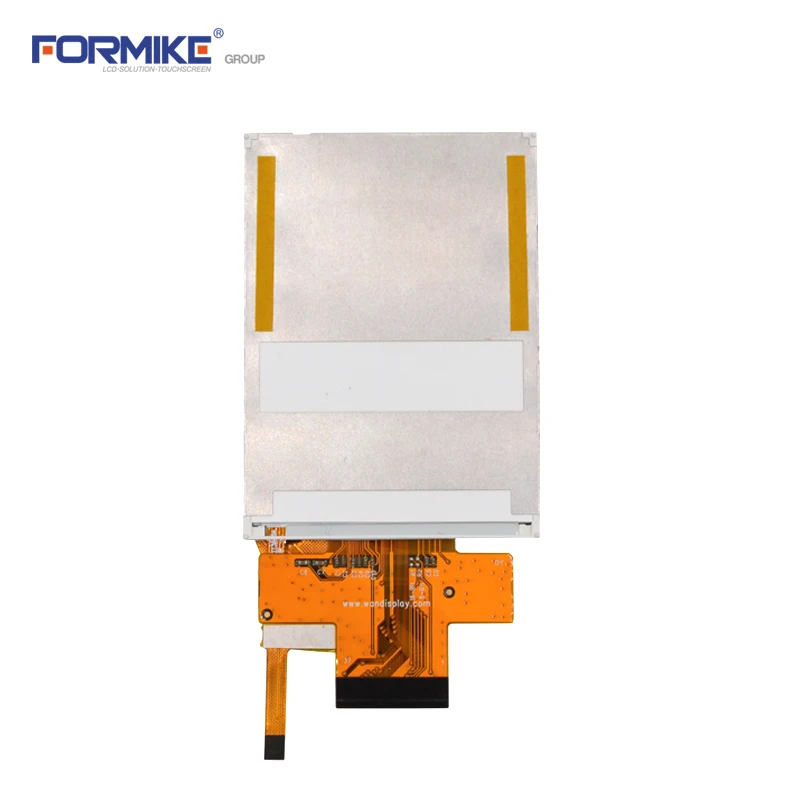

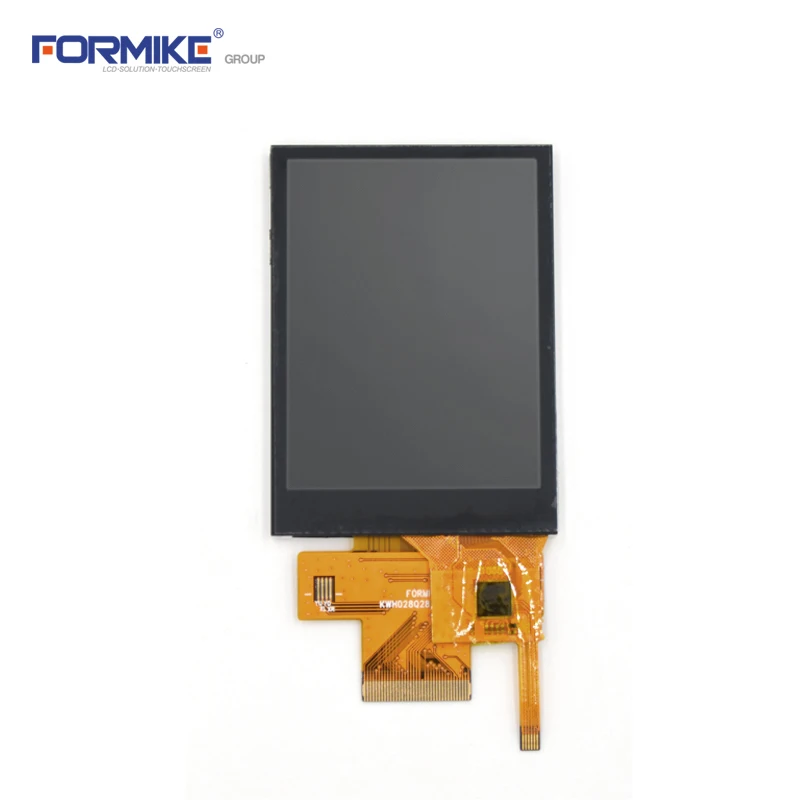

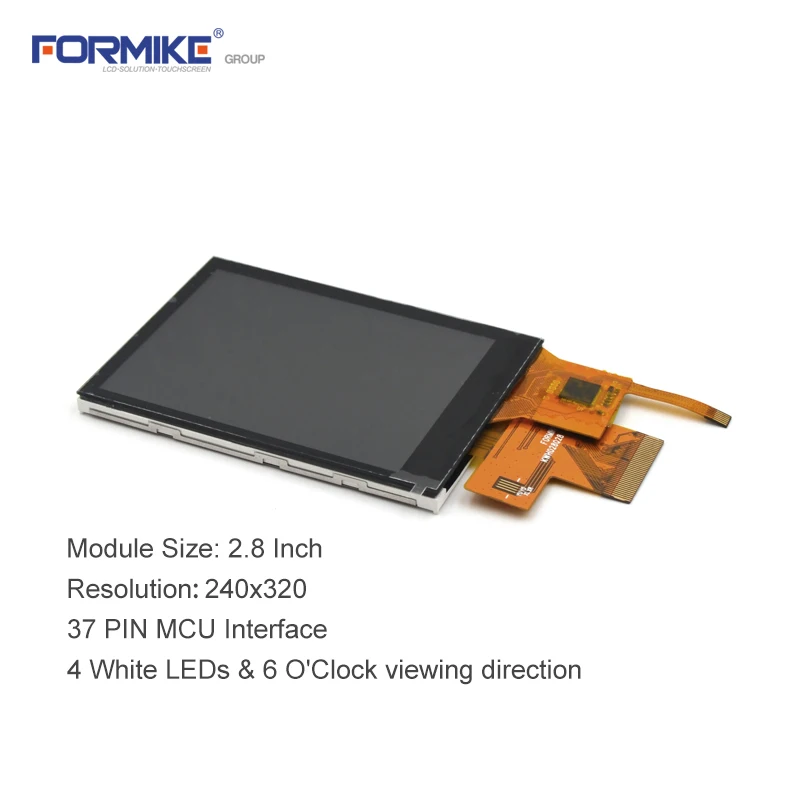

Product Image

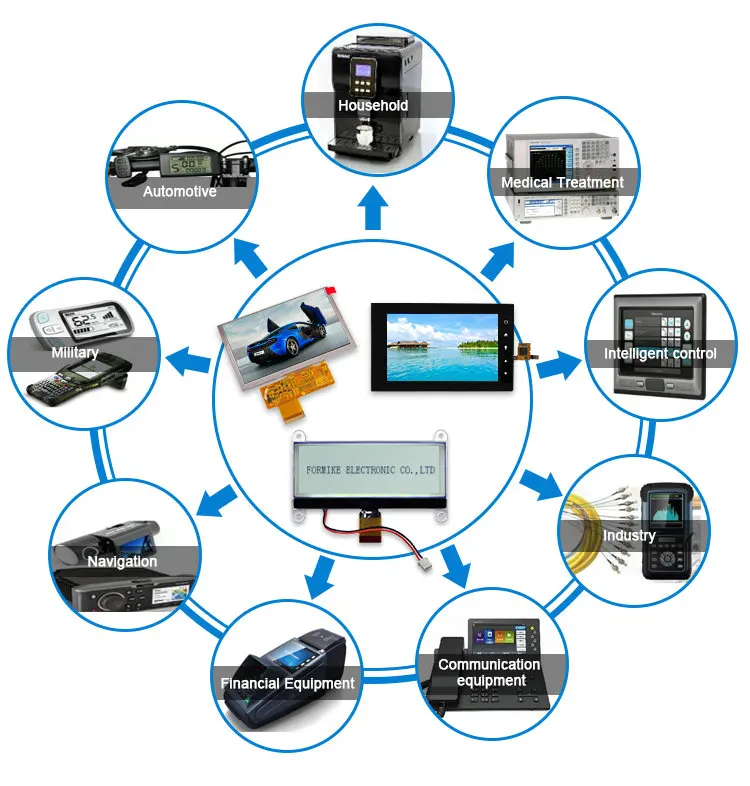

Application range
The LCD products can be used for many kinds of field,such as:Telecommunication Devices;Consumer Products;Technical Equipment;Medical Equipment;Industrial Equipment;Home Appliance;Automotive;White Goods etc
Related Product
Our Company
Formike Electronic Co., Ltd. is a high-tech enterprise engaged in the research, design and manufactures LCD solution since 1999, we integrated Display Solutions, products and services including Color & Mono TFT Display, Monochromic Display, Capacitive and Resistive touch screen, cover glass, LED backlight and their driver solutions, as well as Optical bonding technology for integrating complete solutions for our customers in ODM or standard types.
FORMIKE Strong Points | ||
Complete production line | Complete manufacturing process from ITO glass to the back-end, all are in-house | |
Fast response | Quickly realize your customized ideas, and have a sample ready in short time | |
Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client | |
Extensive range | Providing complete solution from Mono to Color, LCD module to Half-embedded, Optical bonding between display to cover glass as well as cover glass to touch screen, accessories for smart phone | |
Large production capacity | Operation capacity 2KK monthly | |
Quality guarantee | RoHS & REACH compliant | |
Management | ISO 9001:2008, ISO 14001:2004 | |
Exhibition Show
Certifications
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
