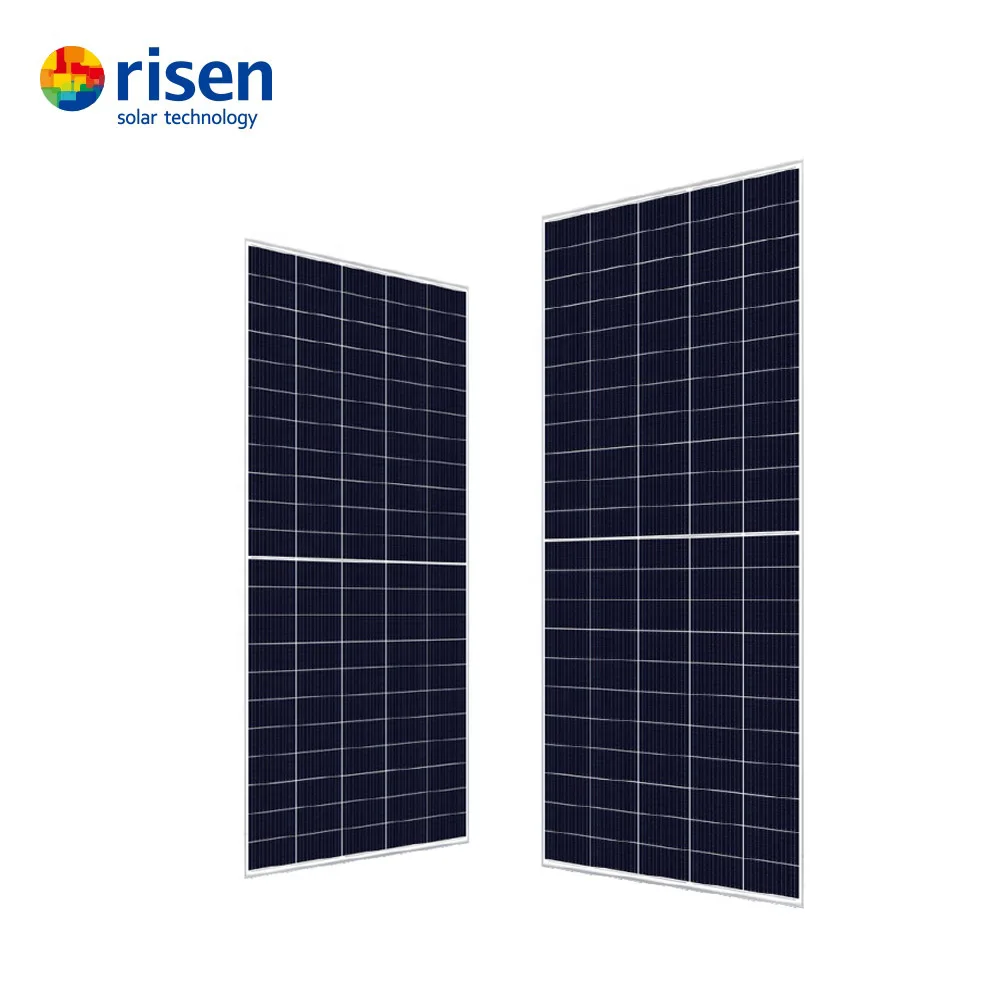

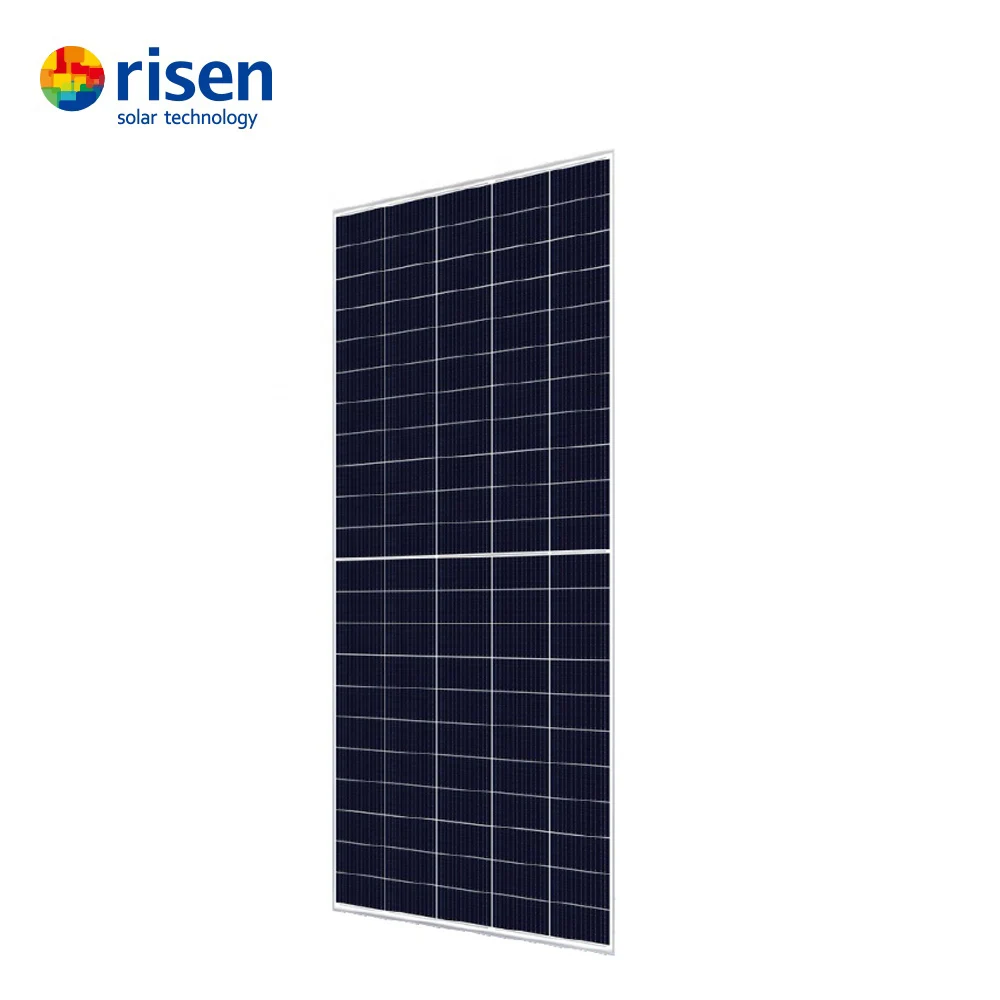

Risen mono half cut 450w 550w 650w supplier 110 cells stock MC4 connector solar panel cable
- Category: >>>
- Supplier: Hefei,Greensun,Solar,Energy,Tech,Co.,Limited
Share on:
Product Overview
Description
Product Description
Model Number | RSM110-8-535M | RSM110-8-540M | RSM110-8-545M | RSM110-8-550M | RSM110-8-555M | |||||
Rated Power in Watts-Pmax(Wp) | 535 | 540 | 545 | 550 | 555 | |||||
Open Circuit Voltage-Voc(V) | 37.58 | 37.78 | 38.02 | 38.24 | 38.46 | |||||
Short Circuit Current-lsc(A) | 18.13 | 18.18 | 18.23 | 18.28 | 18.33 | |||||
Maximum Power Voltage-Vmpp(V) | 31.26 | 31.46 | 31.66 | 31.86 | 32.06 | |||||
Maximum Power Current-lmpp(A) | 17.12 | 17.17 | 17.22 | 17.27 | 17.32 | |||||
Module Efficiency (%) ★ | 20.5 | 20.7 | 20.9 | 21.0 | 21.2 | |||||
STC: Irradiance 1000 W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3. | ||||||||||
★ Module Efficiency (%): Round-off to the nearest number | ||||||||||
Model Number | RSM110-8-535M | RSM110-8-540M | RSM110-8-545M | RSM110-8-550M | RSM110-8-555M | |||||
Maximum Power-Pmax (Wp) | 405.3 | 409.0 | 412.8 | 416.7 | 420.5 | |||||
Open Circuit Voltage-Voc (V) | 34.95 | 35.14 | 35.36 | 35.56 | 35.77 | |||||
Short Circuit Current-lsc (A) | 14.87 | 14.91 | 14.95 | 14.99 | 15.03 | |||||
Maximum Power Voltage-Vmpp (V) | 29.01 | 29.19 | 29.38 | 29.57 | 29.75 | |||||
Maximum Power Current-lmpp (A) | 13.97 | 14.01 | 14.05 | 14.09 | 14.13 | |||||
NMOT: Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s. | ||||||||||
Any questions please send inquiry to us | ||||||||||
Grade A Material
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content to Provide Good Encapsulation and Protect Cells From Vibration With Longer Durability
* >91% Higher Transmittance EVA,
* Higher GEL Content to Provide Good Encapsulation and Protect Cells From Vibration With Longer Durability
Mono 12BB Half Cut Solar Cells
More than 21% Efficiency
210mm x 210mm Size
Anti-Pid
IP68 Water proof Junction Box
Innovative full-glue-filled junction box
Outstanding sealability
Outstanding sealability
Sliver and Black Color Optional
Aluminum Alloy
120N Tensile Strength Frame
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
Production Line
100% Solar Cells Sorting
Color and performance selection
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
Middle Test
EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Overall inspection
PV Module appearance
Ensure that the product has no color difference and no burrs.
Make its reach Grade A standard.
EL Testing
Solar panel power inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
Product Packaging
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
55 Cells Solar Panel | 20' GP | 40' GP | 40'HC |
Pcs / Pallet | 31 | 31 | 31 |
Pcs / Container | 310 | 620 | 682 |
Certifications
Project Cases
800KW Solar Power System For Mall in Argentina
16KW Solar Power System for Home Use in Canada
300KW Project in Sweden
100KW Solar System in Poland
30KW Solar System in South Africa
2MW Solar Power System in Germany
