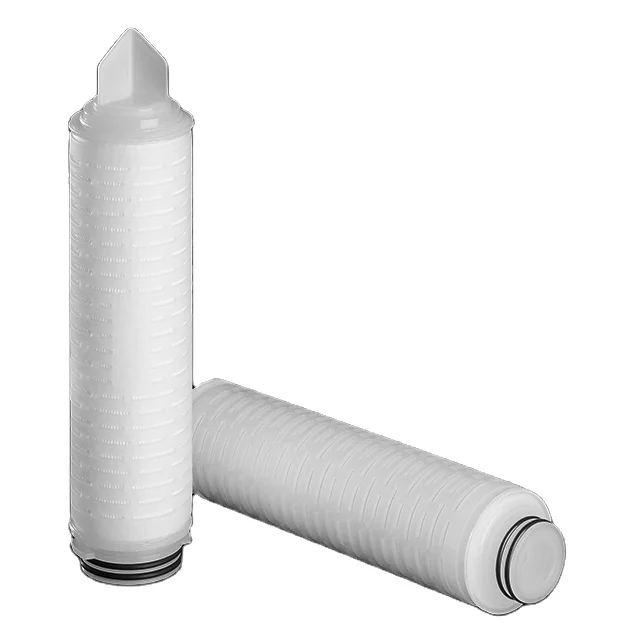

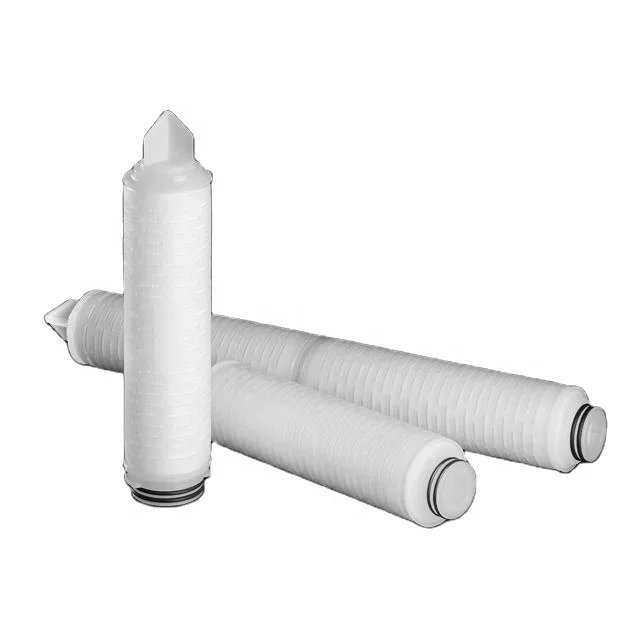

10inch PP depth filter water filter for water purifier system
- Category: >>>
- Supplier: Hangzhou Anow Microfiltration Co. Ltd.
Share on (1600614501465):
Product Overview
Description
Company Information
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on research and development of MCE, Nylon, PES, PVDF, PTFE membrane, with pore size ranging from 0.03 μm to 10 μm, as well as design and production of various pleated filter cartridges, syringe filters and capsule filters. ANOW provides professional assistances to liquid and gas & air filtration, separation and purification solutions for customers around the world in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
Product Description
1. Optimized for the wide range of prefiltration, especially for the retention of colloids and particles in wine filtration as well as gas filtration.
2. Multiple layers of progressively pleated PP depth filter material
Features and Benefits
1. Broad chemical compatibility.
2. Superior dirt-holding capacity.
3. Reliable retention of particulates.
4. Long service life and high flow rates.
5. Graded pore structure.
6. Ideal for viscous and colloidal liquid filtration.
Quality
1. Cartridges produced in a controlled environment.
2. Manufactured according to ISO9001 certified Quality Management System.
Specification
| Materials of Construction | ||
| Filter Media | Multi-layer PP | |
| Core, Cage | PP | |
| End Caps | PP | |
| O-rings/Gasket | Silicone/EPDM/Viton | |
| Sealing technology | Thermal Bonding, No Adhensives | |
| Dimensions | ||
| Diameter | φ68mm | |
| Length(in) | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch | |
| Filtration Area, ft2 | ||
| 2.1~3.2 per 10-inch cartridge | ||
| Pore Size, μm | ||
| 0.1; 0.22; 0.5; 1.0; 3.0; 5.0; 10; 20 | ||
| Maximum Differential Pressure | ||
| Forward: 4.2 bar at 23 ℃(60.9psi at 73.4℉); 1.5 bar at 85℃(21.7psi at 185℉) | ||
| Bacterial Endotoxins | ||
| <0.25 EU/ml as determined by the LAL test | ||
| Sanitization | ||
May be hot water sanitized for 30 cycles using purified water at 85℃(185℉) for 30 minutes. | ||
Ordering Information
Certifications
Packaging & Shipping
Exhibition
FAQ
1.OEM service available ?
Yes, OEM service is available, but the ANOW brand price better than OEM
2.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram, Paypal
3.Certicification:
We had passed ISO9001,NSF,SGS certified, at the same time, our company had approved by Alibaba 10rd Party Certification of Production and Trading Assessment
4.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
5.Sample:
1) For our first cooperation, buyer afford the sample fee and shipping cost, and the cost will be refund when made formal order.
2) For our old customer, we will send free sample , even though new designs sample, when have stocks.
3) Sample delivery date is within 1-2days, if have stocks; Customer design is about 3-7 days
6. Lead time:
The normal lead time for PES filter cartridge is 5-10days, which depends on your quantity.
