Standard Wall Panels Waterproof Exterior Concrete Roof Sandwich Panels
- Category: >>>
- Supplier: Baodu International Advanced Construction Material Co. Ltd.
Share on (1600614525105):
Product Overview
Description
Product Description
Baodu’s insulated metal panels deliver extraordinary performance backed by the most advanced thermal and moisture protection technology available. In addition, we offer a variety of colors, shapes, textures, and finishes so you can explore unique aesthetic opportunities across the building envelope.Baodu’s insulated metal panel let your imagination form an idea, form an impression and finally form a wall. Design possibilities are limitless with an extensive range of panel lengths, widths, thicknesses and reveals. Create smooth contemporary facades using a variety of colors and finishes or combine panels with Baodu’s integrated components to form the complete wall system.

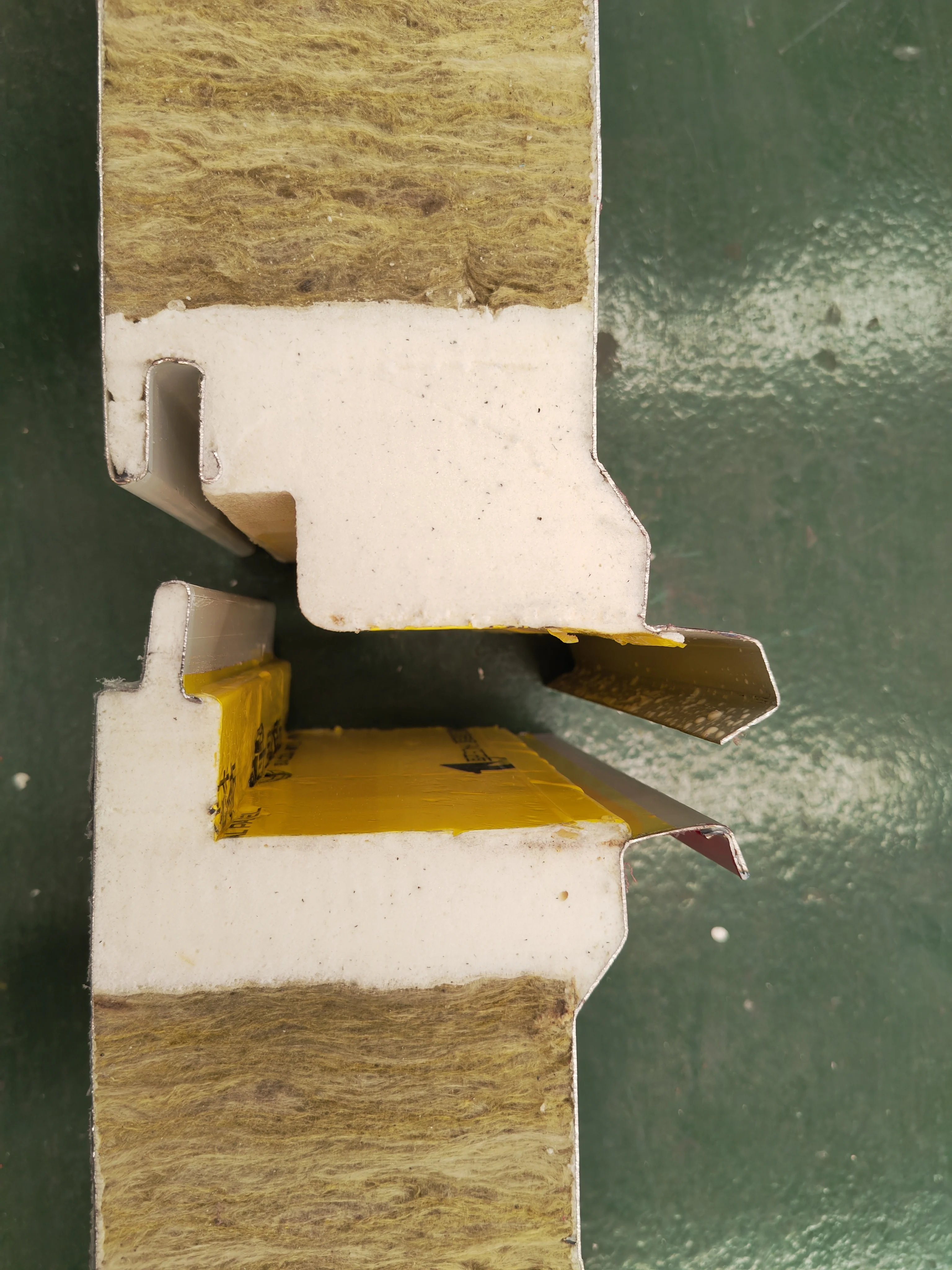

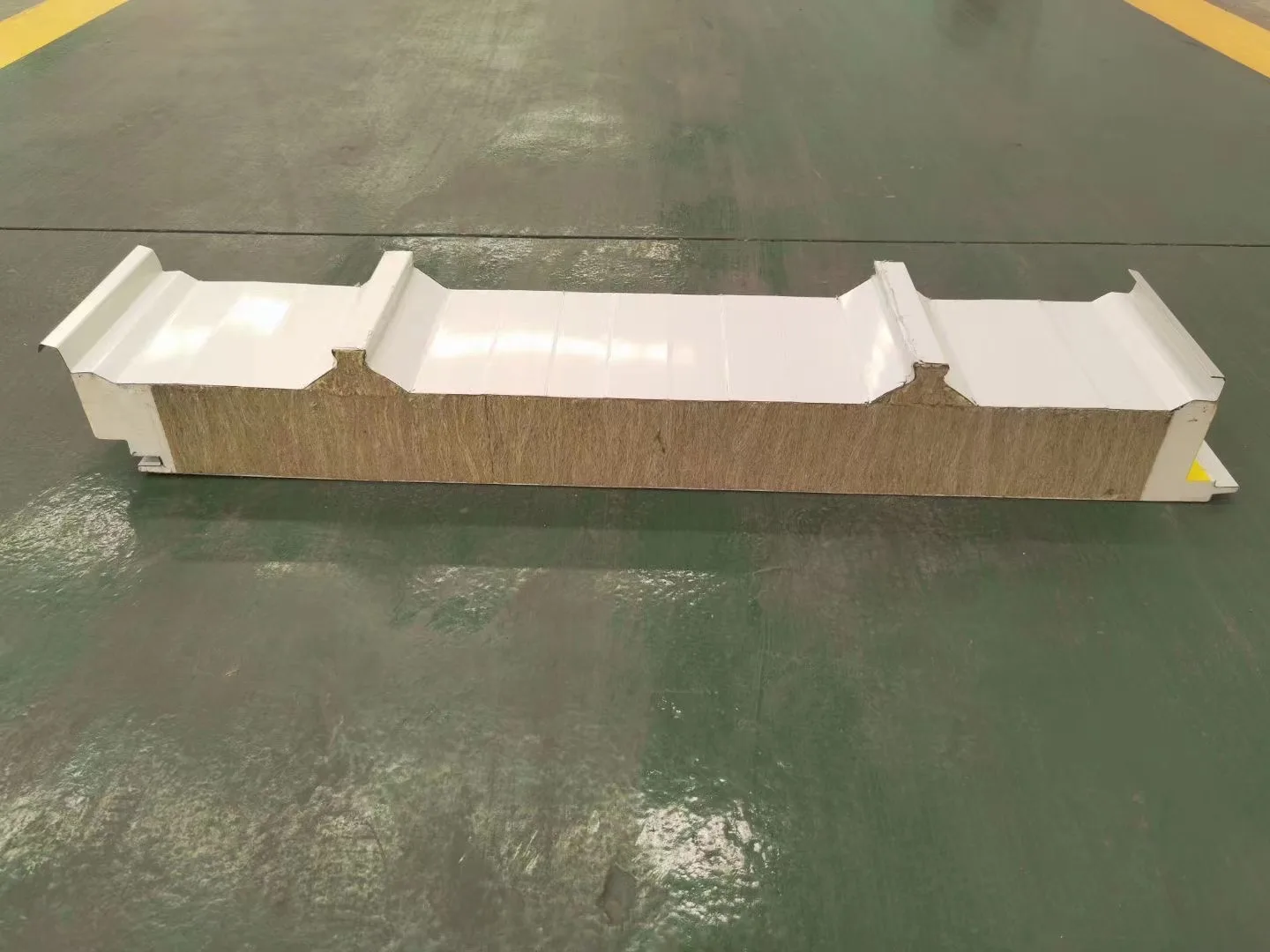

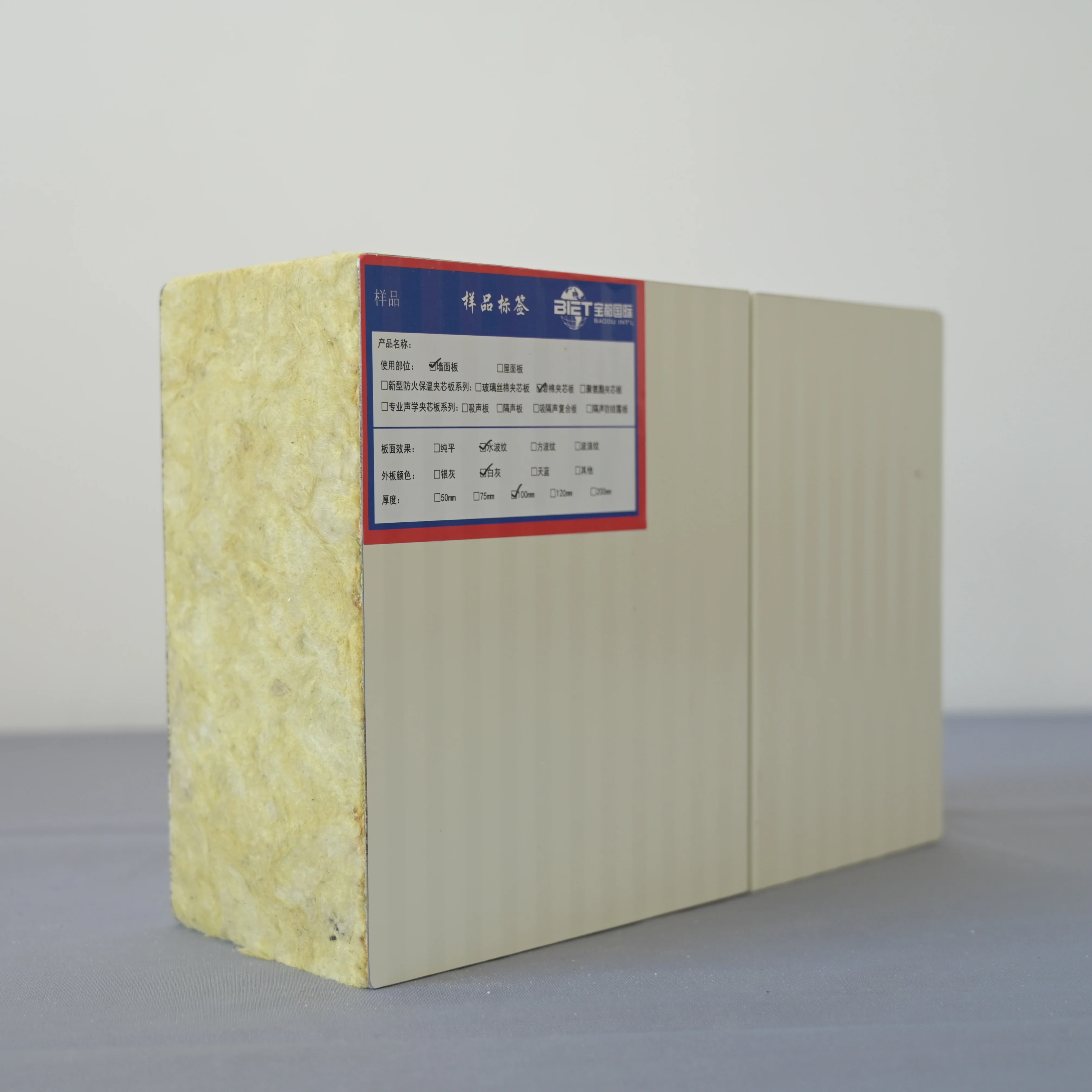

Details Images
Effective Width | 1000mm |
Density | 100~160kg/m³ |
Thickness | 50mm, 75mm, 100mm, 150mm, 200mm |
Material | Rock Wool |
Life time | More than 50 years |
Features | Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly, |
Specification
Technical parameters of BAODU new model fireproof sandwich panel | ||||||||||||||||
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | ||||||||||||||||
S(mm) | W/㎡K | G(kg) | P=KN/㎡ | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | ||||||||
50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 | ||||||||
70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 | ||||||||
100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 | ||||||||
125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 | ||||||||
150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 | ||||||||
200 | 0.23 | 22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 | ||||||||
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | ||||||||||||||||
S(mm) | W/㎡K | G(kg) | P=KN/㎡ | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | ||||||||
50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 | ||||||||
70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 | ||||||||
100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 | ||||||||
125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 | ||||||||
150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 | ||||||||
200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 | ||||||||
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China. Baodu is a designer, manufacturer, supplier and exporter of industrial noise comprehensive treatment, steel structure, sandwich panel and prefab house. Baodu has an annual output of 6 million square meters of acoustic sandwich panels, 100000 tons of steel structures and 1 million square meters of floor decking sheet. The products are sold in more than 30 countries and regions around the world.
Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc.
Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on.
Finally, welcome your coming to Baodu for a visit and cooperation!
Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc.
Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on.
Finally, welcome your coming to Baodu for a visit and cooperation!
333

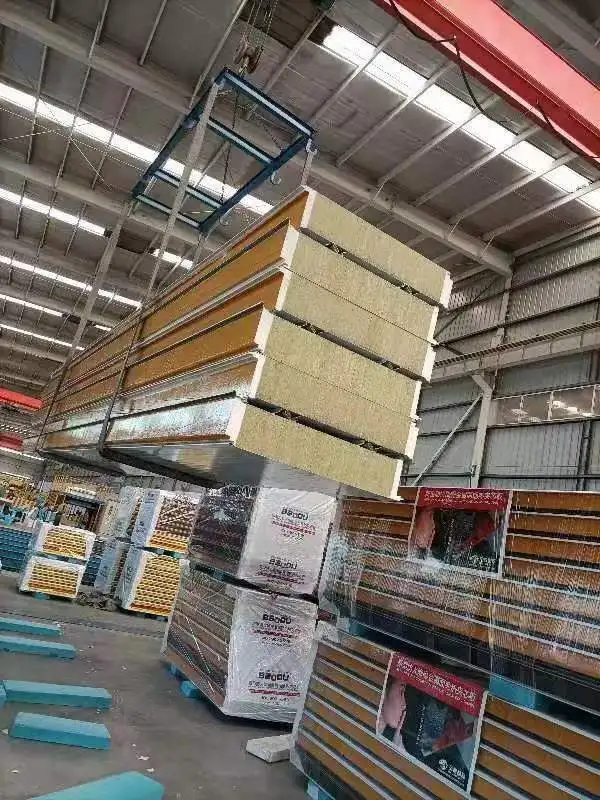

Manufacturing Technique
Exhibition

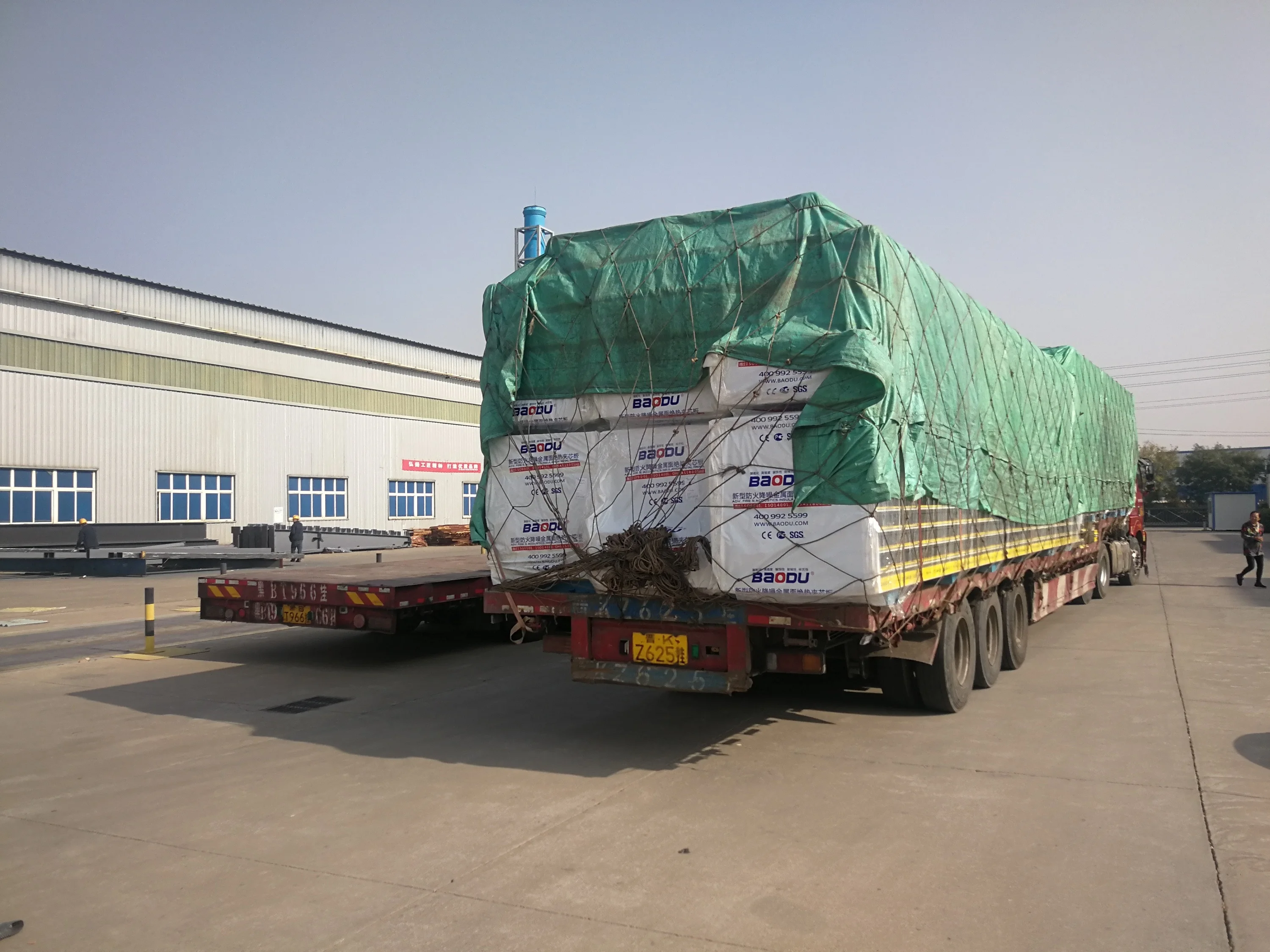

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. What about your price?
A1. We have our own factory so that we can provide the best price for you
Q2. Where is your factory?
A2. Our factory is located in Hebei Yongqin where is only take one hour from Beijing.
Q3. How is your production capacity?
A3. We have two steel structure production lines and three sandwich panel production lines. All the equipment imported from Germany.
Q4.What is your advantages.
A4. As a high technology company in the construction material industry, we have our own professors team which has more than 10 people in Beijing related institution. And we also have the strict quality control in our production lines .
Q5. What is your payment term and delivery time？
A5. We accept the T/T or L/C. And the Ali trade assurance also be acceptable. As for the delivery time, we need make the production plan for each order. Usually , it will take 15- 30 days after we confirm the order.
Q6. How about the sample order?
A6. We provide free samples , but you need pay the freight for it.
Q7. How is your After-sales policy.
A7. Baodu wants to provide the best products and service to each client. We will provide the online after-sales training. If necessary , your can visit us in our factory.
A1. We have our own factory so that we can provide the best price for you
Q2. Where is your factory?
A2. Our factory is located in Hebei Yongqin where is only take one hour from Beijing.
Q3. How is your production capacity?
A3. We have two steel structure production lines and three sandwich panel production lines. All the equipment imported from Germany.
Q4.What is your advantages.
A4. As a high technology company in the construction material industry, we have our own professors team which has more than 10 people in Beijing related institution. And we also have the strict quality control in our production lines .
Q5. What is your payment term and delivery time？
A5. We accept the T/T or L/C. And the Ali trade assurance also be acceptable. As for the delivery time, we need make the production plan for each order. Usually , it will take 15- 30 days after we confirm the order.
Q6. How about the sample order?
A6. We provide free samples , but you need pay the freight for it.
Q7. How is your After-sales policy.
A7. Baodu wants to provide the best products and service to each client. We will provide the online after-sales training. If necessary , your can visit us in our factory.
