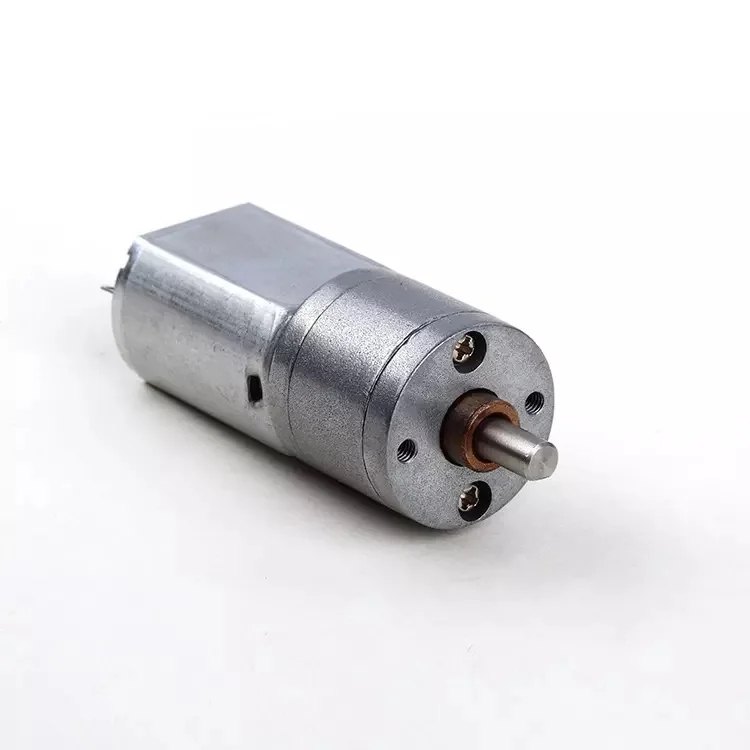

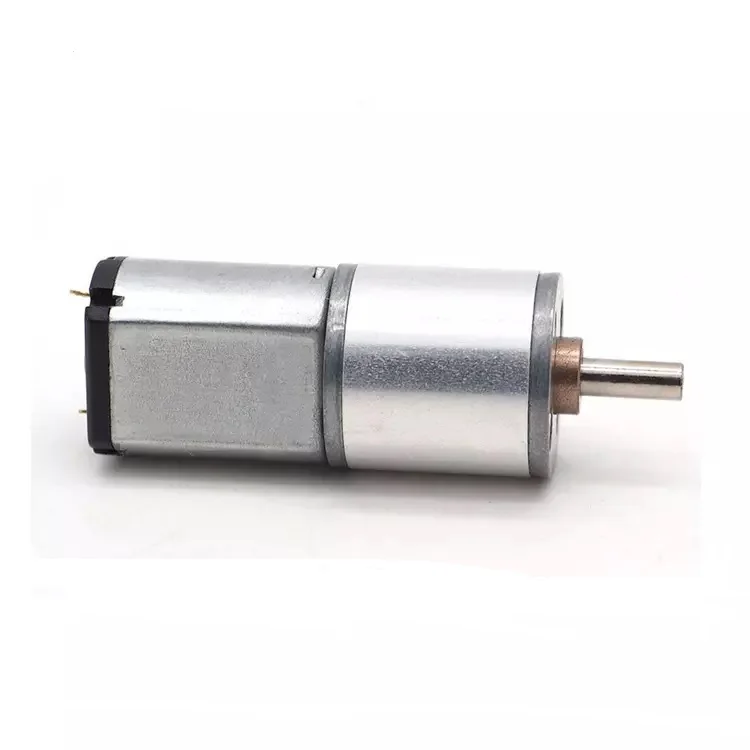

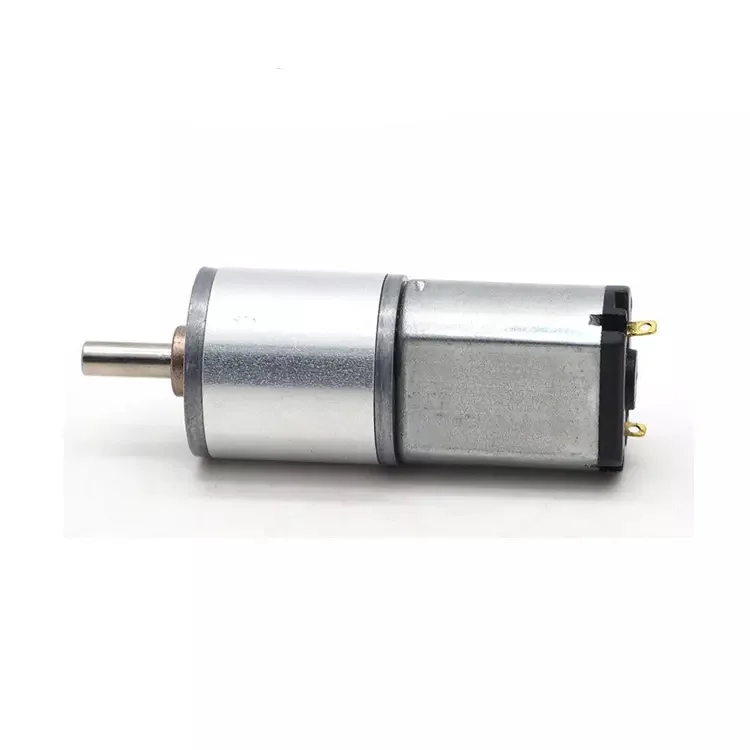

LDO 16GM030 16mm Dc Gear Motor large torque and low speed

Our DC gear motors combine a compact structure with reliable performance and provide high torque at low speed. Other benefits include wide voltage ranges and speed. Applications include: electrical drive toy, toothbrush, electrical lock, electrical tools, vending machine etc. Choose a baseline version or request your own customized configuration

Features:

• Low noise, low current, and no spark


• Small size with low velocity and high torque


• Stable speed


• Customizable Voltage-speed curve


• CE and RoHs approved


• Customizations on request

Typical Application:

• Remote-control vehical-lock,auto valve, cutter


• Electric-drive toy, electric-drive toothbrush


• Projector,  print, hair clipper motor,curtain motor

Other Properties:

• Voltage range: 3-12V


• Rated speed and output torque could be customized per customer's requirements.


• Quality gear material, 45# steel & copper

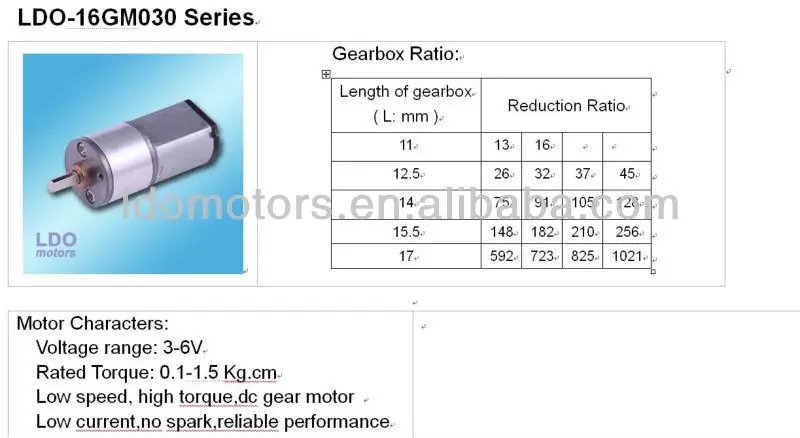

• Reduction ratio: 1/13-1/1021.


• Rotation: CW/CCW

Q: How do I choose a suitable stepper motor for my application?

A: There are several important criteria to consider: holding torque, physical size (NEMA size, length of motor etc.), supply voltage, and supply current etc. Once you determine these key criteria, we can find a suitable model for you. Feel free to contact us, we are more than happy to help you with the selection process.

Q: I need a non-standard motor for my application, can you help?

A: Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement. Alternatively, contac.

Q: How long should I expect the lead-time/delivery to be?

A:  If you are ordering samples of standard models, we can usually have them shipped and delivered within 5 days by air. When requesting custom motors, please allow us a 4-5 week lead-time.

Q: How are your products delivered?

A: We are very flexible with shipping and have dealings with most major courier services around the world. When placing an order, simply provide us a shipping address and contact information, we will handle the rest. If there is a forwarder or courier you prefer to use, just let us know and we will accommodate.

Q: What can you tell me about the quality of your motors?

A: Delivering quality products is an absolute priority for us at LDO. We have test procedures throughout the manufacturing process starting from individual components. If you need a specialized motor from us, we also augment our existing test plans with custom testing solutions. In the rare case that an issue does arise, we will work with you to solve any problems in a timely and transparent manner.

Q: Do you provide OEM services? Can I request my own logo?

A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
