New Promotion flexible solar panel ALL BLACK 670W ETFE monocrystalline cell semi flexible pv flex solar panel
- Category: >>>
- Supplier: Shenzhen Leaderspower Technology Co. Ltd.
Share on (1600614840744):
Product Overview
Description
Ultra-high Power with 21.2% High Efficiency
Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the Vertex comes with several innovative design features allowing high power output of more than 670W. Excellent temperature coefficient and low irradiation performance brings the greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can reach up to 21.2%.
High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed frst year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment
• Lowest guaranteed frst year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment

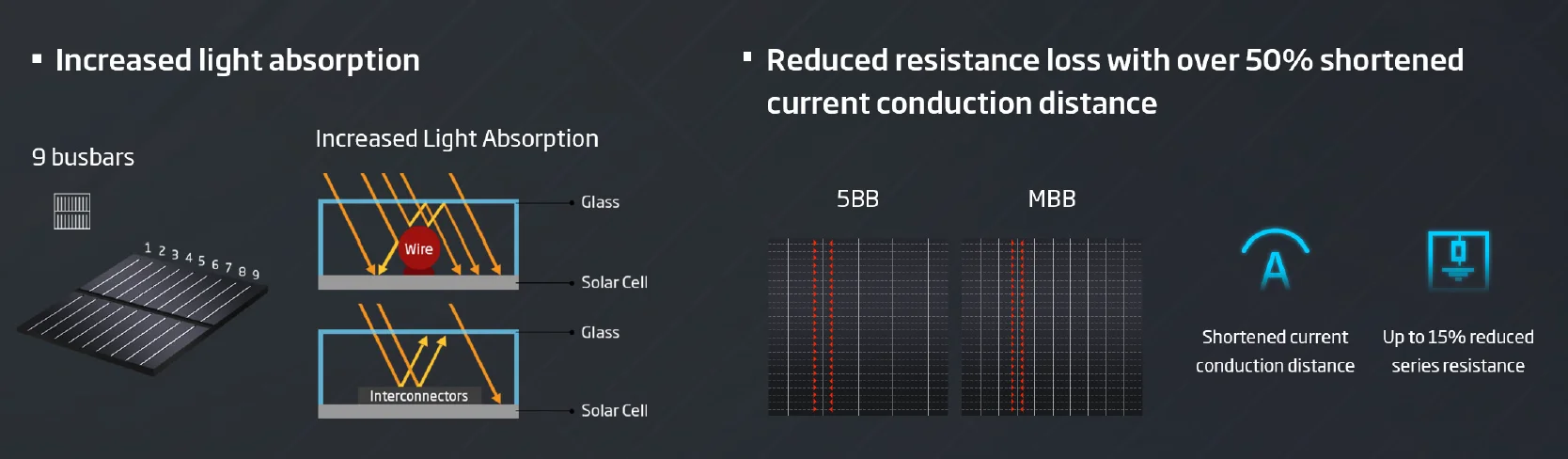

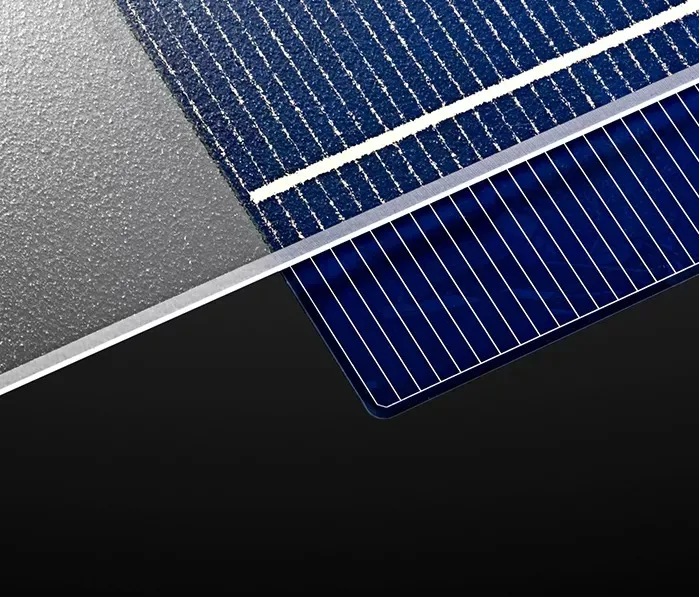

Multi-busbar Technology
In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% - 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
PERC Technology
PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

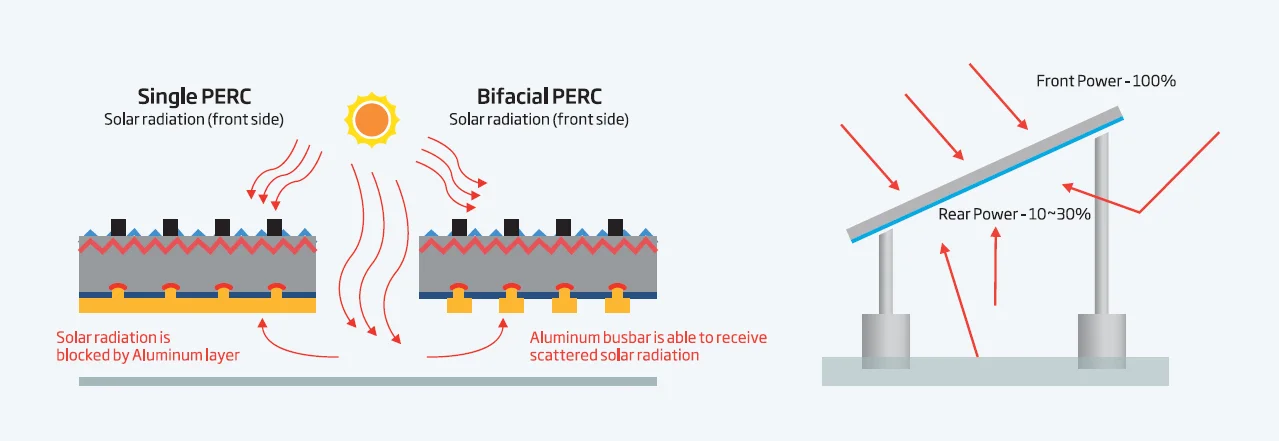

Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.
Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.

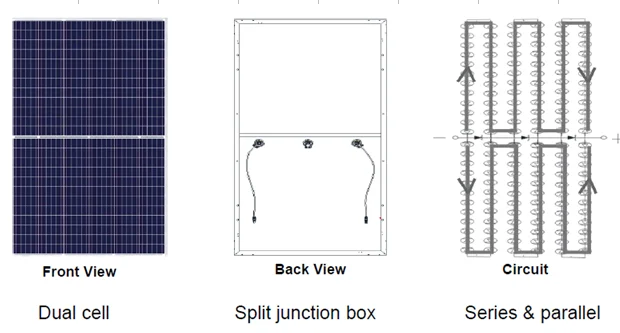

Half-cut Technology
Half-cut cell technology is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also enhanced.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
ELECTRICAL DATA (STC) | ||||||
Peak Power Watts-PMAX (Wp) | 650W | 655W | 660W | |||
ower Tolerance-PMAX (W) | 0 ~ +5 | |||||
Maximum Power Voltage-VMPP (V) | 37.4V | 37.6V | 37.86V | |||
Maximum Power Current-IMPP (A) | 17.39A | 17.43A | 17.47A | |||
41.3Open Circuit Voltage-VOC (V) | 45.3V | 45.5V | 45.7V | |||
Short Circuit Current-ISC (A) | 18.44A | 18.48A | 18.53A | |||
Module Eciency η m (%) | 20.9% | 21.1% | 21.2% | |||

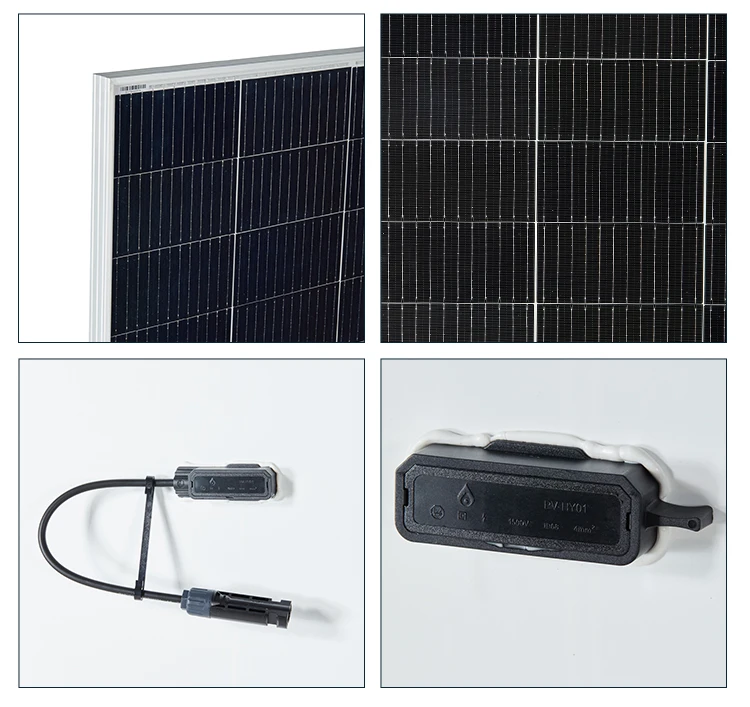

Module Dimensions | 2384*1303*35 mm | |||||
Weight | 33.9kg | |||||
Frame | 35mm Anodized Aluminium Alloy | |||||
Glass | 3.2mm, High Transmission, AR Coated Heat Strengthened Glass | |||||
Junction-Box | IP 68 rated | |||||
Cables | Photovoltaic Technology Cable 4.0mm (0.006 inches),Portrait: 280/280 mm(11.02/11.02 inches) Landscape: 1400/1400 mm(55.12/55.12 inches) | |||||
Connector | MC4-EVO2 / TS4 | |||||
Cell Orientation | 132 cells | |||||
ShenZhen Leaderspower Technology Co., Ltd.
Shenzhen Leaderspower Technology Co., Ltd. is located in Shenzhen, China. We are a team of professionals with experience in selling home and outdoor PV products.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Q1: Are you manufacturer? |
A: Yes, we are professional brand manufacturer with many years experience. |
Q2: When can I get the quotation? |
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority. |
Q3: Can you do the design for us? |
A: Yes. We have a professional designing team provide free desing for you, just tell us your ideas and we will help to carry out your ideas into perfect products. It is also ok if you do not have the complete files. Send us high resolution images, we can design the layout you want,until you are satisfied. |
Q4: What is your terms of delivery? |
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you. |
Q5: What kind of payment methods do you accept? |
A: Credit Card, Online Bank Payment, T/T, Boleto, Pay Later, Paypal, Wechat, Alipay and so on. |
Q6: Can I visit your company and factory in China? |
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces. |
