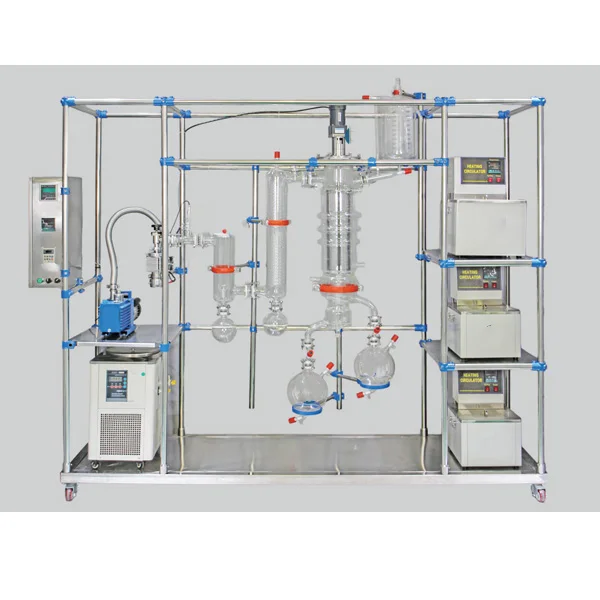

high efficiency short range molecular distillation unit system with short path evaporators Widely Used Chemical Machinery
- Category: >>>
- Supplier: Hangzhou Royal Pharmaceutical Equipment Co. Ltd.
Share on (1600614850858):
Product Overview
Description
Brief Introduction
The short range evaporator is a device which integrates the film evaporator and condenser preparation. The light vapor condenses on the condenser built into the short range evaporator. The path between the evaporation and condensation surfaces is very short, so the pressure of the gas phase the force drop is very low.
PRODUCT SPECIFICATIONS
Two film forming systems： Scraper film forming system and self-cleaning roller film forming system are available. | ||
FILM SCRAPING SYSTEM | The liquid film is produced by the action of the editing wheel, which is sheathed outside the vertical guide rod, and the vertical guide rod is connected with the rotary film scraping frame. There is no thermal decomposition area in the evaporator due to the product staying for a long time. Although the jigger seems to be in contact with the inner wall of the evaporator, there is almost no wear between them, and there is always a liquid film between the disc and the inner wall. Mixed wheel scraping system is used for low viscosity materials or products with no tendency of solidification and polymerization | |
SCRAPER TYPE FILM SCRAPING SYSTEM | The scraper with groove generates a liquid film on the inner wall of the evaporator. The scraper is connected with an elastic metal sheet. When the basket rotates, the scraper is close to the inner wall under the action of centrifugal force and acts on the material to produce a liquid film. By changing the direction of the groove in the scraper, we can change the residence time of the material in the evaporator. The elastic metal sheet can produce additional force on the scraper, so that the scraping system can deal with high viscosity and high polymerization materials, and can remove the material accumulated on the wall of any thermal jacket | |
ADVANTAGES Precise temperature control Highest temperature of the system can reach 230℃/ 300℃, accurate temperature control can be realized. High efficiency evaporation High evaporation efficiency can reduce retention time with minimal time delay. High precision distiller barrel The liquid forms a complete integrated film on the heated surface. The inner wall of the cylinder is smooth and clean, and it is not easy to stick and scale. High precision distiller barrel The liquid forms a complete integrated film on the heated surface. The inner wall of the cylinder is smooth and clean, and it is not easy to stick and scale. Super sealing performance The magnetic drive system makes the driving rod of the driving motor unnecessary to pass through the sealing surface of the main distiller to realize the sealing of the whole machine. The whole system has strong sealing and the minimum vacuum pressure can reach 0.1pA. | ||
Product Model | RYSPD80 | RYSPD100 | RYSPD150 | RYSPD200 |
Evaporation area(㎡) | 0.1 | 0.15 | 0.25 | 0.35 |
Neck No. on Cover(㎡) | 0.1 | 0.2 | 0.4 | 0.5 |
Barrel inner diameter(mm) | 80 | 100 | 150 | 200 |
Constant pressure feeding funnel volume(L) | 1 | 2 | 5 | 6 |
Treatment flow(KG/H) | 0.3~0.4 | 0.5~5.0 | 1.0~8.0 | 1.0~13.0 |
Motor Power(w) | 220V 140W | 220V 250W | 220V 250W | 220V 250W |
Rotation Speed(rpm) | 180 | 180 | 180 | 180 |
SALES AND SERVICE NETWORK
Why Choose Us
ROYAL PHARM is strong producer and supplier for Glass lined equipment, we have Certificate for production Category I, II, III pressure vessels. Our main machines include: Glass lined reactor, Enamel reactor, size from 100L to 100,000L. Enamel Tank, Stainless Steel Tank, Plate-type Glass lined Condenser, Glass lined Tube & Shell Heat Exchanger, Stainless Steel Reactor, Silicon carbide Tube & Shell Heat Exchanger, Mechanical Seals, Glass lined columns, Glass lined film Evaporator WFE (wiped film evaporator), Silicon-Carbide Heat Exchanger (0.35m2 ~ 300m2), Silicon Carbide Condenser, Silicon Carbide Sulfuric Acid Diluter, Silicon Carbide falling-film Absorber, and so on. We will offer to you the equipment based on your special requirement.
