Roof Tile Solar Power System Power Wall Battery System Solar Solar Power System And Lithium Battery

Share on (1600614860988):


Price:

Quantity:


Product Overview

Description


Professional manufacture on-grid mini 2kw solar home power system





Product details

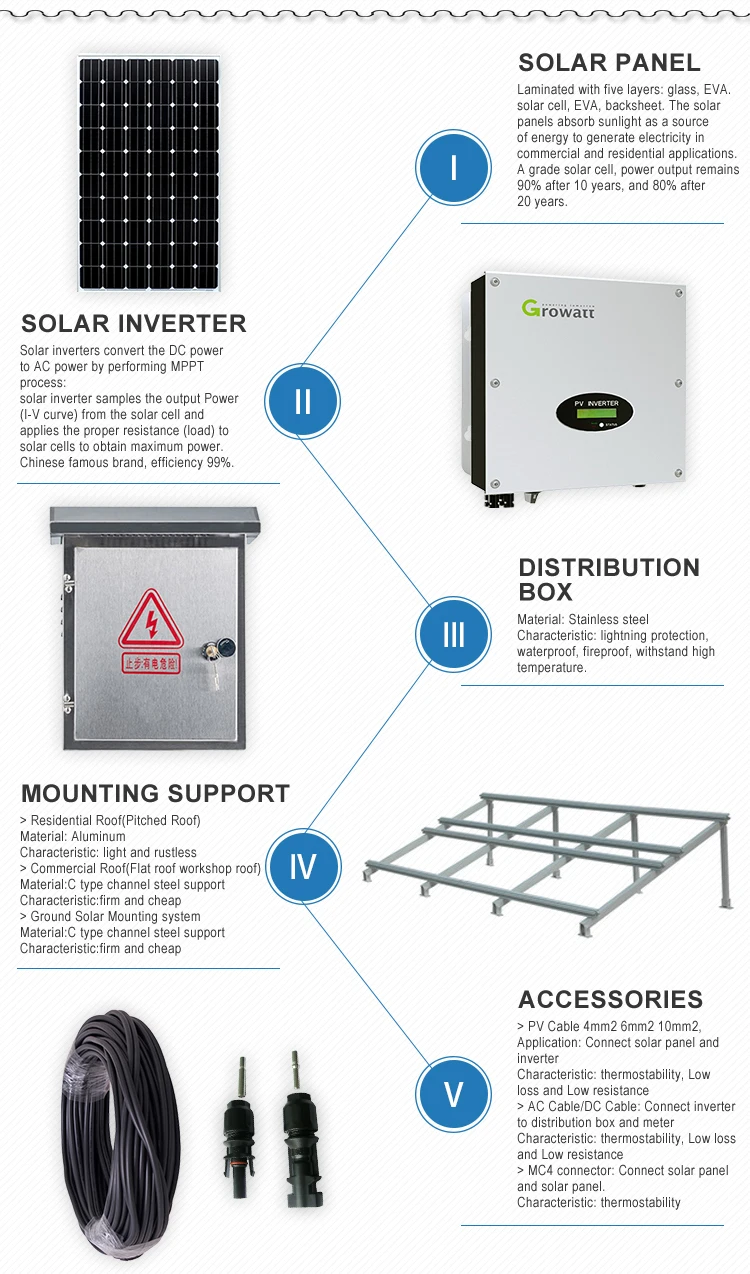

2KW On Grid Solar System Equipment List



Item



Specification



Quantity

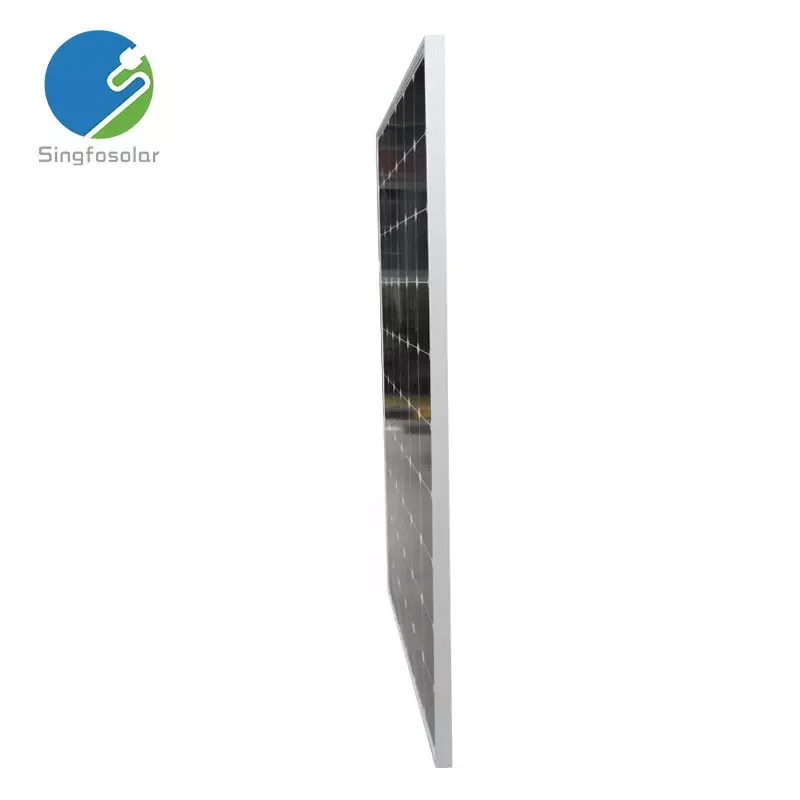

solar panel



Model no.:SFM295-60
Max power: 295W
Panel type: mono
Vmp: 30V
Imp: 9.83A
Voc: 36V
Isc: 10.82A
Operation temp: -40~+85℃
Dimension: 1640*992*35mm
Test condition: 25℃ 1.5AM 1000W/m2



7 pcs



panel support



Aluminium bracket



1 set

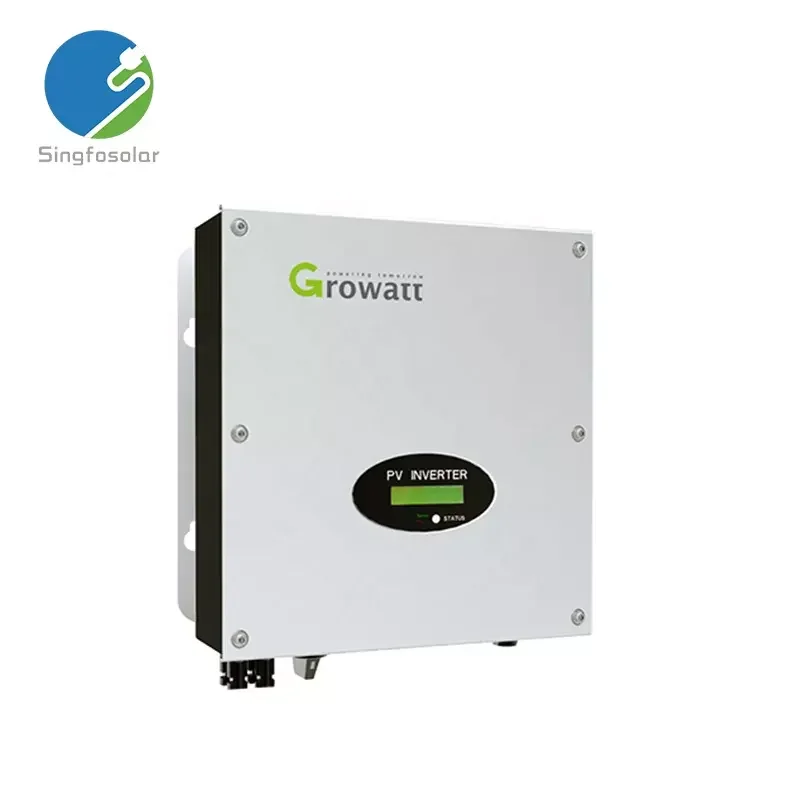

inverter



2KW Single phase AC220V




AC distribution box



2KW Single phase AC220V



1 set

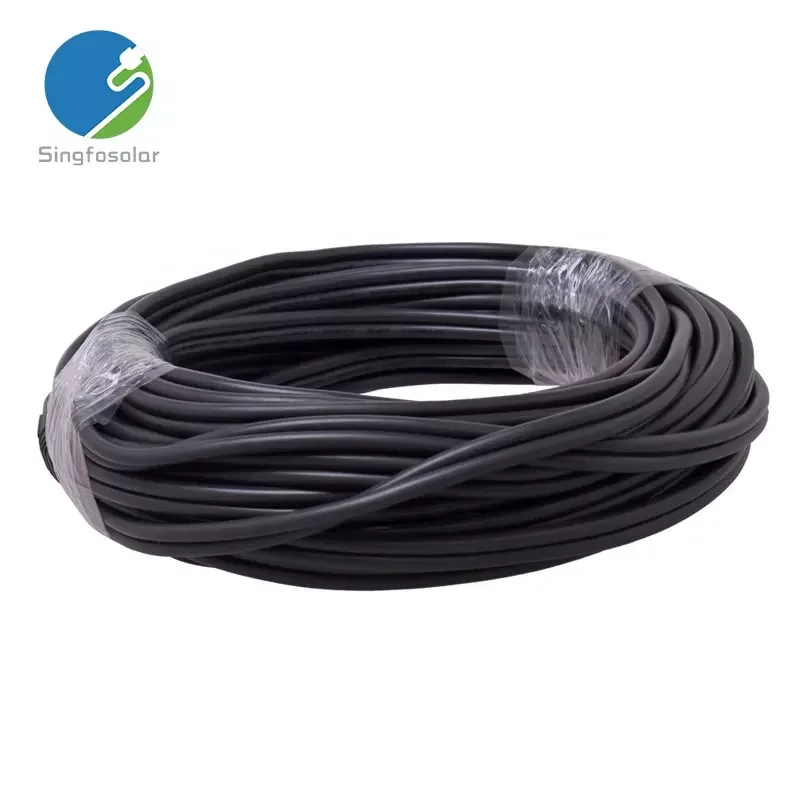

cable(estimated)



4mm2 pv cable - 40m , 3*4mm2 cable-30m



1 set



monitering plug



compatibale with inverter



1 pic

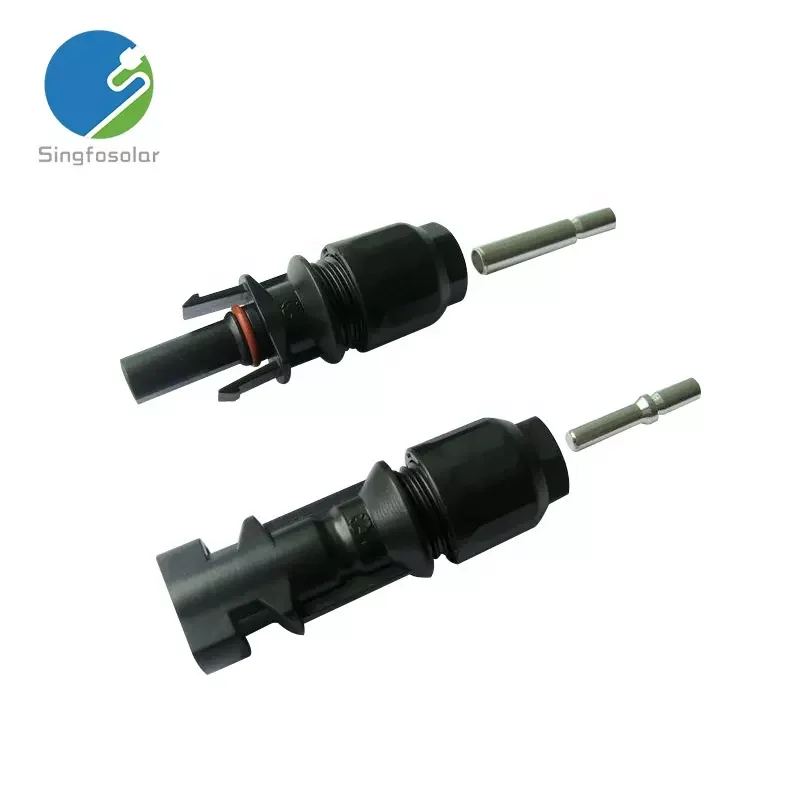

MC4 connector



/



enough for connection









More product










































Show case







Company profile







Showroom&Exhibition







Product packaging







FAQ




Q:Why choose us?
A:Singfo Solar is a manufacturer of solar panel for 10 years. We devote ourselves in solar power industry. We offer design, product supply,consultan and after sales service.





Q:What certificate do we have?
A:We have TUV and ISO 9001.





Q:What about after sales service?
A: We offer 10 years warranty for solar panel. 1 years for off-grid solar system and 5 years for on-grid solar system.





Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shippment, video if necessary, and for big project, we can send engineer to the project site.





Q:Can you ship by air/express?
A:I am afraid of. Because the product is overlong.





Q:Will you offer any installation guidance?


 A:Yes, we will offer documents after shippment, video if necessary, and for big project, we can send engineer to the project site.
