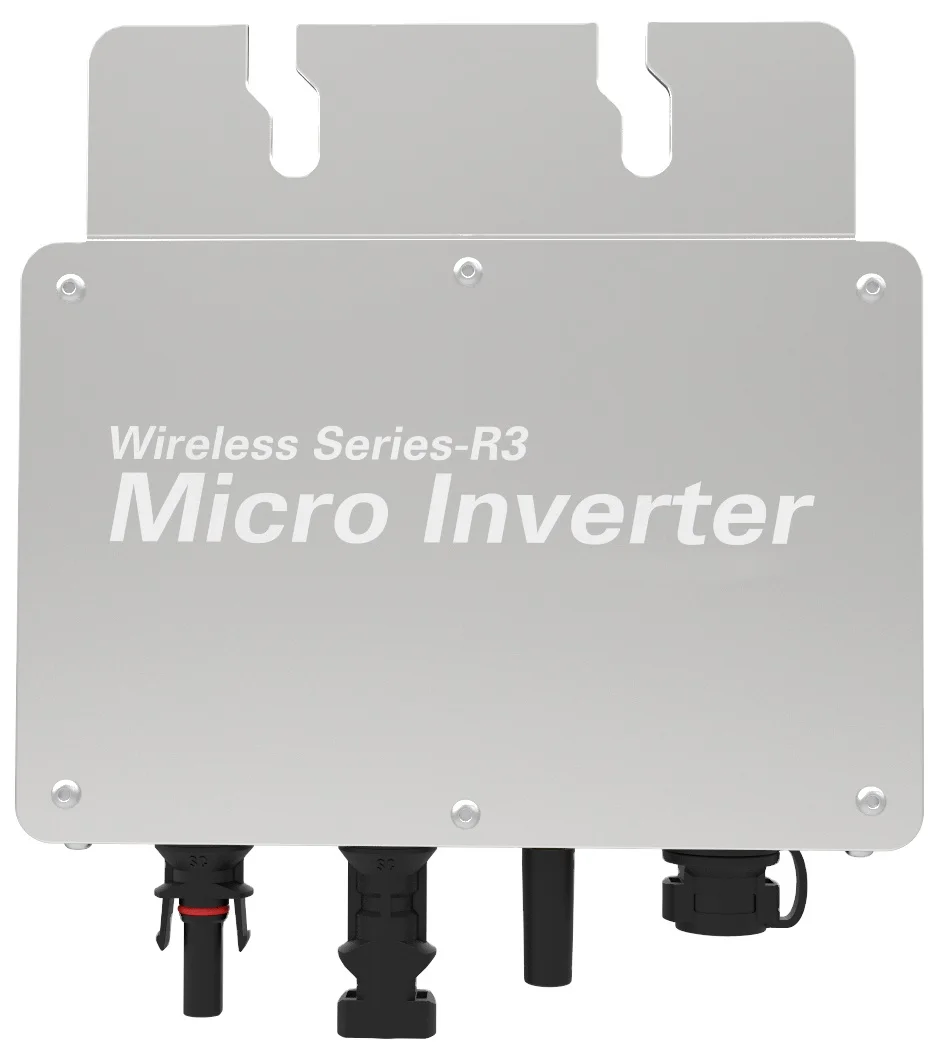

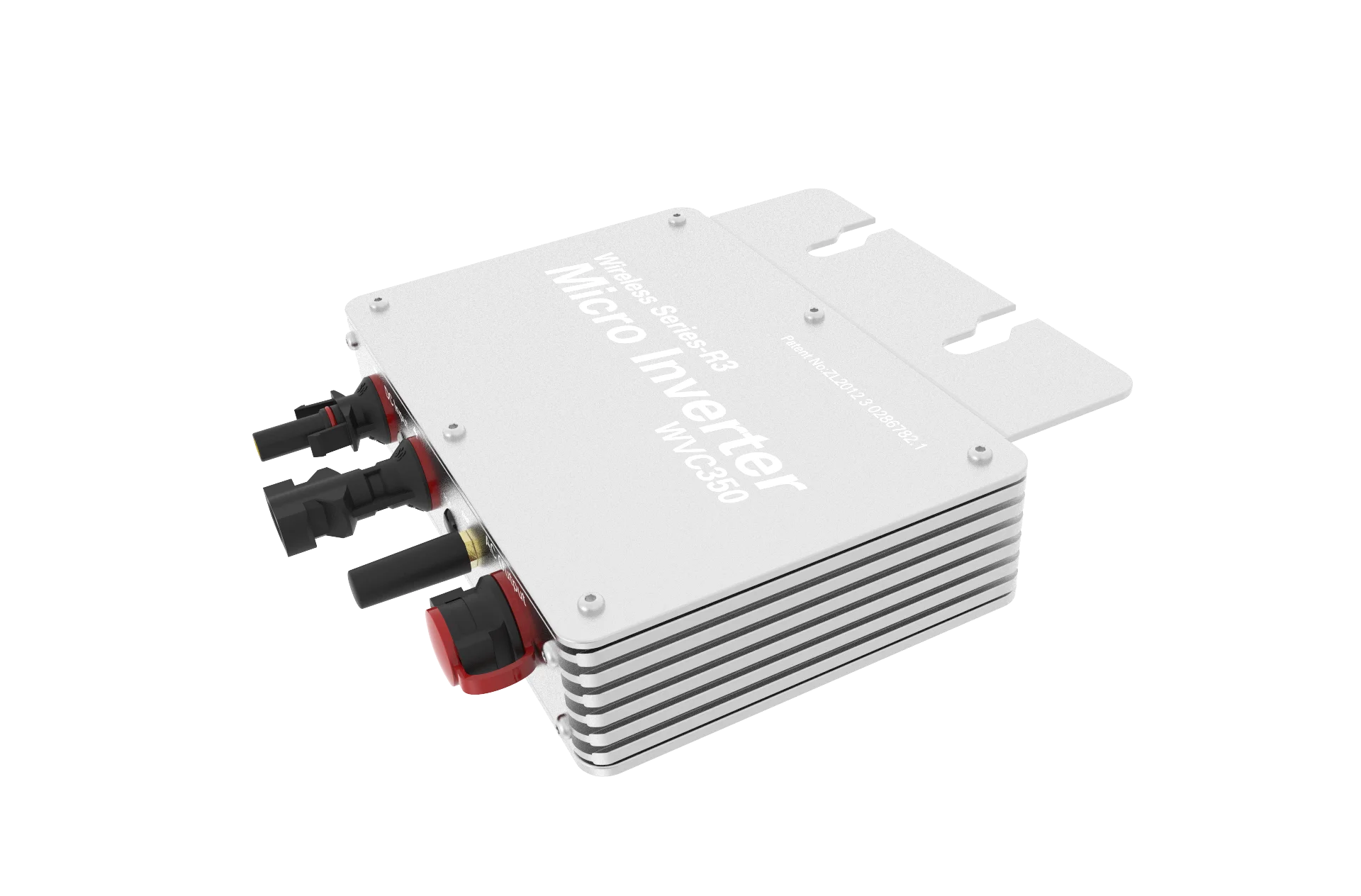

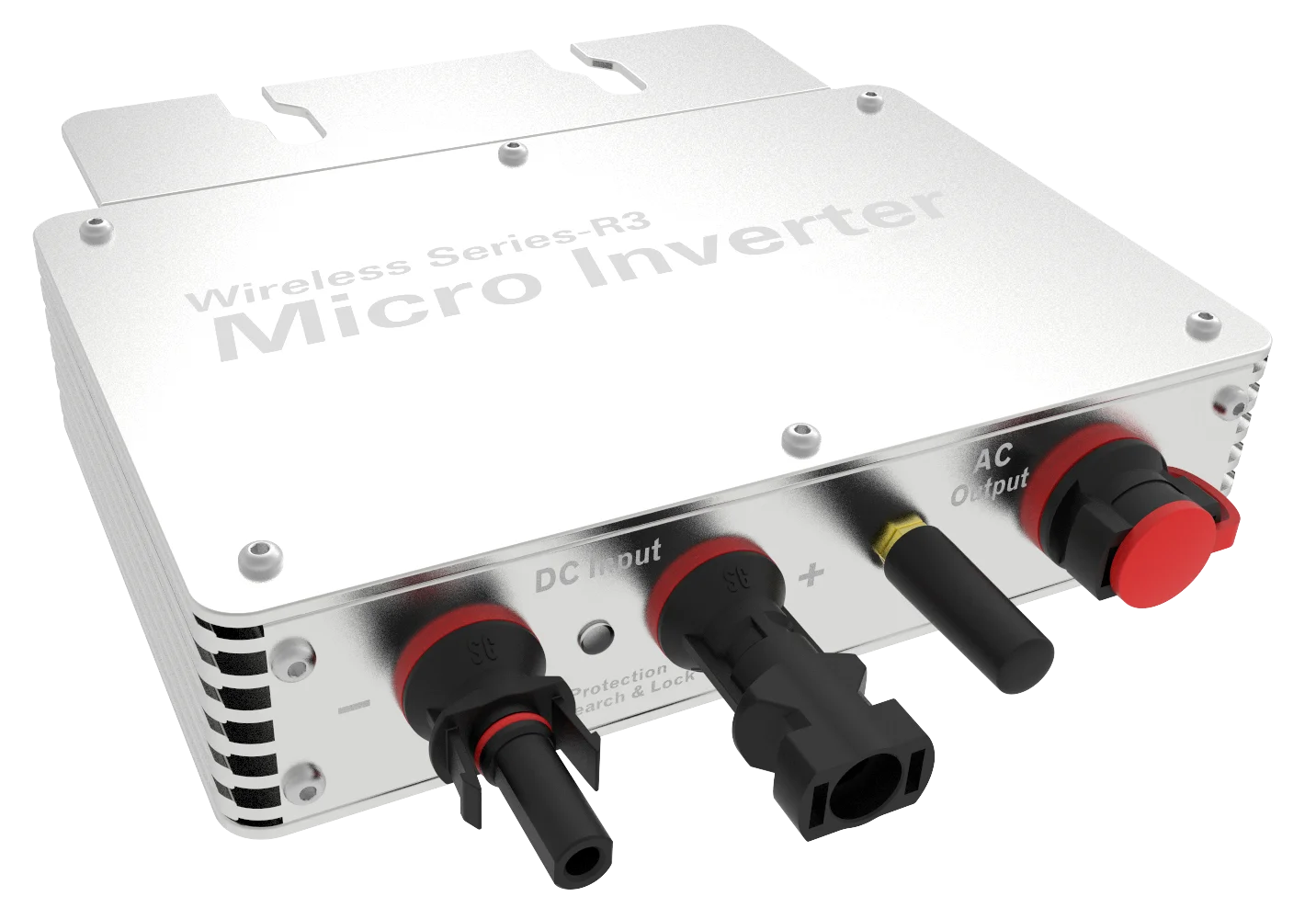

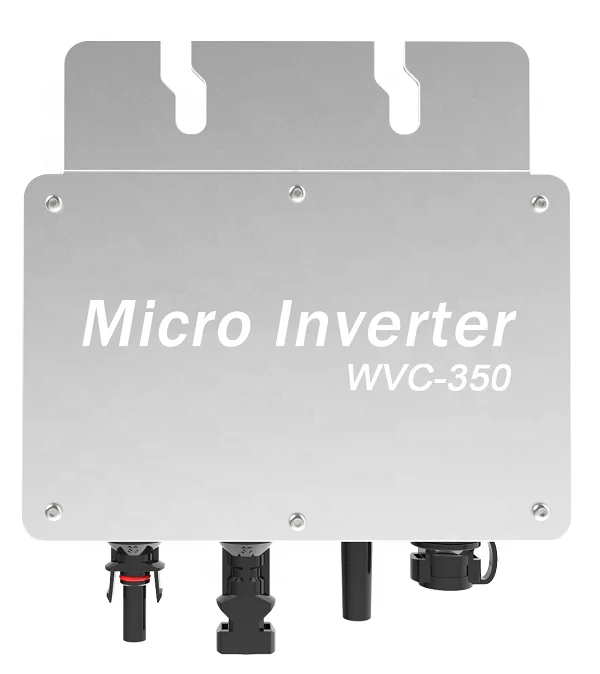

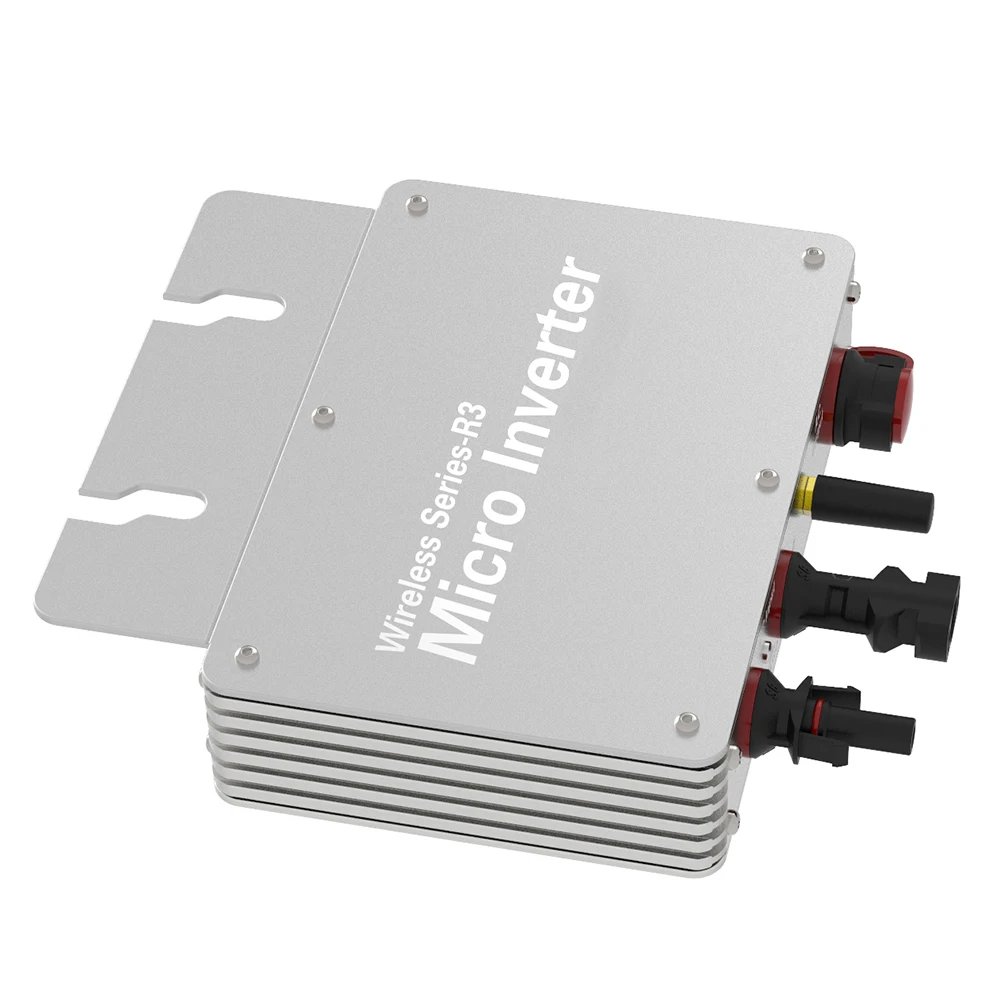

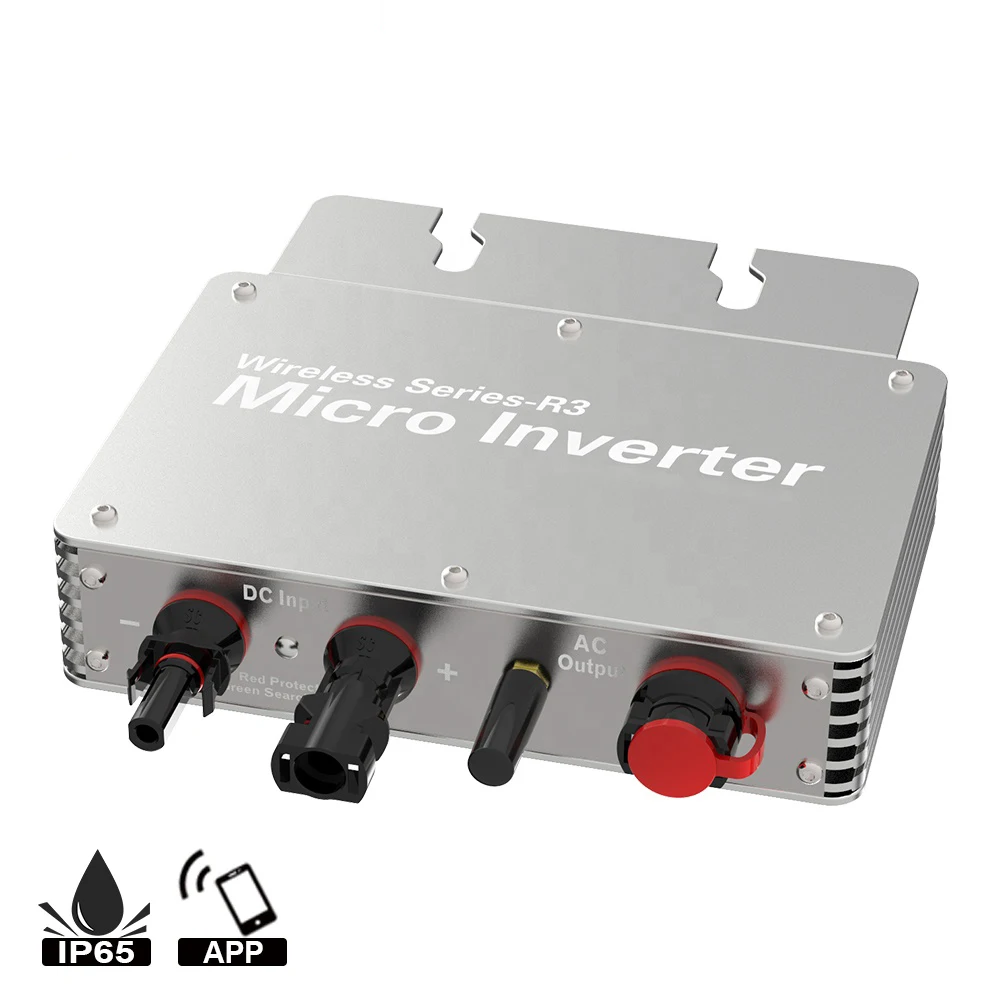

Micro inverter 300w Grid Connected for Solar Panels Remote Monitoring with Mobile Phone 120/230V 50/60Hz DC to AC
- Category: >>>
- Supplier: COREPLUS INDUSTRIAL COMPANY LIMITED
Share on (1600614897440):
Product Overview
Description
Product Description
The fifth generation WVC series communication products Energy adopt waterproof flow line design, which can provide better heat dissipation function for the equipment. The built-in maximum power point tracking engine (MPPT) can better capture changes in lighting, and it can work even in rainy weather. It can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V, and the panel can exert its best performance through technical means.
The power output mode Micro-Inverter is reverse transmission technology, which supplies power to the load first, and then uploads the excess power to the local power grid. Its conversion efficiency is as high as 95%. The product has multiple national invention and appearance patents , And has CE, CEC, INMETOR and other regional and national product certification
Product Details
The inverter is equipped with 433MHz communication function as standard, and can communicate with our data collector (optional), and the data collector only needs to be connected to a wireless router to obtain various real-time data in the power station and upload it To the cloud server. Users only need to install our power station management application on their mobile phones to easily access various data in the power station and manage the power station.The inverter is equipped with 433MHz communication function as standard, and can communicate with our data collector (optional), and the data collector only needs to be connected to a wireless router to obtain various real-time data in the power station and upload it To the cloud server. Users only need to install our power station management application on their mobile phones to easily access various data in the power station and manage the power station.
Product advantages
Grid-connected system

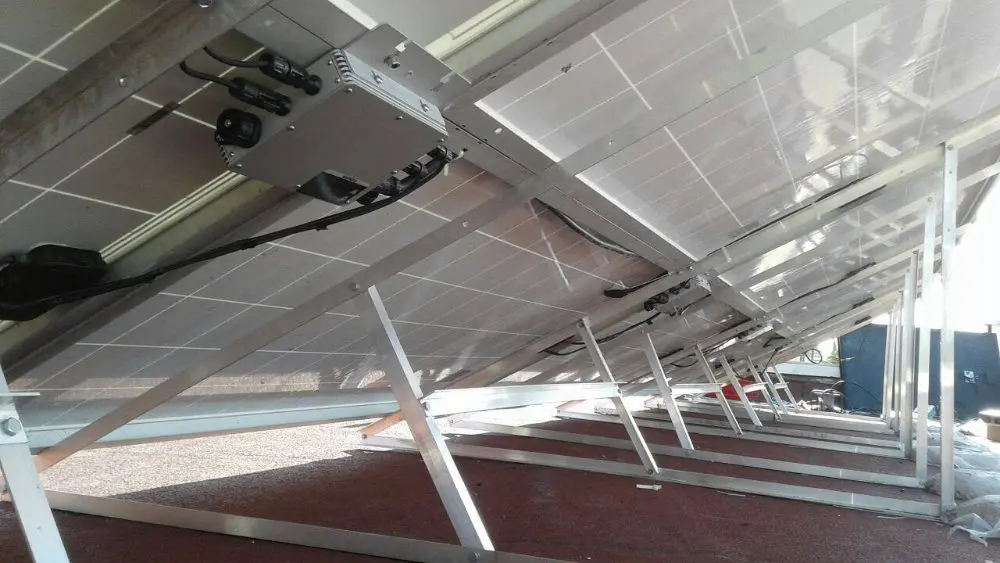

The biggest feature of the photovoltaic grid-connected system is that the DC power generated by the photovoltaic array is converted into AC power that meets the requirements of the commercial power grid through the grid-connected inverter, and then directly connected to the commercial power grid. The power generated by the panel array in the grid-connected system is preferentially supplied to the AC At the load side, excess power is fed back to the grid. On rainy days or nights, when the photovoltaic array does not generate electrical energy or the generated electrical energy cannot meet the load demand, it is powered by the grid.
Product Parameters
Model | WVC-300 | |
Maximum input power | 1×375Watt | |
Output voltage mode | 120/230V Auto Switch | |
PV Open circuit voltage | 30-60Voc | |
Operating voltage range | 22-60V | |
Starting voltage range | 22-60V | |
short-circuit current | 15A | |
Maximum working current | 13.7A | |
Output parameters | @120V | @230V |
Maximum Output Power | 310watt | 310watt |
Rated Output Power | 300watt | 300watt |
Output current | 2.5A | 1.3A |
AC voltage range | 80-160VAC | 180-280VAC |
Number of branch connections. | 15 units | 25 units |
AC frequency range | 47.5-52/57.5-62Hz | |
Power factor | >95% | |
Output efficiency | ||
Static MPPT efficiency | 99.5% | |
Max output efficiency | 95% | |
Loss of power at night | <0.5w | |
Total current harmonics | <5% | |
Appearance and technical features | ||
Size(L×W×H)mm | 165×176×38mm | |
Net amount | 0.82Kg | |
Waterproof grade | IP65 | |
Temperature range | -40°C to +65°C | |
Heat dissipation mode | Self-cooling | |
Communication mode | WiFi | |
Power transmission mode | Reverse transmission,Load priority | |
Monitoring system | App | |
Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | |
Power grid | EN61000-3-2 EN62109.UL STD.1741 | |
Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | |
Certificate | Industrial Design,Patent For Invention,CE | |
Product Feature
Because the electric energy is directly input into the power grid, the configuration of the storage battery is eliminated, the process of storage and release of the storage battery is eliminated, and the power generated by the PV square array can be fully utilized to reduce the energy loss and reduce the cost of the system. However, a dedicated grid-connected inverter is required in the system to ensure that the output power meets the requirements of the grid power for voltage, frequency and other indicators. Because of the inverter efficiency, there will still be some energy loss. Such systems are usually able to use the mains and solar photovoltaic arrays in parallel as the source of local AC loads. Reduce the load power shortage rate of the entire system. And the grid-connected PV system can play a peak-shaving effect on the public power grid.
In response to the characteristics of the grid-connected system, Energy has developed the first generation of micro-grid inverters as early as 2008, specifically for the recycling of electrical energy of various profit and loss. Provides a preliminary route for our product development and design direction, and overcomes a series of technical problems on the grid-connected system. Until now the fifth generation WVC series R3 version of the inverter.
Product Uses
Application field
1. Family field: Solve civil life electricity, such as lighting, TV, radio, etc.;
2. Transportation field: traffic signal lights, street lights, high-altitude obstacle lights, highway/railway wireless telephone booths, unattended power supply, etc.;
3. Communication field: microwave relay station, optical cable maintenance station, etc.;
4. Agricultural field: such as constant temperature greenhouse cultivation, aquaculture, animal husbandry, etc.;
5. Environmental field: meteorological, astronomical observation equipment, etc., marine detection equipment, meteorological/hydrological observation equipment, etc.;
6. Commercial field: combining solar power generation with building materials for large-scale buildings to achieve electricity self-sufficiency;
7. Industrial field: 10KW-50MW independent photovoltaic power station, various large parking plant charging piles, etc
Packing & Shipping
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
FAQ
Q1: Do you support Ready To Ship OEM&ODM?
A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.\\
Q2. What is our advantage ?
A2.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Pass ISO9001.
Q3. How can we guarantee quality?
A3. Always a pre-production sample before mass production; and 38 quality inspections before packing. All of our products have passed certification of CE,CCC,UL PSE and RoHS. Supply MSDS shipping documents.
Q4. What can you buy from us?
A4. Solar tied inverter, Solar off grid hybrid inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, Battery charger, Solar lighting system, Power converter and so on.
Q5. How to select a suitable products?
A5. Visit our website and do not hesitate to contact with our sales, we will supply free technology info and competitive price.
