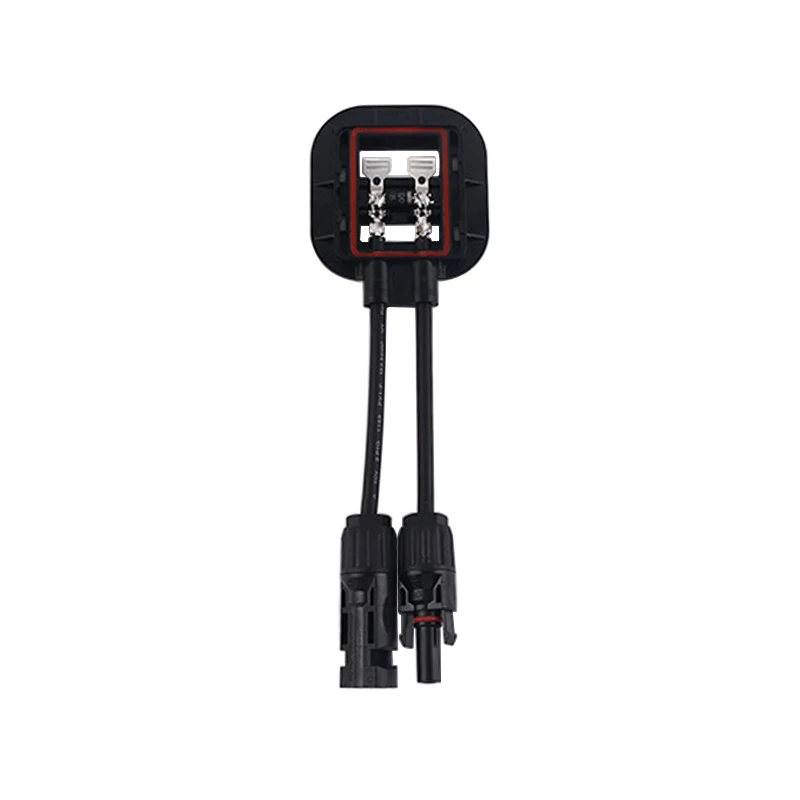

10mm Thickness Flexible Solar Panel Shingle Solar Panel Junction Box for High Current Solar Panels
- Category: >>>
- Supplier: Shanghai Sdo Energy Technology Co. Ltd.
Share on (1600614899359):
Product Overview
Description
Specification

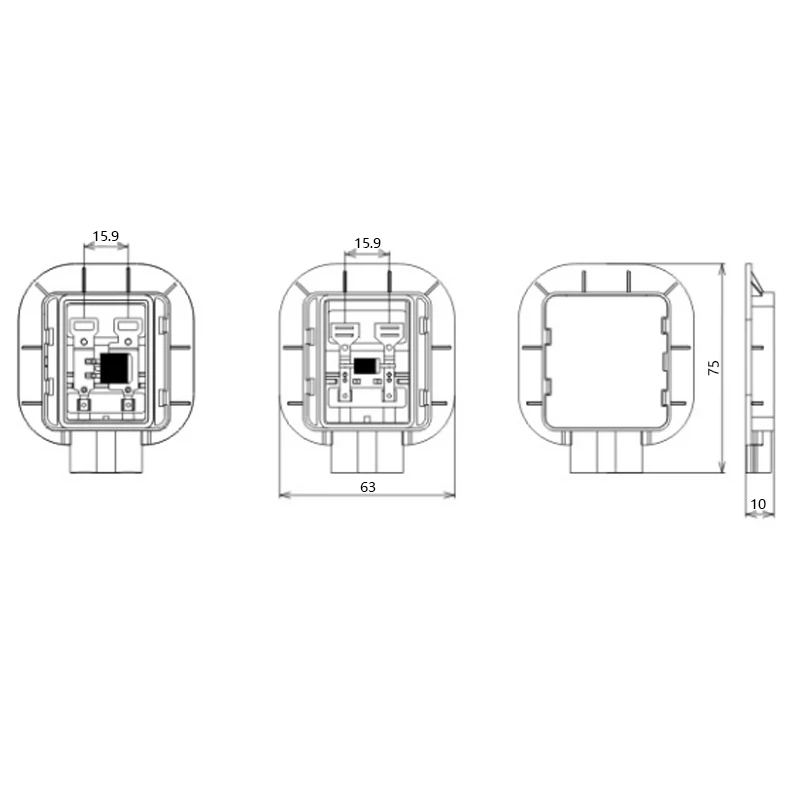

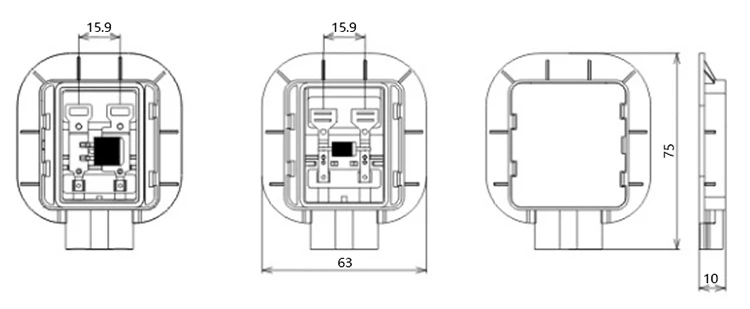

Overall Dimension | 75*63*10mm | |
Rated Voltage | 1000VDC,With Seal Ring / 1500VDC,Potting Sealant | |
Rated Current | 5~18A | |
Power | 10-300W | |
Working Temperature Range | -40℃～+85℃ | |
Safety Class | Class II | |
Waterproof Structure | Sealing Ring or Potting Sealant | |
IP Grade | IP67 Seal by Sealing Ring / IP68 Seal by Potting Sealant | |
Section area of cable | 1*2.5-4mm² | |
Contact Material | Copper Tin Plated | |
Insulation Material | PPO | |
Flame class | UL94-V0 | |
Number of Diodes | 1 Diode | |
Diode model | 10A10, 12SQ045, 15SQ045 (DO-27) 20SQ045~30SQ045 (TO263) | |
Optional Connector | MC 4 compatible | |
The rated current will be changed when the box is fixed with different types of diode. | ||
Products Description

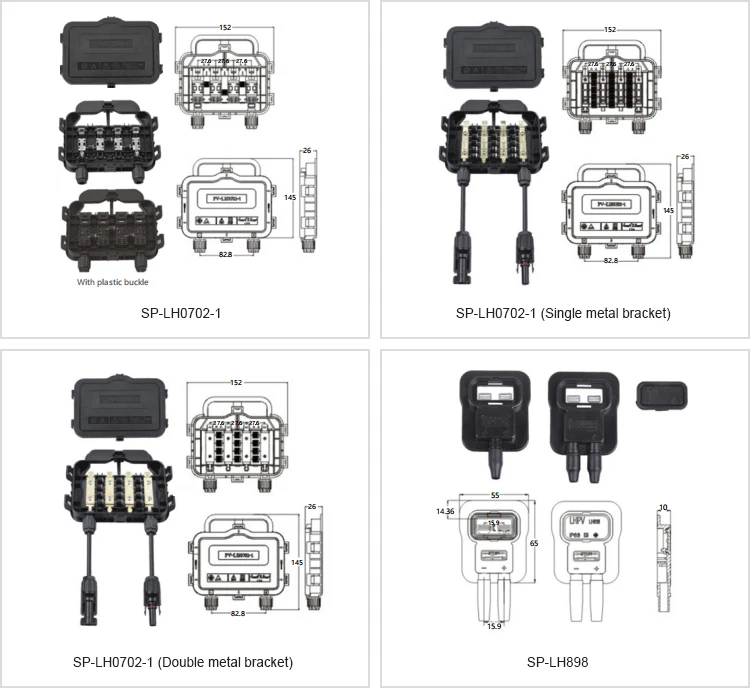

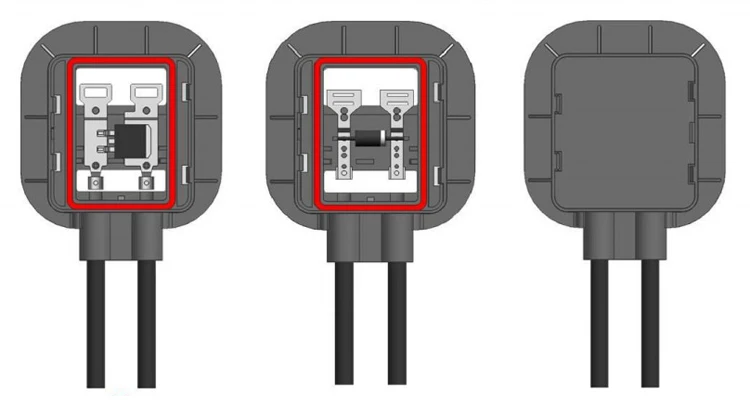

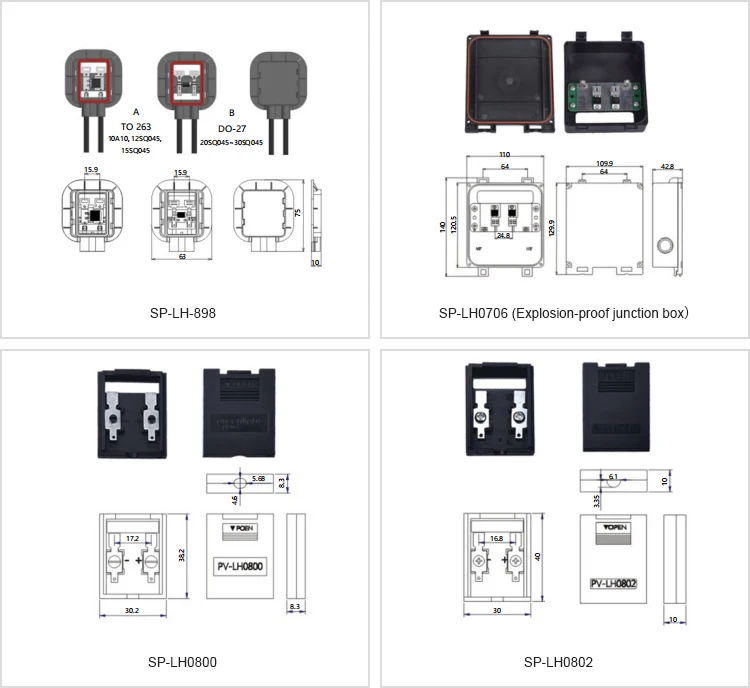

LH-898: Suitable for flexible solar panels, thin film solar panels, shingle solar panels
Main characteristic
● The cable is connected by crimping or welding, and the ribbon bands is connected by welding.
● The box is ultra-thin, with 10mm thickness.
● The box is ultra-thin, with 10mm thickness.
● Meet TUV certification requirements.
● The junction box is waterproof by sealing ring or AB glue.
● The junction box is waterproof by sealing ring or AB glue.
● It is suitable for high current solar panels.
● Easy to use and convenient for customer maintenance.
