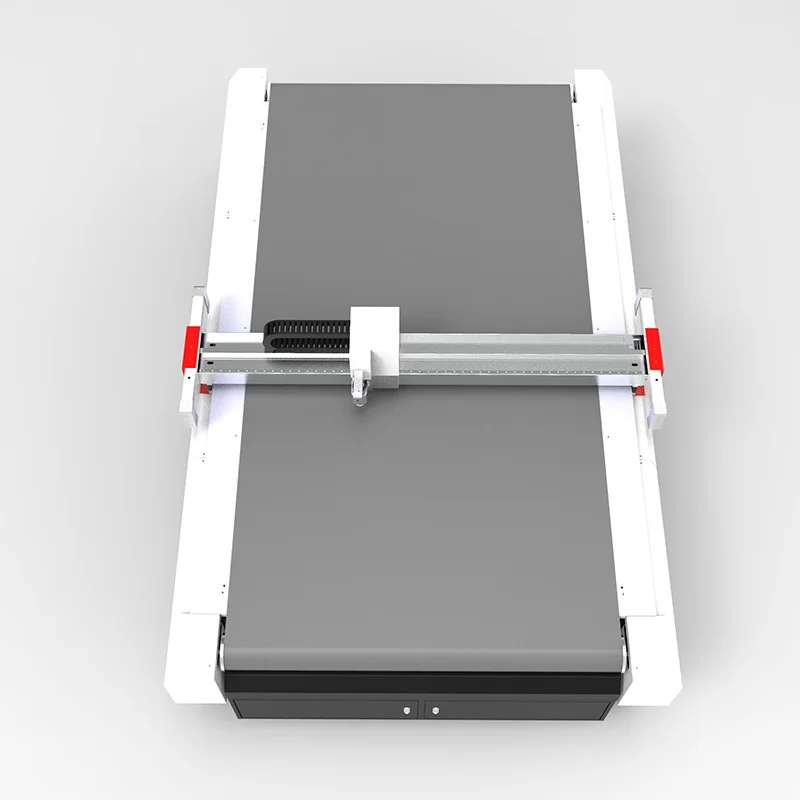

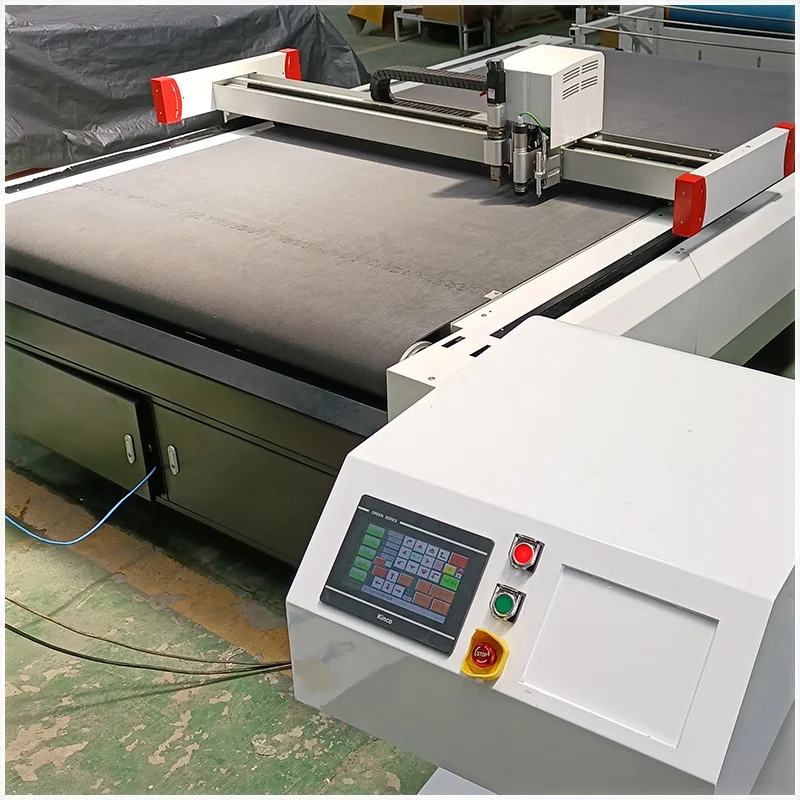

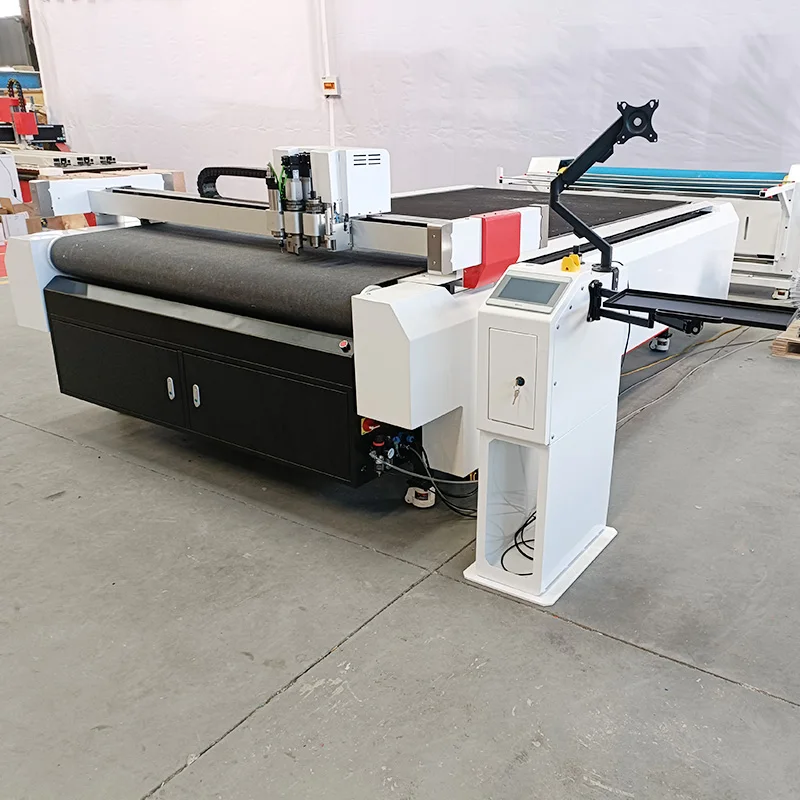

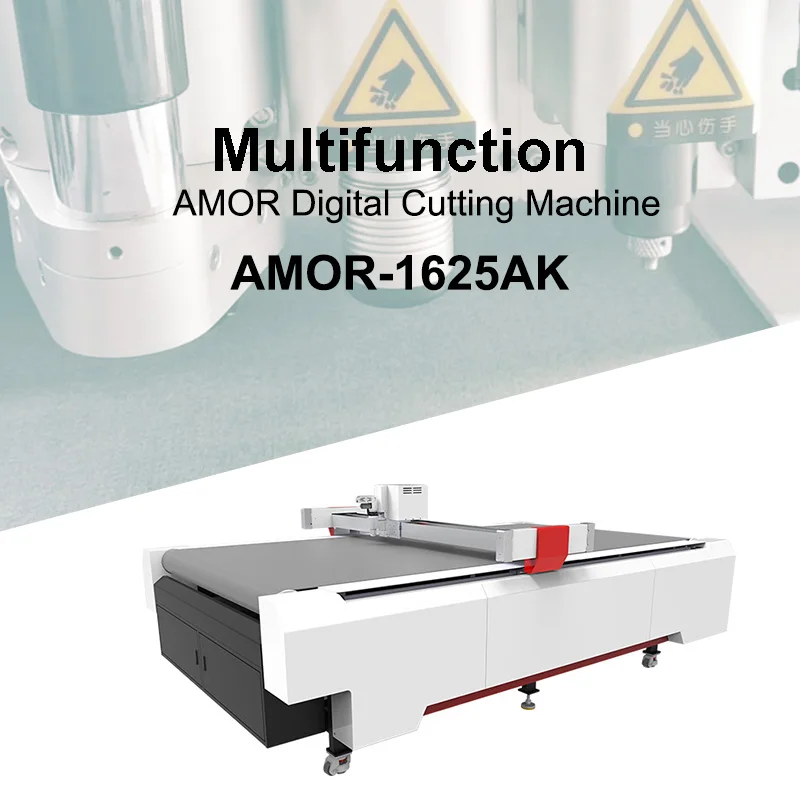

Carbon Glass Fiber Prepregs Composite Material Cutting Machine
- Category: >>>
- Supplier: Shandong Amor Cnc Machinery Co. Ltd.
Share on (1600614979697):
Product Overview
Description
Why Choose Us
4 advantages of oscillating knife cutting machine:

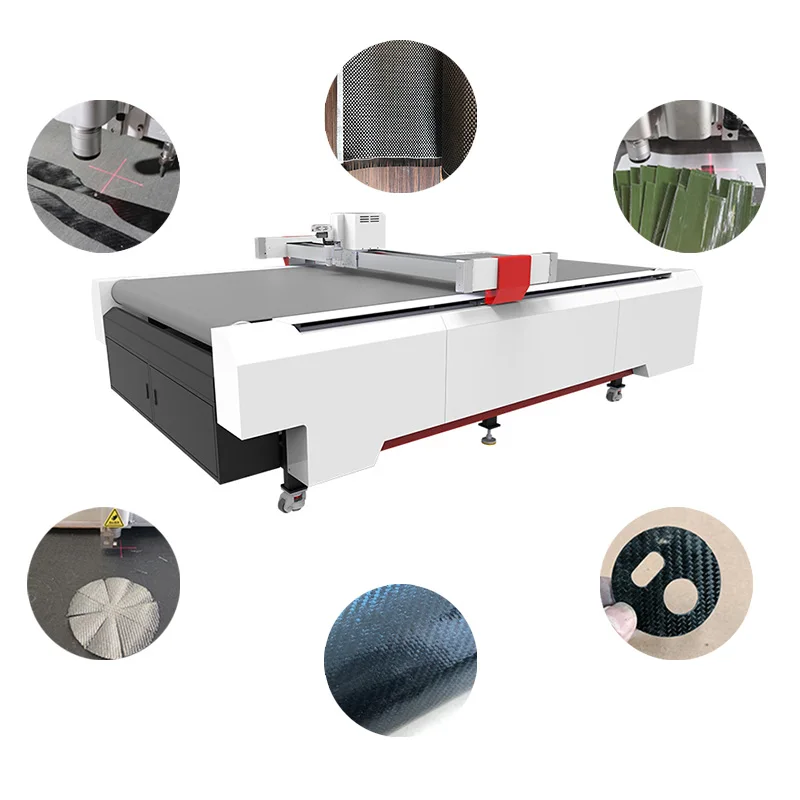

1. It can cut many types of non-metallic materials. The oscillating knife cutting machine is suitable for cutting prepreg, fiberglass cloth, carbon fiber cloth, fiber cotton, fiberboard, leather, fur, clothing, and other materials.
2. Fast cutting speed. The oscillating knife cutting machine adopts an intelligent cutting system, and the Y-axis adopts double Mitsubishi servo motors as the power source, and the operating speed is up to 2500mm/s.
3. High precision. The oscillating knife cutting machine adopts red light positioning, the motor has pulse positioning, and the cutting accuracy is as high as 0.01mm (the accuracy of some materials will be reduced due to elasticity, please consult the online personnel for details).
4. Environmental protection. The oscillating knife cutting machine adopts kinetic energy contact cutting, which will not produce high temperature, smoke, peculiar smell, etc.
1. It can cut many types of non-metallic materials. The oscillating knife cutting machine is suitable for cutting prepreg, fiberglass cloth, carbon fiber cloth, fiber cotton, fiberboard, leather, fur, clothing, and other materials.
2. Fast cutting speed. The oscillating knife cutting machine adopts an intelligent cutting system, and the Y-axis adopts double Mitsubishi servo motors as the power source, and the operating speed is up to 2500mm/s.
3. High precision. The oscillating knife cutting machine adopts red light positioning, the motor has pulse positioning, and the cutting accuracy is as high as 0.01mm (the accuracy of some materials will be reduced due to elasticity, please consult the online personnel for details).
4. Environmental protection. The oscillating knife cutting machine adopts kinetic energy contact cutting, which will not produce high temperature, smoke, peculiar smell, etc.

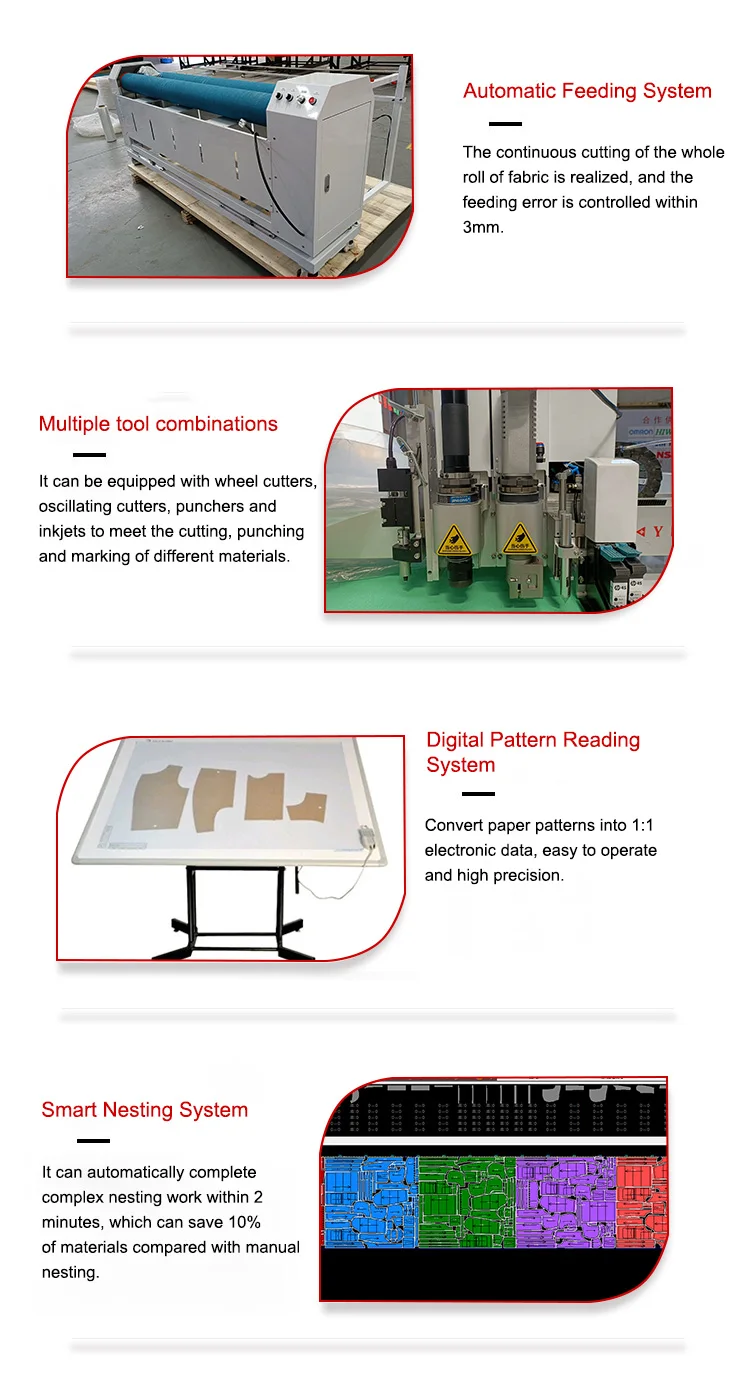

Products Description
Strong power output
The X-axis adopts dual Japanese Mitsubishi servo motors, with a 1:5 high-precision reducer, which has strong power and meets high-precision, high-intensity continuous work.
Schneider low voltage appliances
Scientific and reasonable wiring design, each wiring harness has a number, which is convenient for later maintenance and quality inspection. Relays, power switches, etc. all use Schneider brand to ensure good stability of the machine.
Die-extruded aviation aluminum beam
The beam adopts the die extrusion process, the thickness is 7mm, the precision is higher, the weight is lighter, the deformation resistance is stronger, and it is suitable for high-speed and long-lasting operation.
Vacuum adsorption system
The high-quality aviation aluminum suction table with a thickness of 43mm, combined with a high-power variable frequency vacuum suction pump, has super suction, which can firmly fix the processing materials.

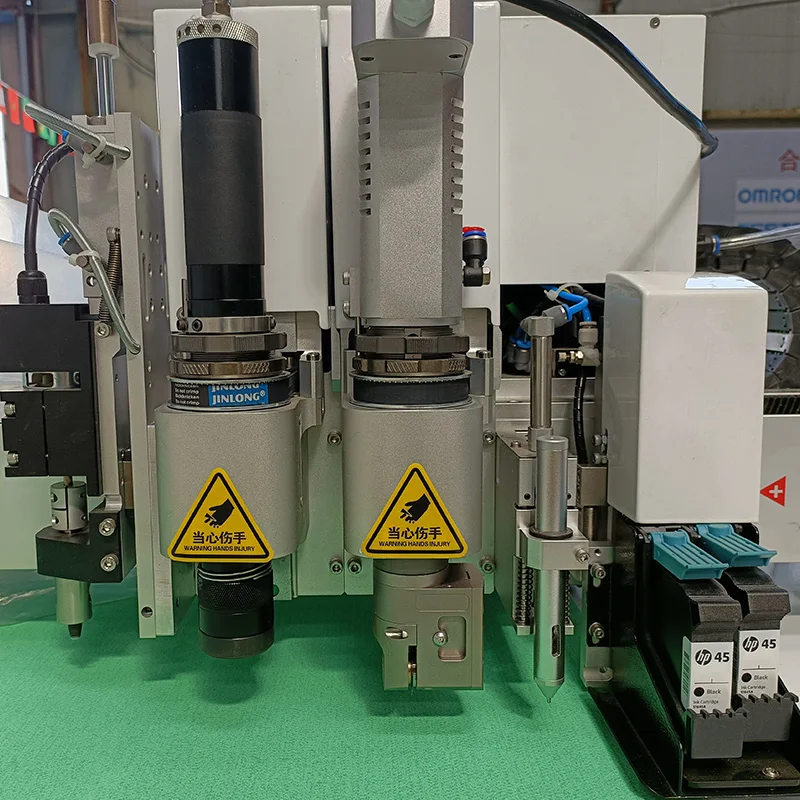

Multi-tool combination system
According to different processing requirements, it can be equipped with milling cutters, oscillating knives, beveling knives, drag knives, creasing knives, half knives, wheel cutters and other tools to meet different materials and different processes
Taiwan HWIN linear guide
The high-quality transmission system adopts Taiwan HWIN linear guides and four rows of high-precision ball sliders, and has its own lubrication system to reduce frictional resistance during high-speed cutting.
The X-axis adopts dual Japanese Mitsubishi servo motors, with a 1:5 high-precision reducer, which has strong power and meets high-precision, high-intensity continuous work.
Schneider low voltage appliances
Scientific and reasonable wiring design, each wiring harness has a number, which is convenient for later maintenance and quality inspection. Relays, power switches, etc. all use Schneider brand to ensure good stability of the machine.
Die-extruded aviation aluminum beam
The beam adopts the die extrusion process, the thickness is 7mm, the precision is higher, the weight is lighter, the deformation resistance is stronger, and it is suitable for high-speed and long-lasting operation.
Vacuum adsorption system
The high-quality aviation aluminum suction table with a thickness of 43mm, combined with a high-power variable frequency vacuum suction pump, has super suction, which can firmly fix the processing materials.
Multi-tool combination system
According to different processing requirements, it can be equipped with milling cutters, oscillating knives, beveling knives, drag knives, creasing knives, half knives, wheel cutters and other tools to meet different materials and different processes
Taiwan HWIN linear guide
The high-quality transmission system adopts Taiwan HWIN linear guides and four rows of high-precision ball sliders, and has its own lubrication system to reduce frictional resistance during high-speed cutting.
Product Paramenters
Model | AMOR1625/AMOR1610 ( Support customization ) | ||||||
Working area | 1600X2500mm/1600X1000mm | ||||||
Maximum cutting speed | 1400mm/s(according to different cutting materials) | ||||||
Precision | ±0.01mm | ||||||
Cutting thickness | 50mm ( Support customization ) | ||||||
Material management | Automatic feeding | ||||||
Fixed material method | Vacuum + zone adsorption | ||||||
Various tool combinations | Milling cutter+Pneumatic cutter+Marking pen | ||||||
Milling cutter + round cutter/oscillating cutter + indentation/bevelling | |||||||
Round knife/oscillating knife + punching + marking | |||||||
Oscillating Knife + Round Knife + Chamfering/Creasing/Kissing/Drag Knife | |||||||
Cutting materials | All kinds of flexible materials,Sponge composite leather,fabric,PVC,glass fiber,silicon,rubber,carbon fiber,cardboard,KT board, PE,carpet,gasket,ABS and so on | ||||||
Transmission system | Drive mode of Mitsubishi servo motor + precision reducer; rack drive; Taiwan HIWIN guide rail | ||||||
Voltage | 220V/380V ±10%, 50Hz/60Hz | ||||||
Supported file formats | PLT, DXF, DWG, AI, etc. | ||||||
Certifications
Company Profile
AMOR is a professional CNC cutting machine manufacturer. After 8 years of development, it has accumulated rich experience in industrial production and R&D, and has formed a complete product structure to meet the different needs of customers.
AMOR has three series of digital cutting machines: BK, MK and SK. Customers can choose the right model according to the size and shape of the material being processed (sheet or roll). AMOR has 11 types of tools, customers can freely combine according to the materials and requirements of cutting, to meet the processing needs of customers, to earn more profits for customers.
In addition to the rich hardware, we also provide customers with intelligent software to meet the customer’s management and nesting of the pieces, reduce the dependence of production on labor, and build an intelligent production line. AMOR equipped the digital cutting machine with an optical system, just like installing a pair of eyes for the digital cutting machine, not only to cut the ordinary materials, but also to cut irregularly shaped or printed materials, such as leather, striped fabrics and other materials.
AMOR combines intelligent software, optical systems and cutting systems. The use of optical systems to identify material information, such as material contours, printed graphics and residual points; intelligent software automatically nests based on this information and sends nested graphics to the digital cutter for automated cutting.
AMOR has three series of digital cutting machines: BK, MK and SK. Customers can choose the right model according to the size and shape of the material being processed (sheet or roll). AMOR has 11 types of tools, customers can freely combine according to the materials and requirements of cutting, to meet the processing needs of customers, to earn more profits for customers.
In addition to the rich hardware, we also provide customers with intelligent software to meet the customer’s management and nesting of the pieces, reduce the dependence of production on labor, and build an intelligent production line. AMOR equipped the digital cutting machine with an optical system, just like installing a pair of eyes for the digital cutting machine, not only to cut the ordinary materials, but also to cut irregularly shaped or printed materials, such as leather, striped fabrics and other materials.
AMOR combines intelligent software, optical systems and cutting systems. The use of optical systems to identify material information, such as material contours, printed graphics and residual points; intelligent software automatically nests based on this information and sends nested graphics to the digital cutter for automated cutting.
Product Packaging
FAQ
FAQ
Q: Payment terms:
A: L/C,Western Union,T/T,Paypal
Q: Delivery time:
A: Standard machine:15-20days ; Customized machine:20-40days
Q:Packing:
A:plastic film inside and plywood case for outside packing
Q: Transportation fee
A: Ship by sea or airplane, railway. Actual cost reimbursement
Q:Instal
A: AMOR offer video teaching,and we have professional technicians who will help you to install, guide and train
Q: After sales service
A: one year, any quality problem, we supply free replacement parts and Free maintenance
Out of one year, replacement parts and repair equipment, the buyer should pay for the parts cost,courier fee and labor cost
A: L/C,Western Union,T/T,Paypal
Q: Delivery time:
A: Standard machine:15-20days ; Customized machine:20-40days
Q:Packing:
A:plastic film inside and plywood case for outside packing
Q: Transportation fee
A: Ship by sea or airplane, railway. Actual cost reimbursement
Q:Instal
A: AMOR offer video teaching,and we have professional technicians who will help you to install, guide and train
Q: After sales service
A: one year, any quality problem, we supply free replacement parts and Free maintenance
Out of one year, replacement parts and repair equipment, the buyer should pay for the parts cost,courier fee and labor cost
