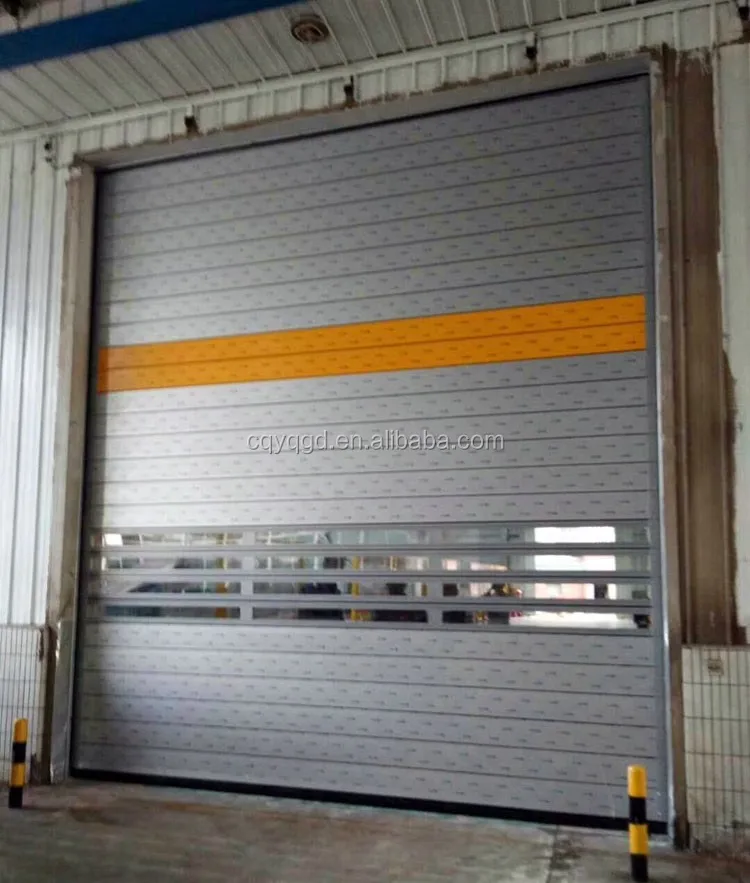

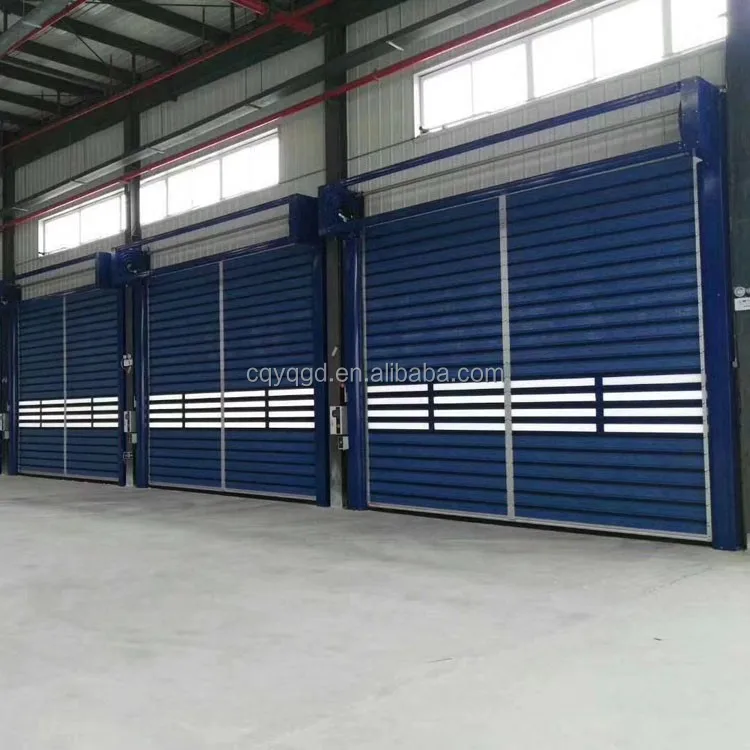

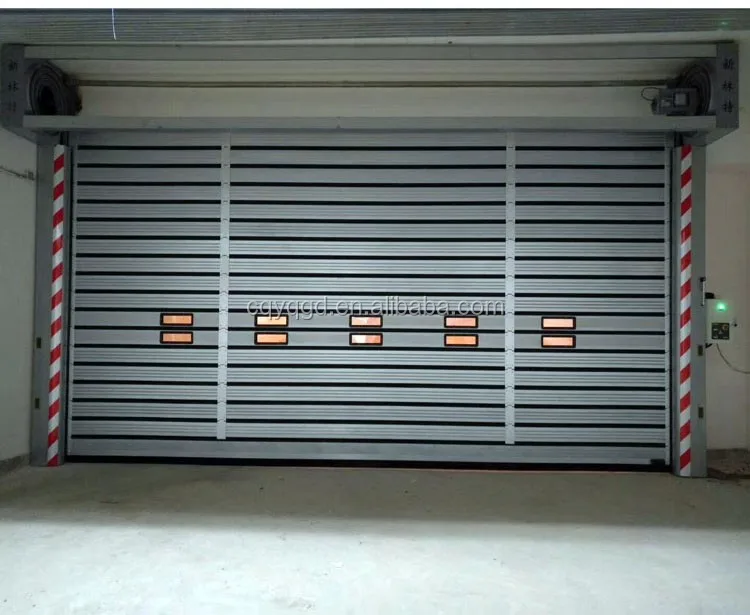

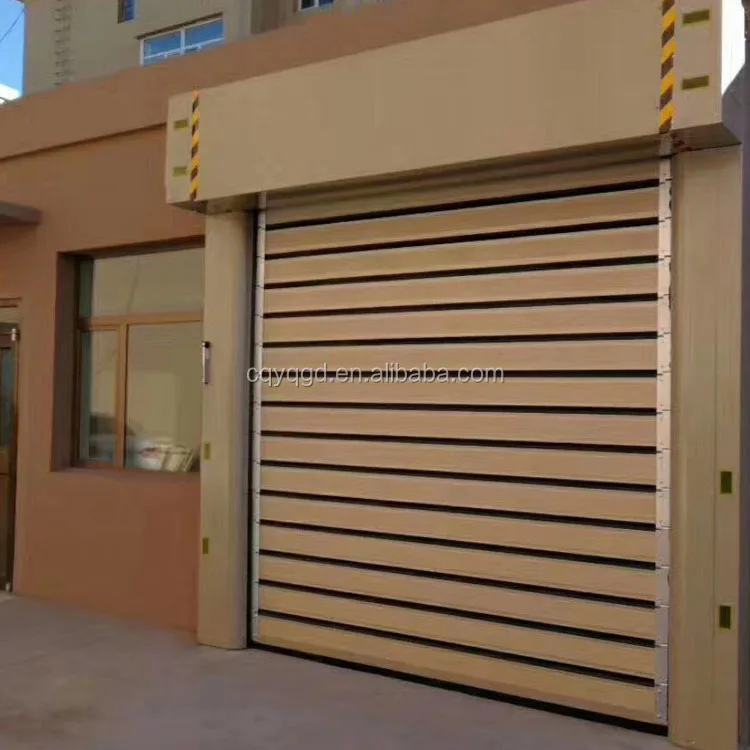

Custom Aluminum Automatic High Speed Roller Shutter Garage Door
- Category: >>>
- Supplier: Qingdao Norton Door Technology Co. Ltd.
Share on (1600615010202):
Product Overview
Description
Fast running speed
Equipped with servo fast door motor and control system, the ascent speed is 0.8 to 2.5 m/s, and the descent is 0.6 to 0.8 m/s
Product Name | High Speed Aluminum Spiral Door |
Material | Aluminum+PU foam insulation |
Color | White, Dark Grey, Silver Grey, Red, Yellow |
Panel thickness | 40mm |
Standard | ISO9001, CE |
Opening Speed | 1.2 to 2.5m/s, adjustable |
Closing Speed | 0.6m/s, adjustable |
Wind resistance | 3.5kPa, 120km/h |
Inverter | Taiwan Shilin Brand |
Motor Voltage | 110V,60HZ,or 220V 50HZ, or 380V 50HZ |
Motor Power Output | 0.75KW,1.5KW,2.3KW and so on |
Used | building industry, logistics |
Good airtightness, heat preservation and noise prevention
Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material, heat insulation and noise prevention
Strong and durable, beautiful appearance
Aluminum alloy door is sturdy and durable, different colors are available; Can be equipped with aluminum transparant panels or windows.
Multiple opening methods
Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.
Technical Drawing
Three lift styles
According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.

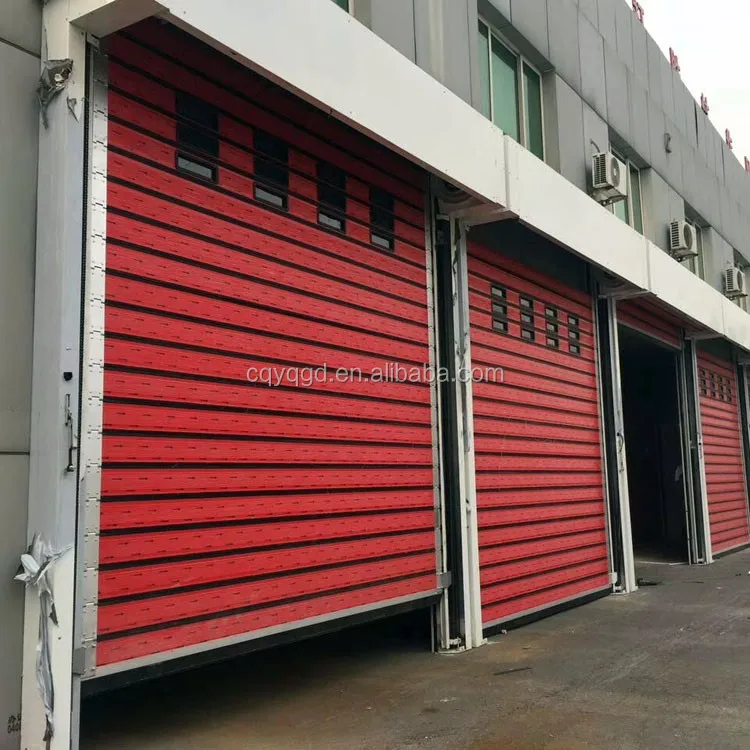

Red Color Panel
Red is our standard color
Yellow Color Panel
RAL1021 yellow color is popular
Silver Grey Color Panel
RAL1021 yellow color is popular
(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.
Guide Rail
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
Oval Spiral guide rail
For headroom Min0.7m
Spiral Guide Rail
For headroom Min0.7m
The spiral circular non-contact track is used, and the panels are not connected to each other when the curtain is rolled, so the panel material will not be worn, deformed.The friction is reduced and the door runs fast, and has no noise.
The door run smoothly, fast and stable. It is suitable for high frequency operation.
High Speed Door Motor

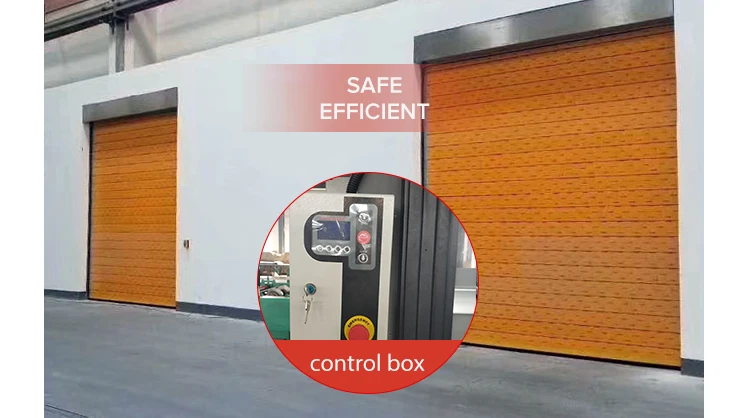

Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.
Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.
Limit: Absolute encoder
Output speed: 100R/Min
Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop Output aperture: Dia.25.4mm
Operating temperature range: -20 to 45°C
A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: What is your contact details?
A: Sales manager : Chenxi. Mobile/whatsapp/wechat:+86-18678967853. Skype: cqyqchenxi
Q: Which city are you in? Are you far from the airport? Are you far from the sea port
A: We are in Qingdao city, Shandong province. It takes 20 minutes from our factory to Qingdao Liuting Airport. Qingdao port is our sea port, takes 2 hours to the port from our factory.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: What is your contact details?
A: Sales manager : Chenxi. Mobile/whatsapp/wechat:+86-18678967853. Skype: cqyqchenxi
Q: Which city are you in? Are you far from the airport? Are you far from the sea port
A: We are in Qingdao city, Shandong province. It takes 20 minutes from our factory to Qingdao Liuting Airport. Qingdao port is our sea port, takes 2 hours to the port from our factory.
