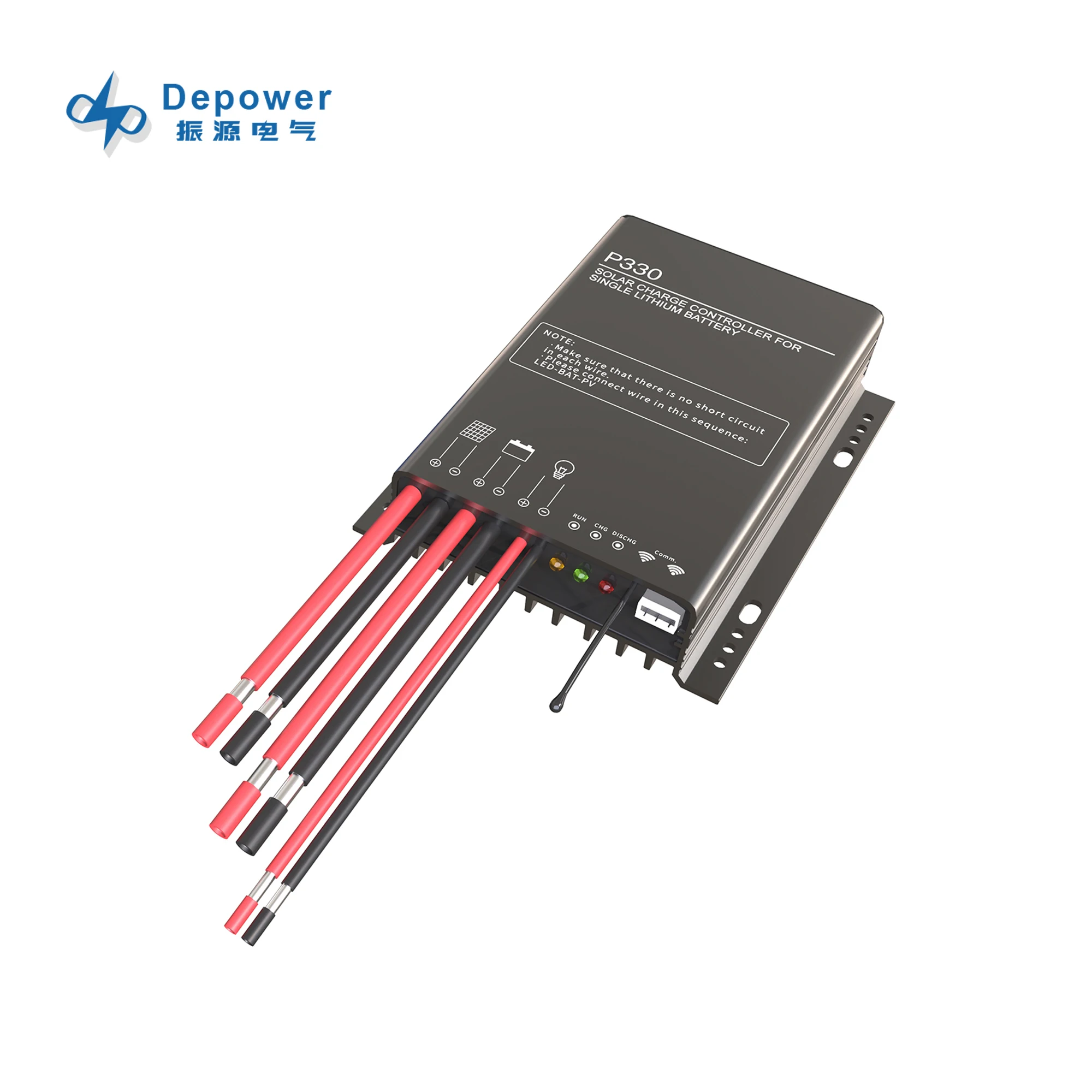

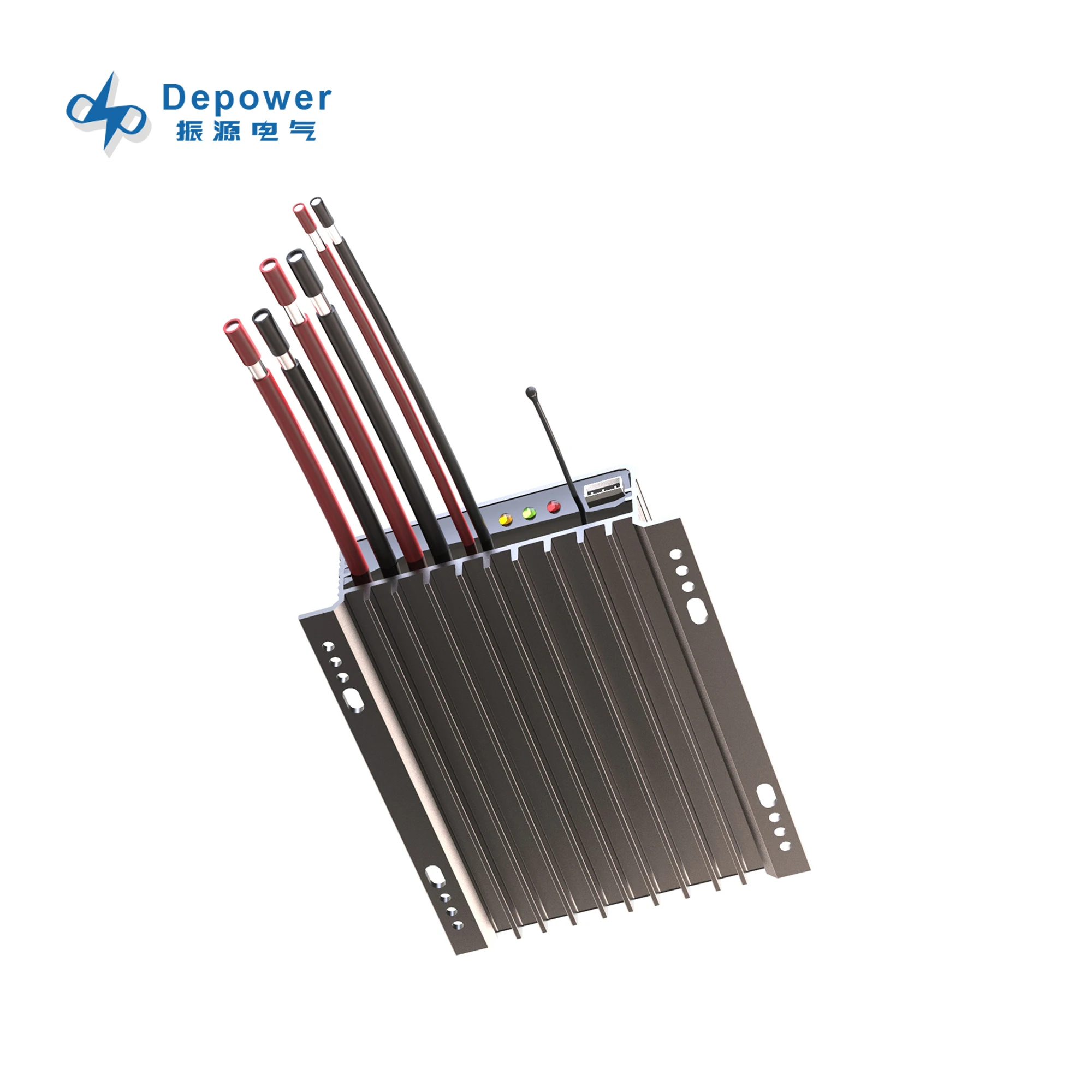

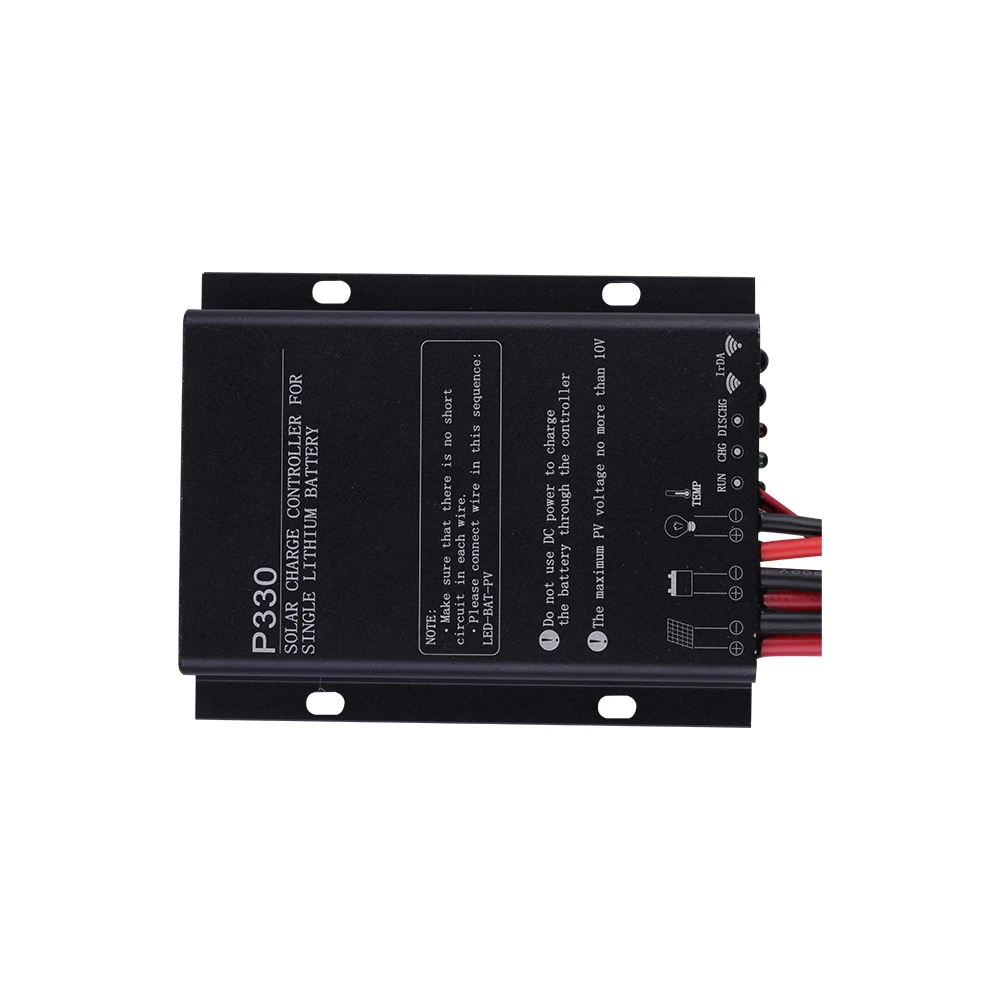

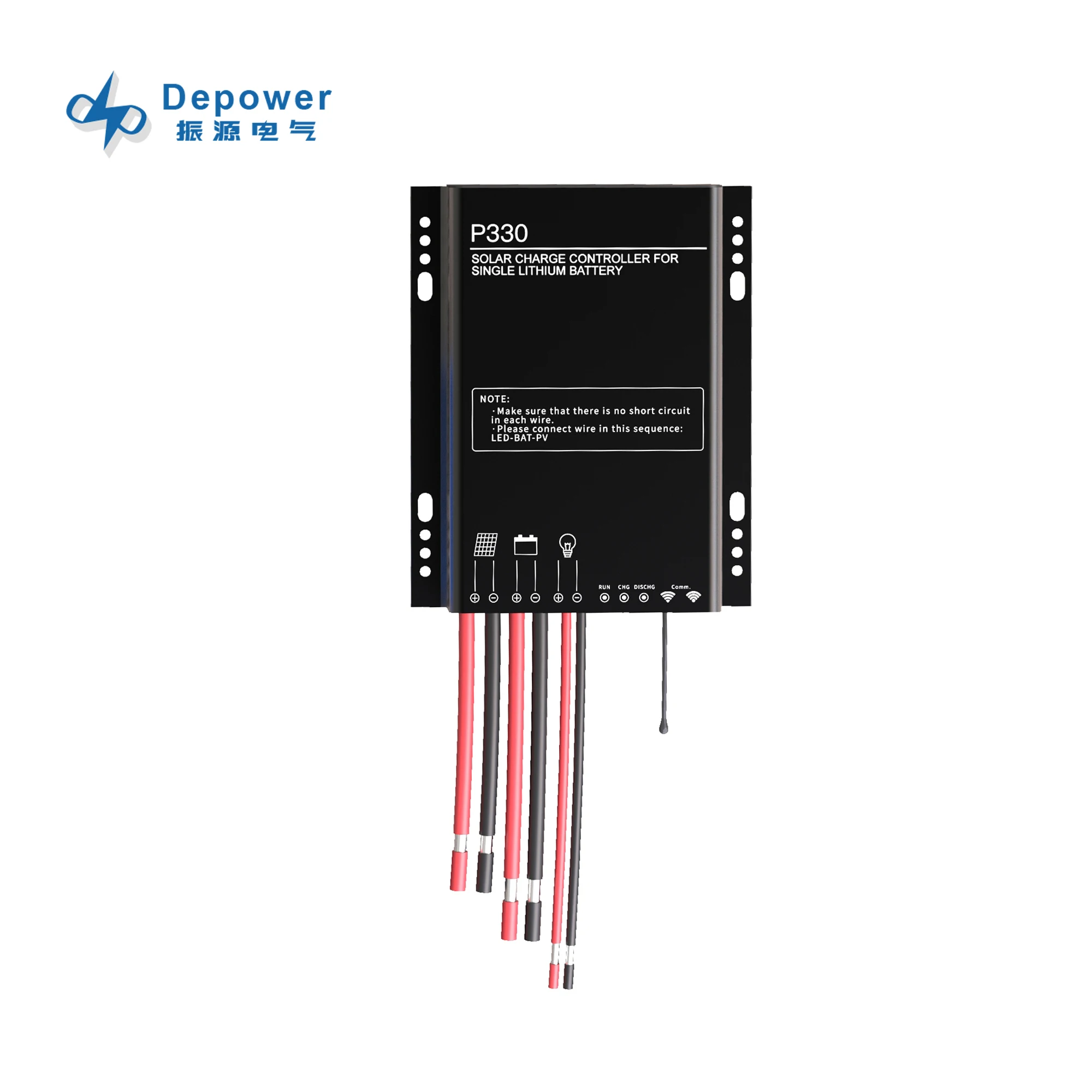

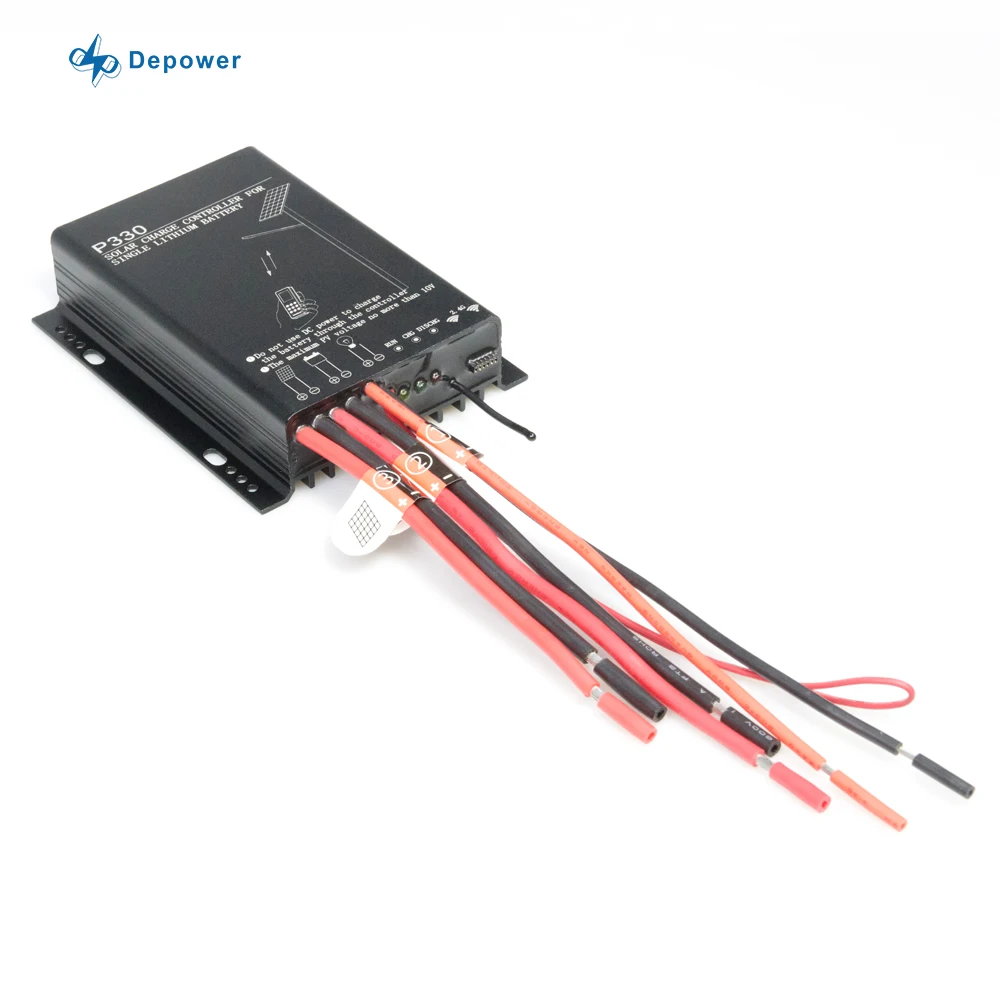

  • Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330
Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330

Depower P330 20A Controller Depower P330 Solar PWM Street Light Charge Controller Depower P330

Share on (1600615010904):


Price:$18.00 - $25.00

Quantity:


Product Overview

Description



Products Description


Technical Specification


PWM IP68 2.4G Communication 3.2V 3.7V 20A PWM Solar Charge Controller with PVC cable waterproof connector
Model name
P330









Battery
parameter
Battery type
Lead acid battery/Lithium battery
Rated system voltage
3.2/3.7V Lead acid(auto identified);lithium(need to be set)
Max. charge current
20A
Boost charge voltage(Settable)
3.6V
Charge voltage range
5-35V
Charge voltage range
0-4.2V
Low voltage disconnect(Settable)

2.6V
Low voltage reconnect(Settable)
3.0V
Temperature compensation coefficient
-4mV/℃/2V


PV
parameter
Max. PV input voltage
10V
Solar panel Max. Power
120W/6V
Turn on lamp PV voltage
1-2V





Output
parameter
Output current range
50～3000mA
Output voltage range
0-4.2V
Max. output power
60W(12V), 100W(24V)
Output current accuracy
≤3%FS
Output mode
1. Five time periods control ；2.Five time periods sensing；3.Morning light
function
Output dimming range
0-100%






System
parameter
Max. output efficiency
89.4%
Self consumption current
≤0.24W(12V)；≤0.52W(24V)
Communication
2.4G/Infrare
Operating temperature range
-35～60℃
Relative humidity range
0～100%RH
Max. operating altitude
3000M
Degree of protection
IP68(1.5m,72h)
Certification
CQC,CE,RoHS

Mechanical
parameter
Weight
0.35KG
Dimensions
101MM*82MM*23.5MM
Package
54PCS/BOX


PWM IP68 Waterproof 2.4G Communication USA Standard Wire 12V 24V 15A PWM Solar Charge Controller




Main Features


1.Professional design to comprehensively promote system reliability
 Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
 Super high charging efficiency and driving efficiency, significantly reducing product
temperature
 Industrial-grade MCU all-digital technology, without any adjustable resistance, strong anti-interference ability, no aging and drift problems
 IP68 protection level, no any buttons, further improve waterproof reliability
2.High conversion efficiency
 Constant current drive LED efficiency up to 96%
3.Intelligent battery management
 PWM and CV charging modes, perfectly matched with lithium battery protection board
Intelligent charge and discharge management based on temperature compensation, greatly
extending battery life by more than 50%
 Intelligent energy management of the battery to ensure that the battery operates in a shallow
charge and discharge state, greatly extending the battery life
4.Intelligent drive management
 Automatically lights up the lamp in the dark, automatically turn off the lamp in the daylight
 Five time periods control
 Dimming function, each time period can control different output power
 morning light function
 time control and morning light function in induction mode
5.Flexible parameter setting function
 Support 2.4G wireless communication、Infrared communication
6.Perfect protection
 Battery reverse connection protection
 Solar panel reverse connection protection
 Prevent discharging from battery to solar panel at night
 Battery low voltage protection
 LED output short circuit protection
 LED output open circuit protection


Company Profile


Shenzhen Depowersupply Electric Co., Ltd.
  Shenzhen Depowersupply Electric Co., Ltd. is committed to the application of power electronics in the new energy industry. The main products include MPPT solar charge controller, solar street light controller, solar off-grid inverter and so on. We rely on our own intellectual property and technology platforms to provide our customers with the best off-grid systems and product solutions.
Depowersupply has a highly qualified R&D team with an average age of 35 years. We have core cutting-edge power electronics platforms such as vector control technology, three-electrical level technology, LLC technology and SRC technology, and have obtained a number of national patents. Depowersupply adheres to the needs of customers and adheres to the design concept of “efficient, lightweight, reliable and easy to use” to develop products with industry-leading.
