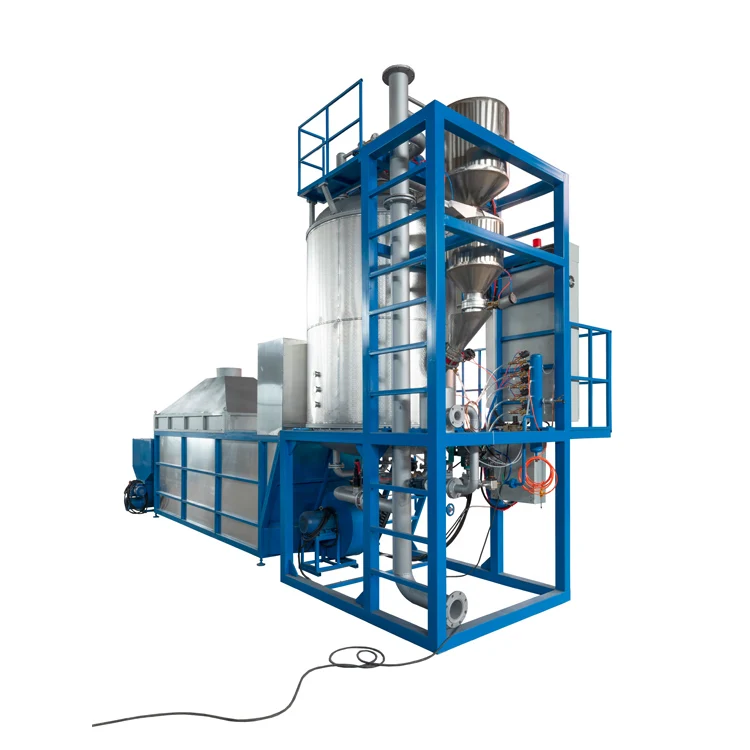

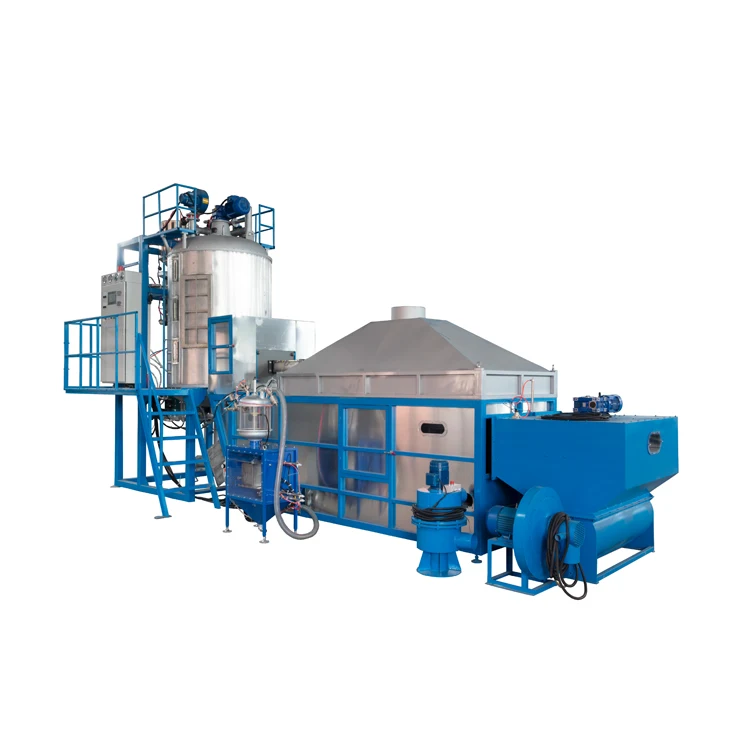

Eps Full Automatic Eps Expanding Machine For Foam Beads
- Category: >>>
- Supplier: Hangzhou Bes Technology Co. Ltd.
Share on (1600615124663):
Product Overview
Description
Item | BES-JYA-50 | BES-JYA-90 | BES-JYA-130 | BES-JYA-160 |
Expansion Chamber(Dia) | 500MM | 900MM | 1300MM | 1600MM |
Volumn | 0.14M3 | 0.85M3 | 2.4M3 | 5.4M3 |
Useable Volumn | 0.1M3 | 0.6M3 | 1.6M3 | 4.5M3 |
Steam | 0.5-0.7KGS/Cycle | 2-4KGS/Cycle | 10-12KGS/Cycle | 18-20KGS/Cycle |
Compressed Air | 0.2-0.3M3/Cycle | 0.3-0.4M3/Cycle | 0.7-0.9M3/Cyle | 0.5-0.8M3/Cyle |
Drainage | DN65 | DN100 | DN100 | DN150 |
Throughput 12G/L | 80KGS/H | 240KGS/H | 530KGS/H | 1400KGS/H |
Throughput 15G/L | 110kKGS/H | 350KGS/H | 670KGS/H | 1800KGS/H |
Throughput 25G/L | 120KGS/H | 480KGS/H | 920KGS/H | 2300KGS/H |
Throughput 30G/L | 150GKS/H | 540KGS/H | 1220KGS/H | 2800KGS/H |
Material Conveying Line DIameter | 150MM | 150MM | 150MM | 250MM |
Connected Load | 9.5KW | 16.75KW | 20.3KW | 38.45KW |
Density | 12-140G/L | 12-90G/L | 12-30G/L | 12-30G/L |
Density Tolerance | +-1.5/L | +-1.5% | +-2% | +-2% |
Outside Dimensions | 3000x3800x3800MM | 6500x2000x4900MM | 7380×3000×4500MM | 11000×2840×6050MM |
Weight | 1500KGS | 2500KGS | 4200KGS | 8000KGS |
Room Height Required | 5000MM | 5000MM | 5500MM | 7000MM |
FAQ
1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.
2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: What's the MOQ?
A: Our MOQ is 1 Set.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
7. Q: What is the payment terms?
A: T/T, L/C, at sight
8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control. Every part of our products has its own QC.
9. Q: What certificate do you have?
A: We have, CE, Also we can apply any certificate if you need if the qty is OK.
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.
2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: What's the MOQ?
A: Our MOQ is 1 Set.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
7. Q: What is the payment terms?
A: T/T, L/C, at sight
8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control. Every part of our products has its own QC.
9. Q: What certificate do you have?
A: We have, CE, Also we can apply any certificate if you need if the qty is OK.
