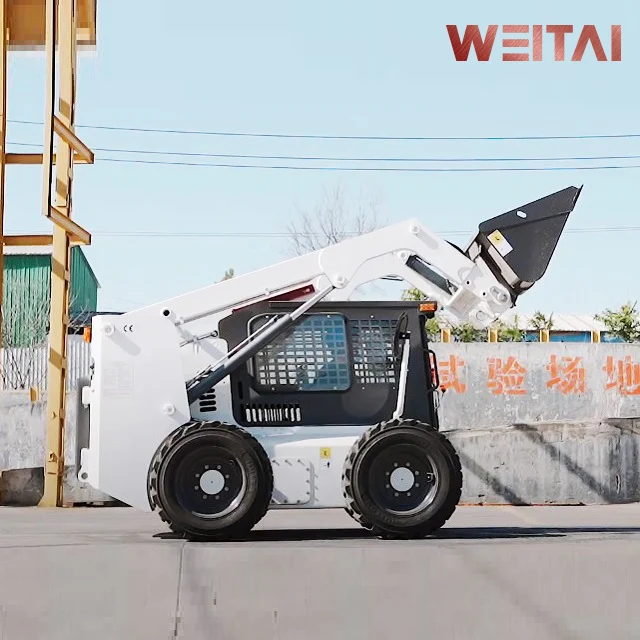

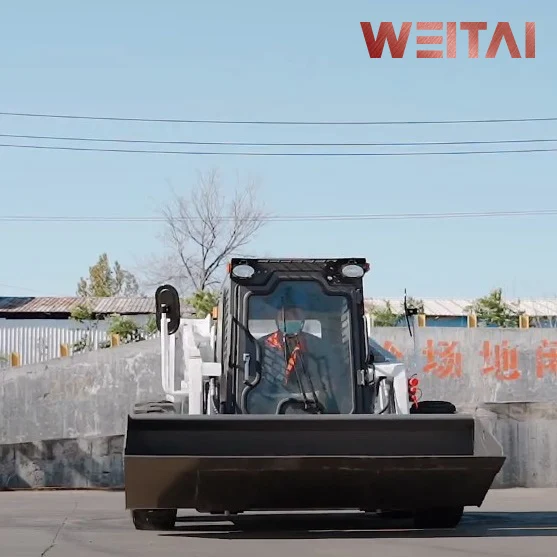

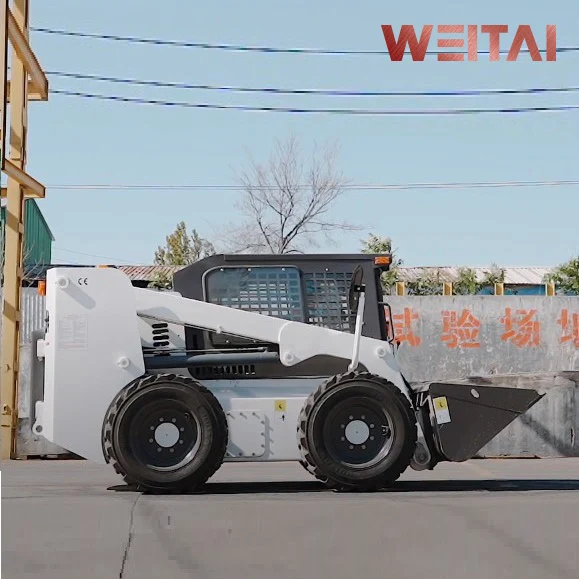

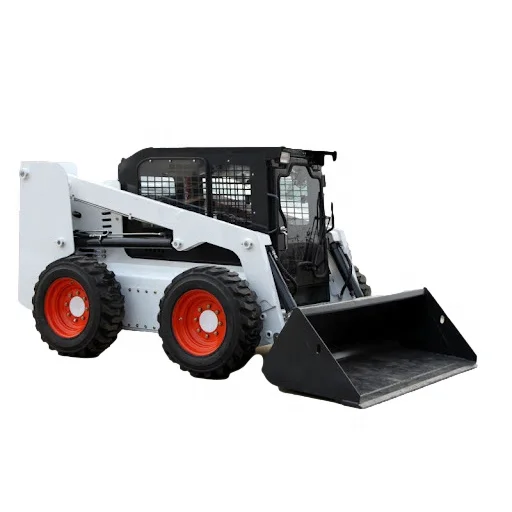

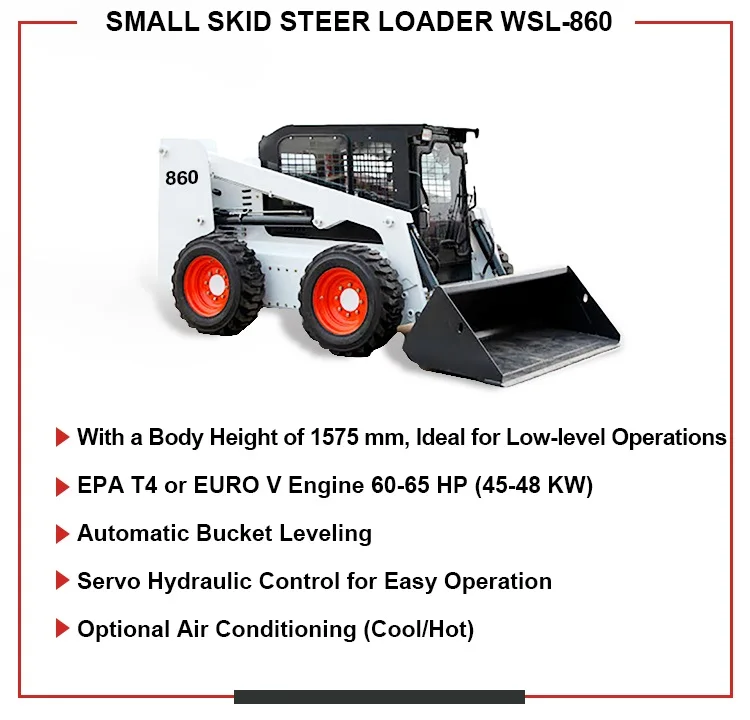

Original Manufacturer Mini 860 Kg Skid Steer Loader/China Factory Direct Supply Skid Loader with Snow Plow Attachment Low Price
- Category: >>>
- Supplier: Qingdao Weitai Intelligent Equipment Co. Ltd.
Share on (1600615147139):
Product Overview
Description
PRODUCT OVERVIEW
FEATURES AT A GLANCE
PERFORMANCE | UNIT | WSL-860 |
Rated Operating Capacity | kg | 860 |
Operating Capacity | kg | 1720 |
Operating Weight | kg | 2980 |
Bucket Volume | m³ | 0.44 |
Travel Speed | km/h | 11.2 |
PRODUCT DIMENSIONS
No. | Item | Unit | Data |
A | Operating Height | mm | 3600 |
B | Height with Operator Cab | mm | 1575 |
C | Angle of Departure | ° | 26 |
D | Ground Clearance | mm | 188 |
E | Length without Attachment | mm | 2610 |
F | Length with Standard Bucket | mm | 3390 |
G | Rollback @ Carry Position | ° | 31 |
H | Dump Height with Standard Bucket | mm | 2070 |
I | Dump Reach @ Maximum Height | mm | 435 |
J | Height to Bucket Hinge Pin | mm | 2745 |
K | Height to Bottom of Level Bucket | mm | 2560 |
L | Front Turning Radius without Bucket | mm | 1365 |
M | Front Turning Radius | mm | 2050 |
N | Rear Clearance of Machine | mm | 1680 |
O | Width over Bucket | mm | 1965 |
P | Width with Standard Tire | mm | 1925 |
ATTACHMENTS
SIMILAR PRODUCTS
WORKSHOP
ABOUT US
WEITAI
With years of accumulation in hydraulic systems, WEITAI started to venture into the design & production of construction machinery, and now has formed two series of products: skid steer loaders & mini excavators. The core components of WEITAI’s loaders and excavators are equipped with domestic high-end hydraulic parts as standard, with stable performance and outstanding cost performance, which are widely welcomed by the international market.
FAQ
1. Does WETAI machines have a hydraulic control system or an electric one?
We can produce both – hydraulic and electric machines.
2. What certificates does WEITAI construction equipment have?
CE, ISO, EPA
3. What is the minimum order quantity?
1 piece
4. What are the terms of payment？
L/C, T/T, D/A, D/P
30% prepayment
5. What is the delivery time?
Usually, it takes around 60 days, but it can change depending on the specific order.
Please message our sales team for more information.
6. What is the warranty period?
The warranty period for all WEITAI machines is 1 year or 2000 working hours (depending on what occurs the first).
7. Can I customize the colors of the machines?
Yes, we support customization.
We can produce both – hydraulic and electric machines.
2. What certificates does WEITAI construction equipment have?
CE, ISO, EPA
3. What is the minimum order quantity?
1 piece
4. What are the terms of payment？
L/C, T/T, D/A, D/P
30% prepayment
5. What is the delivery time?
Usually, it takes around 60 days, but it can change depending on the specific order.
Please message our sales team for more information.
6. What is the warranty period?
The warranty period for all WEITAI machines is 1 year or 2000 working hours (depending on what occurs the first).
7. Can I customize the colors of the machines?
Yes, we support customization.
