Product Overview

Description



Company Profile


Mecca Power, as part of a Global Power Supplier initiative, provides a professional solution for the design, application and after-sales support of generators. Strongly focused on innovation and the inherent flexibility of product design, Mecca Power has been successful in global markets with a broad and diverse range of genset power products that can operate autonomously or independently. parallel, on-site or remotely controlled.

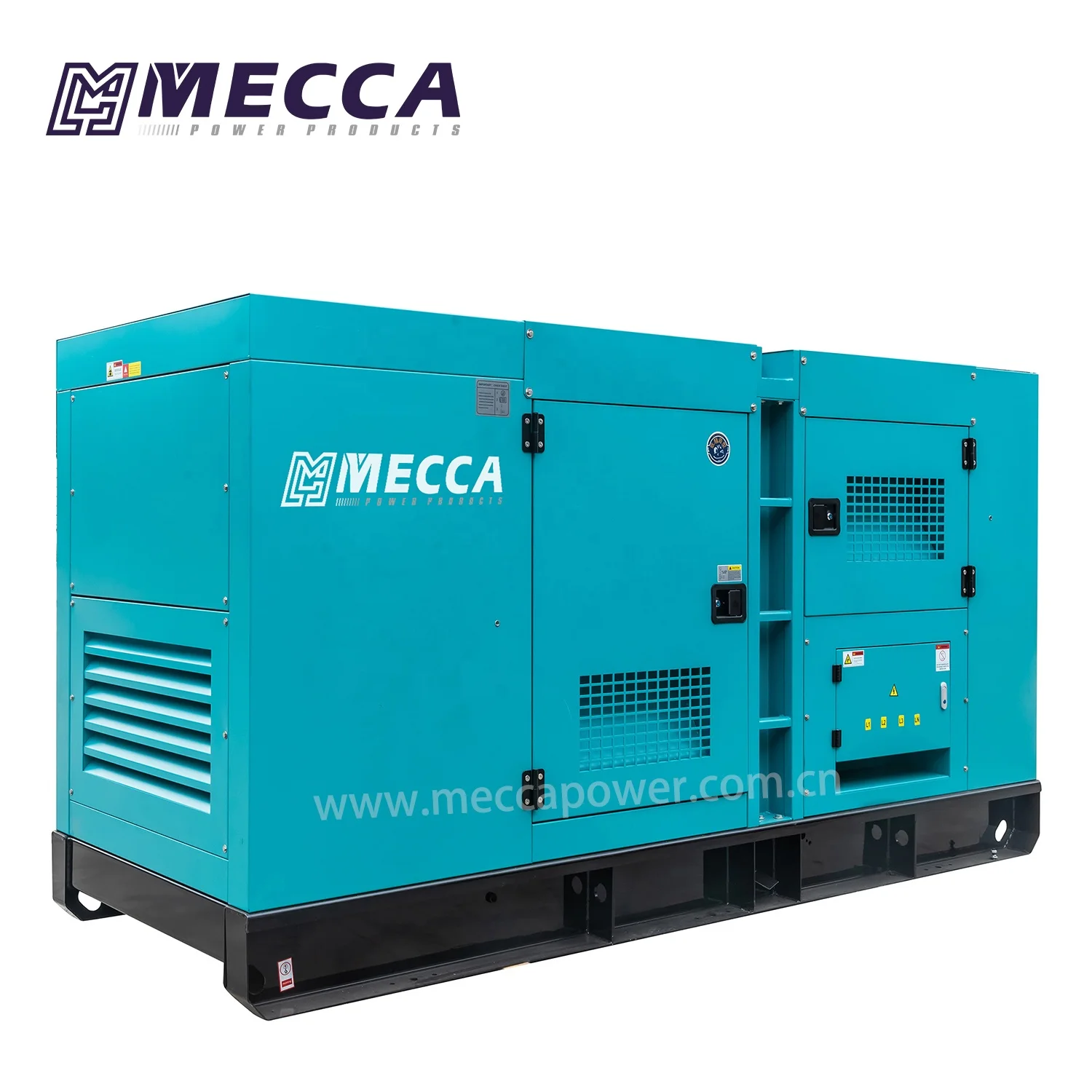

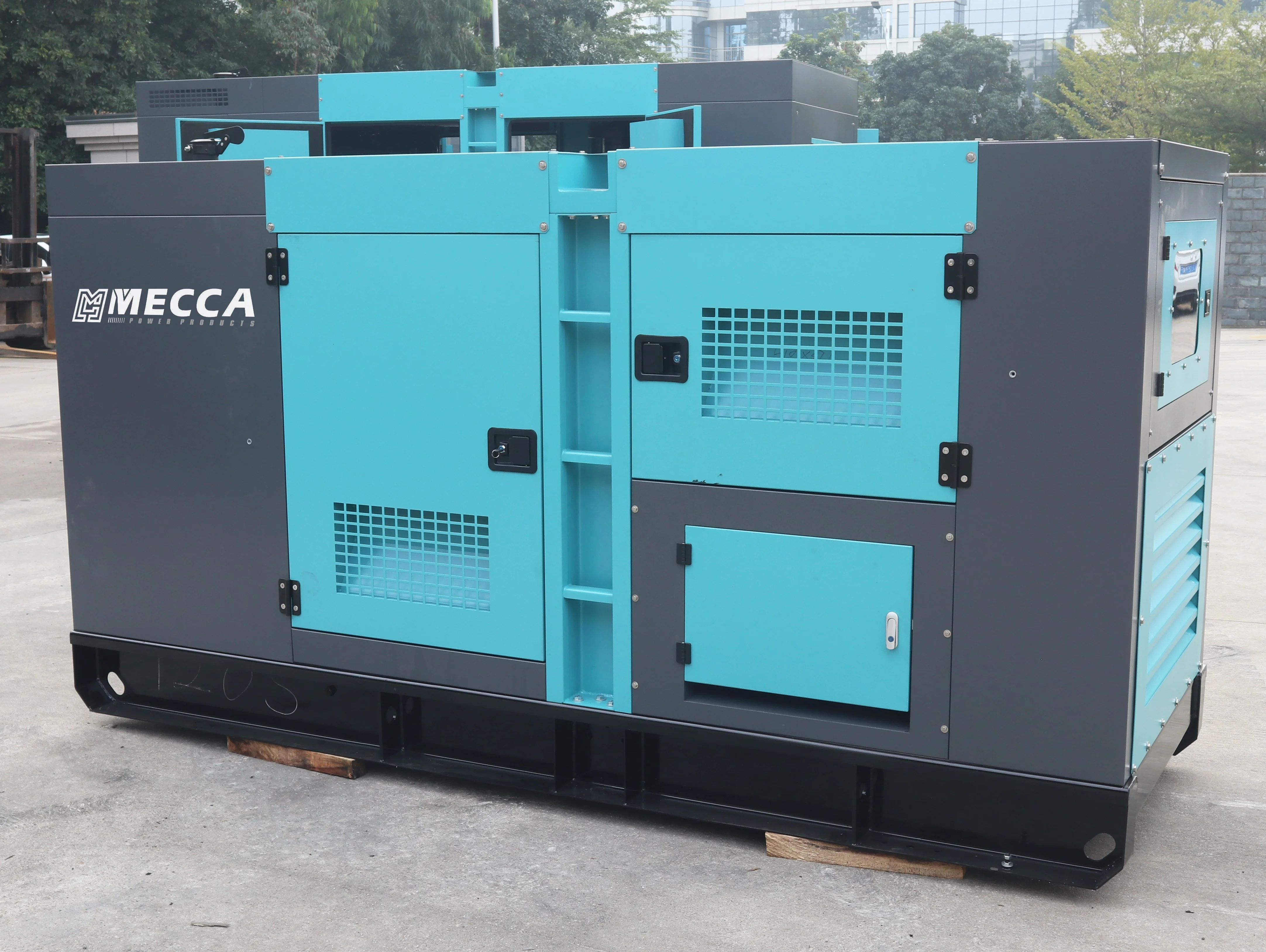

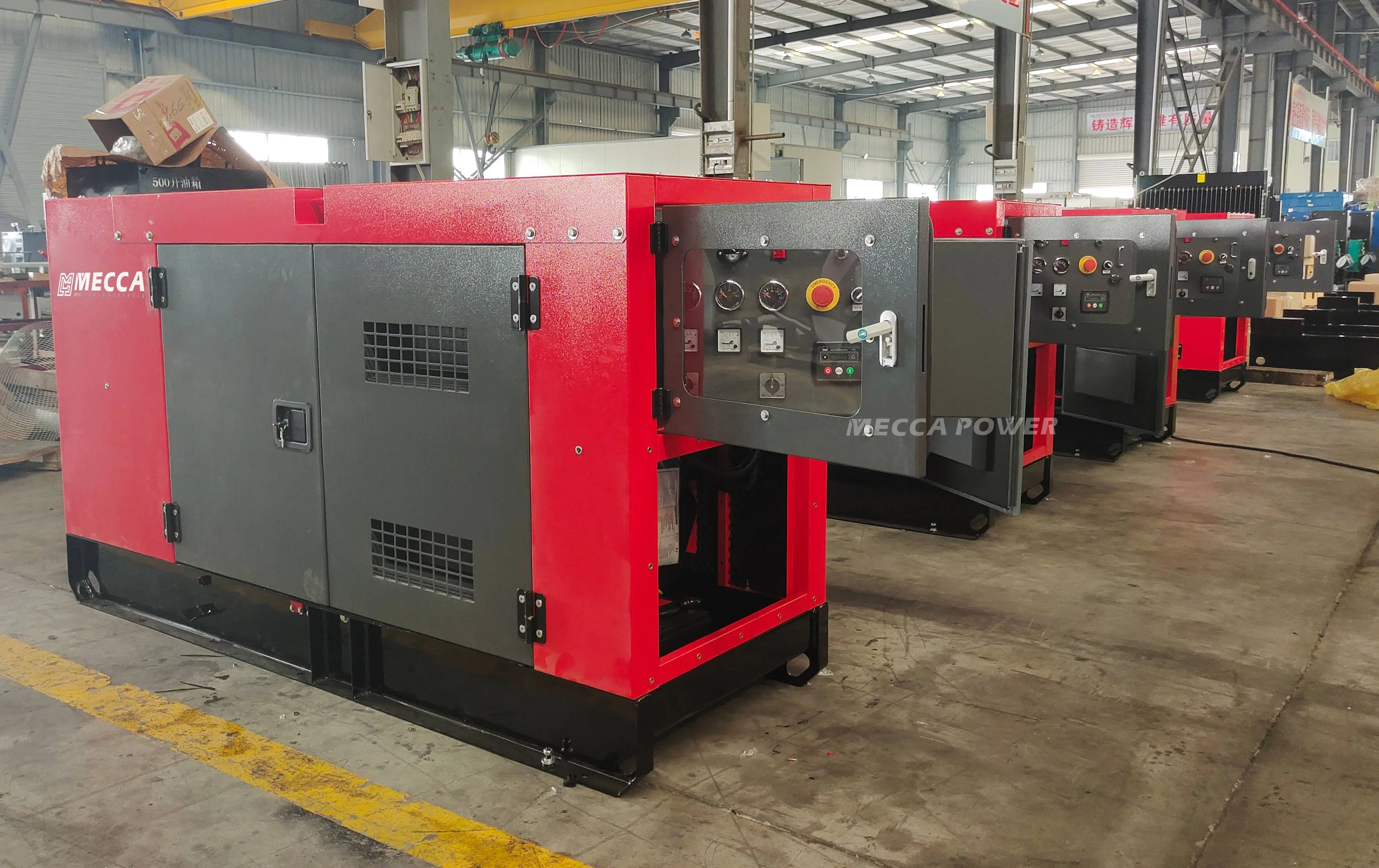

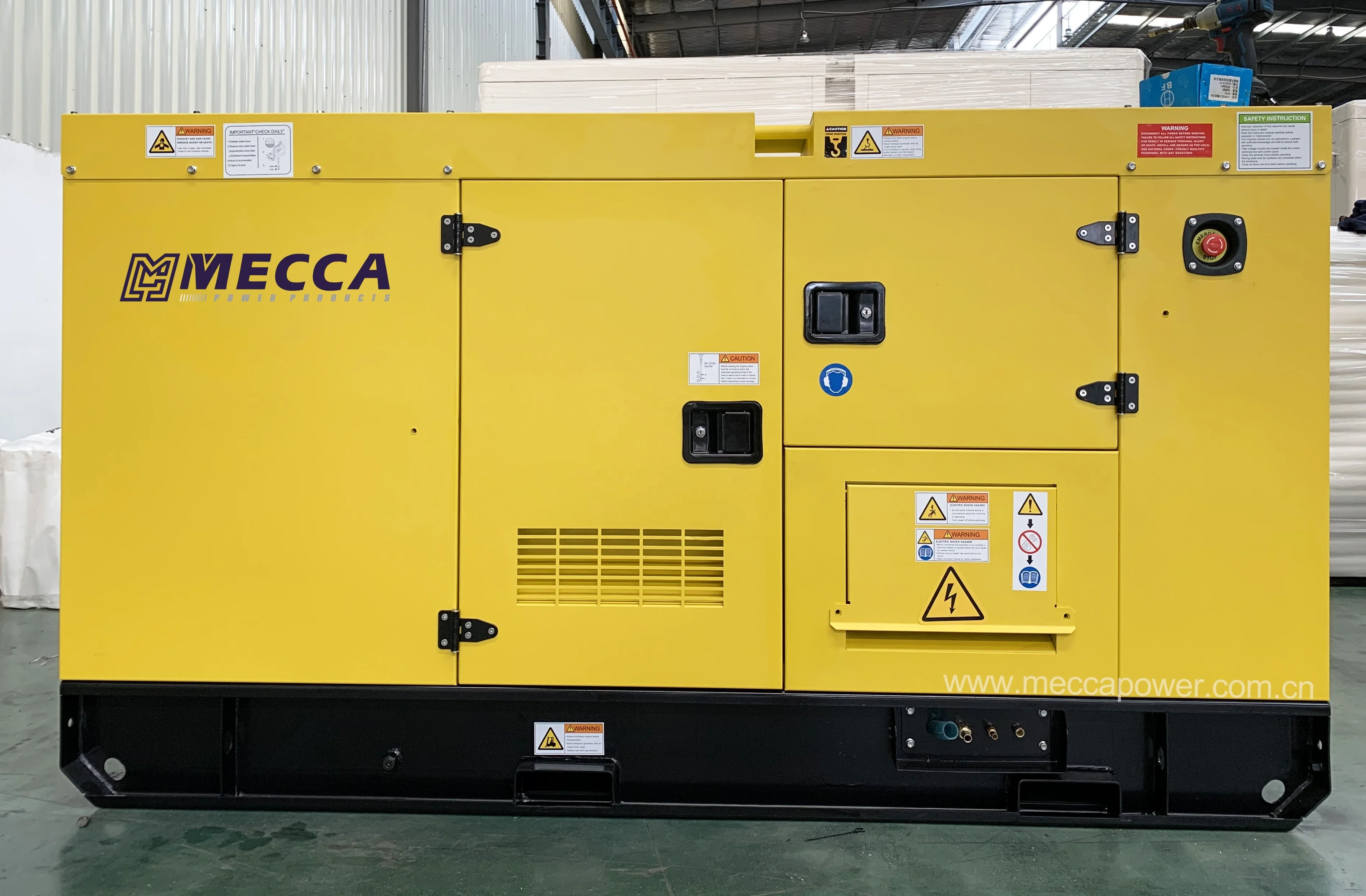

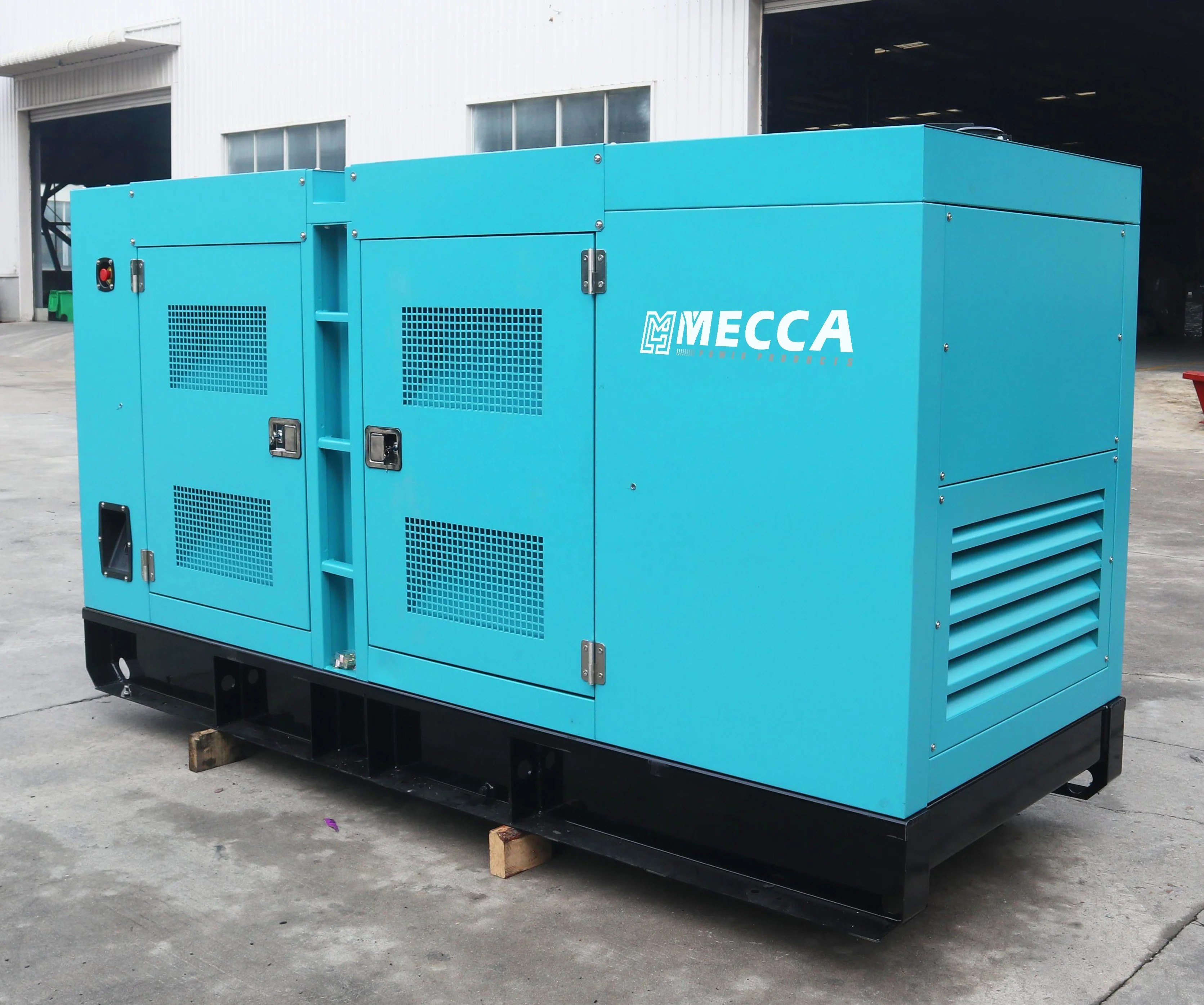

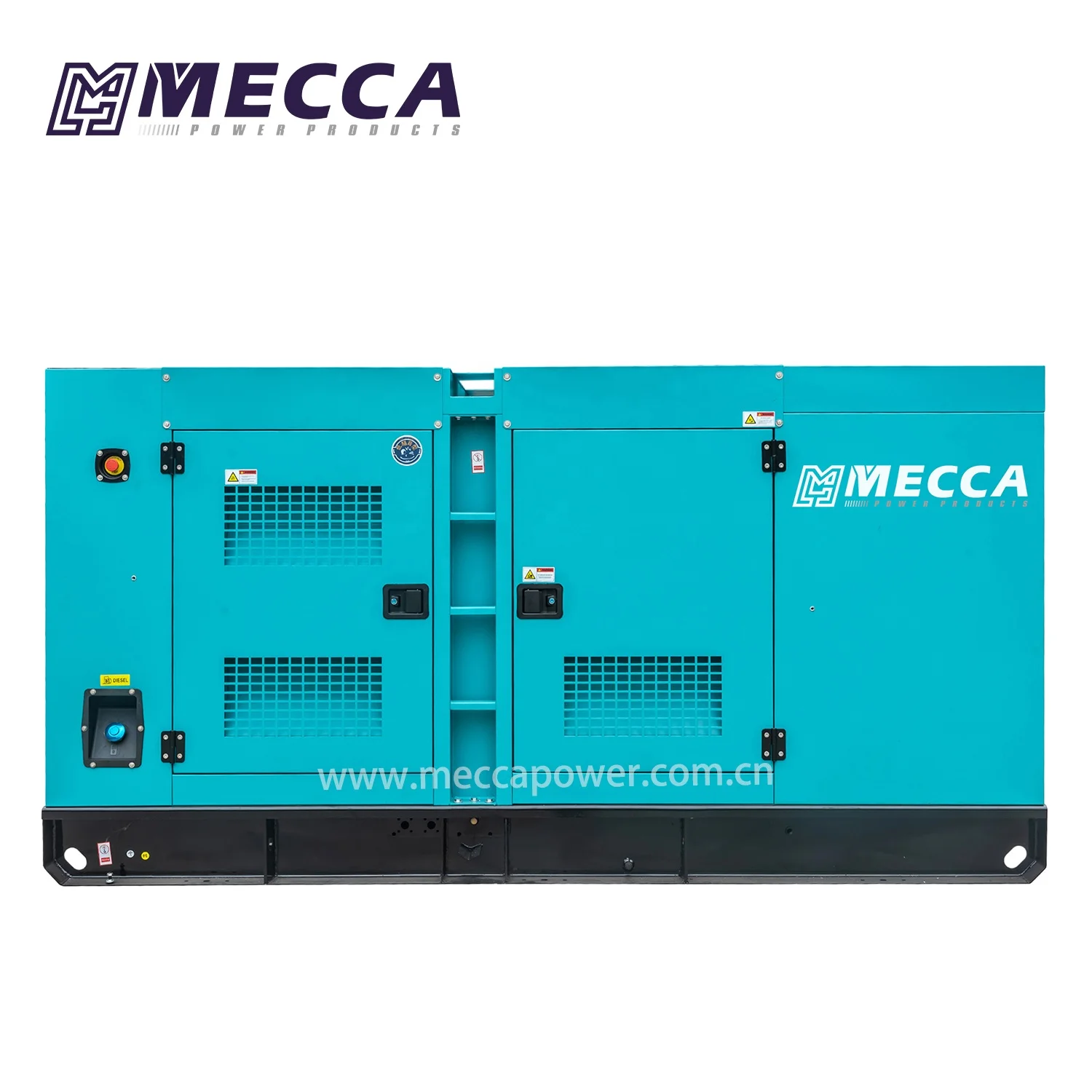

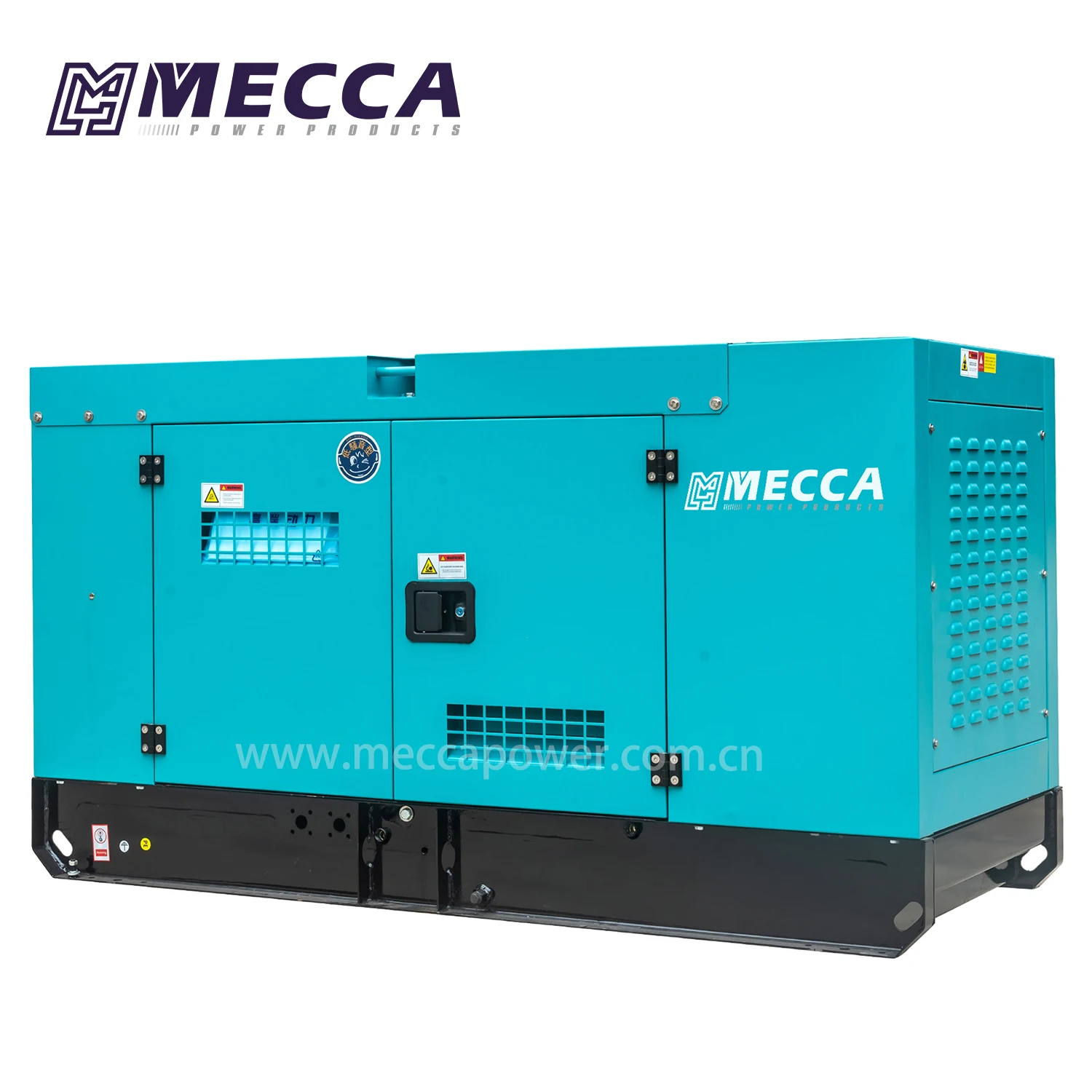

Silent Diesel Generator Set

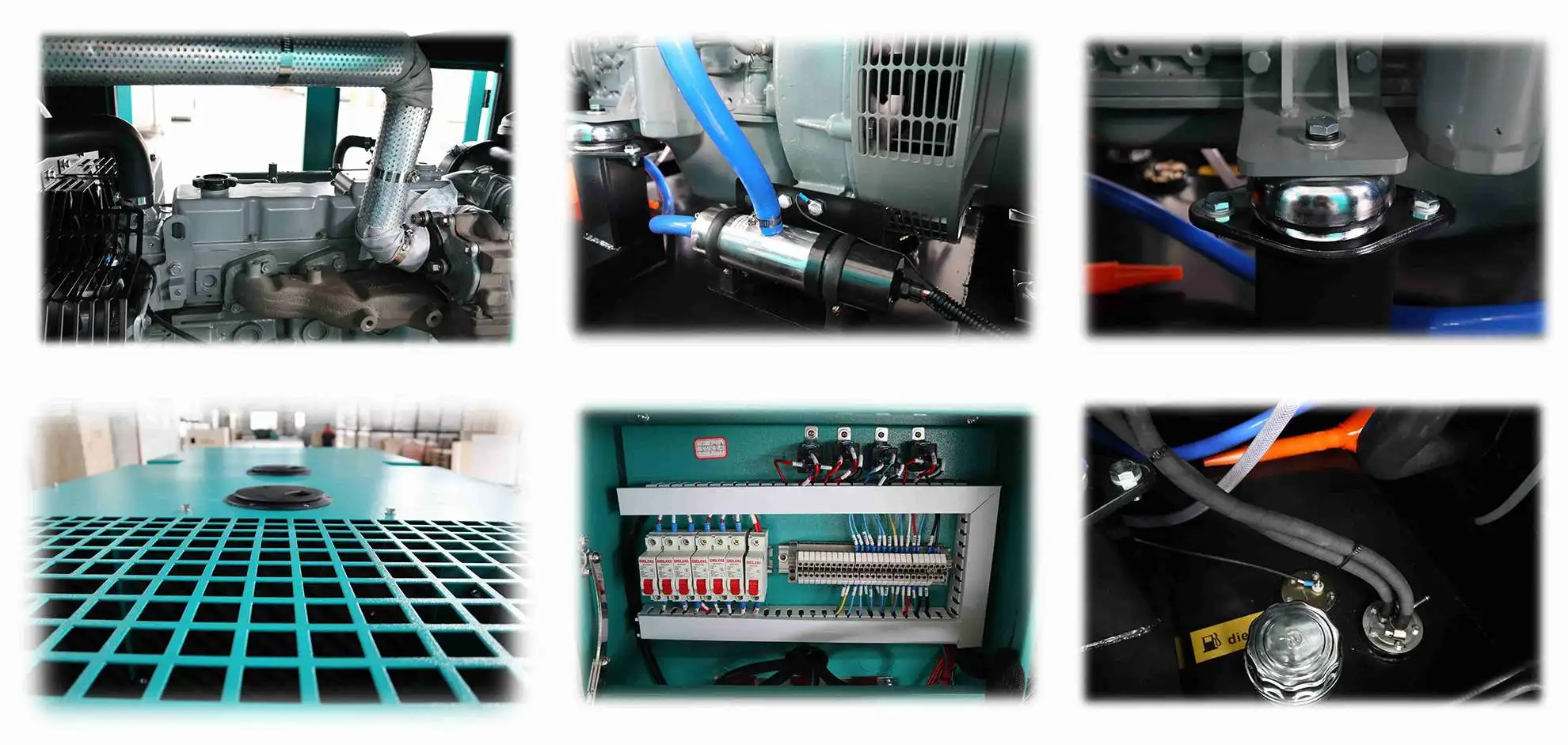

Diesel Gensets Details




General Feature
♦ Assembled by diesel engine and Brushless alternator.
♦Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V or 24V battery, battery wires.
♦ Battery and float battery charger as standard supply scope.
♦ Fuel level indicator in meter and panel
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.


Specification


Powered by ISUZU Series                                                                            50HZ     400/230 V 22-42KVA


Model
LTP
PRP
Engine
Fuel Cons.

Cylinder
Displacement

Gov.
KVA / KW
KVA/KW
Model
L/H(100%)
L
MC22I
22
18
20
16
4JB1
5.6
4L
2.771
M/E
MC27I
27
22
25
20
4JB1
5.6
4L
2.771
M/E
MC33I
33
26
30
24
4JB1T
6.4
4L
2.771
M/E
MC42I
42
33
37
30
4JB1TA
6.8
4L
2.771
E






Why Choose Us












Certifications




Contact Us




FAQ


Payment Terms:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.

Delivery:
Approximately 2-4 weeks upon order confirmation.

Service Guarantee:
Before Service: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds
of information.

After Service:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date.
During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or
raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After
checking, our company provides cost spare-parts maintenance for gensets .

Beside genset one-stop purchasing service to world-wide customers,CKD and SKD packing service are also available according to
unique request.

CKD:Complete Knock Down Generator
Generator completely knocked down into parts without assembling.
All items from following are seperately packed without connection.

SKD:Semi Knock Down Generator
Partially assembled generator.
Part of the following items you choose will be assembled.

Advantage:
Prompt delivery
Reduced tax to win more competition
Lower transportation fees to save cost
Localized production to win more tenders.
Increased production to offer more job opportunity for the government
