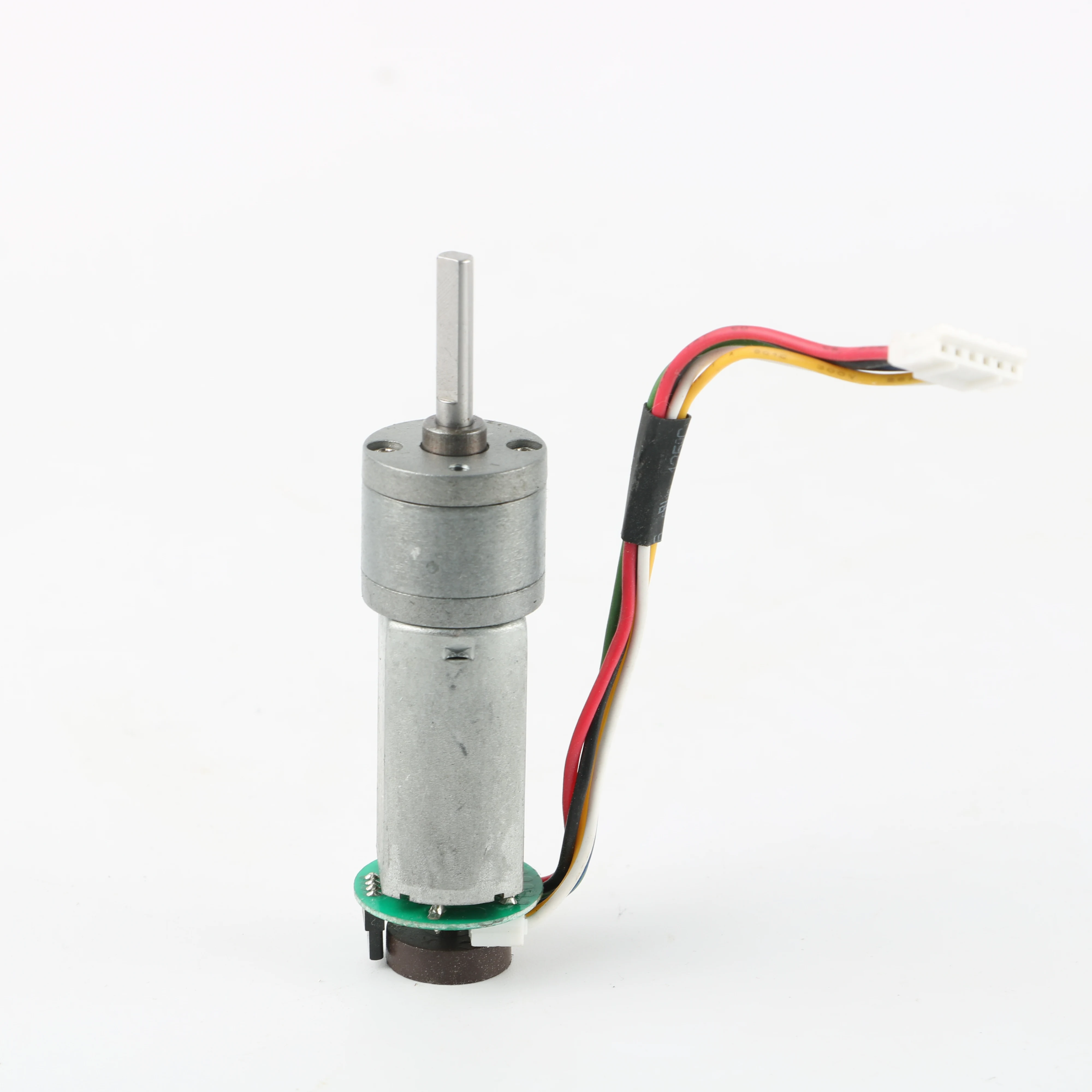

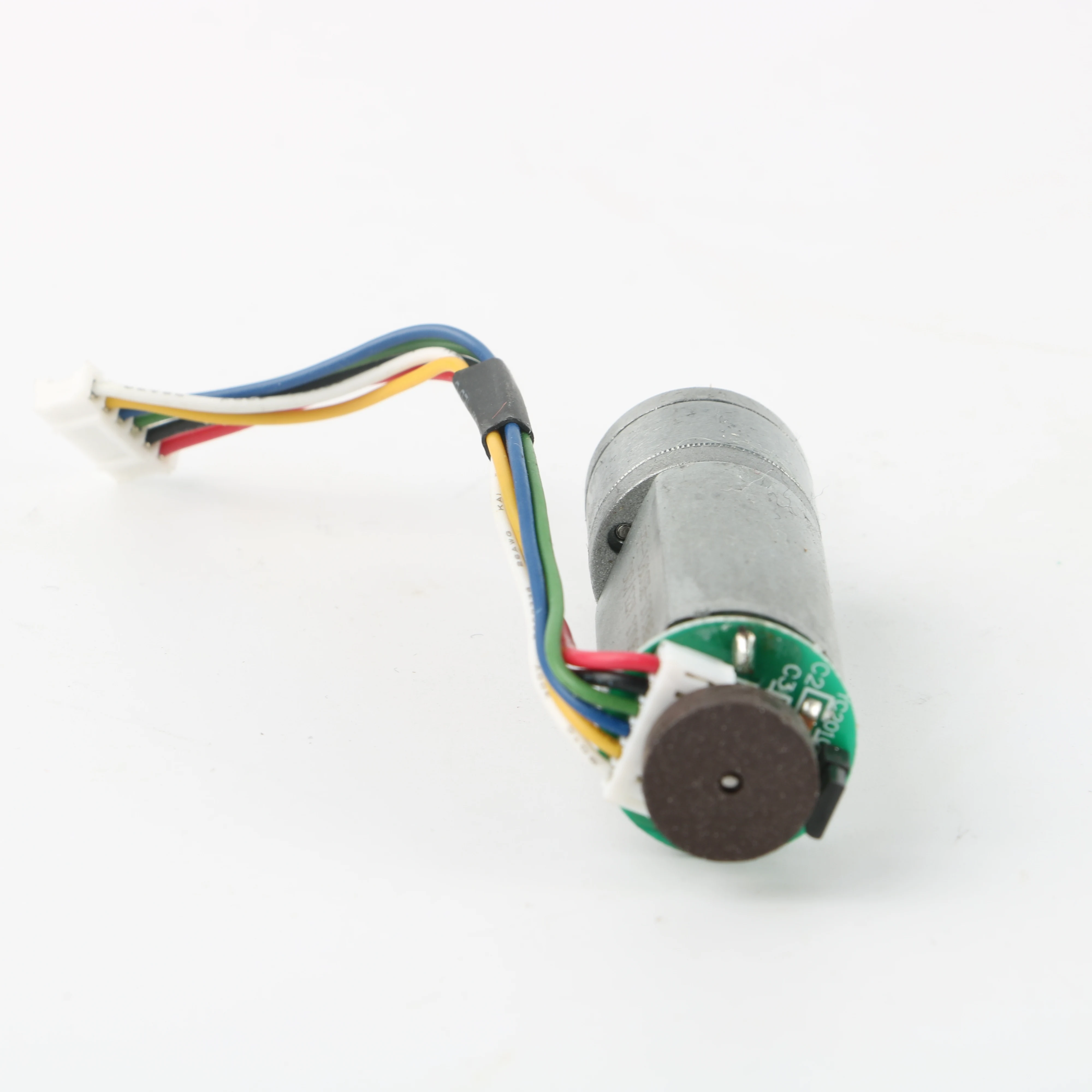

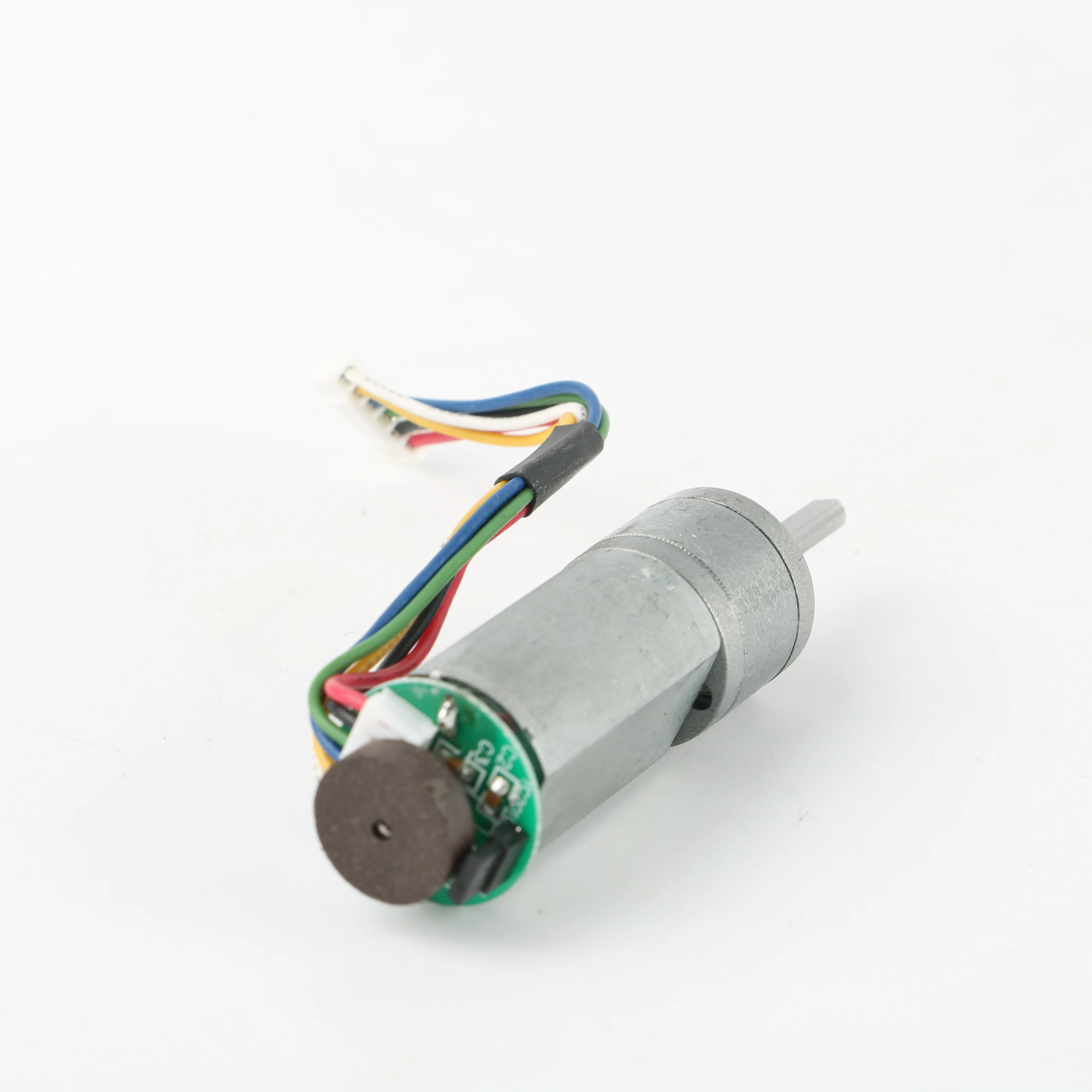

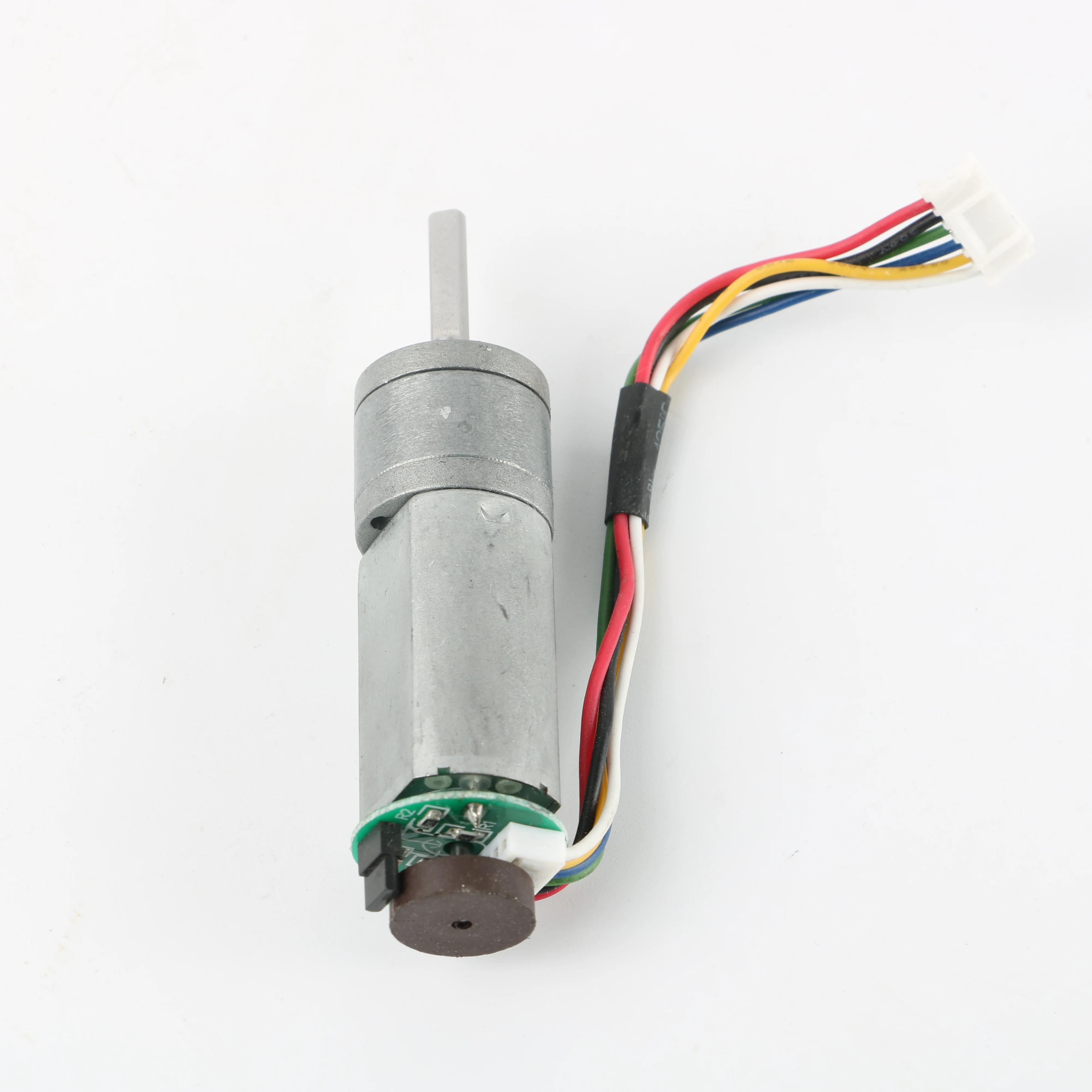

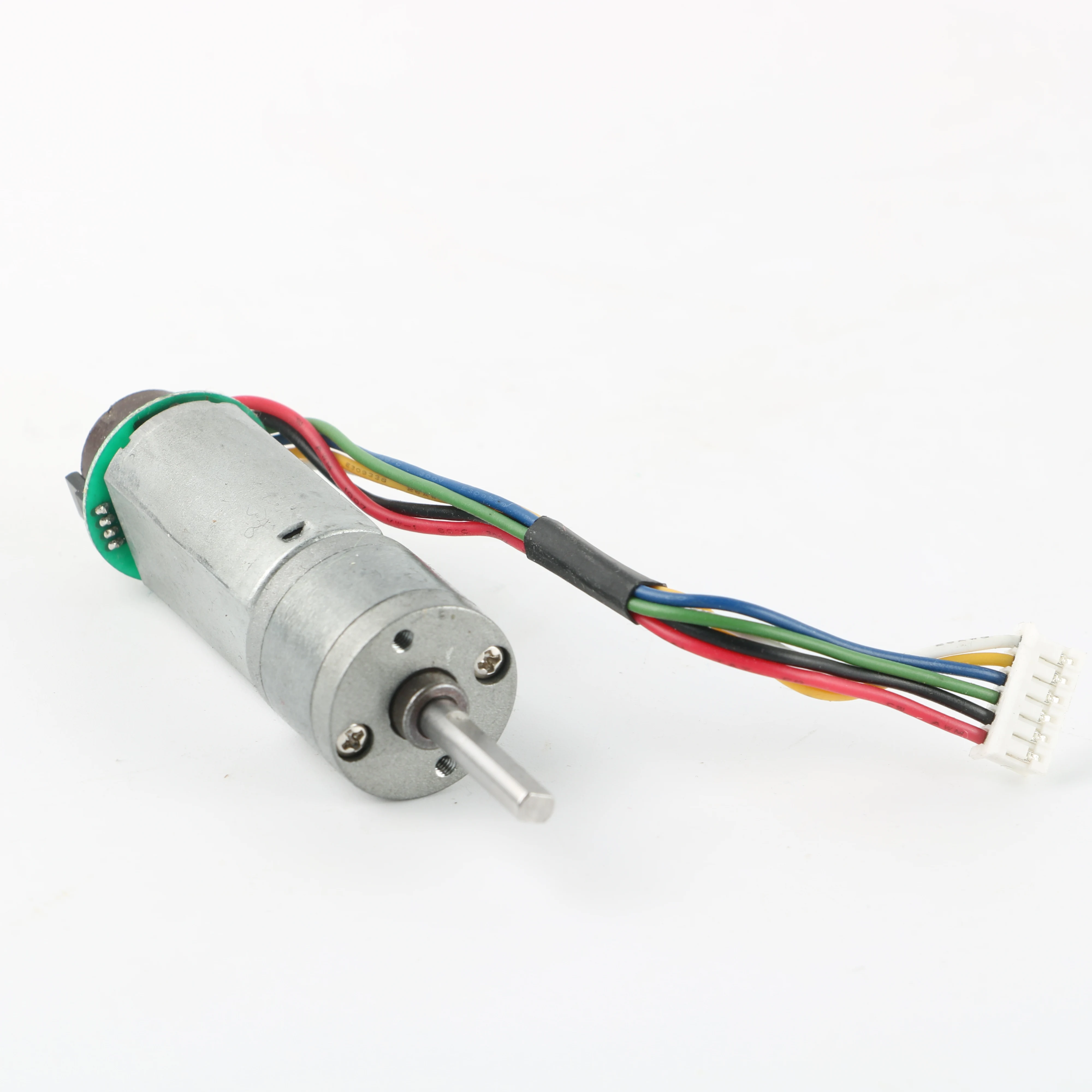

High Torque Brushless Dc Servo Motor Encoder For 1000 Lines Gear Motor With Encoder 48v
- Category: >>>
- Supplier: Shenzhen Xinhe Motor Co. Ltd.
Share on (1600615228482):
Product Overview
Description
Product Parameter
Model | Voltage | No load speed | Noload current | Stall torque | Gear ratio |
Unit: VDC | Unit: rpm | Unit: mA | Unit: kg.cm | ||
20D18011-EN | 12V | 535rpm | 60mA | 0.89kg.cm | 11.7:1 |
20D18029-EN | 12V | 215 rpm | 60mA | 2 kg.cm | 29:1 |
20D18056-EN | 12V | 110 rpm | 60mA | 3.3 kg.cm | 56:1 |
20D180107-EN | 12V | 58 rpm | 60mA | 5.6kg.cm | 107:1 |
20D180205-EN | 12V | 30 rpm | 60mA | 9.7 kg.cm | 205:1 |
20D180455-EN | 12V | 13 rpm | 60mA | 15kg.cm | 455:1 |
20D13031-EN | 12V | 260 rpm | 40mA | 1.3 kg.cm | 31:1 |
20D13078-EN | 12V | 105 rpm | 40mA | 2.8kg.cm | 78:1 |
20D130195-EN | 12V | 42 rpm | 60mA | 6.4 kg.cm | 195:1 |
20D130488-EN | 12V | 16 rpm | 60mA | 11 kg.cm | 488:1 |
Product Name | 20D 20mm Encoder Motor Gear 6v 12v 24v 5kg.Cm High Torque Encoder Precise Control Speed Programmable Motor |
Gear material | Stainless steel |
Noise | Low Noise Level |
Certification | CE/RoHS |
Port Shipment | ShenZhen |
Ship Date | 5-7days |
Other Questions | Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions |
Products Show
Related Products
Company Profile
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
Our Certification
Customer Praise
Packaging And Shipping
FAQ
1.Q: Are you trading company or manufacturer?
A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.
3. Q: what should I provide when I choose gearbox/speed reducer?
A: 1) load condition
2) speed of rotation or speed ratio
3) work circumstance
4) space of installation
4.Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
5.Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.
3. Q: what should I provide when I choose gearbox/speed reducer?
A: 1) load condition
2) speed of rotation or speed ratio
3) work circumstance
4) space of installation
4.Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
5.Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
