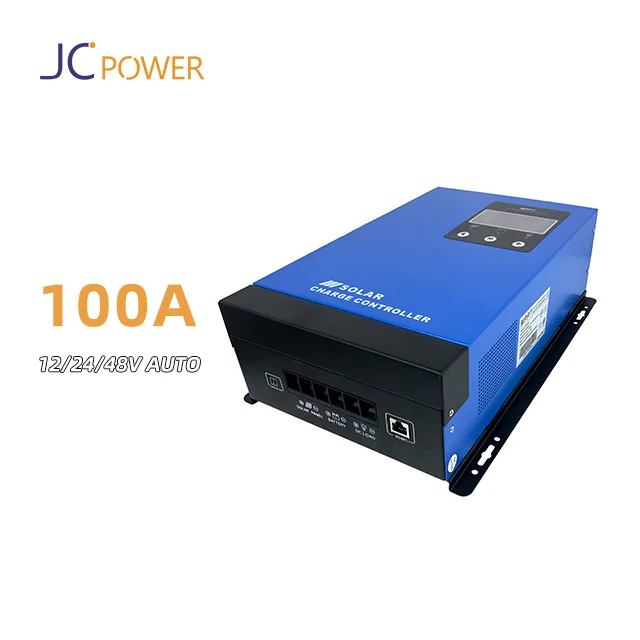

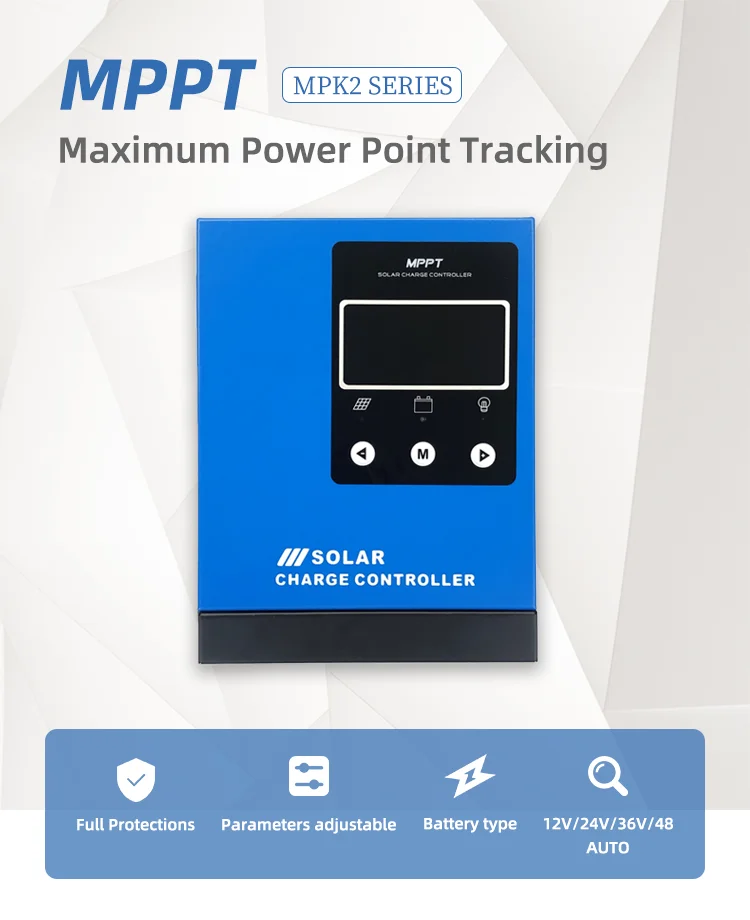

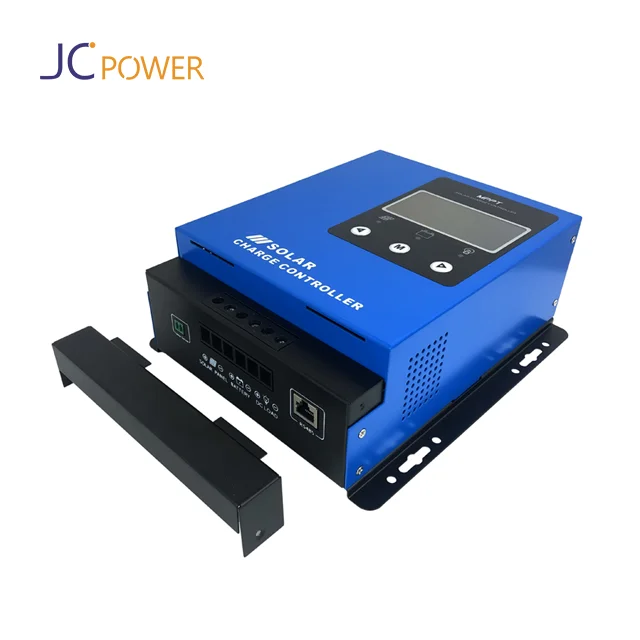

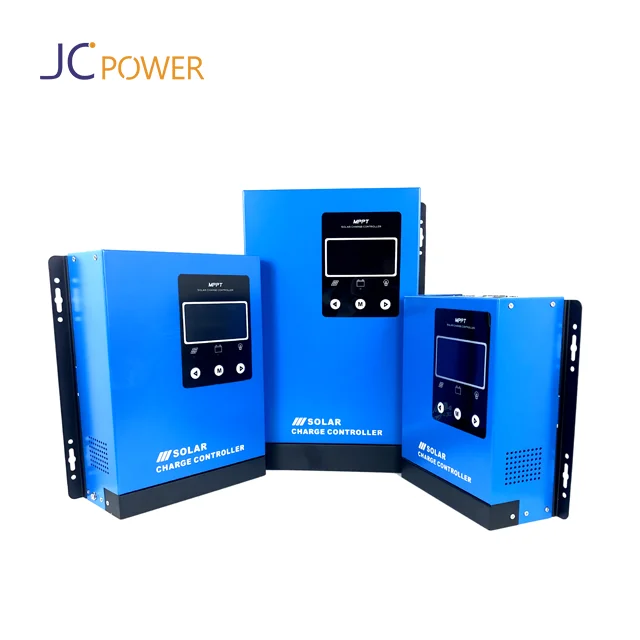

Hybrid Solar Power Inverter MPPT Charge Controller 48V 5KW 100V 110V off grid
- Category: >>>
- Supplier: Hefei Jingchi New Energy Co. Ltd.
Share on (1600615230185):
Product Overview
Description
Products Description
Hefei Jingchi New Energy Co., Ltd.
JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar inverters,controllers and pv solar power generation and battery storage systems, and providing one-stop solutions for pv products.

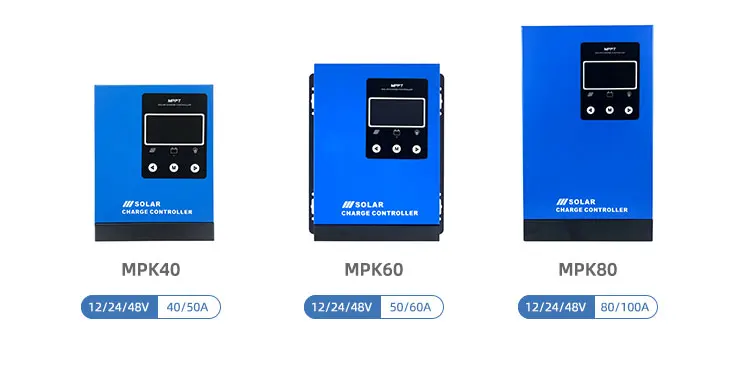

Model | MPK2-40 | MPK2-60 | MPK2-80 | MPK2-100 | ||||||||||||
INPUT | ||||||||||||||||
Maximum PV open circuit voltage | 150V (at the lowest temperature) 138V (at standard temperature of 25℃) | |||||||||||||||
Minimum PV voltage | 20V/40V/60V/80V | |||||||||||||||
Rated charge current | 30A | 40A | 50A | 60A | 60A | 80A | 80A | 100A | ||||||||
OUTPUT | ||||||||||||||||
System voltage | 12V/24/36/48V AUTO | |||||||||||||||
Rated discharge current | 15A | 20A | 25A | 30A | 40A | 40A | 50A | 50A | ||||||||
Own consumption | ≤35mA | |||||||||||||||
MPPT highest accuracy | 99% | |||||||||||||||
Maximum charging efficiency | 97% | |||||||||||||||
Charging control mode | Multi-stage (MPPT, Absorption, Float, Equalization, CV) | |||||||||||||||
Float charge | 13.8V/27.6V/41.4V/55.2V | |||||||||||||||
Absorption charge | 14.4V/28.8V/43.2V/57.6V | |||||||||||||||
Equalization charge | 14.6V/29.2V/43.8V/58.4V | |||||||||||||||
Load disconnection (LVD) | 10.8V/21.6V/32.4V/43.2V | |||||||||||||||
Load reconnection (LVR) | 12.6V/25.2V/37.8V/50.4V | |||||||||||||||
Load control mode | Normal, light control, light and timing control, timing control, reverse light control | |||||||||||||||
Light control point voltage | 5V/10V/15V/20V | |||||||||||||||
Battery type | GEL, SLD, FLD AND USR (default), LifePO4, Lithium batteries customization | |||||||||||||||
APPEARANCE & ENVIRONMENT | ||||||||||||||||

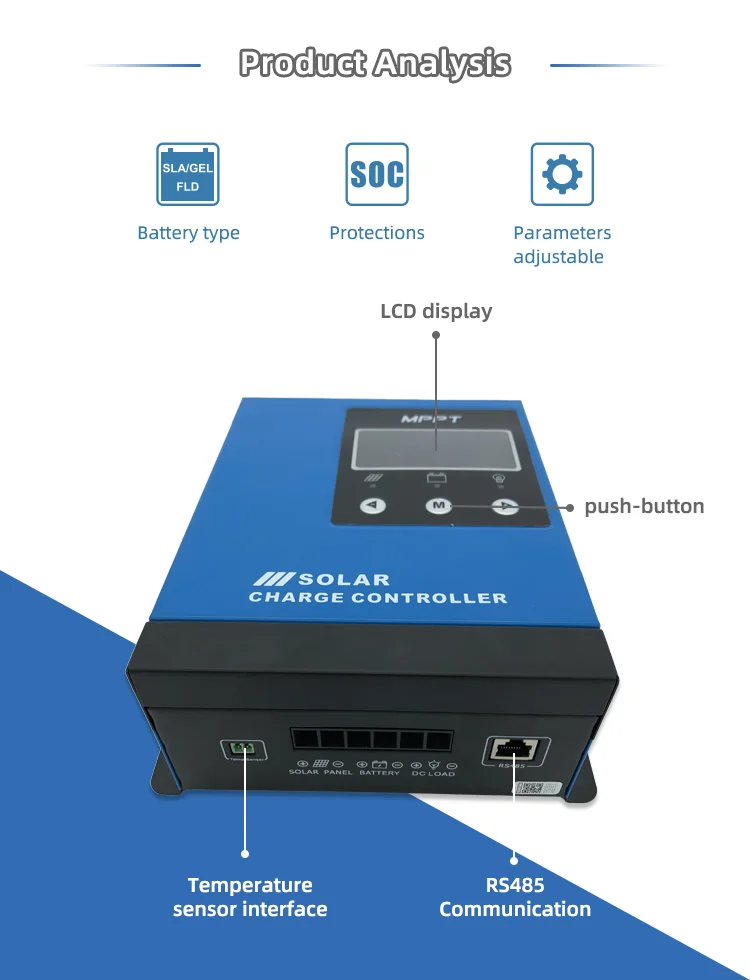

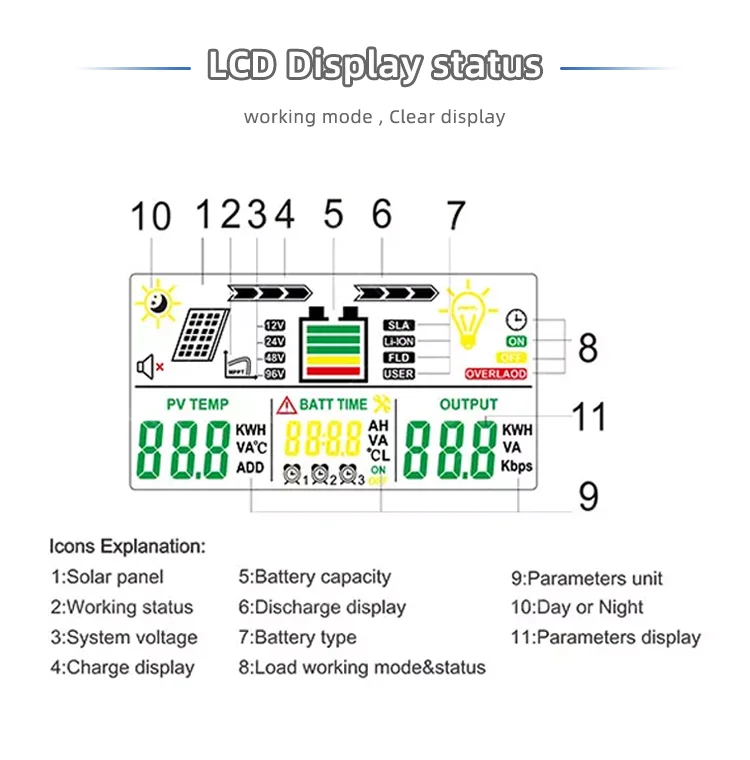

Human interface | LCD with backlight, 3 buttons | |||||||||||||||

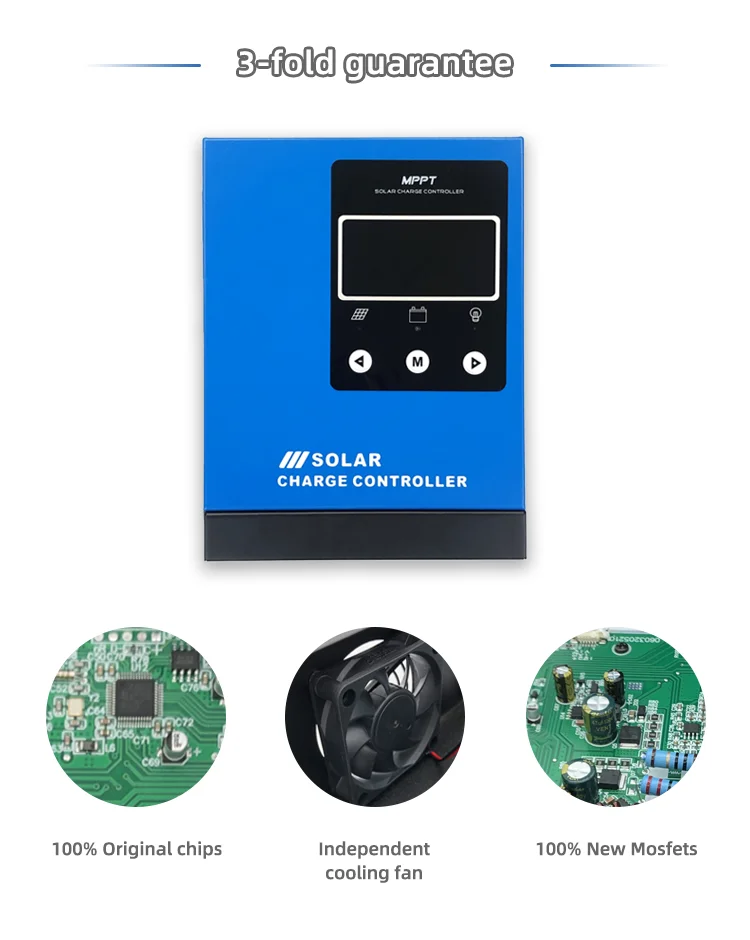

Cooling mode | AL alloy heat sink and cooling fan | |||||||||||||||
Wiring | High current copper terminal ≤25mm2 (3AWG) | |||||||||||||||
Temperature probe | Line length 3m | |||||||||||||||
Communication mode | RS485, RJ45 port | |||||||||||||||
Working temperature range | -20 ~ +55 ℃ | |||||||||||||||
Storage temperature range | -30 ~ +80 ℃ | |||||||||||||||
Humidity | 10% - 90% no condendation | |||||||||||||||
Product Size | 250*190*95mm | 280*210*100mm | 350*230*112mm | 350*230*112mm | ||||||||||||
Product Weight | 2.3kg | 3.5kg | 4.6kg | 4.6kg | ||||||||||||
Company Profile
Why Choose Us
FAQ
Company Information
Q: Do you produce all the products yourselves?

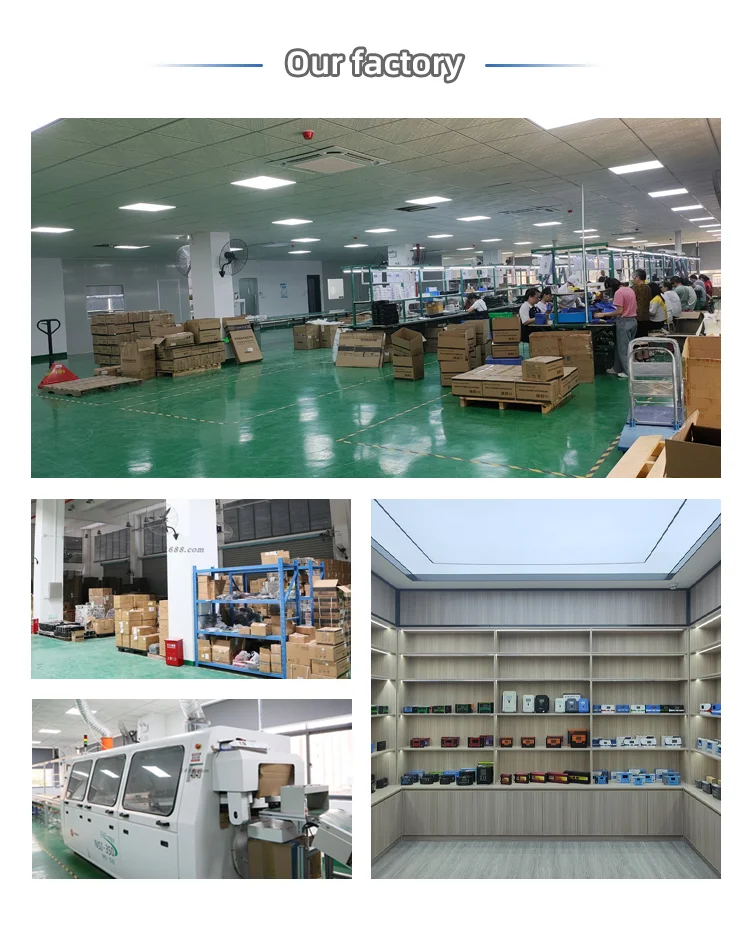

---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
Q. Can I come visit your showroom and factory?
1) Welcome to visit our office and shop directly before establishing long-term business relationship.
2) We'd very like to help you book the hotel and pick you up from the airport, or the railway station. Please inform us if you
have any scheduling in China.
3) Many clients from USA, UK, Germany, Saudi Arab, France, Russia etc has paid a visit in our showroom, so now, is your turn?
Q: Do you produce all the products yourselves?
---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
Q. Can I come visit your showroom and factory?
1) Welcome to visit our office and shop directly before establishing long-term business relationship.
2) We'd very like to help you book the hotel and pick you up from the airport, or the railway station. Please inform us if you
have any scheduling in China.
3) Many clients from USA, UK, Germany, Saudi Arab, France, Russia etc has paid a visit in our showroom, so now, is your turn?
