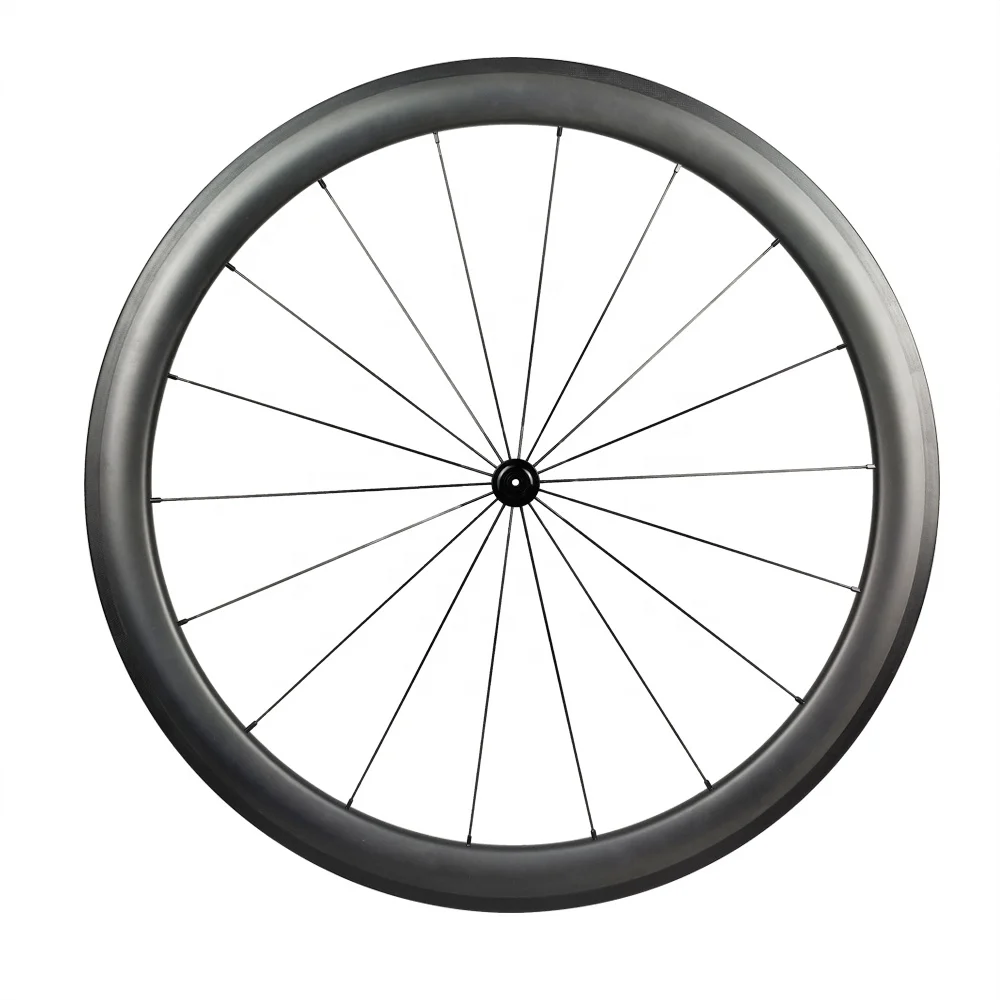

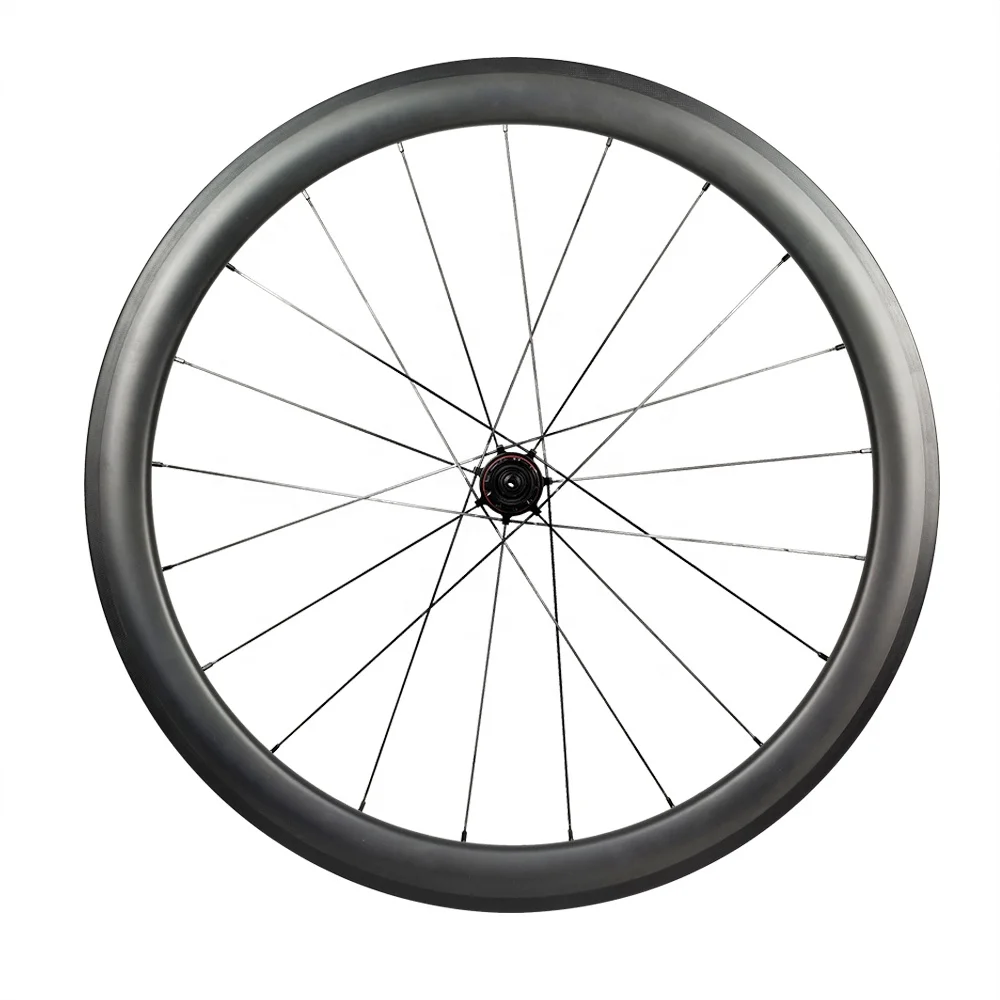

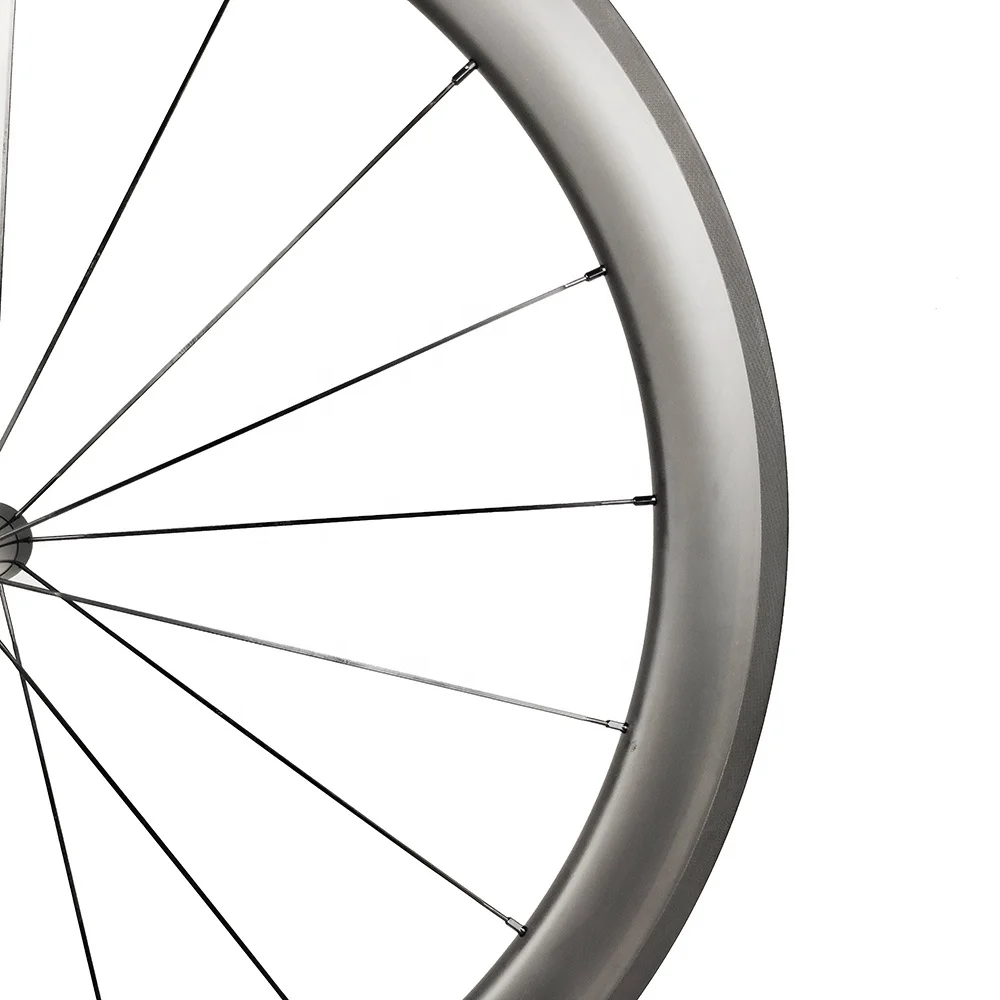

700c Road Clincher Wheels 45mm Asymmetrical Carbon Rim Brake Wheelset Tubeless Ready 2:1 Hub
- Category: Bicycle Wheel >>>
- Supplier: Kuashan 7-Tiger Trade Co. Ltd.
Share on (1600615315280):
Product Overview
Description
Customized Carbon Bicycle Wheelset
Rim: Good rigidity and light weight, using the combination of T700 and T800 materials
Painted, Unpainted.
Hub: All models are relatively popular in the market. After testing by self-runners, they can be used with confidence. 4 pawls, 6 pawls, Ratchet 36T
Spoke brand: Sapim, Pillar, CN.
Decal: Please tell me your design, we can drawing the full image.
Specification
45mm Carbon Road Rim Brake Wheelset Quick Release With SR021 Hub
Features
* Versatile aero wheelset for the modern road bike with tubeless and hookless rim profile
* Optimized tire bed for easy tire installation
* Wide 28mm rim profile creates a better tire interface to be fast on or off the road
* New SR021 ratchet 6 pawls hub is engineered in TW with better seal design for improved durability and quicker response with more better engagement
Product features
* Use: Road, Triathlon,
* Model: 45mm V brake Carbon wheelset
* Rim size: 28"
* Tyre type: Tubeless tires only
* Spokes: 18, 21
* Brake type: V Brake (Horseshoe)
* Tubeless system: Yes
* Max recommended system weight: 115kg (body weight + bike + equipment)
* Max tire pressure: 5bar (73psi)
* Rim: TRF45S
* Inside Rim width: 21mm
* Outside Rim width: 28mm
* Rim depth: 45mm
* Valve hole: SV (6.5mm)

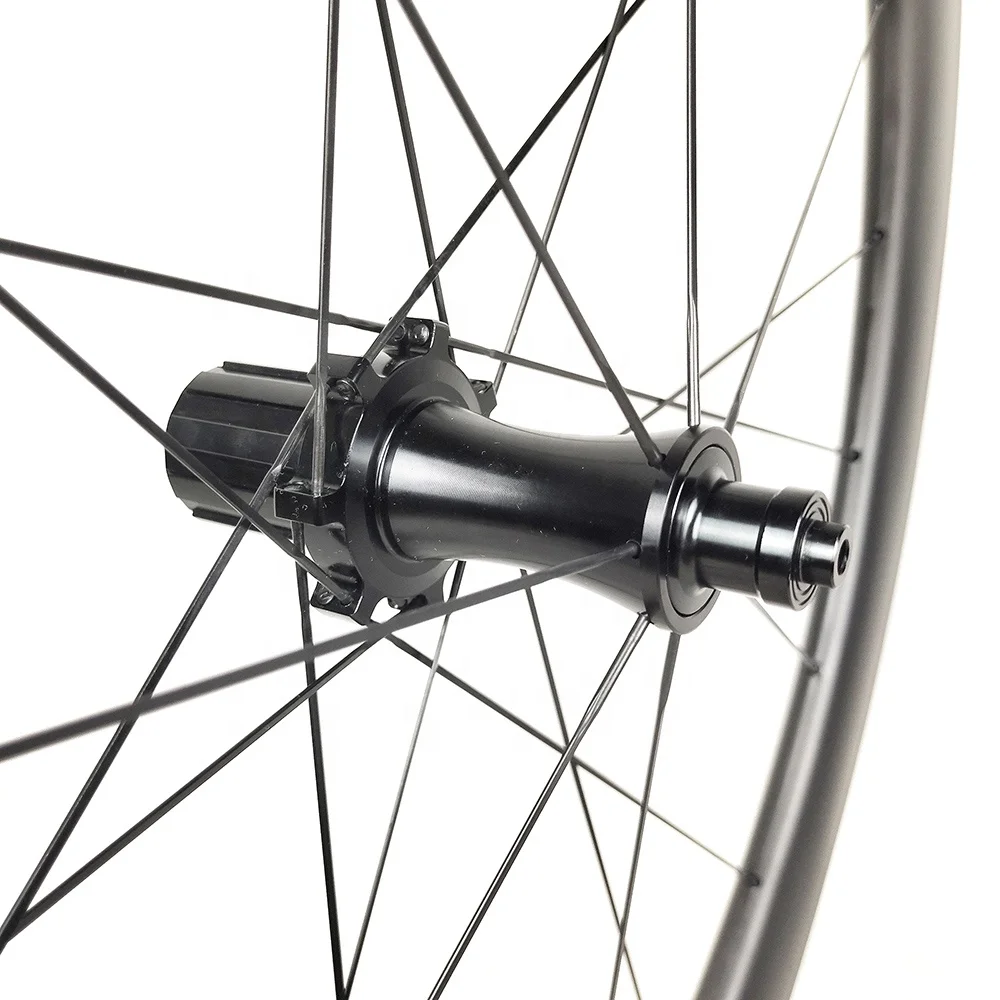

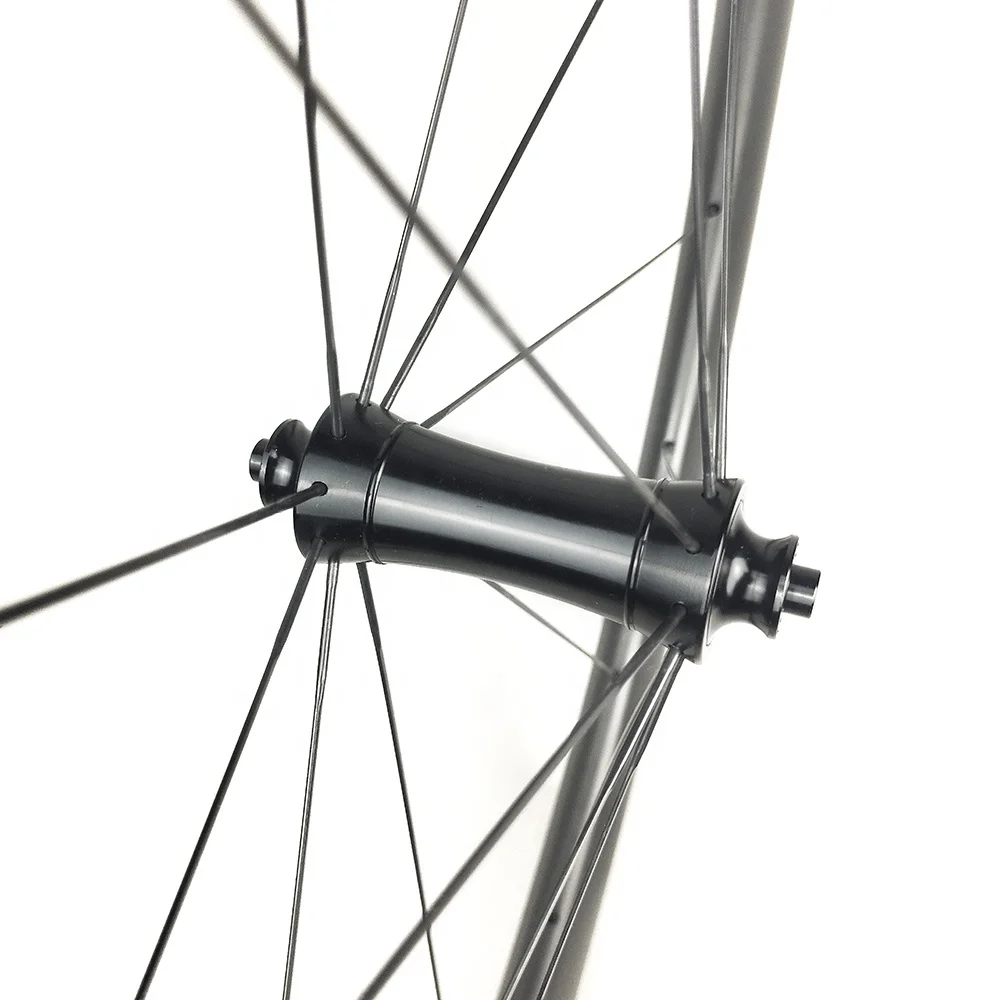

* Hub: SR021, 6 pawls
* Hub axle system:
* front: 10 x 100 mm thru axle
* rear: 10 x 130 mm thru axle
* Spoke type: CX-Ray, Pillar 1420, CN 474
* Spoke pattern: 2-cross
* Nipple type: CN aluminium black
Freehub Compatibility
* Freewheel: 8-/9-/10-/11-speed HG, XDR (Road)
Material
* Rim: Carbon
* Hub: Aluminum
* Spokes: Stainless steel
* Nipples: Aluminium
Color
* black
Weight
* 1270g ( Flying weight)
Scope of delivery
* 1 x Tubeless Disc Wheelset
* 1 x 25/28mm Tubeless Rim Tape
* 2 x Tubeless Valve
* 2 x Spare spokes
Product Description

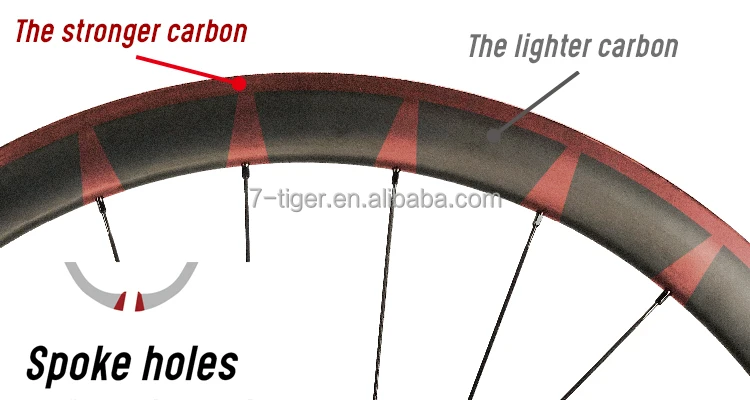

1. Using the frame's construction to allow more reinforcement in the groove and spoke hole areas.
2. Using a unique resin that does not change under prolonged exposure to UV rays.
3. More suitable spoke hole angle, All spoke hole angles must be tailored to the geometry of the hub. If you have a unique wheel
construction, you can request a custom drilling pattern.
4.No residue, not only effectively improves the tightness of the carbon fiber yarn, but also makes the spoke nipple and the spoke
hole more closely combined.
5. One Piece Technology, Has a perfect appearance and enhances the rigidity of the rim.
6. Various carbon fiber appearance options, UD, 3K, 3K twill, 12K, 12K twill, X-weave.
2. Using a unique resin that does not change under prolonged exposure to UV rays.
3. More suitable spoke hole angle, All spoke hole angles must be tailored to the geometry of the hub. If you have a unique wheel
construction, you can request a custom drilling pattern.
4.No residue, not only effectively improves the tightness of the carbon fiber yarn, but also makes the spoke nipple and the spoke
hole more closely combined.
5. One Piece Technology, Has a perfect appearance and enhances the rigidity of the rim.
6. Various carbon fiber appearance options, UD, 3K, 3K twill, 12K, 12K twill, X-weave.
More bike wheels weight
If you want to find more options, please see here
Hub: SR030, SM037, SM046,SR032
Spoke: Sapim race, Sapim cx-ray, Pillar 1420, Pillar Wing 20,
Packing & Delivery
1. Choose your bicyle parts
You can choose the bicycle accessories you like through our catalog. We have a rich carbon fiber accessories.
2. Build the bike wheels
We have professional bicycle wheel assemblers who use pneumatic tools to ensure that each spoke has even tension.
3. Package the Wheels by carton
For long-distance transportation, we use the best carton materials, and the packaging of each wheel is reinforced, so you can purchase with confidence.
Customer feedback
We have many years of sales experience and can provide European repair services. Thank you for your choice.
7-Tiger bicycles will provide you with good service.
7-Tiger bicycles will provide you with good service.
