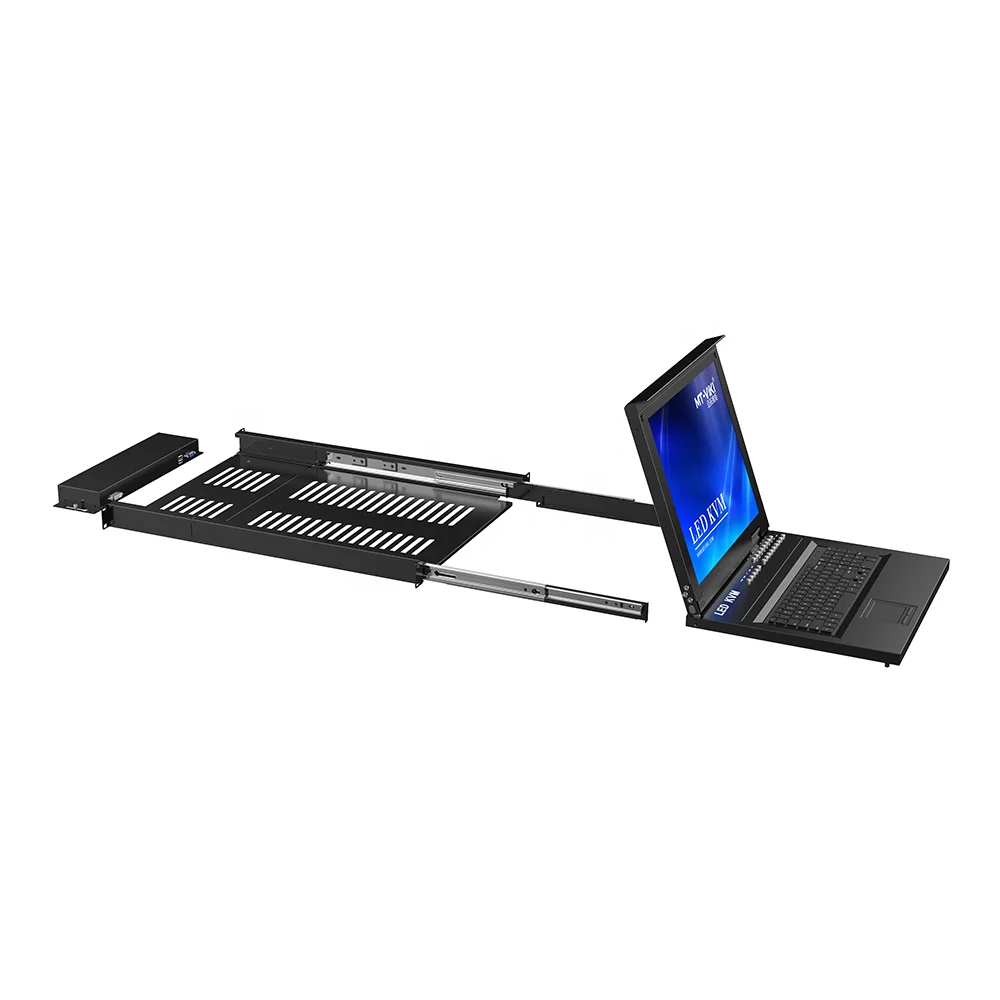

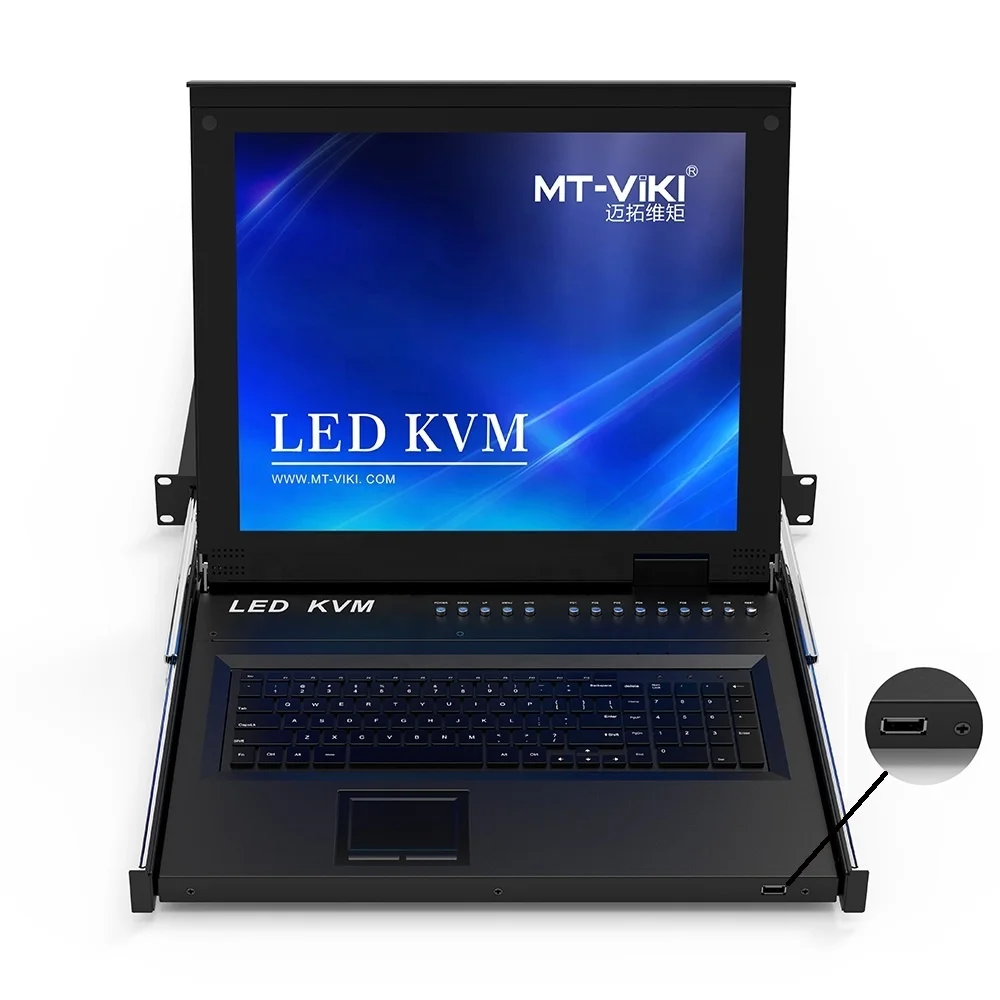

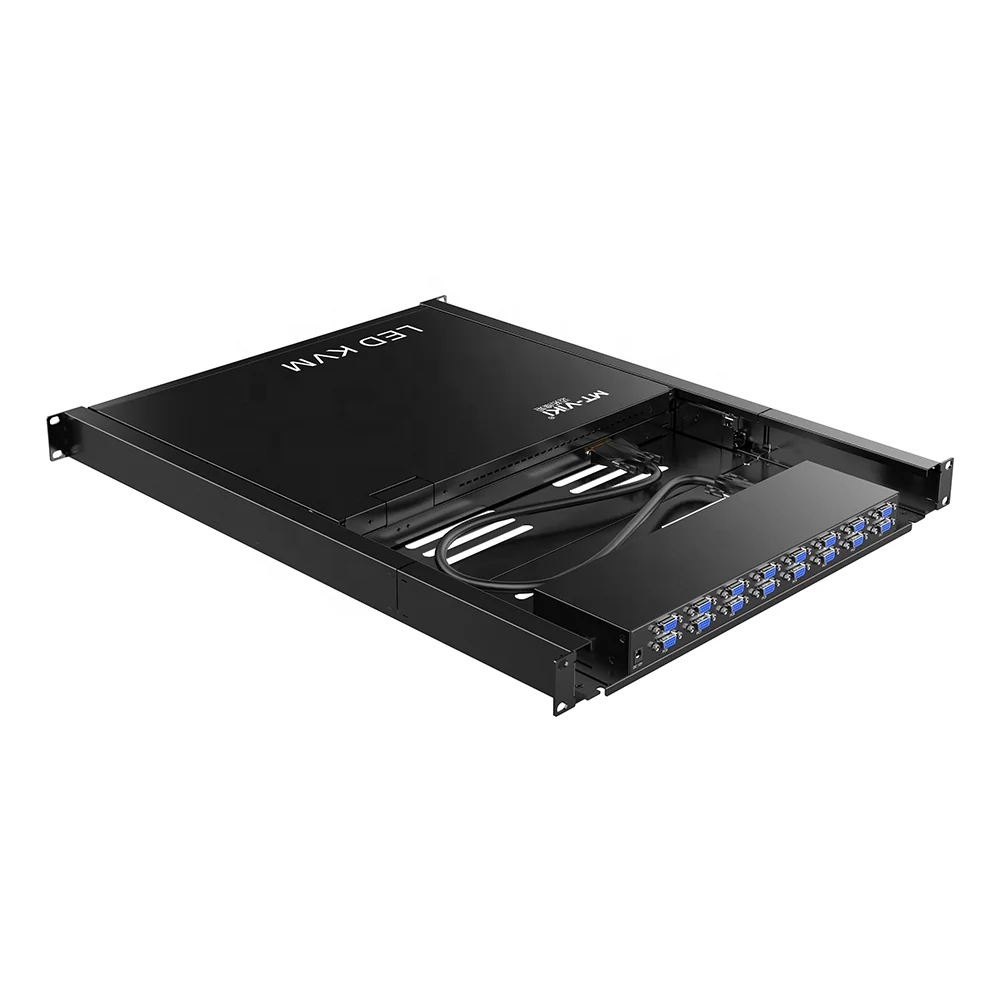

17' LED 16 Port Rack 1U Screen KVM Console

Product Overview

Description





Product features

1.17 inch display / mouse / keyboard / smart switcher
2. Excellent video performance, the best resolution is up to 1280*1024
3. Support password protection and search for PC server name
4. LED liquid crystal display adjustment function, rail with automatic locking device
5. Support complete DDC2B function, can also detect screen model without switching computer
6. Support server input with built-in PS/2 keyboard and mouse
7. Drawer type installation design, can adjust the length to fit the rack space
8. No additional software required, and can be switched via panel buttons, hotkeys, or OSD on-screen menu functions
9.98-key keyboard and TouchPAD touch-sliding mouse
10. Support various server operating systems: Dos/W indows series, Linux, Unix, Mac 0s8.6/9/10, SUN Solaris 8/9
11. Made of aluminum shell, easy to install, lightweight, portable design
12. Data only needs to pass the standard (full pin 24+5) DVI line transmission



Product specification

Performance Parameter		Product Specification
		1708UL	1716UL
Liquid crystal display	Screen style	XGA TFT LED
	Screen size	4:3 17inches	4:3 17inches
	Resolution	1280*1024	1280*1024
	Color display	16.7M	16.7M
	Brightness	300(cd/m2)	300(cd/m2)
	Contrast	1000/1	1000/1
	Pixel interval	0.264(H)x0.264(W)	0.242(H)x0.242(W)
	Life span	LED MTBF>50000H,Backlight MTBF>30000H
	Power	Max.24W	Max.24W
Built-in Keyboard	Keyboard design	98 keys	98 keys
	Compatibility	IMB/AT,support Microsoft Windows9X,/Me/nt/2k/XP
	Keyboard interface	PS/2
	Life span	>1.000.000times
Mouse touch pad	Hardware interface	PS/2
	Operate system	Support Me/NT/2K/XP
	Life span	>1.000.000times
Power input	DC 12V
Shell color	Black
Shell material	Aluminum alloy
Dimmension	600x400x45mm
Rack mounting depth	600mm-810mm(select proper hang ring)
Working temperature	-45-60℃
Storage temperature	-20-65℃
