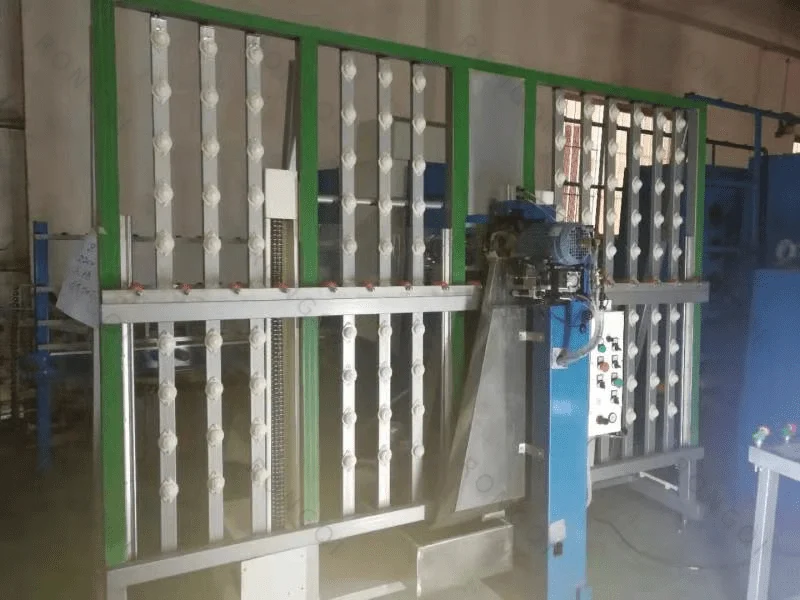

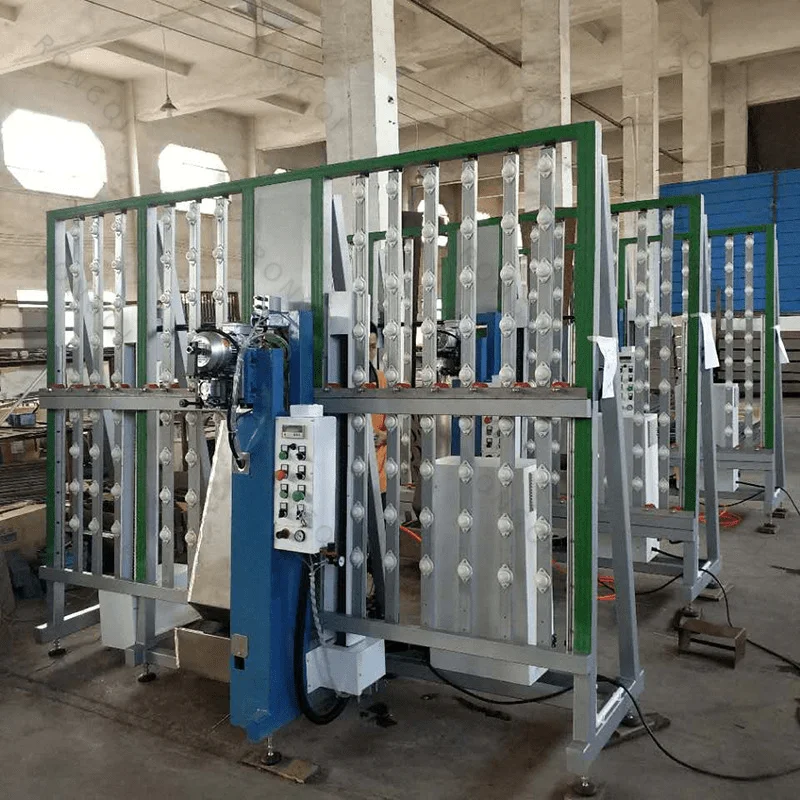

Vertical High Precision CNC Automatic Furniture Slate Building Appliances Glass Drilling Machine
- Category: >>>
- Supplier: Jinan Rongqi Intelligent Technology Co. Ltd.
Share on (1600615396255):
Product Overview
Description
Product Overview
Working method
Furniture Slate Building Appliances Drilling Machine Horizontal CNC Glass Drilling Machine Fully Automatic Glass Drilling Machine
1. first input the circular data of the product to be processed into the program2. place the product to be processed on the drilling platform surface, align with the positioning points on both sides of the
platform, press the pneumatic button, the equipment will automatically move the position of the drill pipe according to the program.
3. And complete the drilling, and then remove the glass manually, two pieces of glass can be placed on the work table, and the two pieces of glass can be processed alternately.
FEATURES AT A GLANCE

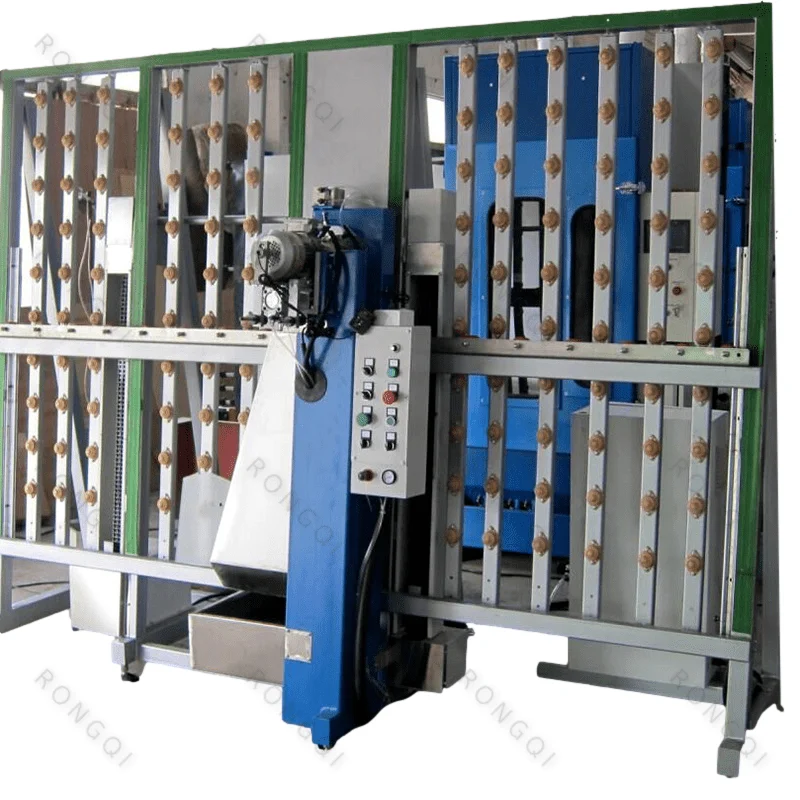

Right elevation

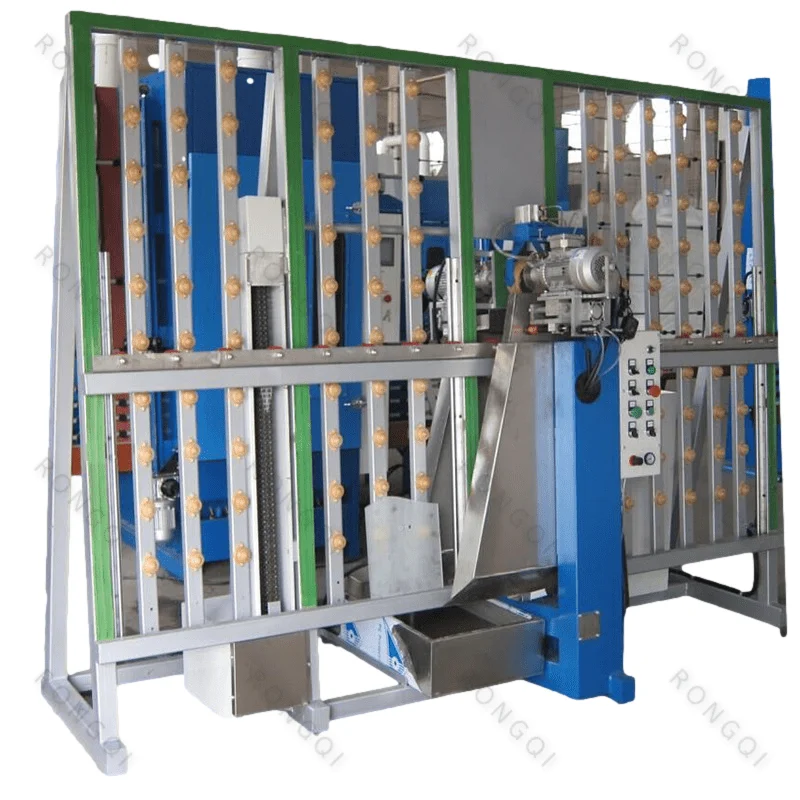

Left elevation

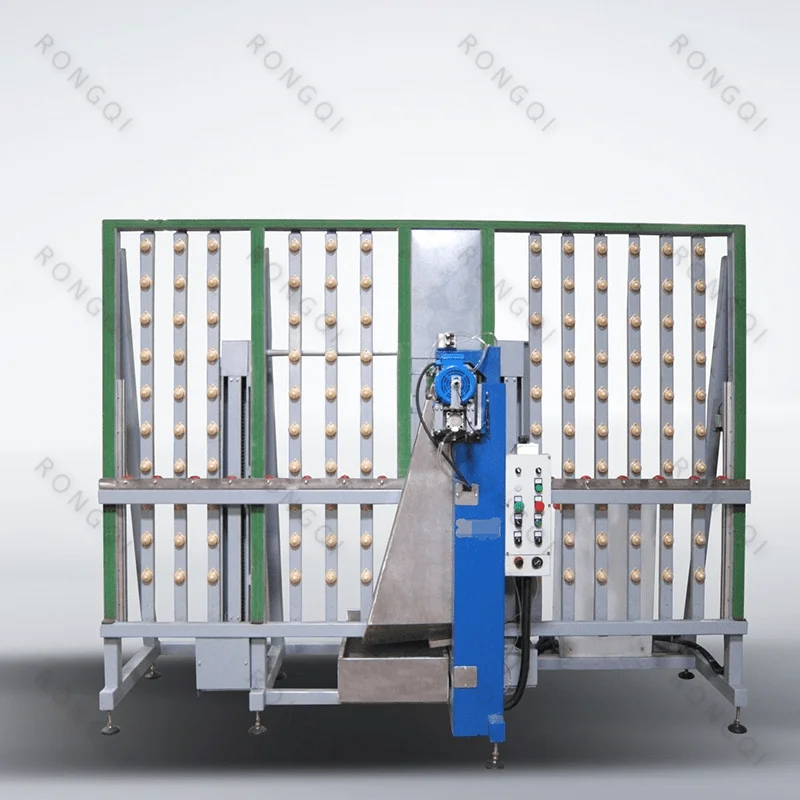

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Drilling diameter | 5-60mm | ||
2 | Thickness of processed glass | 3-19mm | ||
3 | Maximum drilling stroke | x-axis 1100mm, y-axis 700mm | ||
4 | Working platform height | 900mm | ||
5 | Drilling speed | ≤7-10s | ||
6 | maximum number of automatic drilling | 20pcs | ||
7 | Hole position deviation of batch products | ≤±0.13mm | ||
8 | Maximum size of processed glass | 800x1200mm |
