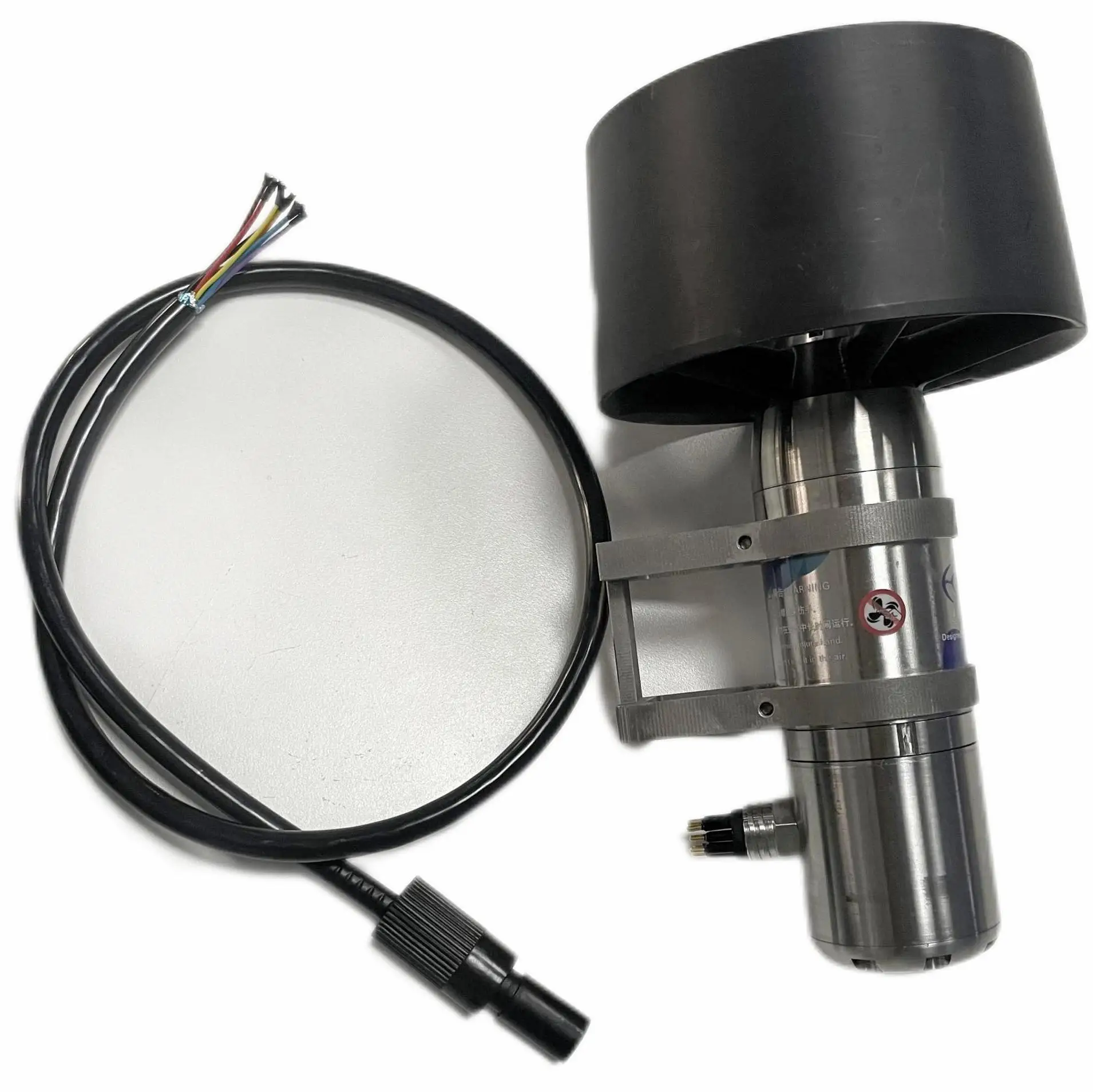

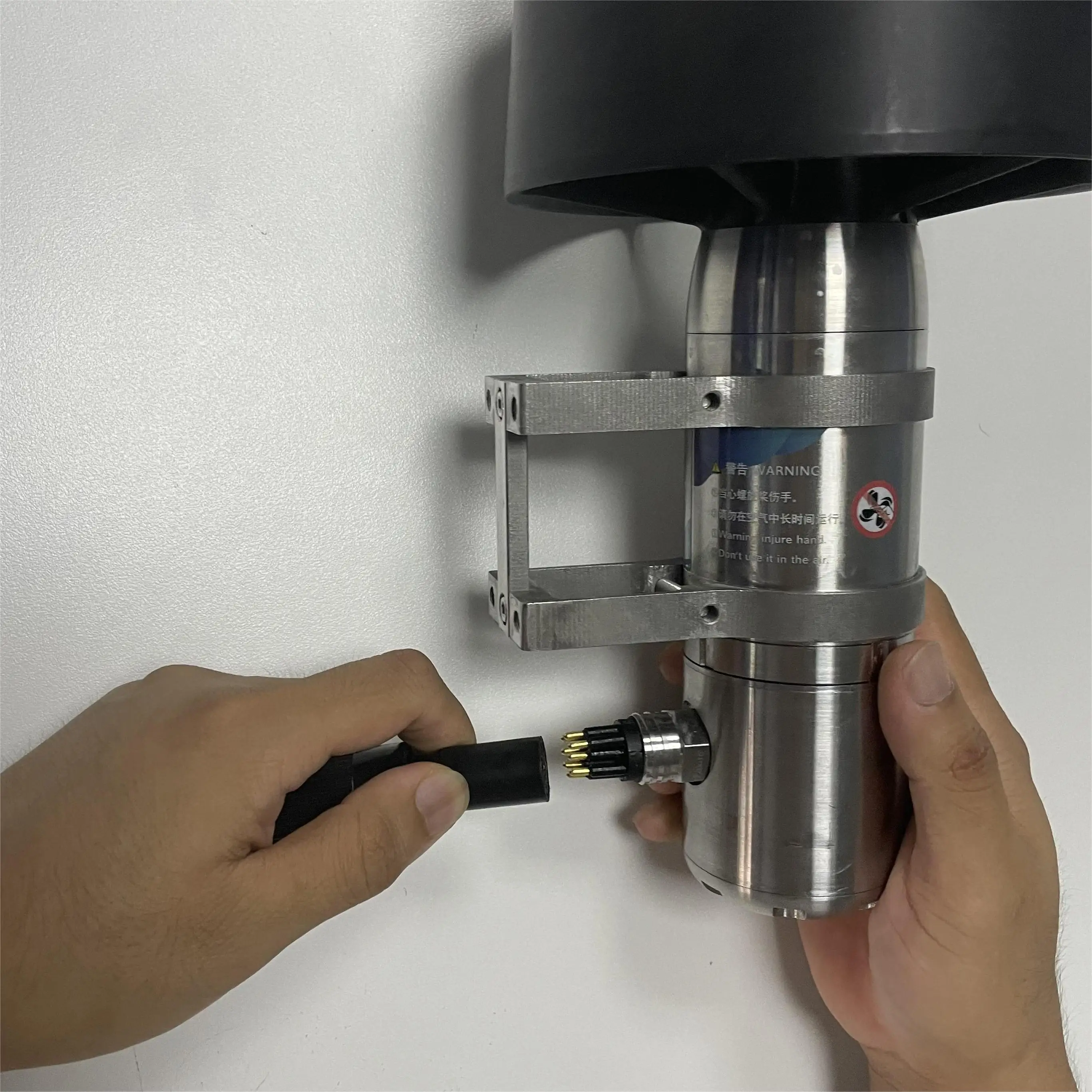

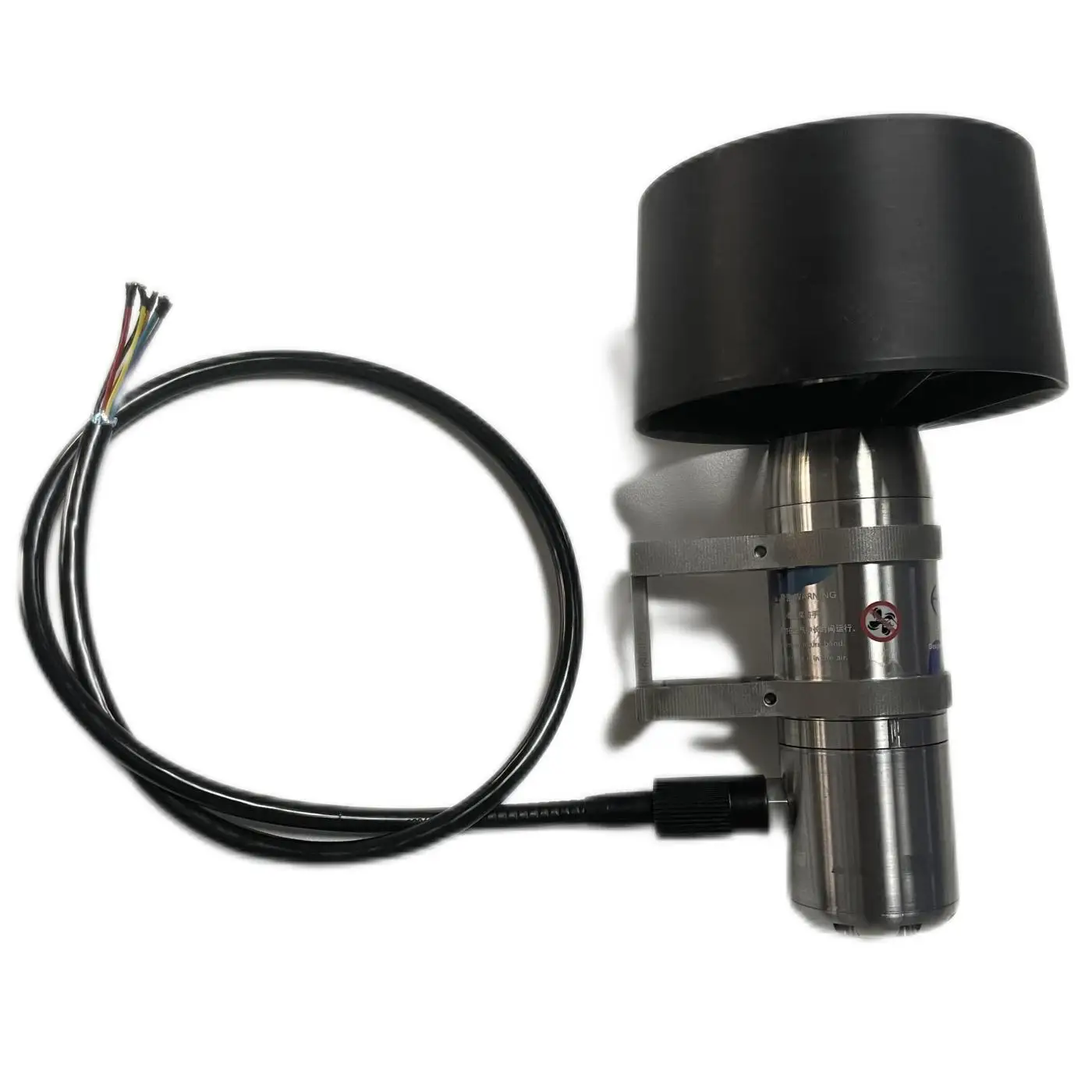

2022 Innovative Products T120 250 26kgf 300m depth Underwater Thruster brushless motor for ROV/AUV/USV
2022 Innovative Products T120-250 26kgf 300m depth Underwater Thruster brushless motor for ROV/AUV/USV
2022 Innovative Products T120-250 26kgf 300m depth Underwater Thruster brushless motor for ROV/AUV/USV
2022 Innovative Products T120-250 26kgf 300m depth Underwater Thruster brushless motor for ROV/AUV/USV

2022 Innovative Products T120 250 26kgf 300m depth Underwater Thruster brushless motor for ROV/AUV/USV

Share on (1600615406473):


Price:$2,400.00

Quantity:


Product Overview

Description



Product Description




Features
1. The maximum thrust is 26kgf, and the rated depth is 300 meters.
2. Fully sealed underwater thruster with oil pressure compensation
3. 316L stainless steel pressure housing, more resistant to seawater corrosion
4. Efficient fluid simulation structure, smaller volume, greater thrust
5. High-power brushless motor, reliable and durable


Specification


Model
Underwater thruster T120-250-48/T120-250-300EI
Model version
Underwater thruster T120-250-48 (2022V1.1)/T120-250-300EI (2022V1.1)
Model description
Underwater thruster with propeller diameter 120mm and thrust about 250N
Seal structure
double compensation low resistance rotary dynamic seal structure
Oil pressure compensation
Yes
Maximum mooring thrust
26.0kgf (forward) 18.0kgf (reverse)
Rated voltage
T120-250-48 48VDC T120-250-300EI 300VDC
Operating voltage
T120-250-48 44.4-50.4VDC T120-250-300EI 300-400VDC
Maximum power
T120-250-48 1280W T120-250-300EI 1260W
Motor type
outer rotor brushless motor
Number of motor pole pairs
10
Spindle diameter
10mm
Spindle material
stainless steel 316L
Propeller diameter
120mm
Propeller configuration
CW/CCW
Propeller material
stainless steel 316L
Deflector material
POM (polyformaldehyde)
Thruster shell material
316L stainless steel
Cable sheath material
TPU (Thermoplastic Polyurethane)
Cable specifications
outside diameter 10mm length 1.5m core 3 * 3.3mm²
Material of mounting base
stainless steel 316L
Other parts material
stainless steel 316L
Driver
T120-250-48:External T120-250-300EI:Internal
Depth Rating
300m (other depths can be customized)
