Product Overview

Description


Product Description

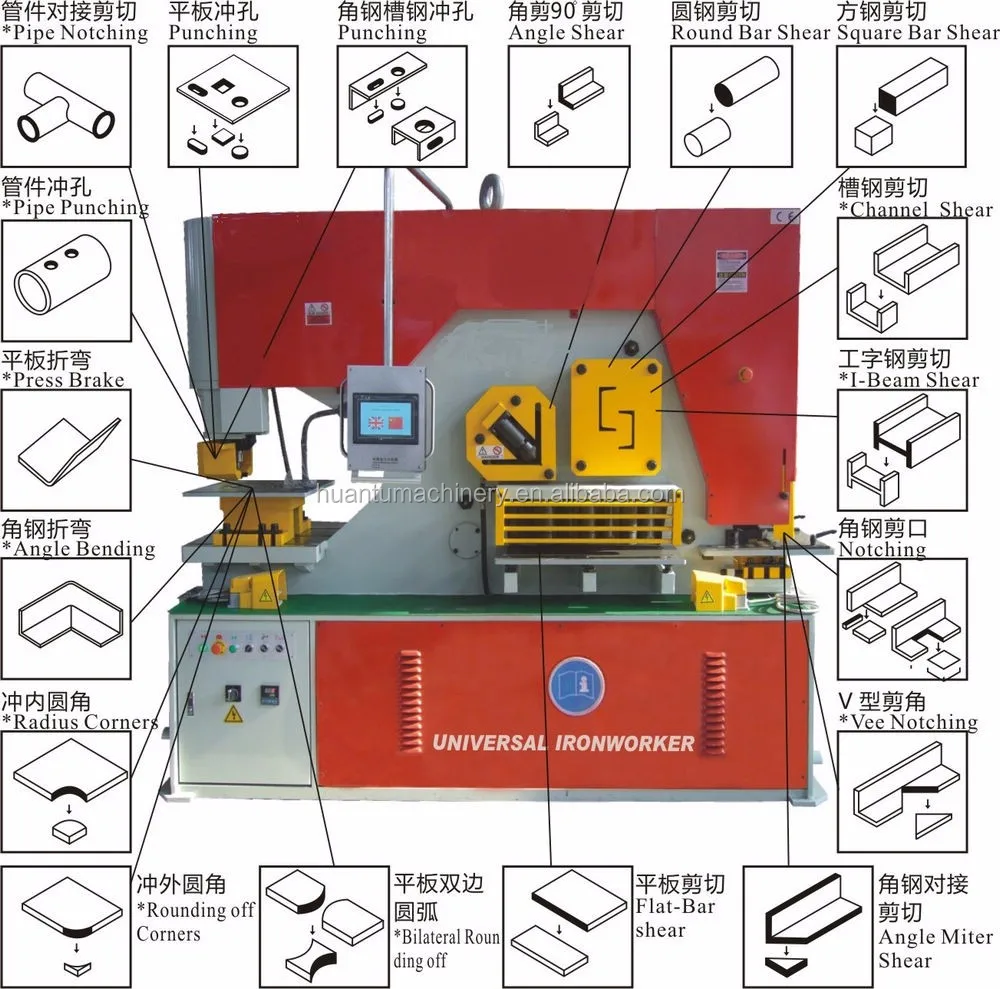

The multi functional iron worker(Q35series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. It has another special function, that is , it can also bend the plate below 500mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety , function, capability and maintenance.

\t
Model
\t
       Q35Y-16
(IW-60)
\t
       Q35Y-20        ( IW-90)
\t
    Q35Y-25       (IW-120)
\t
      Q35Y-30         (IW-140)
\t
Working pressure（KN）
\t
600
\t
900
\t
1200
\t
1400
\t
Max. cutting thickness（mm）
\t
16
\t
20
\t
25
\t
26
\t
Max. cutting length(mm)
\t
400
\t
480
\t
600
\t
600
\t
Tensile strength of sheet metal
\t
≤450
\t
≤450
\t
≤450
\t
≤450
\t
PUNCHING METRIC(mm)
\t

\t

\t

\t

\t
Max. Capacities
\t
25×16
\t
30×20
\t
35×25
\t
38×26
\t
Max. Stroke Length
\t
80
\t
80
\t
80
\t
80
\t
Throat Depth Standard
\t
305
\t
355
\t
400
\t
600
\t
Working Height
\t
1030
\t
1084
\t
1142
\t
1209
\t
SHEARING
\t

\t

\t

\t

\t
Flat Bar
\t
250×16
\t
330×20
\t
300×25
\t
355×30
\t
Alternative
\t
400×8
\t
480×10
\t
600×16
\t
600×20
\t
Blade Length
\t
410
\t
485
\t
620
\t
610
\t
Working Height
\t
890
\t
894
\t
891
\t
897
\t
ANGEL CUTTING
\t

\t

\t

\t

\t
At 90°cut
\t
125x125×12
\t
140x140×12
\t
160×160x16
\t
180x180×16
\t
At 45°Mitre
\t
70×10
\t
70×10
\t
70×10
\t
70×10
\t
Working Height
\t
1130
\t
1139
\t
1200
\t
1220
\t
SECTION CUTTING
\t

\t

\t

\t

\t
Round / Square Bar
\t
45
\t
50
\t
60
\t
65
\t
Channel / I bar
\t
130×65
\t
160×88
\t
200x100
\t
280×122
\t
T bar
\t
90×12
\t
90×12
\t
90×12
\t
90×12
\t
NOTCHING
\t

\t

\t

\t

\t
Material Thickness
\t
10
\t
13
\t
14
\t
16
\t
Width
\t
57
\t
57
\t
57
\t
57
\t
Depth: Vee -Rect.
\t
60-90
\t
60-90
\t
60-90
\t
60-90
\t
Working Height
\t
890
\t
883
\t
886
\t
898

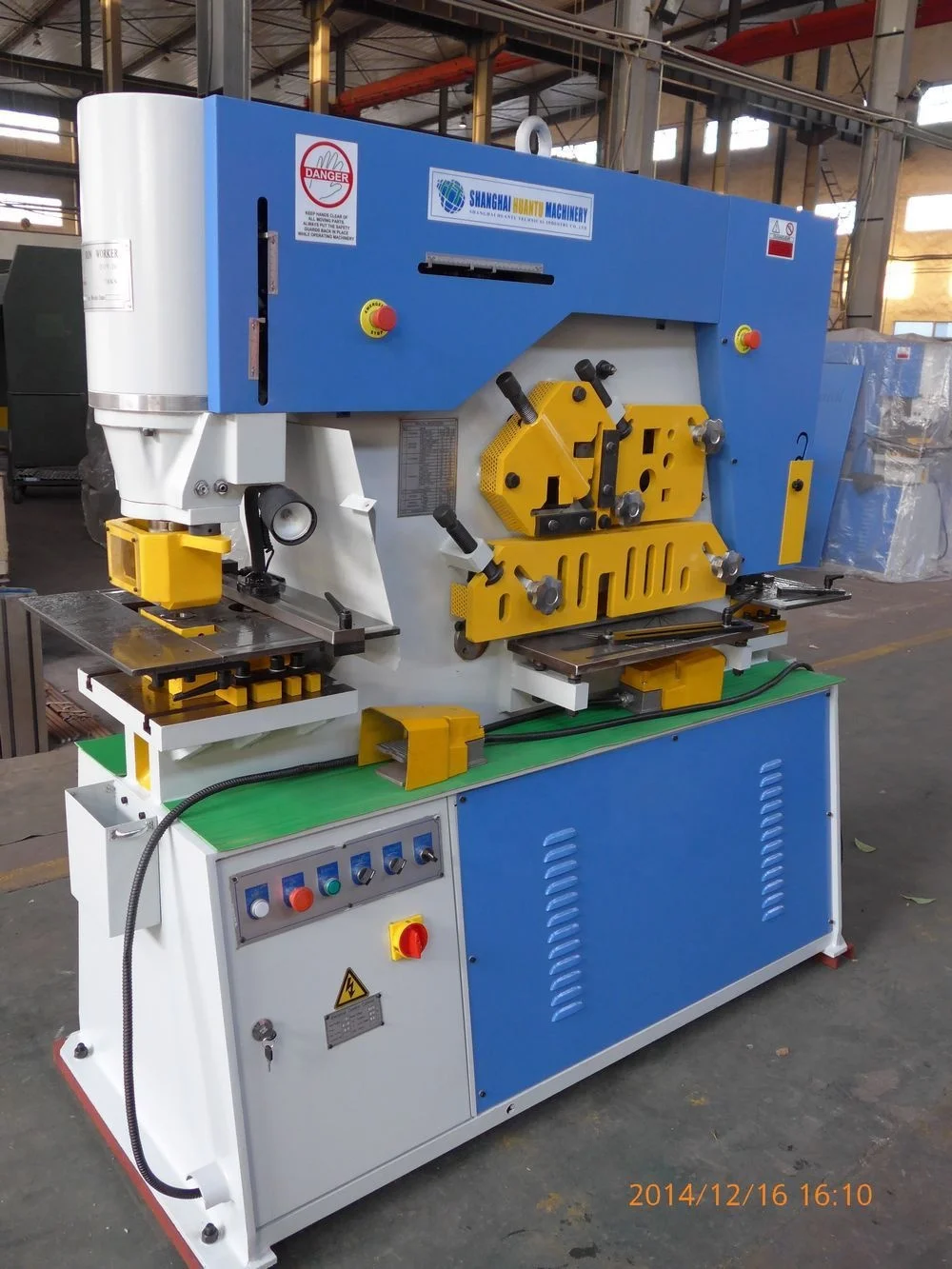

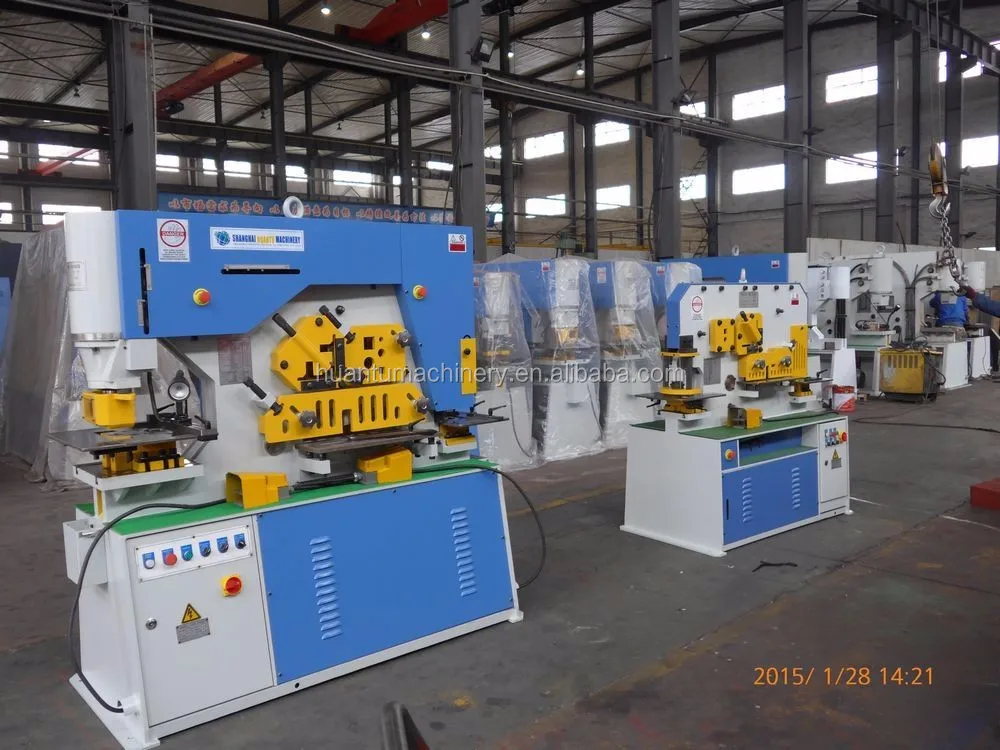

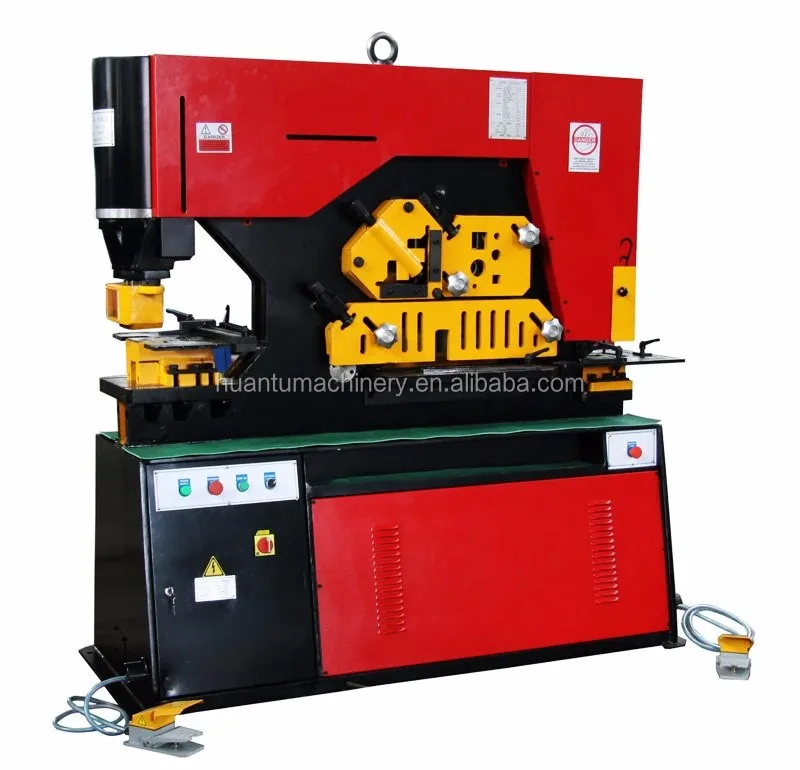

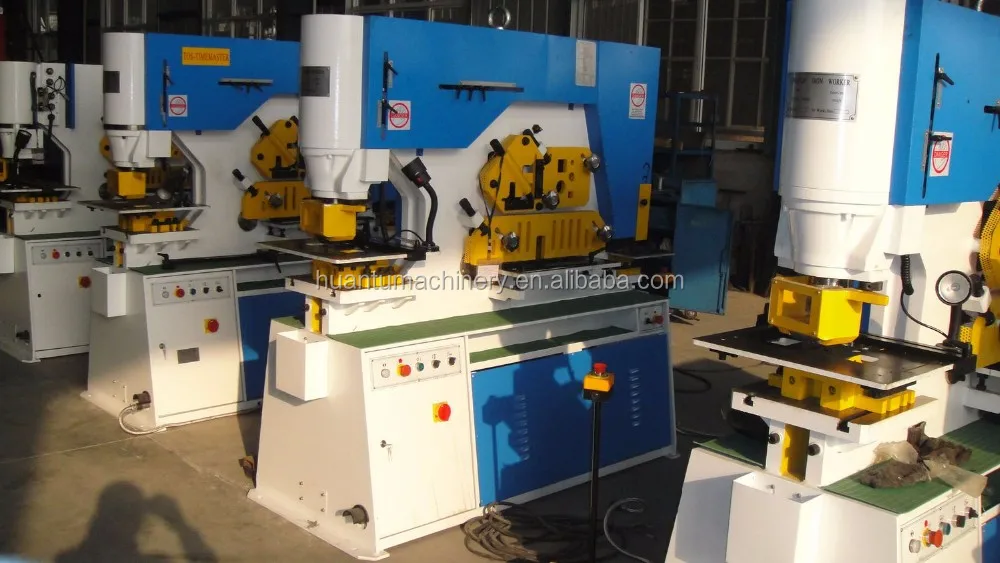

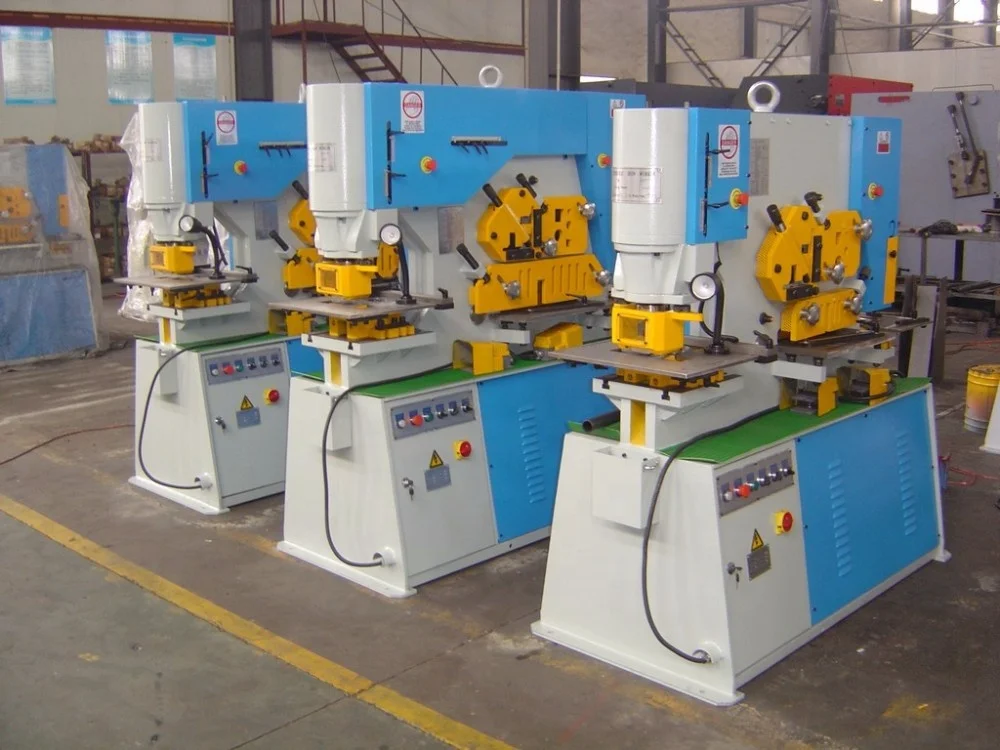

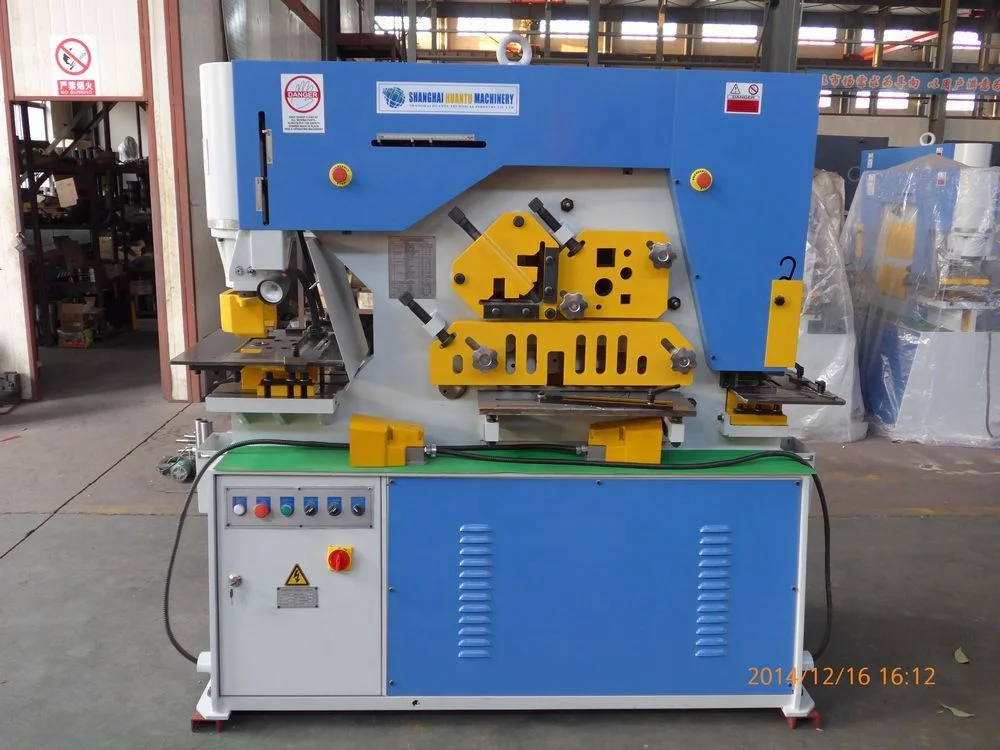

Detailed Images
Packing & Delivery
\t
Packaging
\t
Dimension
\t
( L* W* H )2355×960×2090 mm
\t
Weight
\t
4.8 T
\t
  Package
\t
Iron pallet and waterproof clothes
\t
HOW TO CHOOSE  CONTAINER
\t

For small and medium size machines ( machine height less than 2600mm ) we can use folklifter to load into container and unload the machine from the container. Container type we can choose 20' feet or 40'feet container
